Imperial (Middleby)  |  Spec Series  |  SKU: IHR-4-1HT

Imperial (Middleby) IHR-4-1HT Spec Series Gas Ranges

$11,060.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

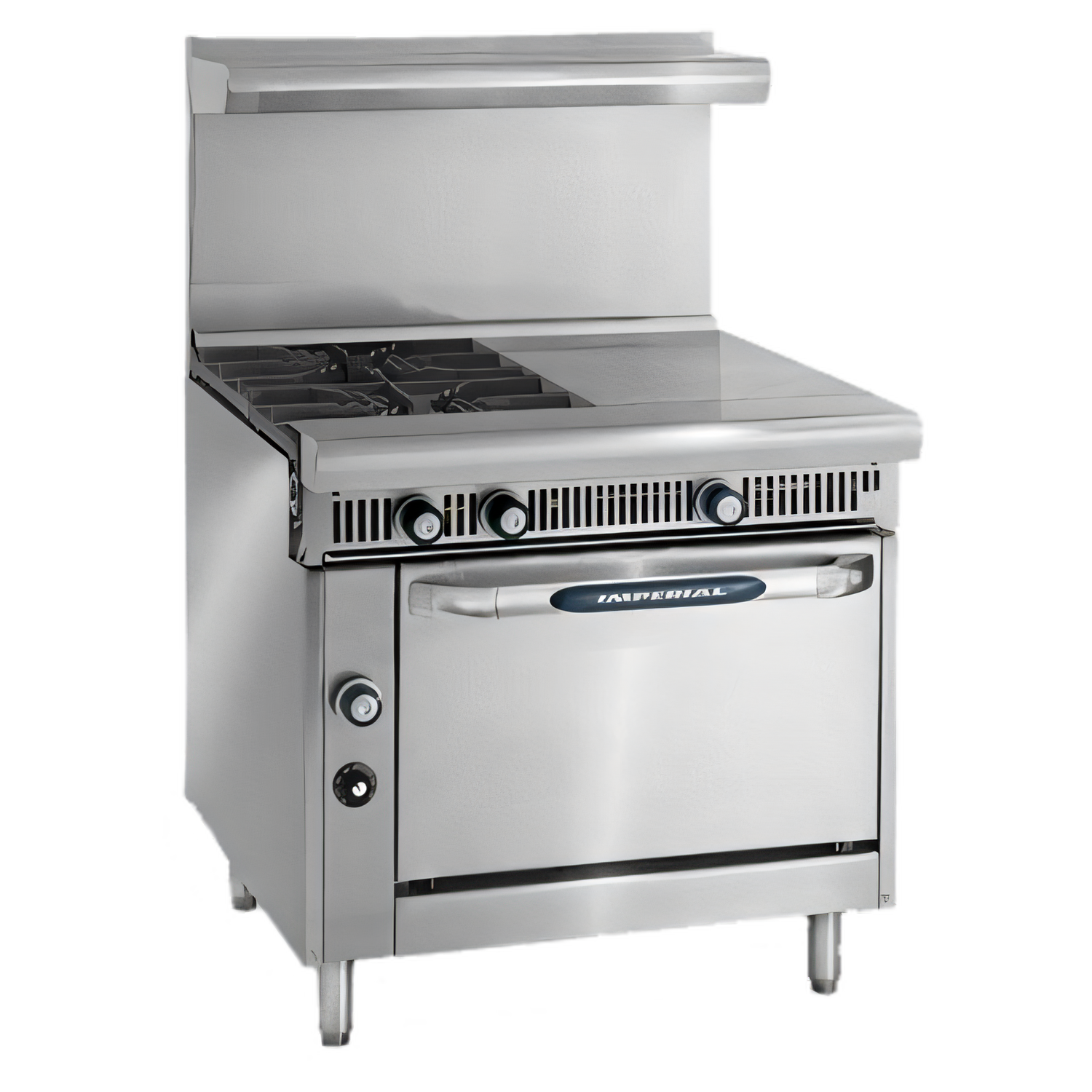

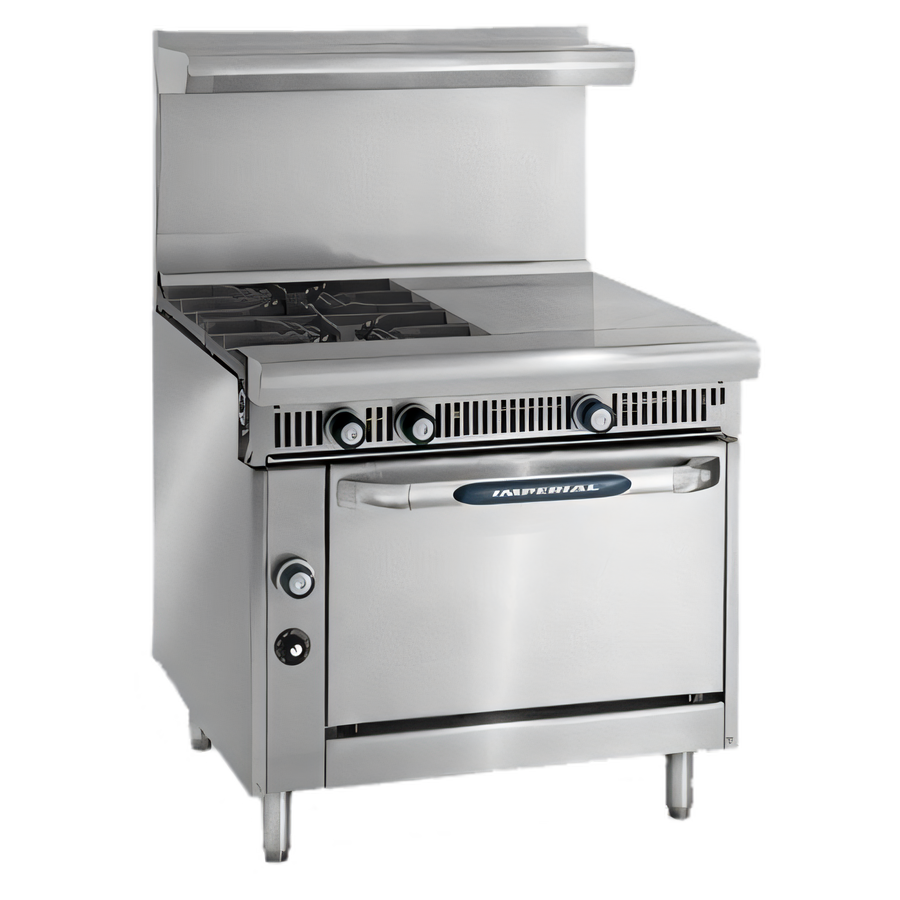

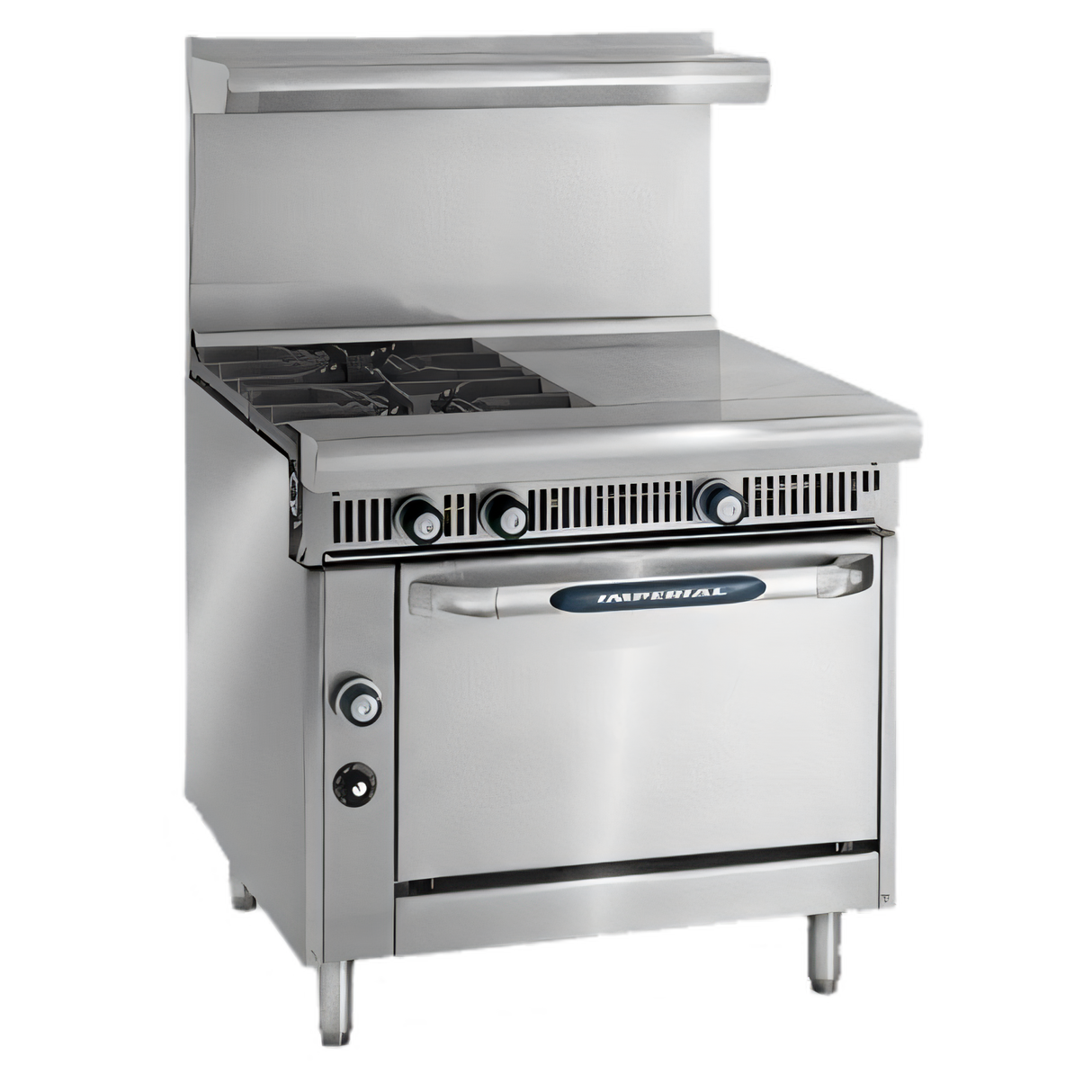

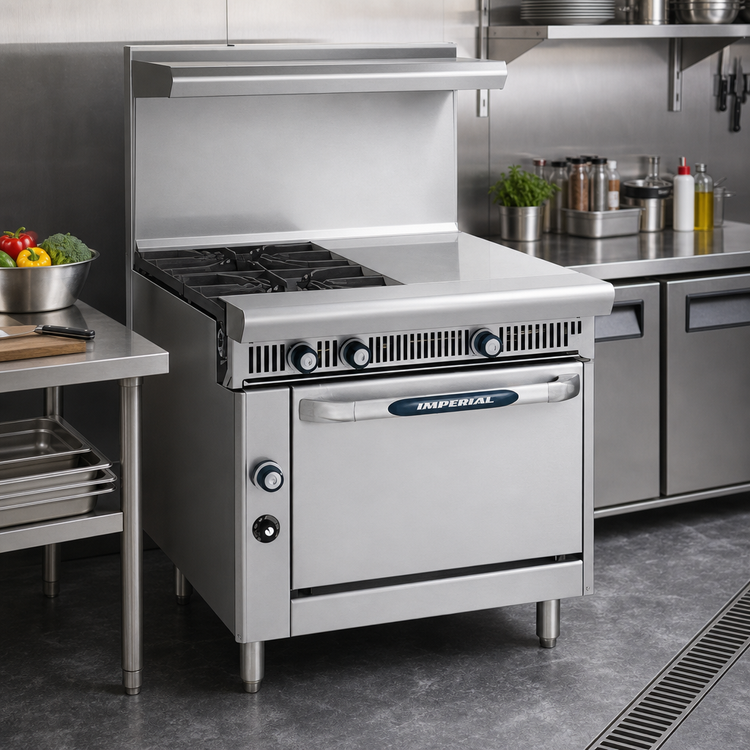

Imperial Spec Series 36" Gas Heavy-Duty Range – 4 Burners, 12" Hot Top, Standard Oven

Model IHR-4-1HT  |  230,000 BTU total output

Engineered for kitchens that demand uncompromising performance, the Imperial Spec Series 36" range combines four high-powered open burners, an even-heat 12" hot top and a full-size standard oven—delivering the flexibility to sauté, sear, simmer, hold and bake in one compact footprint.

Cooktop Performance

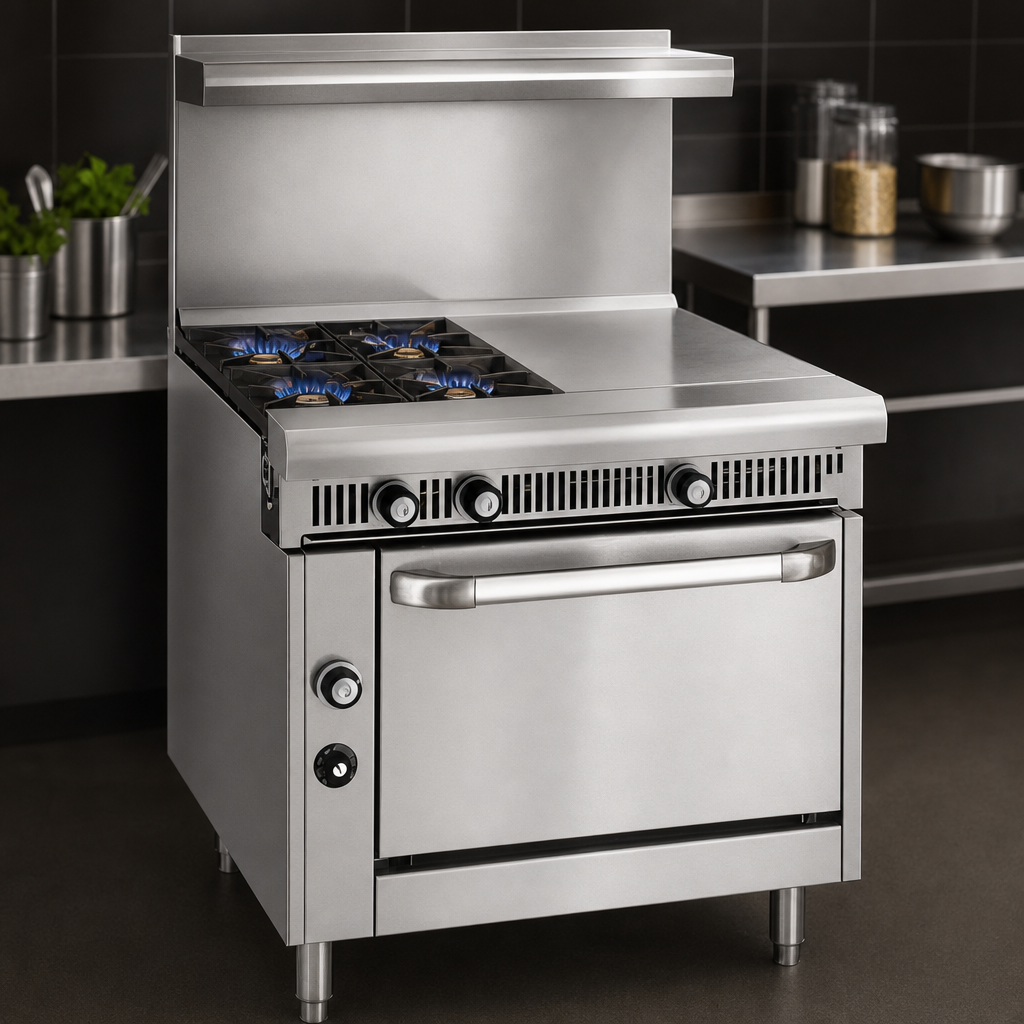

  • Four anti-clog open burners rated at 40,000 BTU each with 7,000 BTU low-simmer control.

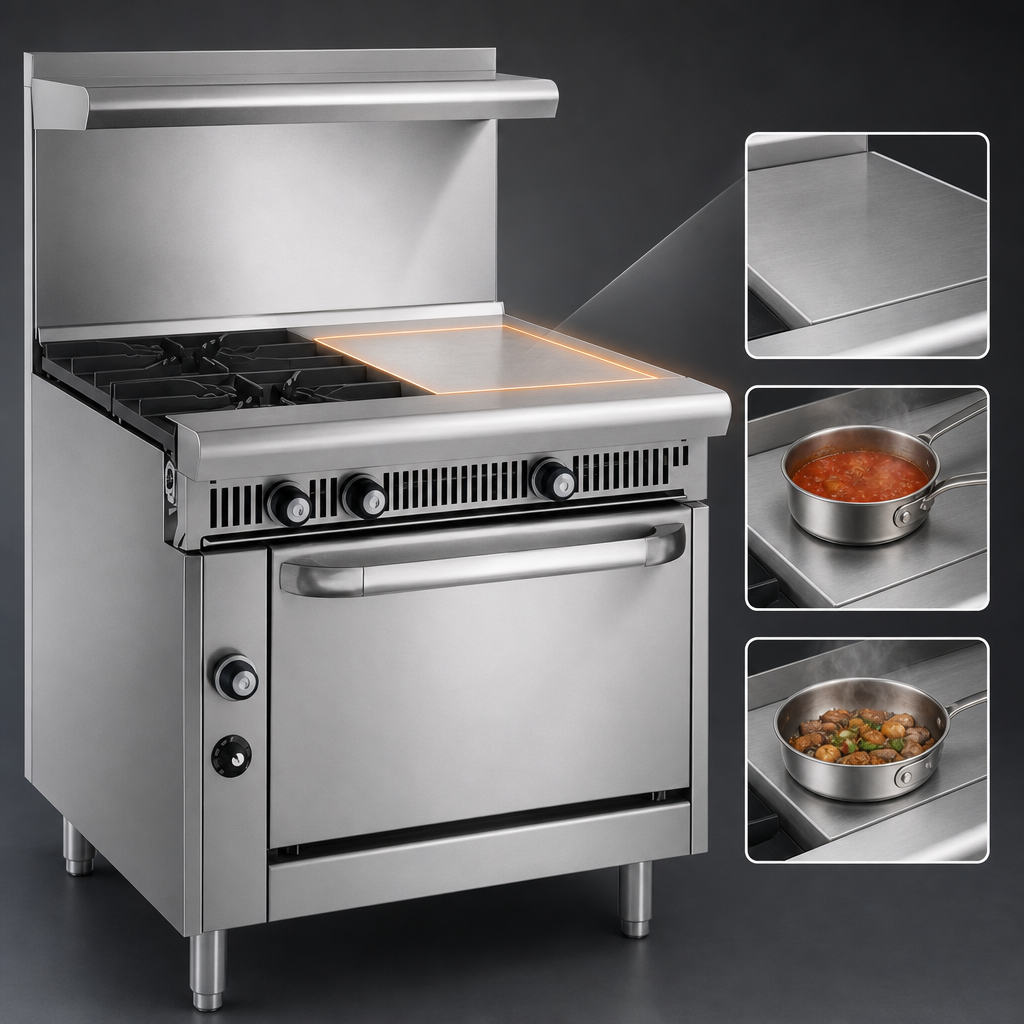

  • 12" (305 mm) even-heat hot top—perfect for stockpots, sauces or holding pans.
  • Heavy cast-iron “S” grates remove for cleaning and let you slide pans effortlessly.
  • One-piece sloped venturi bases boost combustion efficiency and eliminate gaskets.

Standard Oven Highlights

  • 40,000 BTU burner with 100 % safety pilot and manual shut-off valve.
  • Chef-depth cavity fits 18" × 26" sheet pans left-to-right or front-to-back.
  • Porcelainized sides, rear, deck and door liner wipe clean in seconds.
  • Includes (1) chrome rack; five rack positions accept additional optional racks.
  • Exclusive heat deflector keeps heat in the oven—not on your floor.

Built to Take the Heat

  • All-stainless front, sides, 7" landing ledge, backguard and kick plate.
  • Welded & polished seams with enclosed 1-1/4" front gas manifold for a sleek, sanitary look.
  • Full-width removable crumb tray speeds end-of-shift clean-up.
  • Heat-shielded cast-aluminum control knobs stay cool to the touch.
  • 6" (152 mm) heavy-duty legs with adjustable feet level the unit on uneven floors.
  • cETLus & NSF listed for safety and sanitation.

Specifications

Width 36" (914 mm)
Depth 36 ½" (927 mm)
Height (to cook surface) 36" (914 mm) on 6" legs
Total Gas Input 230,000 BTU / 67 kW
Open Burners (4) × 40,000 BTU anti-clog burners
Hot Top 12" even-heat plate, 40,000 BTU
Oven Standard, 40,000 BTU
Oven Interior (W × D × H) 26 ¼" × 26" × 14" (667 × 660 × 356 mm)
Rack(s) Included (1) chrome rack
Gas Connection ¾" NPT rear; 5.0" W.C. natural or 10.0" W.C. LP
Shipping Weight Approx. 752 lb (342 kg)
Certifications cETLus, NSF

What’s Included

  • Imperial Spec Series 36" gas range
  • (1) chrome oven rack
  • Removable full-width crumb tray
  • 6" adjustable stainless steel legs
  • Operator’s manual

Warranty

Backed by Imperial’s 1-year parts & labor warranty (USA & Canada). Service must be performed by an authorized Imperial service agency.

Installation Notice: This appliance is for commercial use on non-combustible floors only. Provide at least 2" (51 mm) rear and 8" (203 mm) side clearance from combustible surfaces. All gas connections must be made by a qualified technician and comply with local codes.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Spec Series

Certifications

NSF, cETLus

Height

42.0in

Width

36.0in

Depth

38.0in

Shipping Weight

752.0lbs

Base

(1) standard oven

Exterior Finish

stainless steel front & sides

Top

(4) open burners, (1) hot top

Specifications

Spec Series Heavy Duty Range, gas, 36"W, (4) open burners, cast iron "S" grates (standard), (1) 12"W hot top, standard oven, (1) chrome rack, manual controls, removable crumb tray, stainless steel front, sides, 7"D landing ledge, backguard & kick plate, 6" legs with adjustable feet, 230,000 BTU, 67kW, cETLus, NSF
