Imperial (Middleby) IHR-4-1HT-M Spec Series Gas Ranges
Description
Imperial Spec Series 36" Gas Modular Range – 4 Open Burners + 12" Hot Top
Model IHR-4-1HT-M | 190,000 BTUBuilt for demanding commercial kitchens, Imperial’s Spec Series modular range delivers relentless power, precision flame control and the rugged durability you expect from a USA-made workhorse. Four high-performance open burners sit beside a 12" even-heat hot top, giving chefs the versatility to sear, sauté, simmer or hold—all on a single 36" footprint.
Key Features

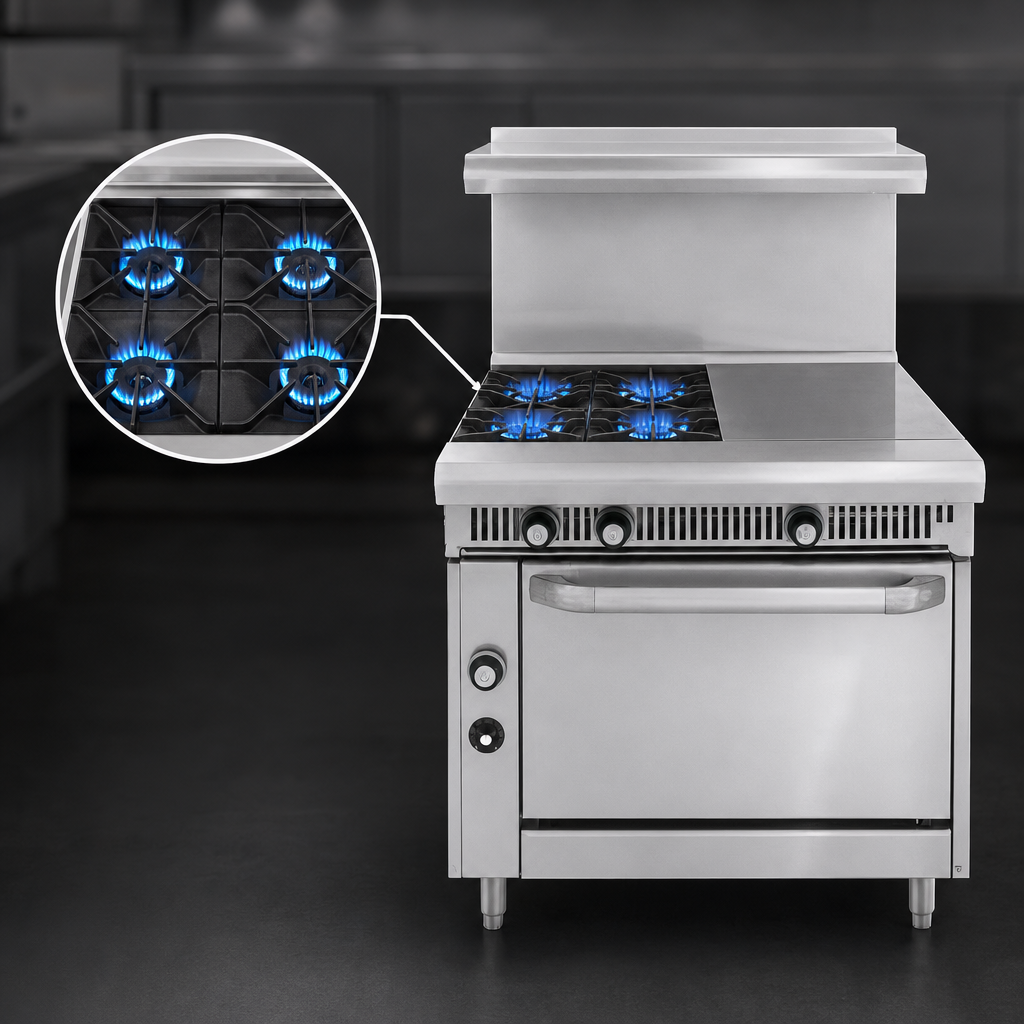

- Four anti-clogging open burners with up to 35,000 BTU each and a 7,000 BTU low-simmer setting.
- One 12" (305 mm) polished even-heat hot top powered by a heavy-duty U-shaped burner for uniform pan temperatures.
- Standard cast-iron “S” grates – two-piece design lets pans slide easily and lifts off for quick cleaning.
- Manual infinite-valve controls provide instant flame response with no electronic components.
- 7" (178 mm) deep stainless landing ledge doubles as a plating station and heat shield.
- Full-width removable crumb tray and sloped burner box speed nightly clean-down.
- All-stainless front, sides, landing ledge and 3-sided backguard resist corrosion and wipe clean.
- Enclosed 1-1/4" (32 mm) front manifold and large cast-aluminum knobs for a seamless, professional look.
- Field convertible for Natural or LP gas; factory-supplied ¾" NPT regulator included.
- cETLus & NSF listed for safety and sanitation.
At-a-Glance Specifications
| Footprint (W × D × H) | 36" × 34" × 21-1/4" (914 × 864 × 540 mm) – countertop module |
|---|---|
| Total Input | 190,000 BTU/hr | 56 kW |
| Open Burners | 4 × high-performance cast-iron burners (up to 35,000 BTU each) |
| Hot Top Width | 12" even-heat plate with dedicated burner & control |
| Grates | Standard cast-iron “S” grates (optional spider grates available) |
| Gas Connection | ¾" NPT rear manifold with ¾" regulator (included) |
| Manifold Pressure | Natural 5.0" W.C. | Propane 10.0" W.C. |
| Clearances | 0" sides & rear to non-combustible surfaces; 8" (203 mm) to combustible |
| Ship Weight | ≈ 407 lb (185 kg) |
| Certifications | cETLus, NSF |
| Origin | Made in USA – Corona, California |
| Warranty | 1 year parts & labor limited warranty |
Why Choose Imperial Spec Series?
- Sleek European styling pairs polished welds with radius edges for a premium cookline aesthetic.

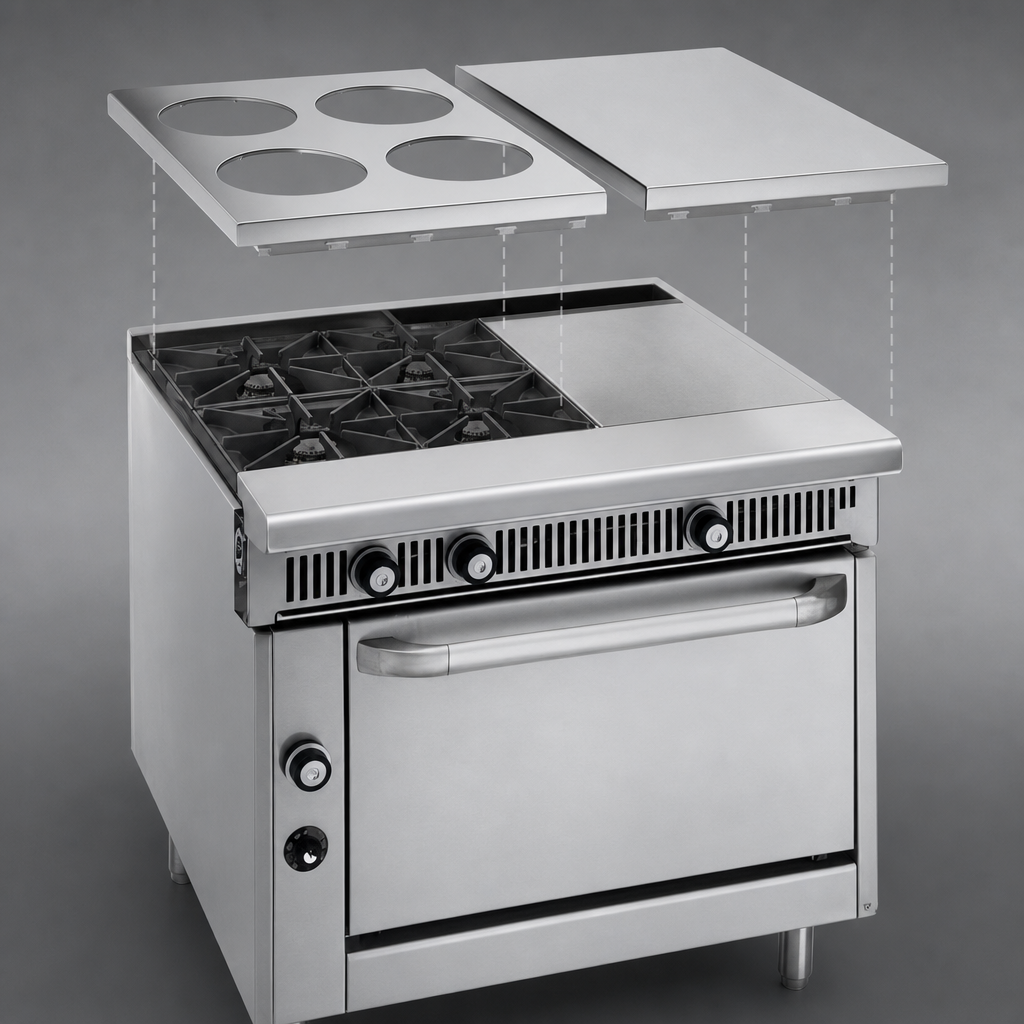

- Interchangeable modular components let you build the exact combination your kitchen needs.
- Heavy-duty construction—stainless tubing, brass valves and cast-iron tops—stands up to years of daily abuse.
- Supported by Imperial’s nationwide, factory-authorized service network.
Information is based on Imperial documentation and is subject to change without notice. Always verify specifications and local code requirements before ordering or installing.
