Imperial (Middleby)  |  Spec Series  |  SKU: IHR-3HT-3-C

Imperial (Middleby) IHR-3HT-3-C Spec Series Gas Ranges

$14,877.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Training video Parts list Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

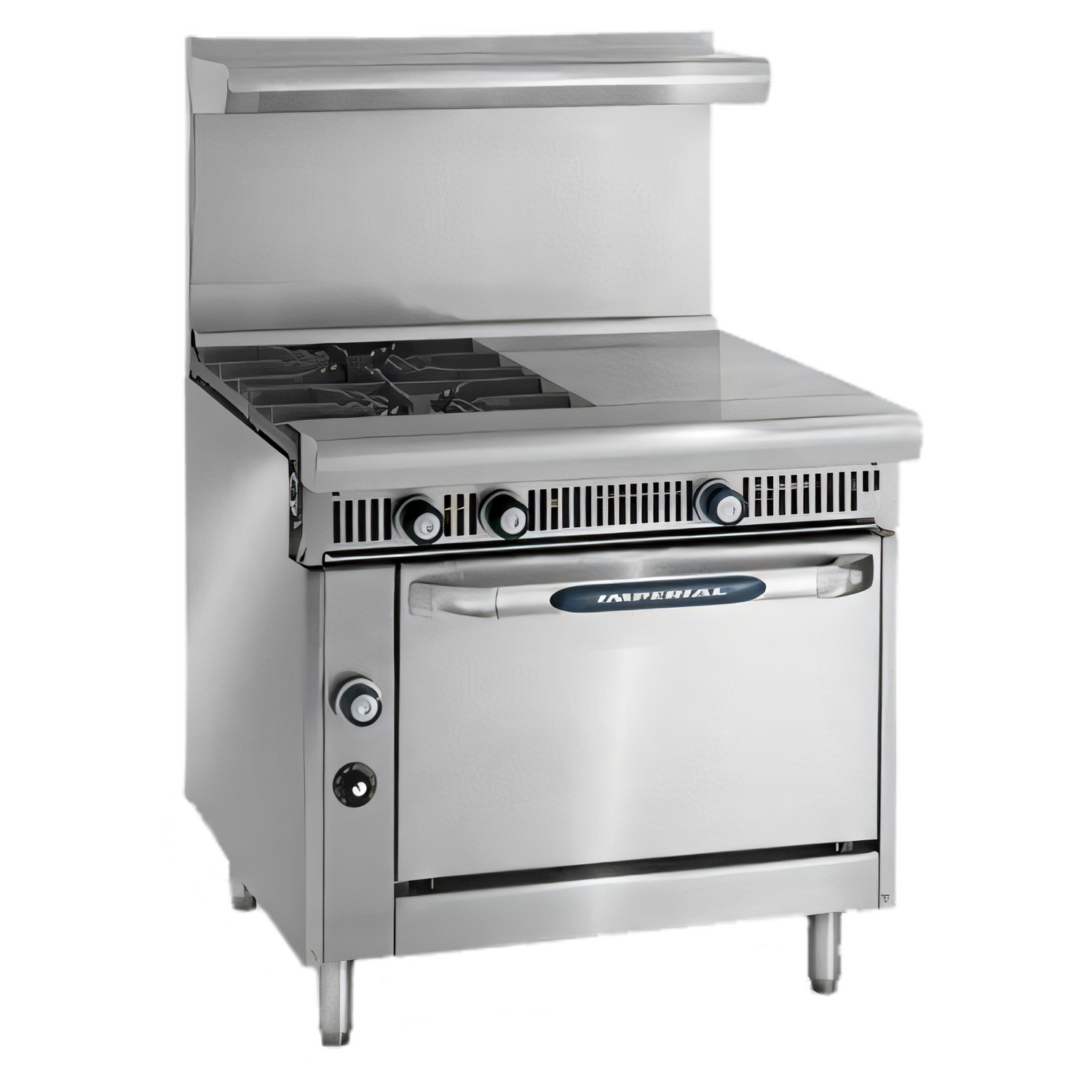

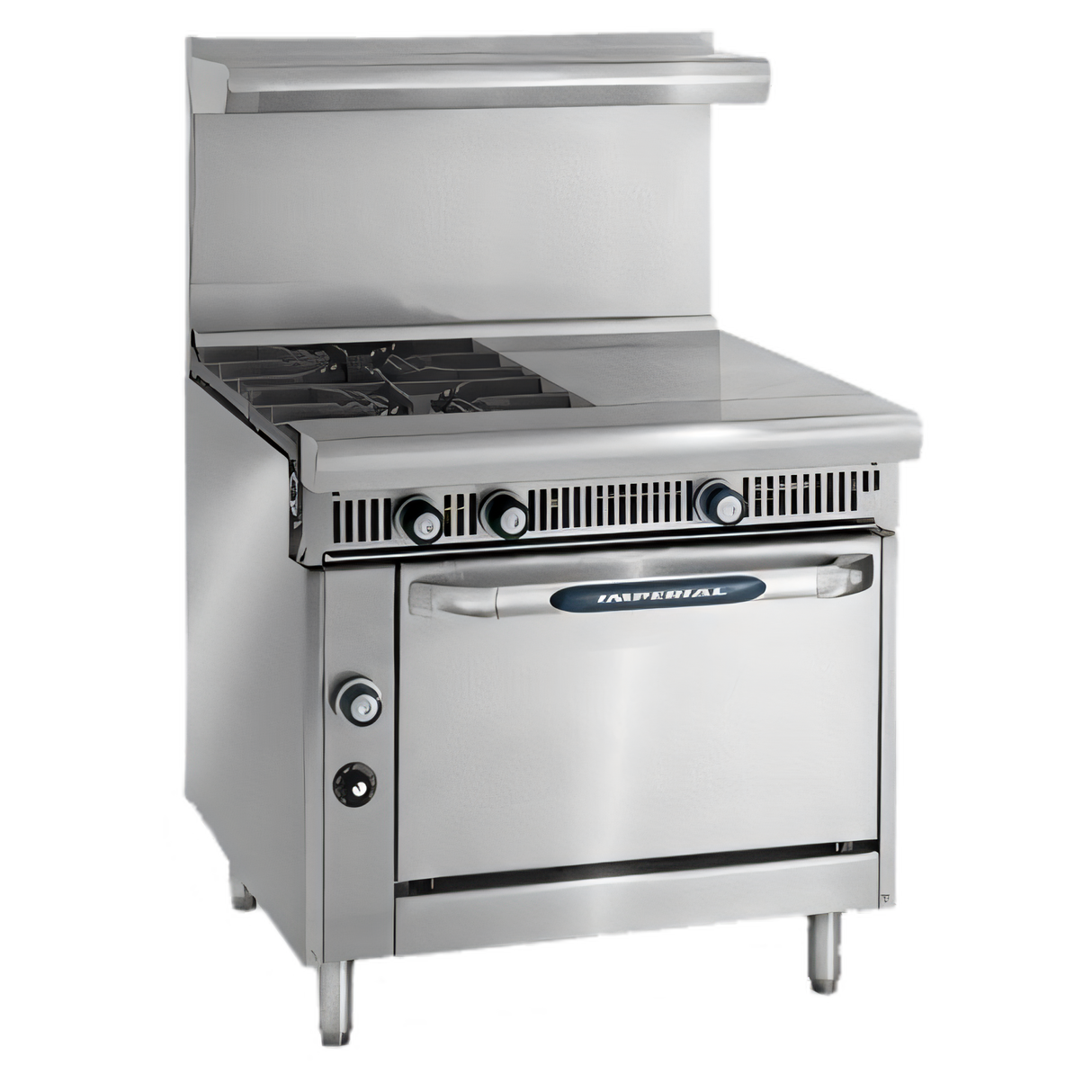

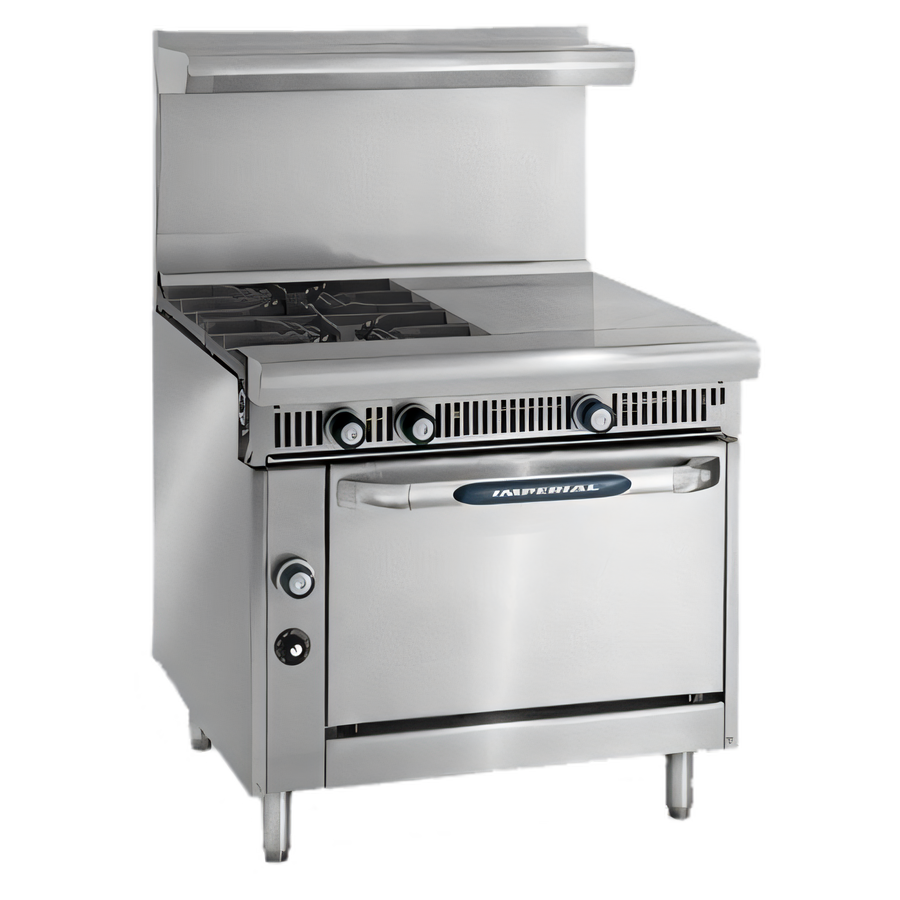

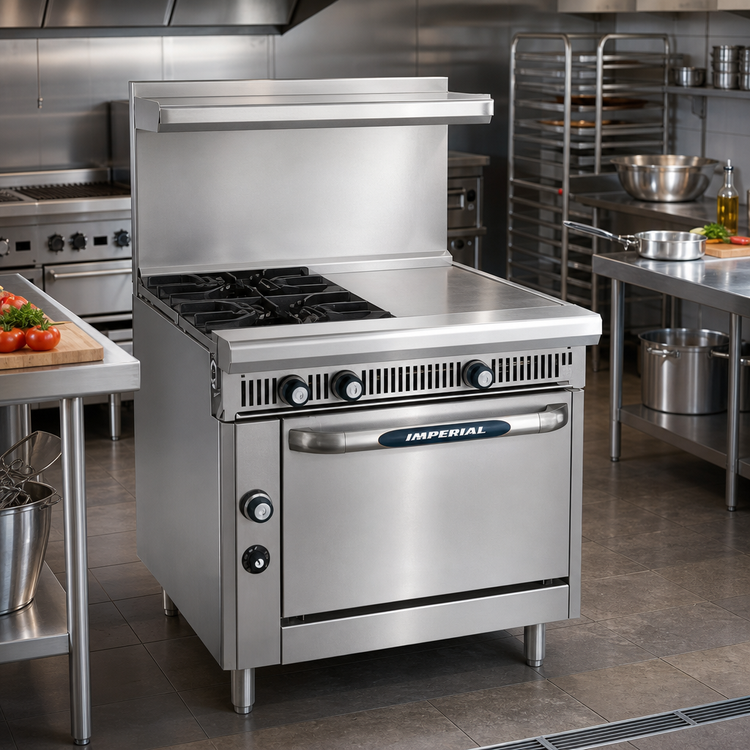

Spec Series™ 36" Heavy-Duty Gas Range – 3 Open Burners, 3 Hot Tops & Convection Oven

by Imperial Commercial Cooking Equipment

Bring powerhouse performance to the line without sacrificing valuable floor space. Imperial’s Spec Series 36-inch combination range unites high-output open burners, even-heat hot tops and a professional convection oven in one rugged, easy-to-clean package.

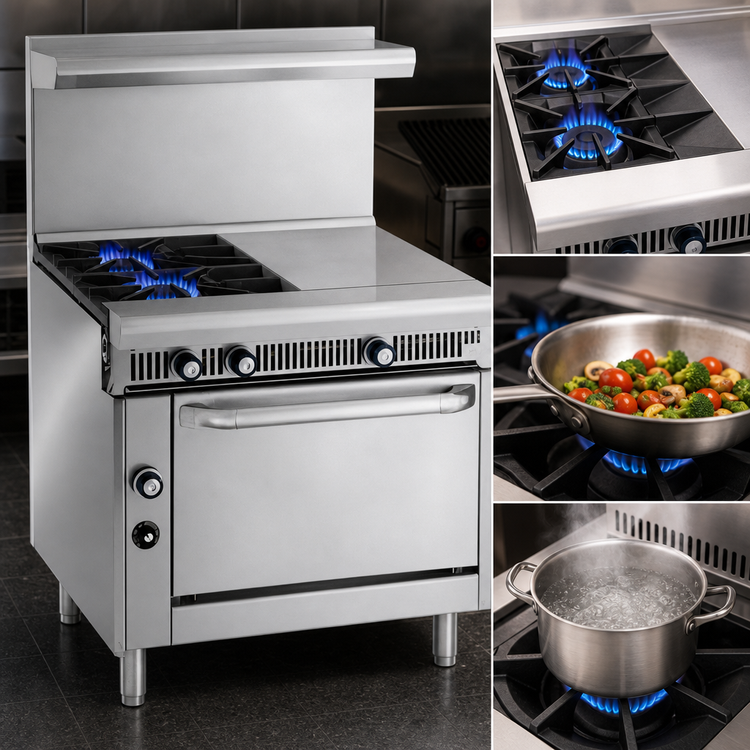

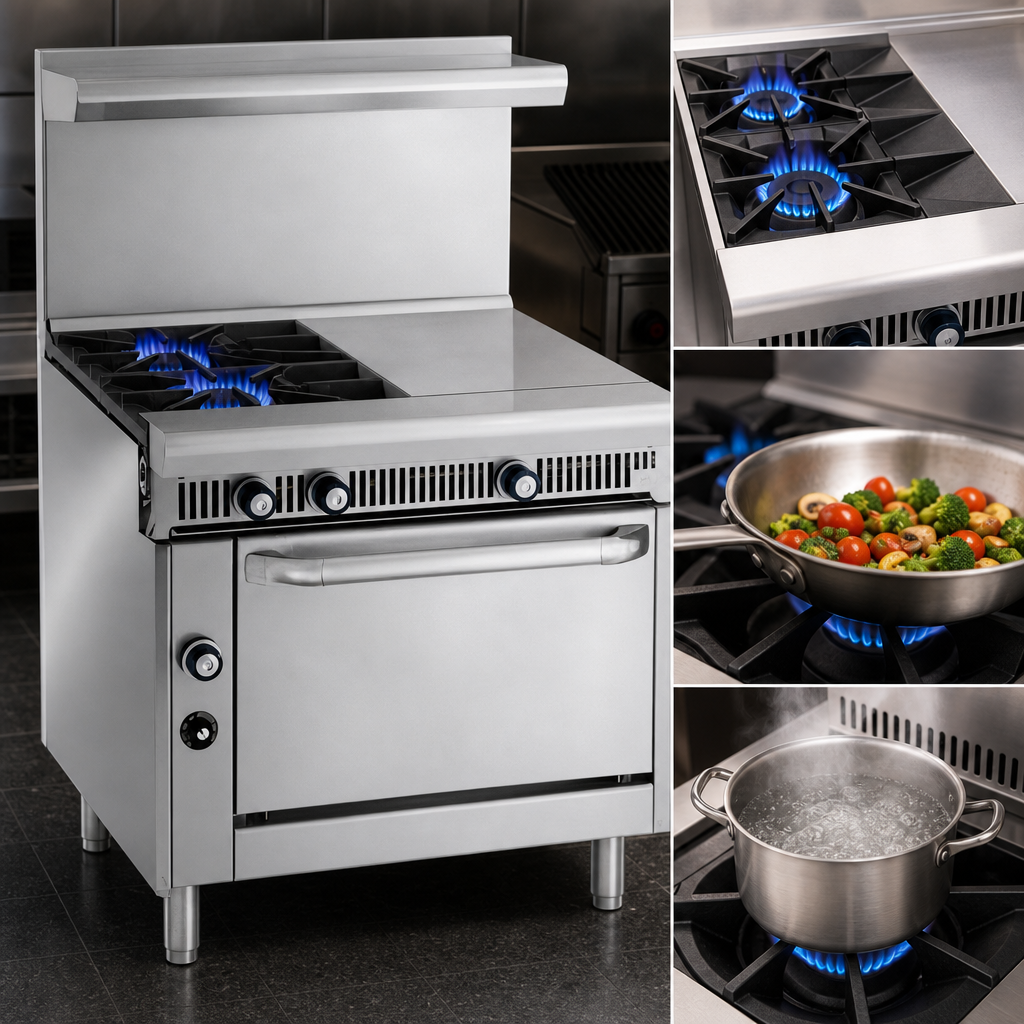

Cooking Surface

  • (3) 40,000 BTU anti-clogging open burners for instant, responsive heat
  • Durable cast-iron “S” grates create a continuous work surface and remove for sink-friendly cleaning

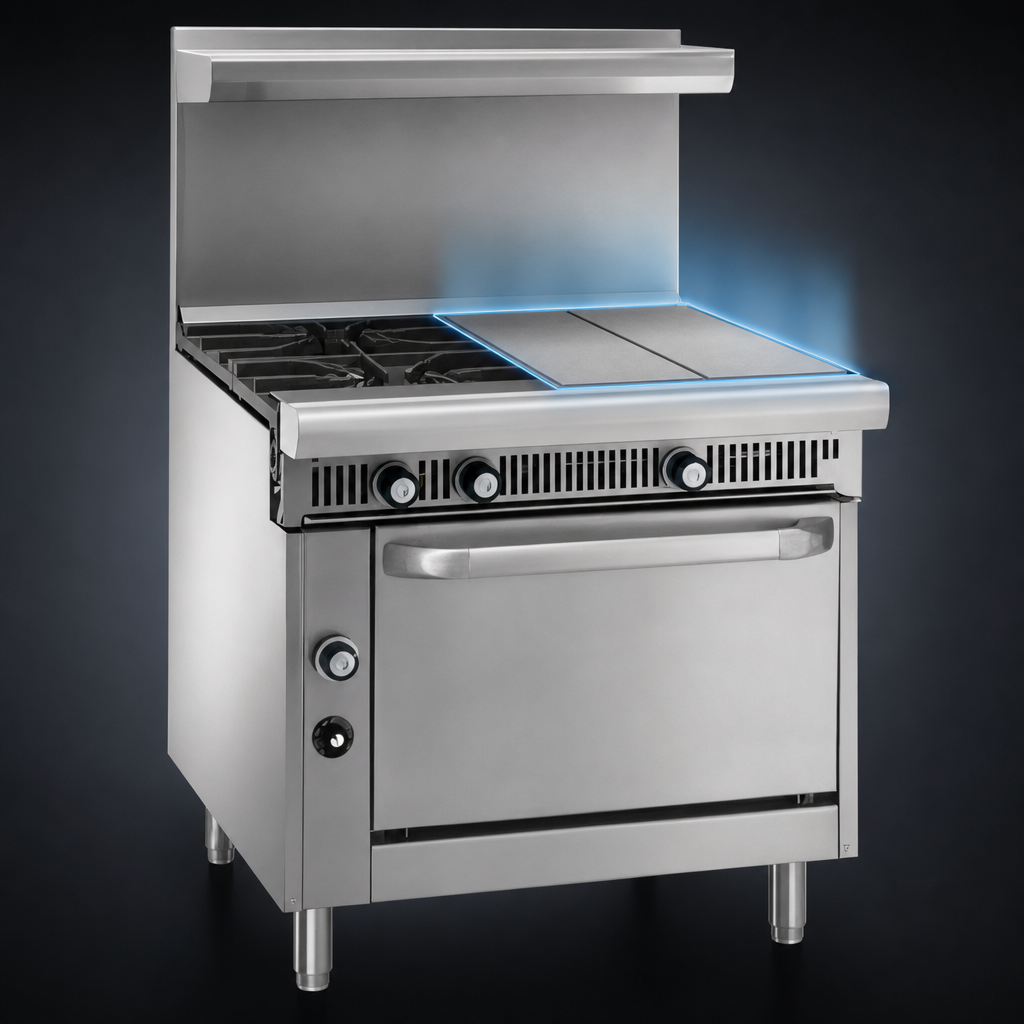

  • (3) 12" even-heat polished hot tops (40,000 BTU each) deliver uniform heat—perfect for stock pots, sauté pans and holding
  • Full-width removable crumb tray simplifies end-of-shift cleanup

Convection Oven

  • 35,000 BTU burner with ½ HP blower motor cooks evenly and reduces shrinkage
  • Porcelain-enamel interior wipes clean and resists corrosion
  • (3) chrome racks with 5 rack positions maximize production flexibility
  • Manual burner & fan controls with “ON” indicator light—simple, reliable operation

Built to Work as Hard as You Do

  • Stainless steel front, sides, kick plate and 7" (178 mm) landing ledge stand up to daily abuse
  • Welded & polished seams create a sleek, sanitary appearance
  • Large cast-aluminum control knobs stay cool and offer precise adjustments
  • 6" adjustable stainless steel legs level the unit on uneven floors
  • Stainless steel backguard protects surrounding equipment & walls

Specifications

Overall width 36" (914 mm)
Total gas input 275,000 BTU/hr  •  81 kW
Open burners 3 × 40,000 BTU
Hot tops 3 × 12" even-heat plates (40,000 BTU each)
Oven type Convection, 35,000 BTU burner, ½ HP blower
Rack capacity (3) chrome racks, 5 positions
Gas connection ¾" NPT (rear)
Electrical 120 V / 1-ph / 6 A
Certifications cETLus, NSF
Warranty 1-year parts & labor
Installation Note: Unit must be placed on a non-combustible floor with a minimum 6" (152 mm) rear clearance. Always follow local codes and the included installation manual.

Looking for caster sets, salamander broilers or custom backguards? Contact our equipment specialists for Imperial factory-approved accessories.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Spec Series

Certifications

NSF, cETLus

Height

42.0in

Width

36.0in

Depth

38.0in

Shipping Weight

827.0lbs

Exterior Finish

stainless steel front & sides

Base

(1) convection oven

Top

(3) open burners front, (3) hot tops rear

Specifications

Spec Series Heavy Duty Range, gas, 36"W, (3) open burners, cast iron "S" grates (standard), (3) 12"W hot tops, convection oven, 1/2 HP blower motor, porcelain interior, (3) chrome racks, manual controls, removable crumb tray, stainless steel front, sides, 7"D landing ledge, backguard & kick plate, 6" legs with adjustable feet, 275,000 BTU, 81kW, 120v/1-ph, 6.0 amps, cETLus, NSF
