Imperial (Middleby) IHR-1HT-12-XB Spec Series Gas Ranges
Description
Imperial Spec Series 12" Add-A-Unit Gas Hot Top Range
Model IHR-1HT-12-XB | 30,000 BTUExpand your cook line without expanding your footprint. At only 12 inches wide, the Imperial Spec Series Hot Top Add-A-Unit supplies a powerful 30,000 BTU “U”-shaped burner beneath a heavy, highly-polished plate for even, consistent heat—perfect for sauté pans, stockpots, or holding sauces. A stainless open-cabinet base keeps essential cookware close while matching the height and depth of other Imperial equipment for a seamless, professional lineup.
Key Features
- 30,000 BTU “U”-shaped burner with aeration baffles for rapid heat recovery

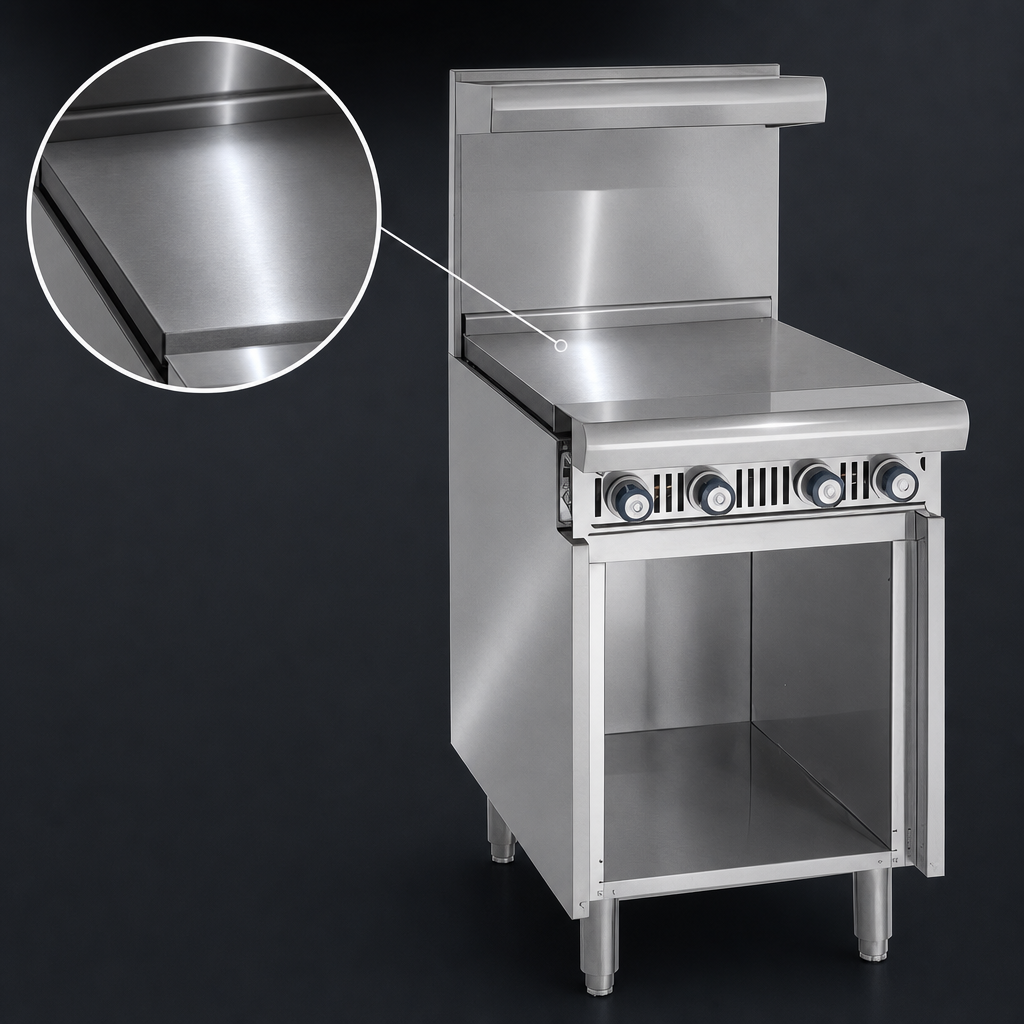

- 3⁄4" thick, highly-polished hot-top plate provides uniform heat across the 12" × 28" surface
- Manual infinite-control valve with cast-aluminum knob and heat-protection grip
- Full-width, removable crumb tray for fast, thorough cleaning
- All-stainless exterior: front, sides, landing ledge, backguard & kick plate
- Open cabinet base (“XB”) with stainless bottom shelf for convenient storage
- 6" stainless legs with adjustable feet for easy leveling
- cETLus & NSF listed for safety and sanitation
Specifications
| Cooking Surface | Single hot-top plate, 12" W × 28" D (305 × 711 mm) |
|---|---|
| Overall Dimensions | 12" W × 38" D × 41" H (305 × 965 × 1041 mm) |
| Gas Type | Natural or Propane (field convertible) |
| Total BTU Input | 30,000 BTU/hr (9 kW) |
| Manifold Pressure | 5.0" W.C. Natural | 10.0" W.C. Propane |
| Gas Connection | ¾" NPT rear or 1¼" front manifold |
| Base | Open cabinet with stainless bottom shelf |
| Controls | Manual infinite valve |
| Shipping Weight | 155 lb (70 kg) |
| Certifications | cETLus, NSF |
Why Add-A-Unit?
- Modular 12" width drops into tight spaces or future-proofs for expansion
- Matches Spec Series ranges, griddles, fryers & broilers for a cohesive cook suite
- Ideal for finish work, holding zones, small-batch cooking or specialty stations
Warranty
One-year limited parts & labor warranty from Imperial Commercial Cooking Equipment.
