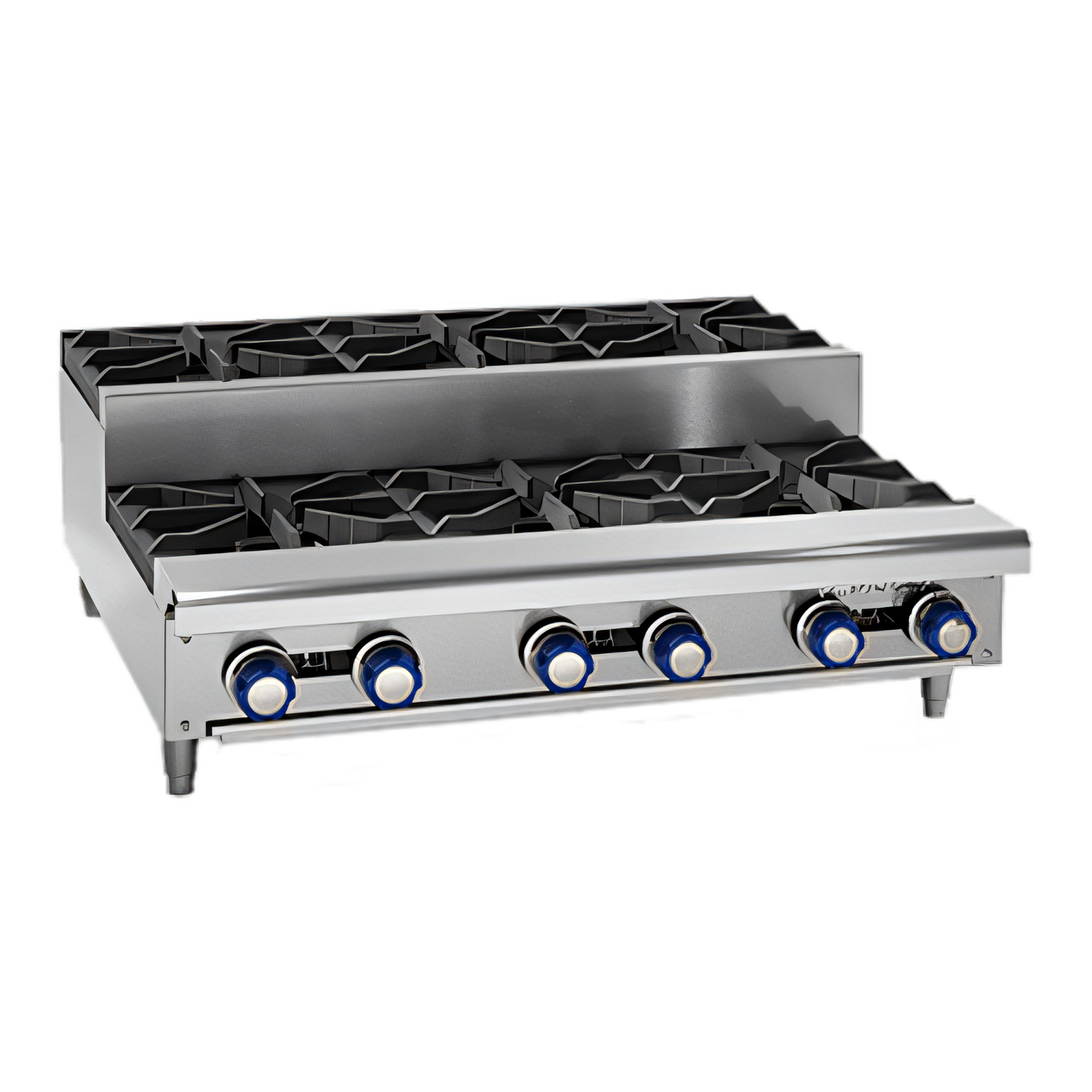

Imperial IHPA-6-36SU Step-Up Gas Hot Plate
36" wide • 6 PyroCentric™ open burners • 192,000 BTUBuilt for demanding commercial kitchens, the Imperial IHPA-6-36SU combines raw heating power with a rugged stainless-steel build and a convenient step-up design that keeps back-row pots within easy reach. Turn any counter or refrigerated base into a high-performance cookline without sacrificing valuable floor space.
Why You’ll Love It

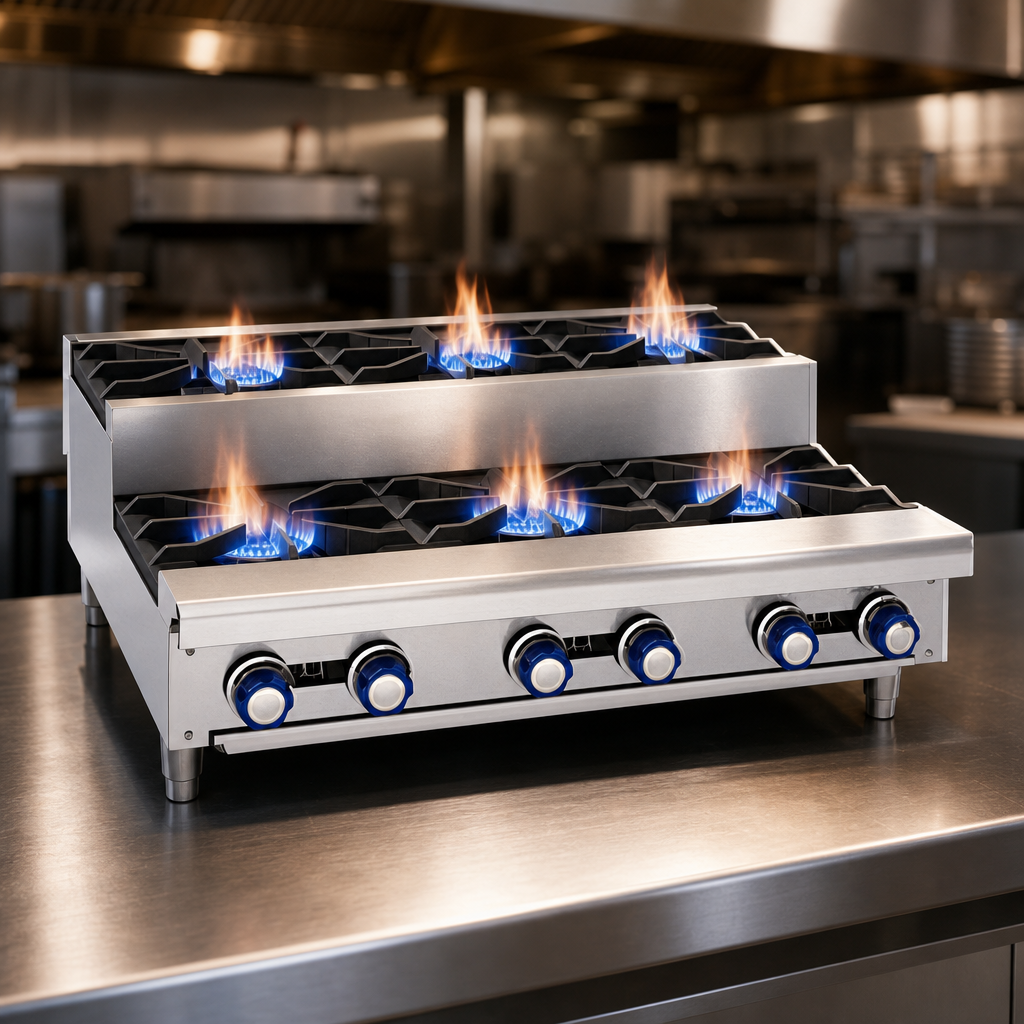

- Six 32,000 BTU PyroCentric™ burners deliver 192,000 BTU total and feature a 7,000 BTU low-simmer setting for sauces and delicate items.
- Step-up configuration (3 front / 3 rear) improves visibility, speeds plating, and prevents pot crowding.
- Cast-iron grates withstand constant abuse and let you slide heavy stock pots across sections and onto the 5" landing ledge.
- Anti-clog burner & pilot design keeps flames clear of grease and debris for consistent ignition.
- One standing pilot per burner guarantees instant light-up—no electric required.
- Die-cast metal knobs hold up under high-heat conditions and daily cleaning.
- Full-width removable crumb tray pulls out in seconds to speed end-of-shift clean-up.
- 4" heavy-duty legs with adjustable feet level the unit on any counter or equipment stand.
- Stainless-steel front, sides, and landing ledge match Imperial ranges for a consistent lineup.
Technical Specs
| Model | IHPA-6-36SU |
|---|---|
| Gas type | Field convertible; shipped for Natural Gas Manifold pressure: 5.0" W.C. (NG) / 10.0" W.C. (LP) |
| Total BTU / kW | 192,000 BTU | 56 kW |
| Burners | (6) open burners, 32,000 BTU each (3 front, 3 step-up rear) |
| Cooking surface | Cast-iron grates, anti-clog pilot shield |
| Dimensions (W × D × H) | 36" × 31-3/8" × 14-3/4" (914 × 797 × 381 mm) |
| Gas connection | 3/4" NPT rear manifold |
| Clearances | 0" sides & rear (non-combustible) 8" (203 mm) to combustible surfaces |
| Shipping weight | ≈250 lb (114 kg) |
| Certifications | CSA Flame, CSA Star, NSF, CE |
| Warranty | 1-year parts & labor |
Popular Accessories (Sold Separately)
- Stainless-steel equipment stand (with or without 6" casters)
- 10" stainless-steel wok ring
- Saute or wok burner heads (interchangeable)
- 3/4" NPT gas shut-off valve, quick-disconnect hose
Need service? Warranty repairs must be performed by an authorized Imperial service agency. Keep your proof of purchase handy.
Looking to spread out the cost? Ask us about Middleby Equipment Financing for affordable monthly payments and potential tax advantages.
$5,946.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
36" Imperial (Middleby) gas hot plate, 192,000 BTU with six 32k/step-up burners, cast iron grates, stainless steel, removable crumb tray, NSF/CE certified.
Manufacturer
Imperial (Middleby)
Certifications
NSF, CE, CSA Star, CSA Flame
Height
15.13in
Width
36.0in
Depth
31.38in
Shipping Weight
250.0lbs
Width (side - side)
36 - 47"
Top and Front Finish
stainless steel front & sides
Burner Qty
(3) open burners, (3) step-up open burners
Legs
with legs
Specifications
Hotplate, gas, countertop, 36"W, (3) 32,000 BTU open burners, (3) 32,000 BTU step-up burners, cast iron grates, removable crumb tray, stainless steel front, sides & 5"D landing ledge, 4" legs with adjustable feet, 192,000 BTU, 56kW, CSA Flame, CSA Star, NSF, CE
