Imperial (Middleby)  |  SKU: IHPA-6-36

Imperial (Middleby) IHPA-6-36 Hot Plates

$3,418.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Hot Plates Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

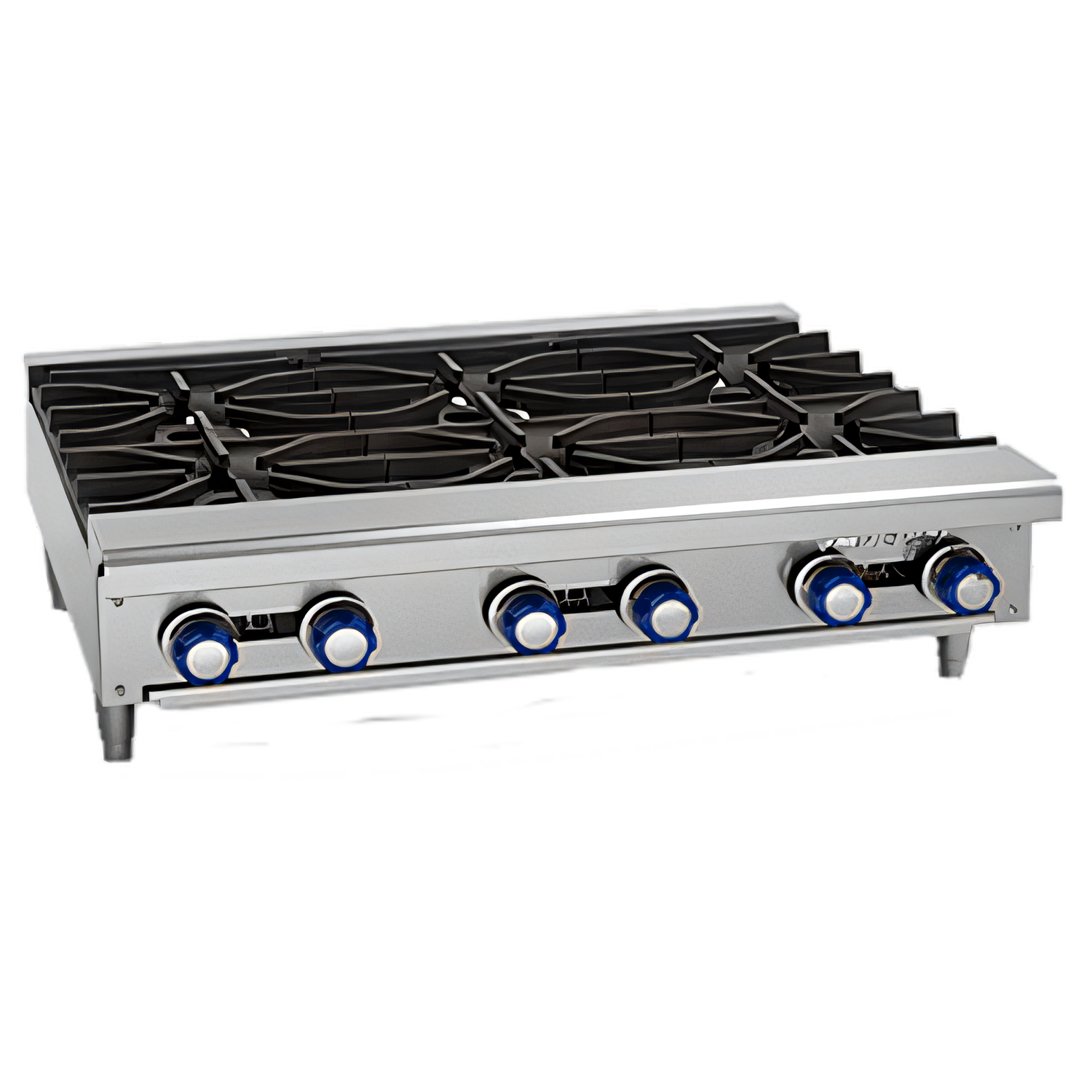

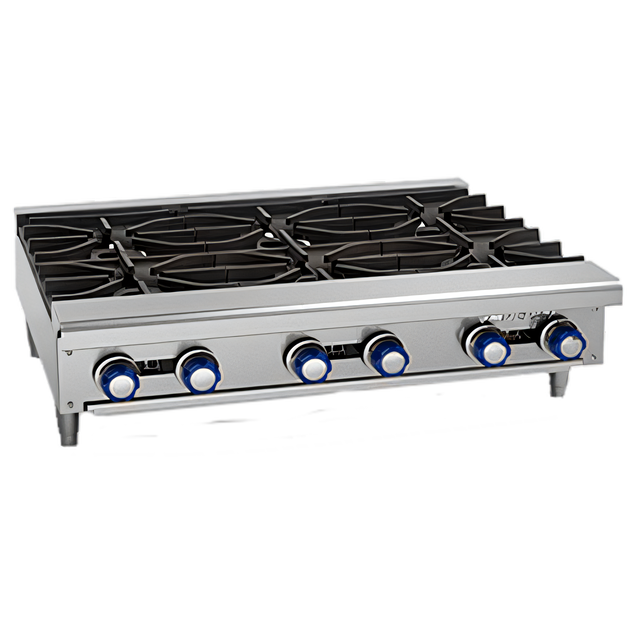

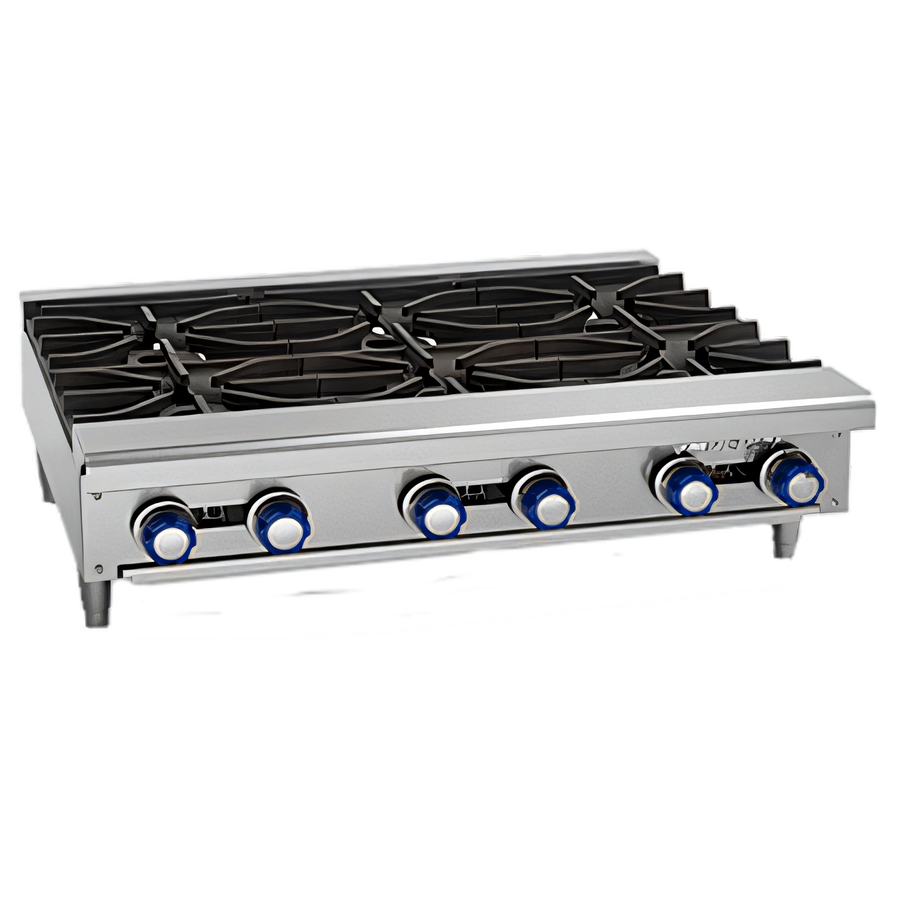

Imperial IHPA-6-36 36" Countertop Gas Hot Plate (Quick Ship)

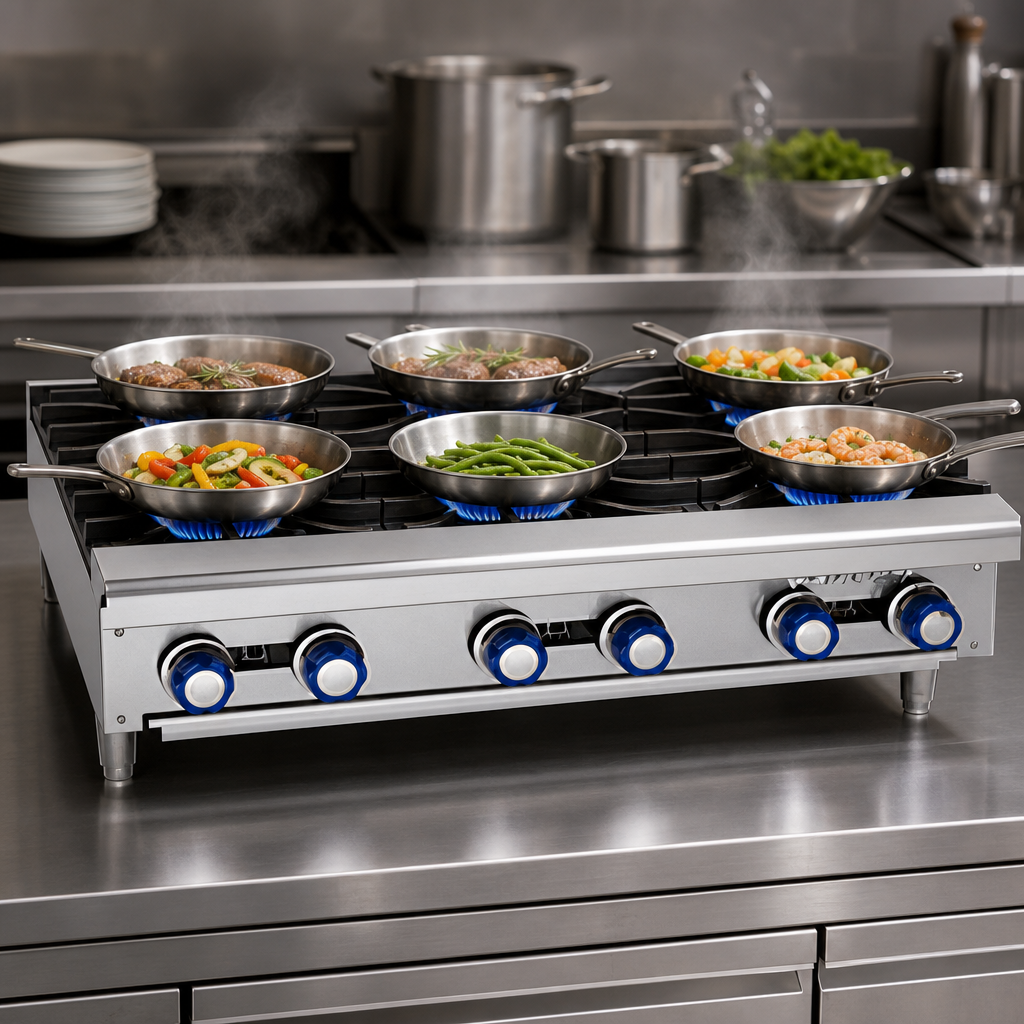

6 PyroCentric™ open burners | 192,000 BTU | CSA, NSF & CE Certified

The Imperial IHPA-6-36 packs the performance of a full-size range into a compact countertop footprint. Six individually controlled 32,000 BTU burners, rugged cast-iron grates and a stainless exterior make this hot plate a dependable workhorse for restaurants, caterers, ghost kitchens and food trucks alike.

Key advantages

  • Six 32,000 BTU PyroCentric™ burners (total 192,000 BTU / 56 kW) with a 7,000 BTU low-simmer setting.
  • Two concentric rings of flame deliver even heat distribution and faster boil times.

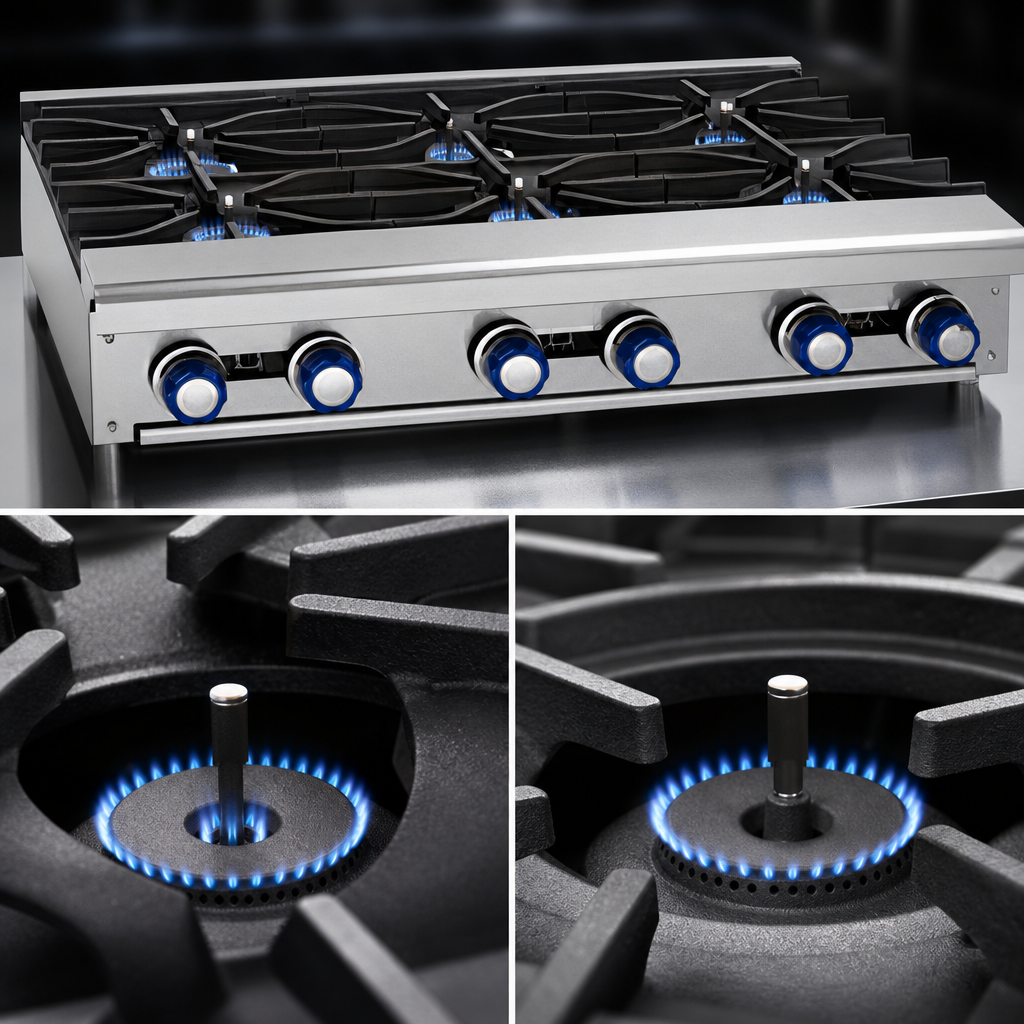

  • Standing pilot for each burner—instant, match-free ignition every shift.
  • Lift-off, anti-clog burners with no gaskets or screws for effortless cleaning.
  • Two-piece cast-iron grates feature a bowl design that focuses heat and protects pilots from grease.
  • 5" (127 mm) stainless steel landing ledge offers convenient plating and pan staging space.
  • Full-width removable crumb tray speeds end-of-day cleanup.
  • Durable die-cast control knobs stand up to heavy commercial use.
  • Stainless steel front, sides and ledge with welded, polished seams for superior sanitation and a professional finish.
  • 4" (102 mm) heavy-duty legs with adjustable feet keep the unit level on any surface.

Technical specifications

Model IHPA-6-36
Open burners 6 PyroCentric™
Total output 192,000 BTU/hr (56 kW)
Per-burner output 32,000 BTU (7,000 BTU low simmer)
Gas type Natural or Propane (field convertible)
Manifold pressure NG 5.0" W.C. | LP 10.0" W.C.
Gas connection 3/4" NPT rear manifold
Exterior dimensions 36" W × 31-3/8" D × 10-3/4" H (914 × 797 × 273 mm)
Crated dimensions 38-1/2" W × 34" D × 12" H (978 × 864 × 305 mm)
Landing ledge depth 5" (127 mm)
Shipping weight ≈ 210 lb (95 kg)
Clearance 0" to non-combustible, 8" (203 mm) to combustible surfaces
Certifications CSA Flame, CSA Star, NSF, CE
Warranty 1-year parts & labor

Popular accessories (sold separately)

  • Stainless steel equipment stand or refrigerated base (Range-Match profile)
  • 3/4" NPT quick-disconnect gas hose and shut-off valve
  • 6" caster kit for mobile applications
  • 10" stainless steel wok ring or interchangeable wok/​sauté burner heads
Important: Installation must be performed by a licensed gas professional. Verify local code requirements, available gas type and supply pressure before ordering.

Need it in a hurry? The IHPA-6-36 is part of Imperial’s Quick Ship program—order today and keep your kitchen on schedule.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

NSF, CE, CSA Star, CSA Flame

Height

10.75in

Width

36.0in

Depth

31.38in

Shipping Weight

210.0lbs

Width (side - side)

36 - 47"

Top and Front Finish

stainless steel front & sides

Legs

with legs

Burner Qty

6 burners

Specifications

(QUICK SHIP) Hotplate, gas, countertop, 36"W, (6) open burners & standing pilot lights, cast iron grates, removable crumb tray, stainless steel front, sides & 5"D landing ledge, 4" legs with adjustable feet, 192,000 BTU, 56kW, CSA Flame, CSA Star, NSF, CE
