Imperial (Middleby) IHPA-3-36 Hot Plates
Description
Imperial IHPA-3-36 36" Gas Countertop Hot Plate
3 PyroCentric™ Open Burners • 96,000 BTU • NSF, CSA & CE ListedAdd powerful sauté, sear and simmer capacity to any cookline without giving up valuable floor space. The Imperial IHPA-3-36 delivers range-top performance in a rugged countertop design that is built for the punishing pace of professional kitchens.
Why It Belongs on Your Line

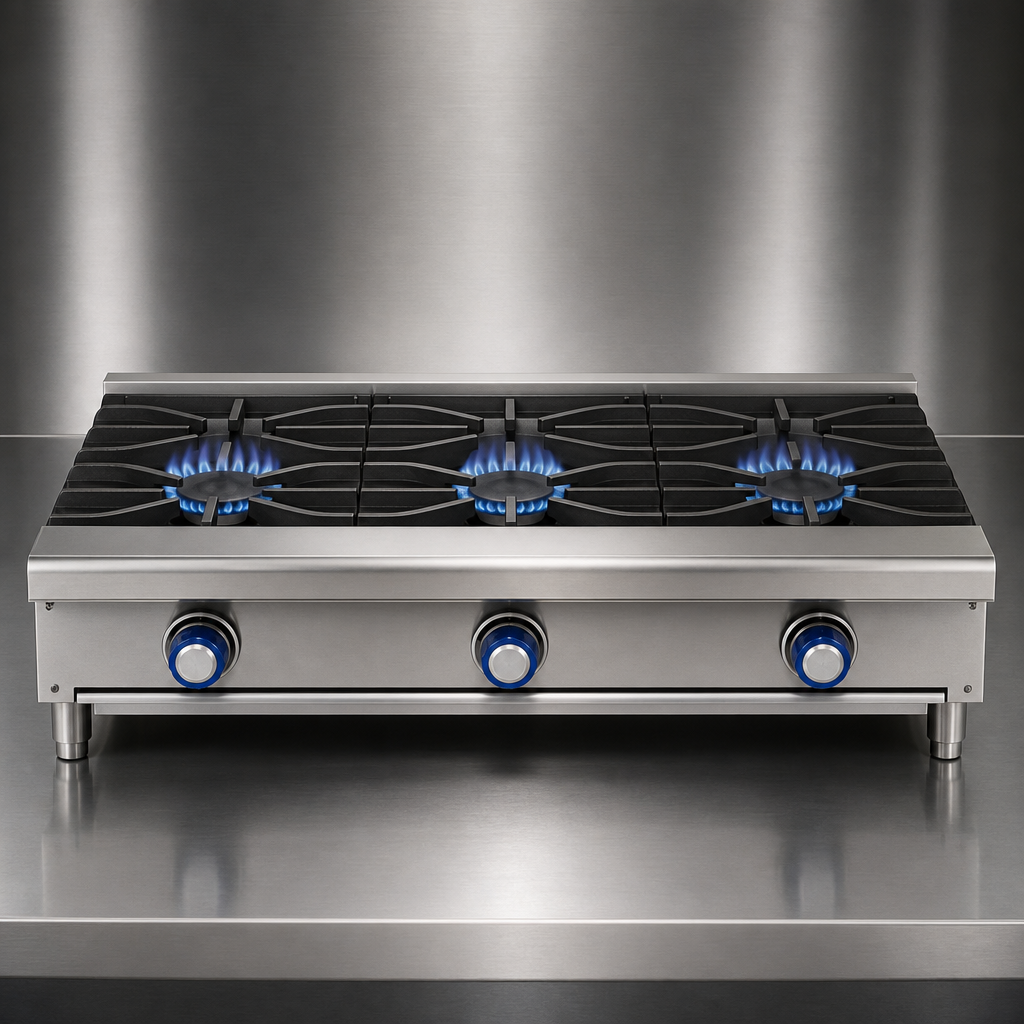

- 96,000 BTU of instant heat – three 32,000 BTU PyroCentric™ burners with a 7,000 BTU low-simmer setting handle everything from boiling stock to holding delicate sauces.
- Even, consistent flame – dual-ring burner design blankets the bottom of the pan to eliminate hot spots.
- All-cast-iron tops & burners withstand constant high-heat use and retain thermal mass for faster recovery.
- Standing pilots on every burner provide true “instant on” ignition during the rush.
- 5" stainless steel landing ledge makes plating and pan transfer easier and safer.
- Full-width removable crumb tray catches spills before they hit the counter for quick nightly clean-up.
- Die-cast metal knobs give chefs positive flame control and last longer than plastic alternatives.
- 4" adjustable legs level the unit on any surface and provide clearance for sanitation.
Engineered for Durability & Cleanability
- Stainless steel front, sides and landing ledge with welded & polished seams for a professional finish.
- Lift-off, gasket-free burner heads simplify deep cleaning—no tools required.
- Cast-in grate bowl directs heat upward while shielding pilots from grease and debris.
- Range-match profile pairs perfectly with Imperial refrigerated bases or equipment stands.
Technical Specifications
| Model | IHPA-3-36 |
|---|---|
| Burners / Type | 3 open PyroCentric™ cast-iron burners |
| Total Output | 96,000 BTU (28 kW) |
| Individual Burner Output | 32,000 BTU high / 7,000 BTU low simmer |
| Gas Connection | 3/4" NPT rear manifold |
| Manifold Pressure | Natural 5.0" W.C. • Propane 10.0" W.C. |
| Overall Dimensions | 36" W × 19 ¼" D × 10 ¾" H (914 × 489 × 273 mm) |
| Shipping Weight | 115 lb (53 kg) |
| Clearances | 0" to non-combustible • 8" (203 mm) to combustible |
| Certifications | NSF, CE, CSA Flame & Star |
| Warranty | 1-year parts & labor |
Optional Accessories (sold separately)
- Stainless steel equipment stands (with or without 6" casters)
- 10" stainless steel wok ring
- Interchangeable sauté or wok burner heads
- 3/4" NPT gas shut-off valve, quick-disconnect hose assemblies
Installer must connect unit to an adequately sized gas supply in accordance with local codes. For maximum longevity, clean cast-iron components regularly and keep pilots free of debris.
