Imperial (Middleby) IHPA-2-24 Hot Plates
Description
Imperial IHPA-2-24 Countertop Gas Hot Plate
24" wide • 2 PyroCentric™ open burners • 64,000 BTUAdd high-powered sauté, stock-pot and sauce capacity to any cookline without giving up valuable space. The Imperial IHPA-2-24 delivers range-level performance in a slim 24-inch footprint, pairing rugged stainless-steel construction with the industry-proven PyroCentric™ burner system for reliable, even heat shift after shift.
Key Features
- Two 32,000 BTU PyroCentric™ burners (64,000 BTU total)
- 7,000 BTU low-simmer setting on each burner for delicate sauces
- Cast-iron, anti-clog burners lift off with no tools for fast cleaning
- Two-piece cast-iron top grates with cast-in bowls direct heat upward and let pots glide smoothly between sections

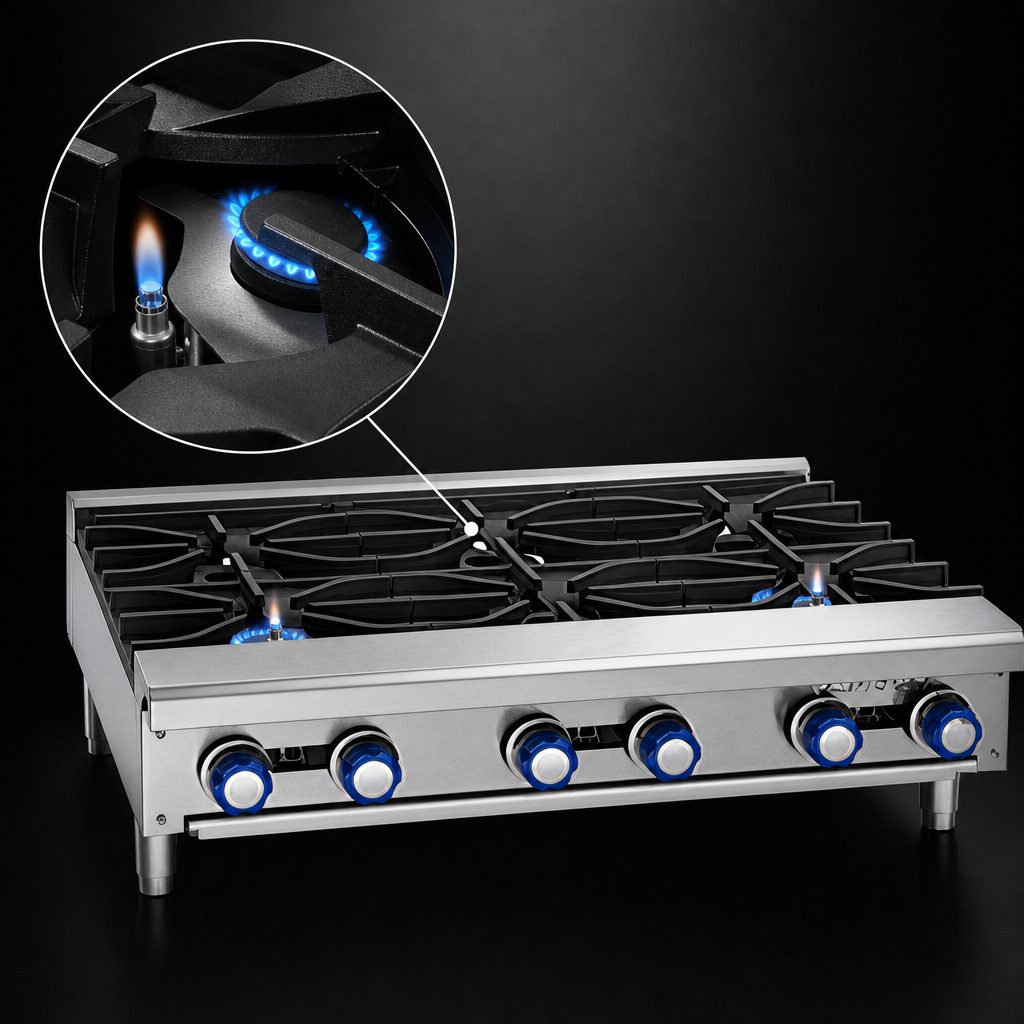

- Integrated standing pilots for instant ignition and consistent flame
- 5" stainless-steel landing ledge keeps finished plates and utensils within reach
- Full-width, removable crumb tray speeds end-of-day cleanup
- Durable die-cast metal control knobs stand up to the busiest kitchen
- 4" heavy-duty legs with adjustable feet level the unit on any surface
- Welded, polished stainless front & sides match your Imperial range suite
- One-year parts & labor warranty backed by Imperial

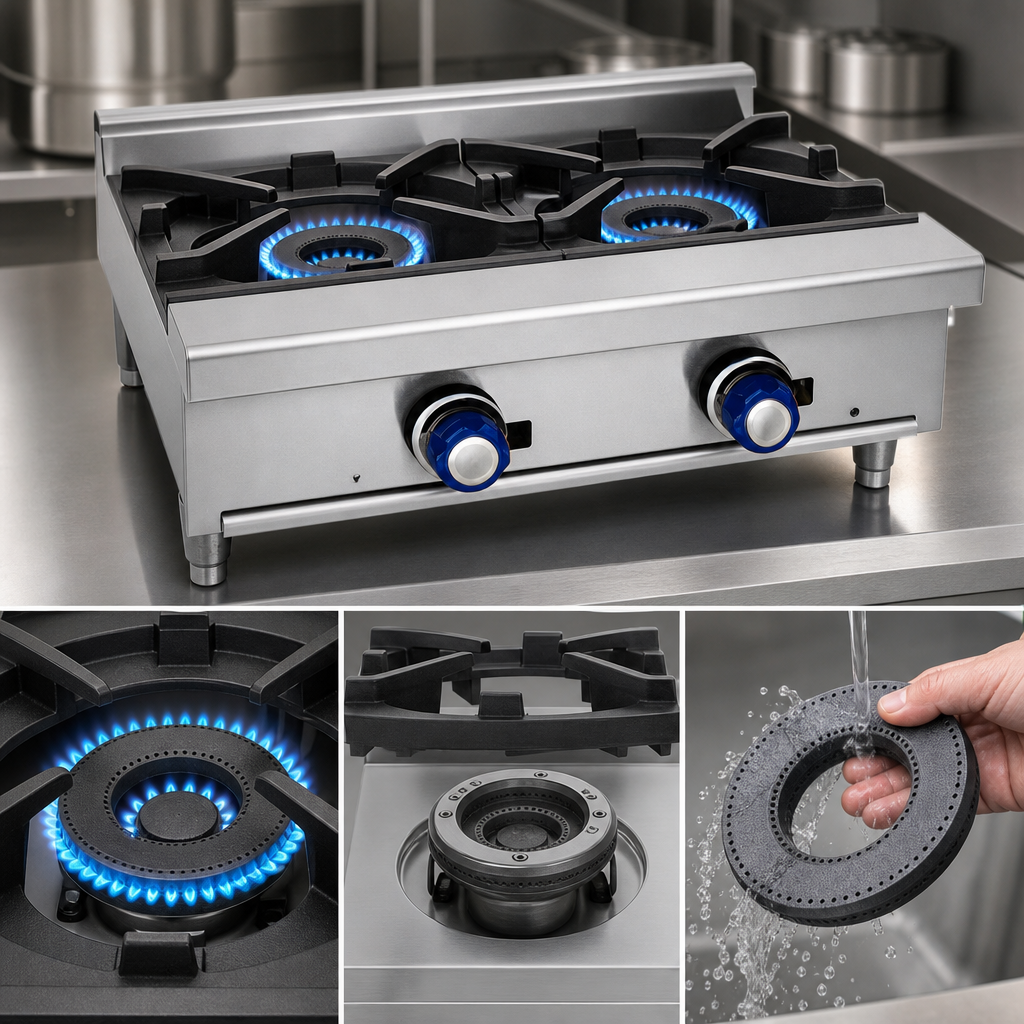

PyroCentric™ Performance
Each burner features two concentric rings of flame that blanket cookware for even heating from rim to center. The exclusive anti-clog design shields pilots from grease and debris, reducing downtime and maintenance costs.
Specifications
| Model | IHPA-2-24 |
|---|---|
| Dimensions (W × D × H) | 24" × 19-1/4" × 10-3/4" (610 × 489 × 273 mm) |
| Number of Burners | 2 open burners |
| Total Heat Output | 64,000 BTU / 19 kW (32,000 BTU each) |
| Gas Type | Natural gas (field convertible to LP) |
| Manifold Pressure | 5.0" W.C. Natural • 10.0" W.C. Propane |
| Gas Connection | 3/4" NPT rear |
| Landing Ledge | Stainless steel, 5" deep |
| Legs | 4" (102 mm) adjustable |
| Ship Weight | 80 lb / 37 kg |
Certifications
- CSA Flame
- CSA Star
- NSF
- CE
Warranty
Imperial backs this unit with a 1-year parts & labor warranty. Service must be performed by an authorized Imperial service agency.
Popular Accessories (sold separately)
- Stainless-steel equipment stand
- 6" caster kit for equipment stand
- 10" stainless-steel wok ring
- Interchangeable sauté or wok burner heads
- 3/4" NPT gas shut-off valve & quick-disconnect hose
