Imperial (Middleby) IHPA-10-60 Hot Plates
Description
Imperial IHPA-10-60 Countertop Gas Hot Plate
60" wide • 10 open burners • 320,000 BTU (94 kW)Built for high-volume kitchens that refuse to compromise on consistency, the Imperial IHPA-10-60 delivers massive cooking power in a compact, 31 ⅜" deep footprint. Ten heavy-duty PyroCentric™ cast-iron burners put out a blistering 32,000 BTU each—yet drop down to a gentle 7,000 BTU simmer—giving your line unmatched flexibility from searing steaks to holding sauces. With a fully welded stainless exterior, anti-clogging burner design, and a slide-out crumb tray, daily clean-up is measured in seconds, not minutes.
Performance & Convenience

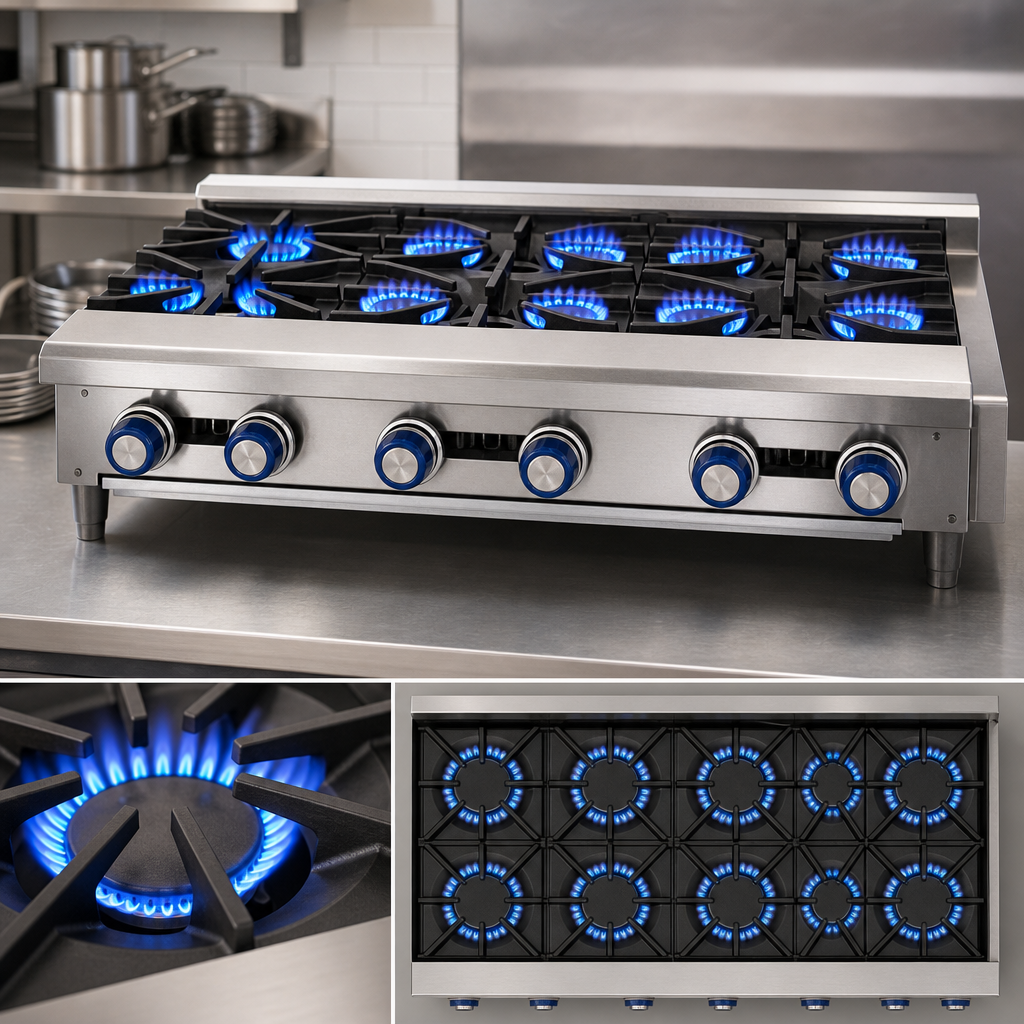

- 10 PyroCentric™ burners (32,000 BTU each) for a 320,000 BTU total output
- 7,000 BTU low-simmer feature on every burner for delicate recipes

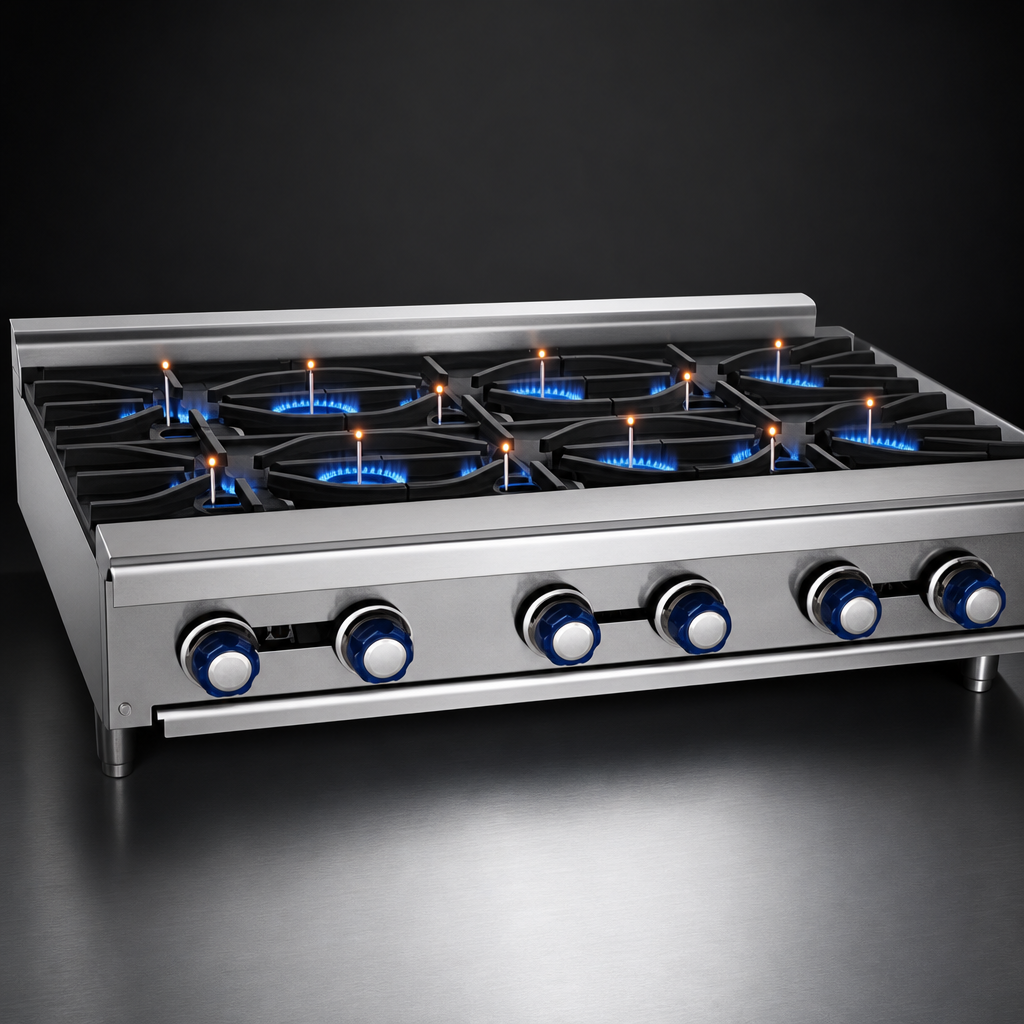

- Standing pilot lights provide instant, reliable ignition
- Two-piece, lift-off cast-iron burner design—no gaskets or screws to lose
- Full-width, removable crumb tray keeps the cook line clean
- 5" deep stainless steel landing ledge offers extra plating space
- Die-cast metal control knobs built to endure daily commercial use
- 4" heavy-duty legs with adjustable feet for easy leveling on any surface
Durable Cast-Iron Grate System
- Grates lift off in two manageable sections for fast cleaning
- Cast-in bowls channel heat directly toward cookware for superior efficiency
- Integrated pilot shield reduces clogging from grease and debris
- Smooth surface lets pots and pans glide from section to section—or onto the landing ledge
Technical Specifications
| Model | IHPA-10-60 |
|---|---|
| Burners | 10 open, cast iron |
| Total Heat Output | 320,000 BTU / 94 kW |
| Per-Burner Output | 32,000 BTU main • 7,000 BTU simmer |
| Dimensions (W × D × H) | 60" × 31 ⅜" × 10 ¾" (1524 × 797 × 273 mm) |
| Gas Connection | 3/4" NPT rear manifold |
| Manifold Pressure | 5.0" W.C. Natural • 10.0" W.C. Propane |
| Clearance | 0" to non-combustible, 8" (203 mm) to combustible surfaces |
| Shipping Weight | 325 lb / 147 kg |
| Certifications | CSA Flame • CSA Star • NSF • CE |
| Warranty | 1-year parts & labor |
Popular Options & Accessories
- Stainless steel equipment stand (with or without 6" casters)
- 10" stainless steel wok ring
- Interchangeable sauté or wok burner heads
- 3/4" NPT gas shut-off valve, quick-disconnect hose kits
Need help matching this hot plate with a refrigerated base or equipment stand? Our team is happy to assist—just reach out!
