Imperial (Middleby)

Imperial IGG-48 48-Inch Grooved Countertop Gas Griddle

SKU: IGG-48
$12,778.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops Imperial (Middleby) New Arrivals Restaurant Equipment

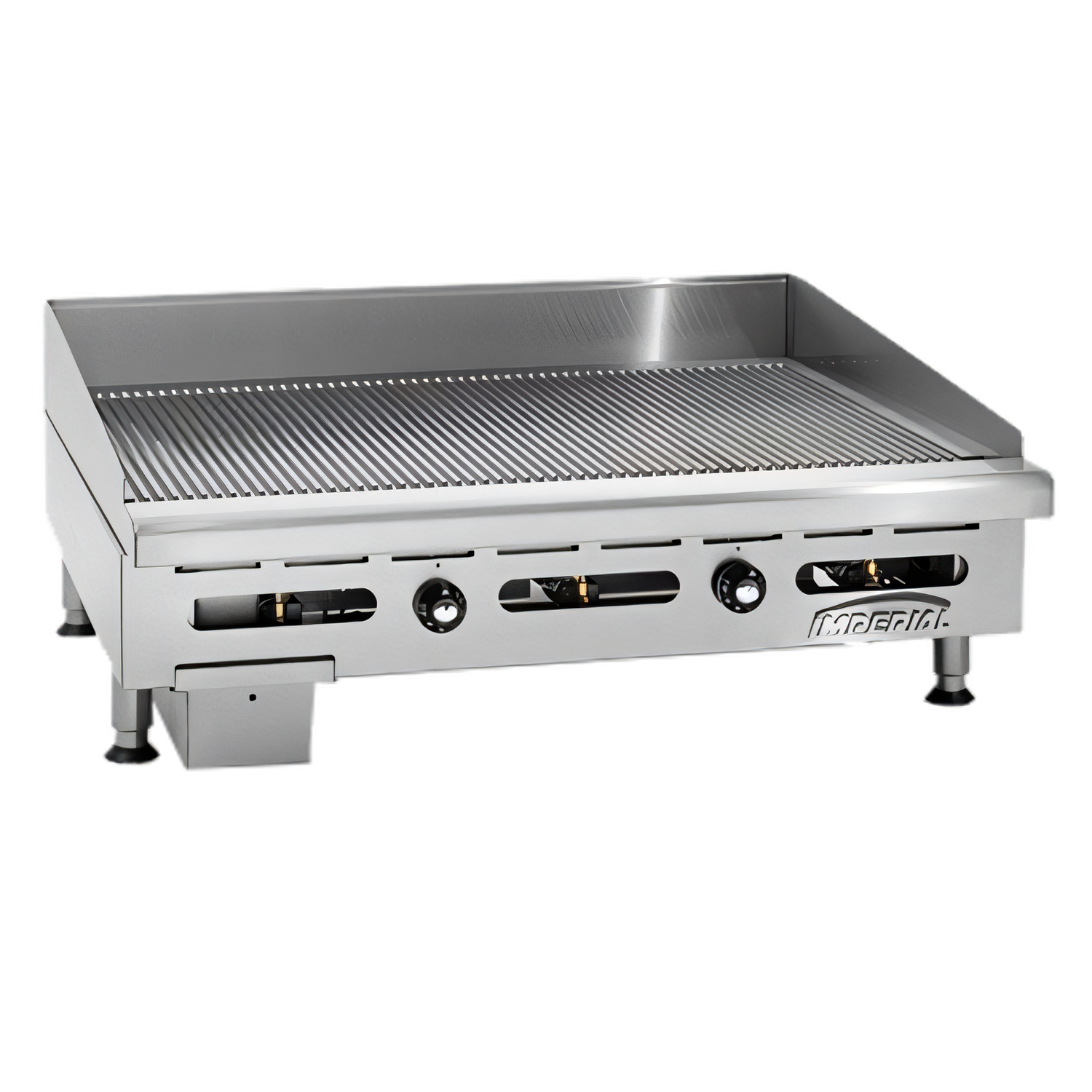

Imperial IGG-48 48-Inch Grooved Countertop Gas Griddle

1-Inch Plate, Thermostatic Controls, 120,000 BTU

A high-output grooved griddle built to deliver even heat, attractive char marks, and easy cleanup in busy commercial kitchens.

  • 48-inch by 24-inch grooved steel cooking surface creates char-broiled marks without open-flame grilling.
  • Thermostatic controls help maintain selected temperatures during peak service.
  • Four burners deliver 120,000 BTU total output with burners spaced every 12 inches for even heat.
  • Aeration baffles and a full-width rear flue help distribute heat uniformly across the plate.
  • Stainless steel front, sides, splash guard, and ledge provide durability and easy cleaning.
  • 4-inch grease gutter and removable 1-gallon grease can simplify grease management.

Overall Dimensions:

48.0"W x 32.38"D x 14.0"H

Product Weight:

630.0 lb

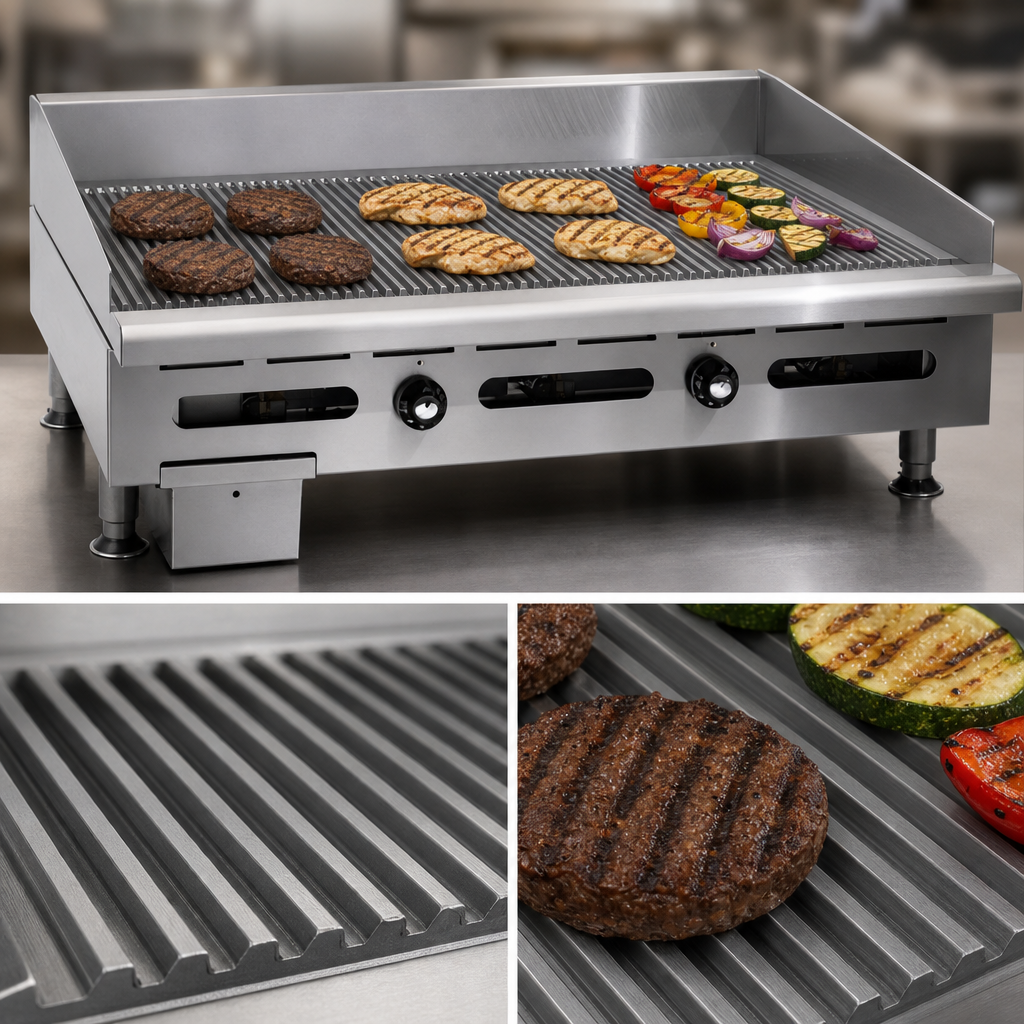

Grooved 1-Inch Steel Griddle Plate

Thick grooved plate produces an attractive char-broiled appearance without actual char-broiling.

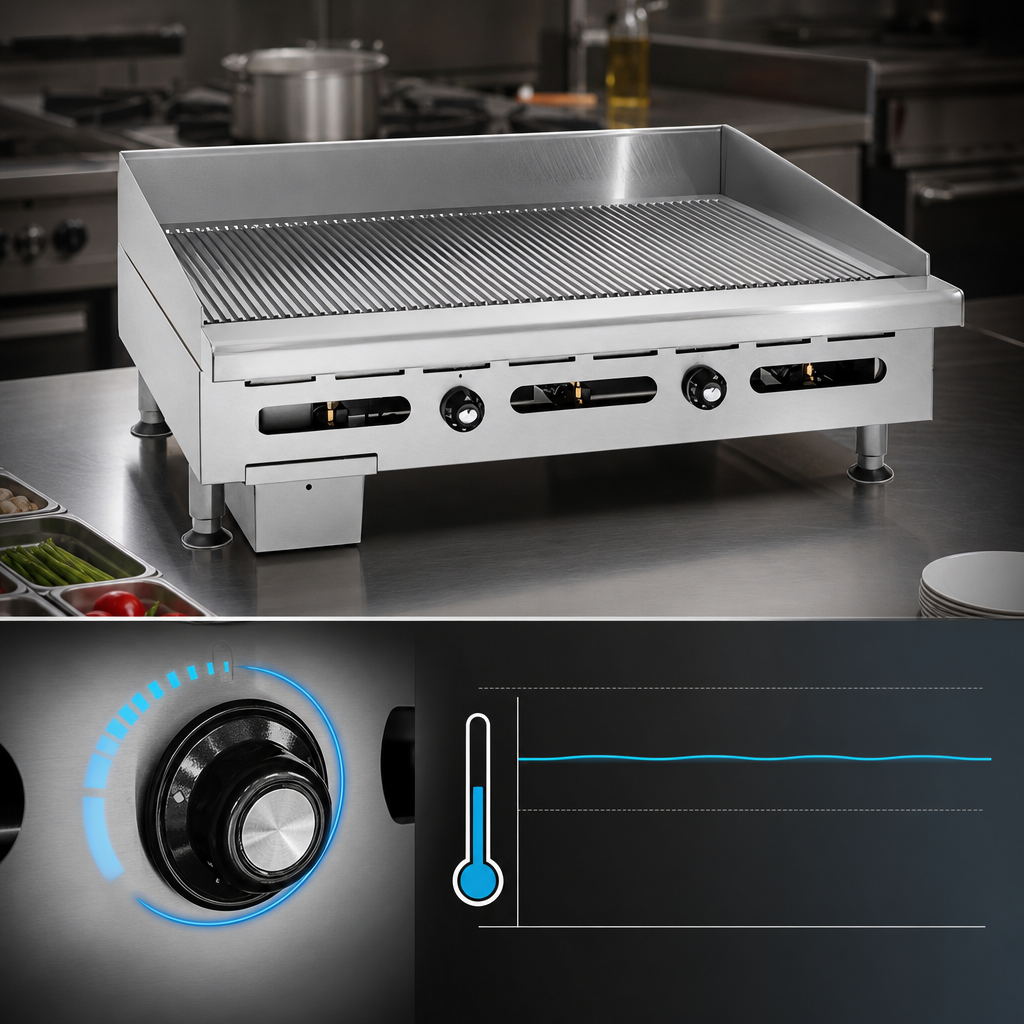

Thermostatic Temperature Control

Maintains the selected cooking temperature during peak hours for more consistent results.

Even Heat Distribution

Aeration baffles between burners and a full-width rear flue help spread heat evenly across the cooking surface.

High Heat Output

Four burners rated at 30,000 BTU each provide 120,000 BTU total output.

Easy Grease Cleanup

Includes a 4-inch stainless steel grease gutter and a removable 1-gallon grease can with a weep hole.

Durable Stainless Exterior

Stainless steel front, sides, splash guard, and rolled ledge are built for heavy commercial use and simpler cleaning.

Included Legs

4-inch stainless steel legs are included for countertop placement.

Type Gas Griddle
Style Grooved
Installation Type Countertop
Controls Thermostatic
Cooking Surface Width 48 Inches
Cooking Surface Depth 24 Inches
BTU 120,000 BTU
Material Stainless Steel
Finish Grooved Steel
Gas Connection Size 3/4 Inch
Shipping Width 48 Inches
Shipping Depth 33 Inches
Shipping Height 14 Inches
Shipping Weight 630 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface is 48 inches wide by 24 inches deep.
It produces 120,000 BTU total from four burners rated at 30,000 BTU each.
It uses thermostatic controls to help maintain the selected temperature.
It uses a 3/4-inch gas inlet. Required manifold pressure is 5.0 inches W.C. for natural gas and 10.0 inches W.C. for propane.
Provide 0 inches of clearance from non-combustible surfaces and 6 inches from combustible surfaces.
A 4-inch stainless steel grease gutter and removable 1-gallon grease can help make cleanup easier.
