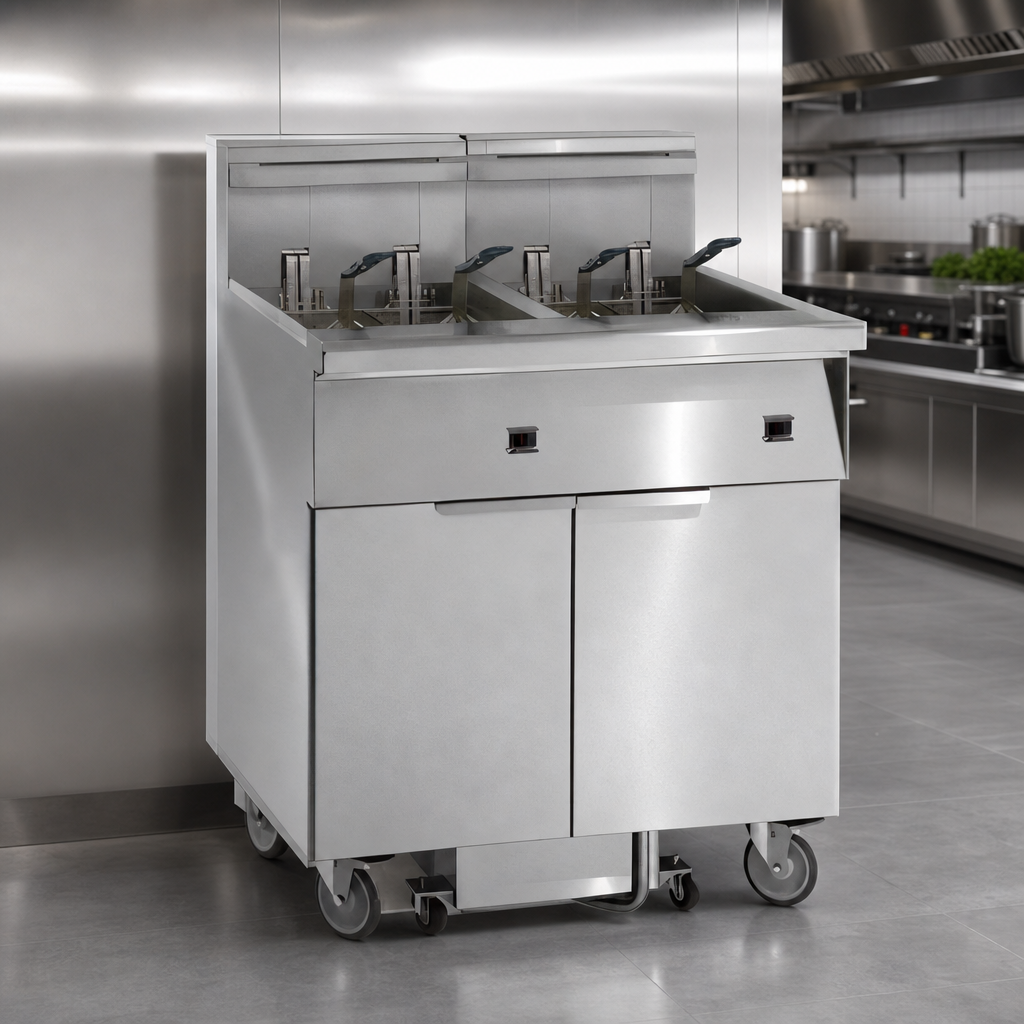

Imperial IFSSP650E 6-Battery 50 lb Electric Fryer System
Space-Saver filter package with immersed elements & electric thermostatsMaximize production, minimize downtime, and reclaim valuable floor space with Imperial’s flagship 6-fryer battery. The IFSSP650E combines six independent 50 lb stainless-steel frypots with an integrated Space Saver filter system driven by a high-output roller pump, giving you 300 lb of frying capacity and rapid, mess-free filtration in one seamless footprint.
Key features
- Six 50 lb frypots (300 lb total) with immersed electric elements for faster recovery & even heat.
- Built-in Space Saver filter system located beneath the fryers – no separate cabinet required.
- 5.5 GPM roller pump powered by a 1/3 HP motor returns filtered oil in under a minute.
- Electric snap-action thermostat holds 200 – 400 °F for consistent, crispy results.
- Continuous stainless-steel cabinet, front, sides & precision-welded frypots resist corrosion and simplify clean-up.
- 5″ deep full-width landing ledge plus heavy-duty casters for easy mobility.
- Includes joiner strips, filter starter kit, and quick-disconnect filter connections out of the box.
- Safety-listed: cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE.
Why built-in filtration matters
- Filter multiple vats in sequence without moving heavy hot oil.
- Extend oil life up to 40 % and maintain peak food quality.
- Return line is internally plumbed for a safer, cleaner kitchen.
- Positive-latching filter paper holder keeps media perfectly aligned every cycle.
Specifications
| Model | IFSSP650E (immersed elements) |
|---|---|
| Number of fryers | 6 battery |
| Oil capacity | 50 lb per frypot × 6 = 300 lb (41 L each) |
| Overall dimensions (W × D × H) | 93″ × 34″ × 44-1/8″ (2362 × 864 × 1121 mm) |
| Shipping weight | 1,568 lb (711 kg) |
| Filter electrical | 115 V, 1-phase, 6.8 A (6 ft cord & plug included) |
| Per-fryer electrical |
208 V / 3-phase / 60 Hz / 42.38 A 240 V / 3-phase / 60 Hz / 36.73 A 480 V / 3-phase / 60 Hz / 18.36 A *export* |
| Pump output | 5.5 GPM (1/3 HP motor) |
| Clearances | 0″ sides & back from non-combustible surfaces; 6″ (152 mm) from combustible |
| Casters | Included (front brakes) |
| Warranty | 1-year parts & labor; 5-year pro-rated frypot (stainless steel) |
Ideal for
- High-volume QSR and fast-casual concepts
- Stadiums, arenas & concessions
- Hotel banquet kitchens
- Ghost kitchens needing maximum output in minimal space
Installation note: Unit must be placed on non-combustible floors with casters or legs installed.
Verify electrical requirements prior to connection. Professional installation and start-up are strongly recommended.
Looking to spread out the investment? Middleby Equipment Financing offers fast approvals and affordable fixed monthly payments — ask your sales rep for details.
$72,623.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
High-capacity Imperial IFSSP650ET electric floor fryer: six 50 lb frypots, space-saver filter, immersed elements, 5.5 GPM pump, stainless steel, casters.
Manufacturer
Imperial (Middleby)
Certifications
CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame
Height
44.13in
Width
93.0in
Depth
34.0in
Shipping Weight
1568.0lbs
With or without basket lifts
without basket(s)
Fry pot
stainless steel
Controls
thermostatic controls
Filter
built-in filter
Fat Capacity (approximate)
50 lbs each
Fryer Quantity
(6) tanks
Exterior Finish
all stainless steel exterior
Specifications
Fryer, electric, floor model, (6) battery, 50 lb. capacity each, immersed elements, built-in space saver filter system, 5.5 GPM roller pump, electric thermostat, includes: joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
