Imperial (Middleby) IFSSP650EC Electric Fryers
Description
Imperial IFSSP650E-C Six-Battery 50 lb Electric Fryer w/ Space-Saver Filter
300 lb total capacity • Immersed elements • Computer controlsTackle your highest-volume frying periods without surrendering valuable hood space. Imperial’s IFSSP650E-C combines six independent 50 lb fryers with a built-in Space Saver filtration system, giving you maximum throughput, cleaner oil and consistently delicious results in one sleek stainless steel footprint.
Highlights

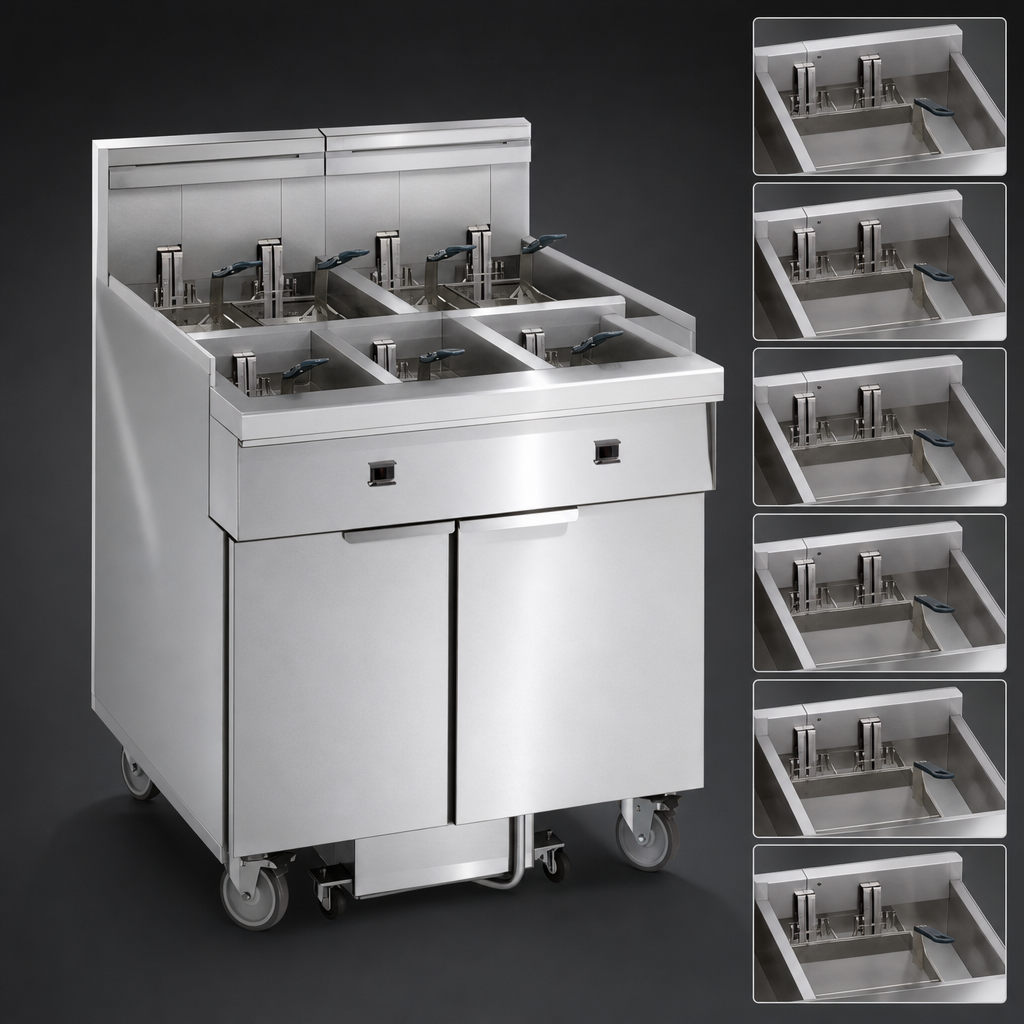

- Six 50 lb (41 L) frypots – 300 lb total oil capacity

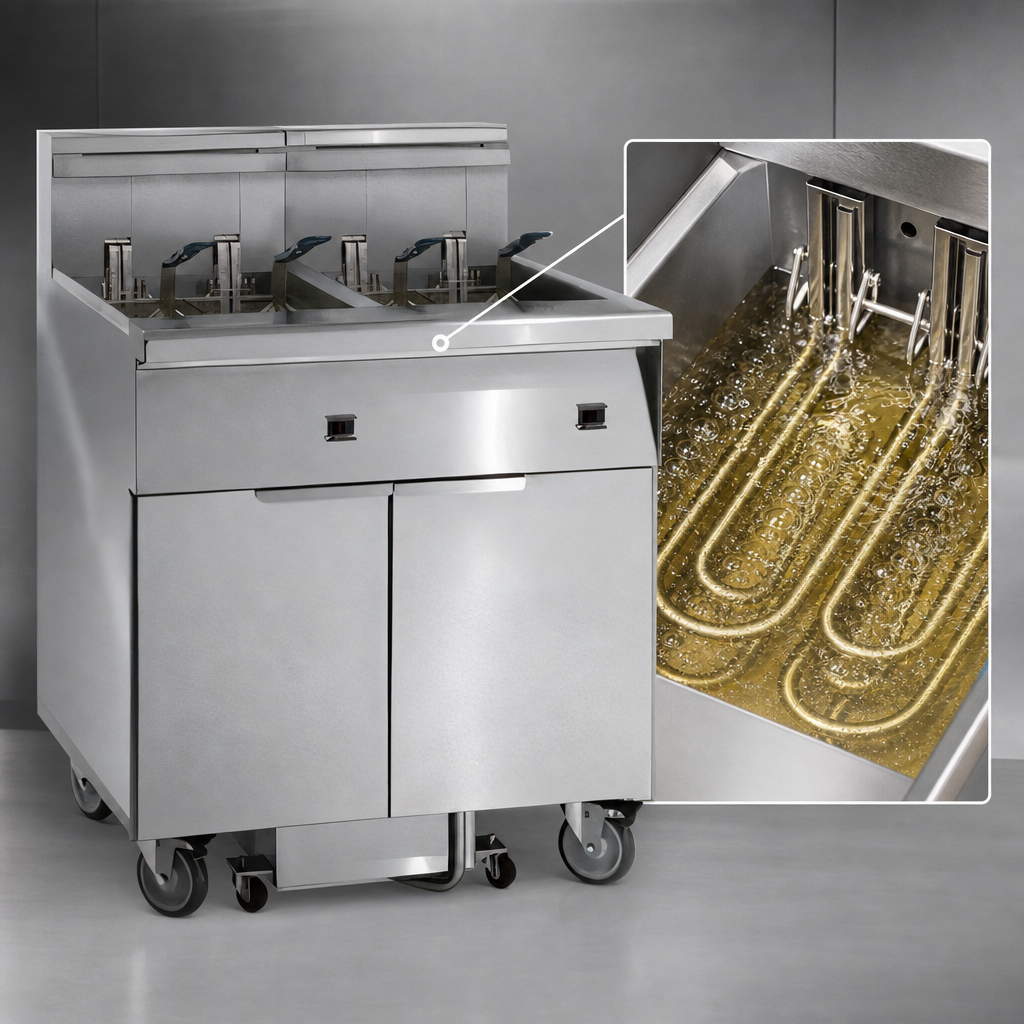

- Immersed electric elements for fast recovery & even heat
- Under-cabinet Space Saver filter – no external module required
- 5.5 GPM roller pump with 1/3 HP motor filters a full battery in minutes
- Computer controls with programmable cook cycles, shake prompts & auto-recovery
- Stainless steel precision-welded frypots, front, sides & continuous cabinet
- Includes casters, joiner strips & starter filter paper kit
- Oil-disposal capability up to 20 ft away through the integrated pump
- cETLus, CSA Flame, CSA Star, CSA-Sanitation & CE certified
Why Space-Saver Filtration?
Located directly beneath the fryers, the filtration system lets you drain, filter and return oil at the push of a button while the other vats keep cooking. The result—longer oil life, reduced flavor transfer and lower operating costs—without adding another piece of equipment to your cookline.
Specifications
| Model | IFSSP650E-C (immersed elements, computer controls) |
|---|---|
| Number of fryers | 6 |
| Oil capacity | 50 lb (41 L) per vat / 300 lb (246 L) total |
| Heat source | Electric – immersed elements, 18 kW per vat |
| Filtration pump | 5.5 GPM roller pump, 1/3 HP motor |
| Controls | Programmable computer with cook timers & melt cycles |
| Overall dimensions | 93" W × 34" D × 44-1/8" H (2362 × 864 × 1121 mm) |
| Shipping weight | 1,568 lb (711 kg) |
| Electrical (per vat) |
208 V / 3 ph / 60 Hz / 42.38 A 240 V / 3 ph / 60 Hz / 36.73 A 480 V / 3 ph / 60 Hz / 18.36 A |
| Filter electrical | 115 V / 1 ph / 60 Hz / 6.8 A (6-ft cord & plug included) |
| Clearances | 0" to non-combustible, 6" (152 mm) to combustible surfaces; legs or casters required |
| Included accessories | Casters, joiner strips, filter starter kit |
| Optional accessories | Automatic or manual basket lifts, stainless tank covers, side splash or drain shelf, manual timer, replacement filter paper |
| Warranty | 1-year parts & labor; 5-year pro-rated frypot warranty |
Imperial reserves the right to change specifications without notice. Always consult local codes and the installation manual before installing this equipment.
