Imperial (Middleby)  |  SKU: IFSSP575EUC

Imperial (Middleby) IFSSP575EUC Electric Fryers

$91,232.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts manual Training video Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Food Prep Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Imperial IFSSP575EU 5-Battery 75 lb Electric Floor Fryer w/ Space Saver Filter System & Computer Controls

High-volume performance in a space-saving footprint

Power through peak periods with five independent 75-lb electric fryers and an integrated Space Saver filter system—all in one continuous stainless cabinet. Tilt-up elements, quick-cycle filtration, and programmable computer controls give your team the speed, consistency, and safety they need to keep the fries (and profits) flowing.

Why You’ll Love It

  • 375 lb total oil capacity—five 75 lb frypots for true high-output production.
  • Tilt-up immersion elements swing clear for effortless cleaning and full pot access.

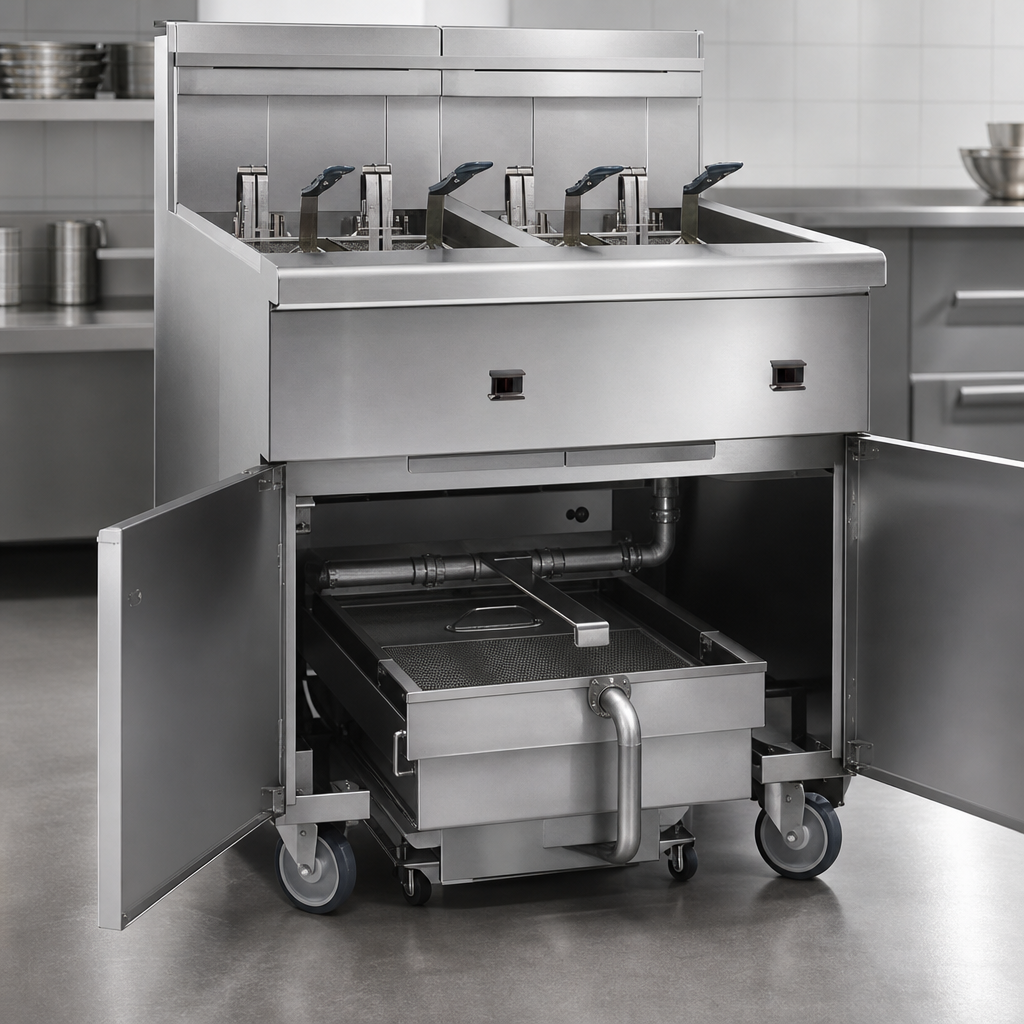

  • Built-in Space Saver filter system eliminates bulky external carts and plumbing.

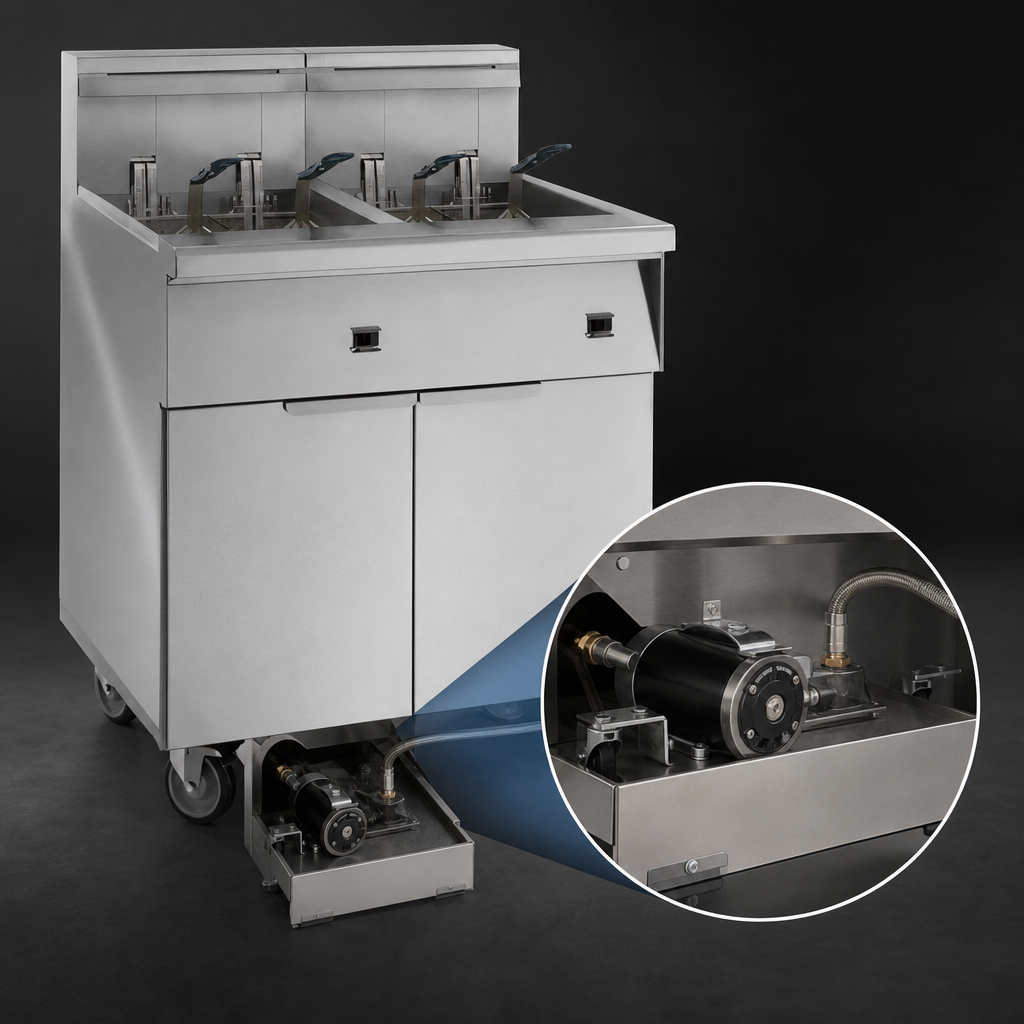

  • 5.5 GPM roller pump (1/3 HP) filters each pot fast and can move oil up to 20 ft to a disposal tank.
  • Computer controls store multiple cook programs for perfect, repeatable results.
  • All drain and return lines are internally plumbed; quick-disconnect hose keeps hot oil contained.
  • Rugged stainless steel frypots, front, and sides stand up to daily commercial abuse.
  • Casters, joiner strips, and a filter starter kit ship installed—roll in, hook up, and fry.

Specifications

Manufacturer / Model Imperial IFSSP575EU (Tilt-Up Elements, Space Saver Filter)
Frypot Configuration (5) 75 lb (51 L) electric fryers – 375 lb total capacity
Controls Computerized – multiple timers, melt cycle, temperature recovery monitoring
Filter System Integrated under-cabinet Space Saver system with stainless pan & positive-latch paper holder
Pump / Motor 5.5 GPM stainless roller pump, 1/3 HP
Exterior Stainless steel frypots, front, sides & 5" landing ledge; one-piece cabinet
Mobility Heavy-duty swivel casters (front locking)
Overall Dimensions 97-1/2" W × 40-1/2" D × 44-1/8" H (2477 × 1029 × 1121 mm)
Electrical – Each Fryer 208 V / 3 ph / 60 Hz / 50.02 A
240 V / 3 ph / 60 Hz / 43.35 A
480 V / 3 ph / 60 Hz / 21.68 A (export)
Electrical – Filter 115 V / 1 ph / 60 Hz / 6.8 A – 6 ft cord & 3-prong plug included
Certifications cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
Shipping Weight Approx. 1,400 lb (635 kg)
Warranty 1-year parts & labor; 5-year pro-rated fry tank

What’s in the Box

  • (5) 75 lb electric fryers with computer controls
  • Integrated Space Saver filter pan & housing
  • 5.5 GPM roller pump with quick-disconnect hose
  • Filter starter kit (paper & powder)
  • Joiner strips for seamless battery alignment
  • (4) Swivel casters (2 locking)
  • Installation & operation manuals
Installation Note: Unit must be installed on a non-combustible floor with 0" clearance from non-combustible surfaces (6" from combustible). Electrical connections should be performed by a licensed professional and comply with all local codes.

Imperial reserves the right to change specifications without notice. Photos may show optional accessories.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame

Height

44.13in

Width

97.5in

Depth

40.5in

Shipping Weight

1400.0lbs

With or without basket lifts

without basket(s)

Fat Capacity (approximate)

75 lbs each

Fry pot

stainless steel

Filter

built-in filter

Fryer Quantity

(5) tanks

Exterior Finish

all stainless steel exterior

Controls

computer controls

Specifications

Fryer, electric, floor model, (5) battery, 75 lb. capacity each, tilt-up elements, built-in space saver filter system, 5.5 GPM roller pump, computer controls, includes: joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
