Imperial (Middleby)  |  SKU: IFSSP575EU

Imperial (Middleby) IFSSP575EU Electric Fryers

$73,947.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Parts manual Training video Middleby financial flyer Warranty sheet
Related Searches
Food Prep Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Imperial IFSSP575EU 5-Bank 75 lb Electric Fryer w/ Space Saver Filter System

Tilt-up elements • Built-in 5.5 GPM filtration • 375 lb total oil capacity

Engineered for the busiest commercial kitchens, the Imperial IFSSP575EU combines five full-size, 75 lb electric frypots with an integrated Space Saver filter system that tucks completely underneath the cabinet. You get continuous, high-output frying without sacrificing a single inch of precious floor space.

Why Choose the IFSSP575EU?

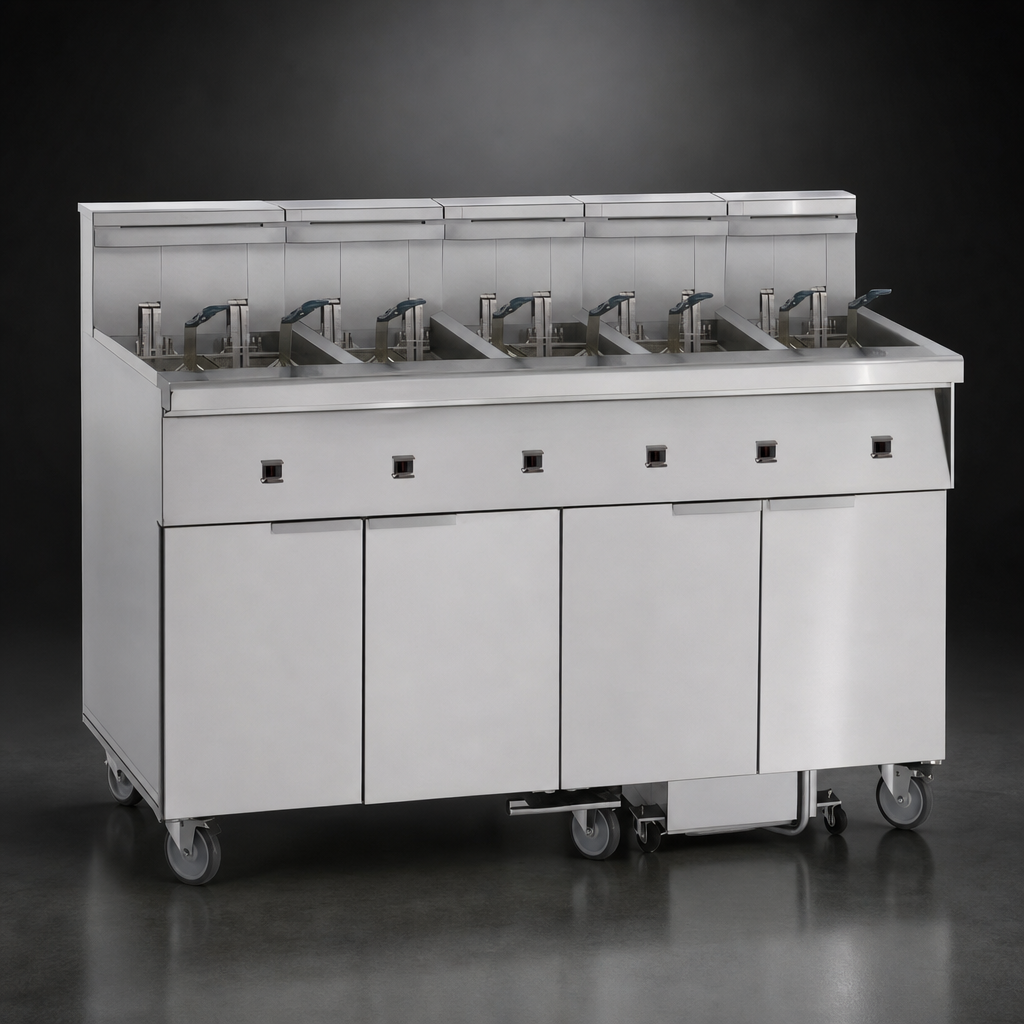

  • Massive production, compact footprint – 5 floor-model fryers unified in one 97-½" wide cabinet.

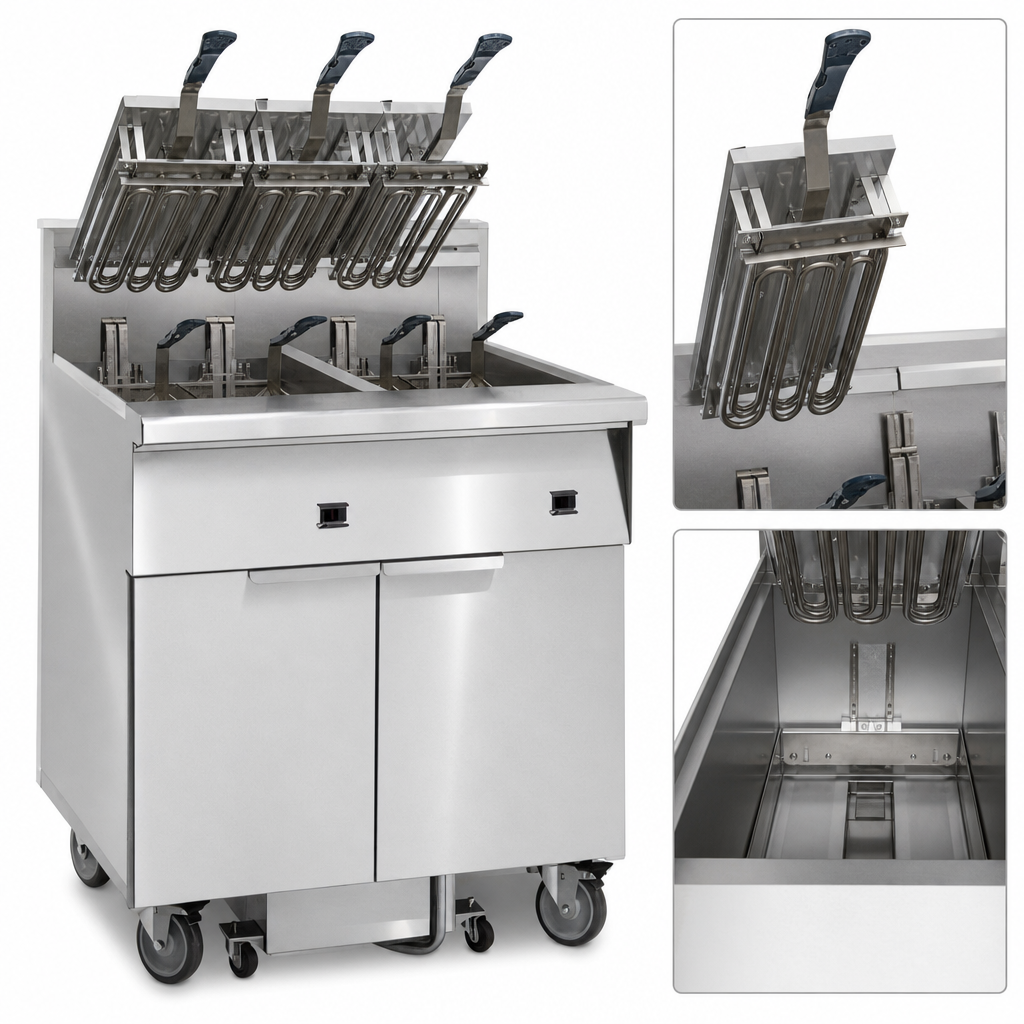

  • Tilt-up immersed elements swing clear of the frypot for fast, safe cleaning and easy access.
  • Snap-action thermostats (200-400 °F) respond instantly for tight temperature control and consistent product quality.
  • Space Saver filtration under the fryers—filter, drain and return oil without moving a pot or lifting a lid.
  • 5.5 GPM roller pump, 1/3 HP motor filters a full frypot in minutes and can discharge oil up to 20 ft away.
  • Stainless steel everywhere—precision-welded frypots, front, sides and 5" landing ledge stand up to years of abuse.
  • Ready to roll – factory-installed casters, joiner strips and a filter starter kit are all included.

Integrated Space Saver Filtration

  • Filter pan’s positive-latch holder keeps paper perfectly aligned for optimal filtration.
  • Quick-disconnect return line speeds setup while preventing messy cross-threads.
  • All drain/return plumbing is internal—no external hoses to trip over or damage.
  • Filter motor powered by a dedicated 115 V cord set (3-prong plug included).

Built for High-Volume Productivity

  • Each frypot holds 75 lb (51 L) of oil for a combined 375 lb capacity.
  • Continuous stainless front landing ledge keeps baskets and product within easy reach.
  • Factory-installed mixer strips create a seamless, “one-piece” battery look.
  • Optional automatic or manual basket lifts, tank covers, side shelves and splash guards available.

Specifications

Model IFSSP575EU
Frypots / Capacity 5 frypots  |  75 lb (51 L) each  •  375 lb total
Element Type Tilt-up, immersed electric elements
Thermostat Snap-action, 200–400 °F (93–204 °C)
Filtration Pump 5.5 GPM roller pump  |  1/3 HP motor  |  115 V, 6.8 A
Electrical (per fryer) 208 V / 3 Ph / 60 Hz – 50.02 A
240 V / 3 Ph / 60 Hz – 43.35 A
480 V / 3 Ph / 60 Hz – 21.68 A (export only)
Exterior Dimensions 97-½" W × 40-½" D × 44-⅛" H
(2477 × 1029 × 1121 mm)
Shipping Weight 1,400 lb (635 kg)
Clearances 0" from non-combustible surfaces • 6" (152 mm) from combustible surfaces
Included Items Casters, joiner strips, filter starter kit
Certifications cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
Warranty: 1 year parts & labor on the entire unit plus a 5-year pro-rated warranty on the stainless-steel fry tanks when installed and maintained per Imperial guidelines.

Need flexible payments? Imperial equipment is eligible for Middleby Equipment Financing—ask your rep for details.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame

Height

44.13in

Width

97.5in

Depth

40.5in

Shipping Weight

1400.0lbs

With or without basket lifts

without basket(s)

Fat Capacity (approximate)

75 lbs each

Controls

thermostatic controls

Fry pot

stainless steel

Filter

built-in filter

Fryer Quantity

(5) tanks

Exterior Finish

all stainless steel exterior

Specifications

Fryer, electric, (5) floor model, 75 lb. capacity each, tilt-up elements, built-in space saver filter system, 5.5 GPM roller pump, snap action thermostat, includes: joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
