Imperial IFSSP575E Five-Bank 75 lb Electric Fryer System
Space-Saver Filtration • Immersed Elements • 5.5 GPM Roller PumpMaximize volume without sacrificing floor space. The Imperial IFSSP575E combines five full-size 75 lb fryers with an integrated, under-cabinet Space Saver filter system that keeps oil fresh, extends fry life and maintains the crispy quality your menu demands.
Key Advantages

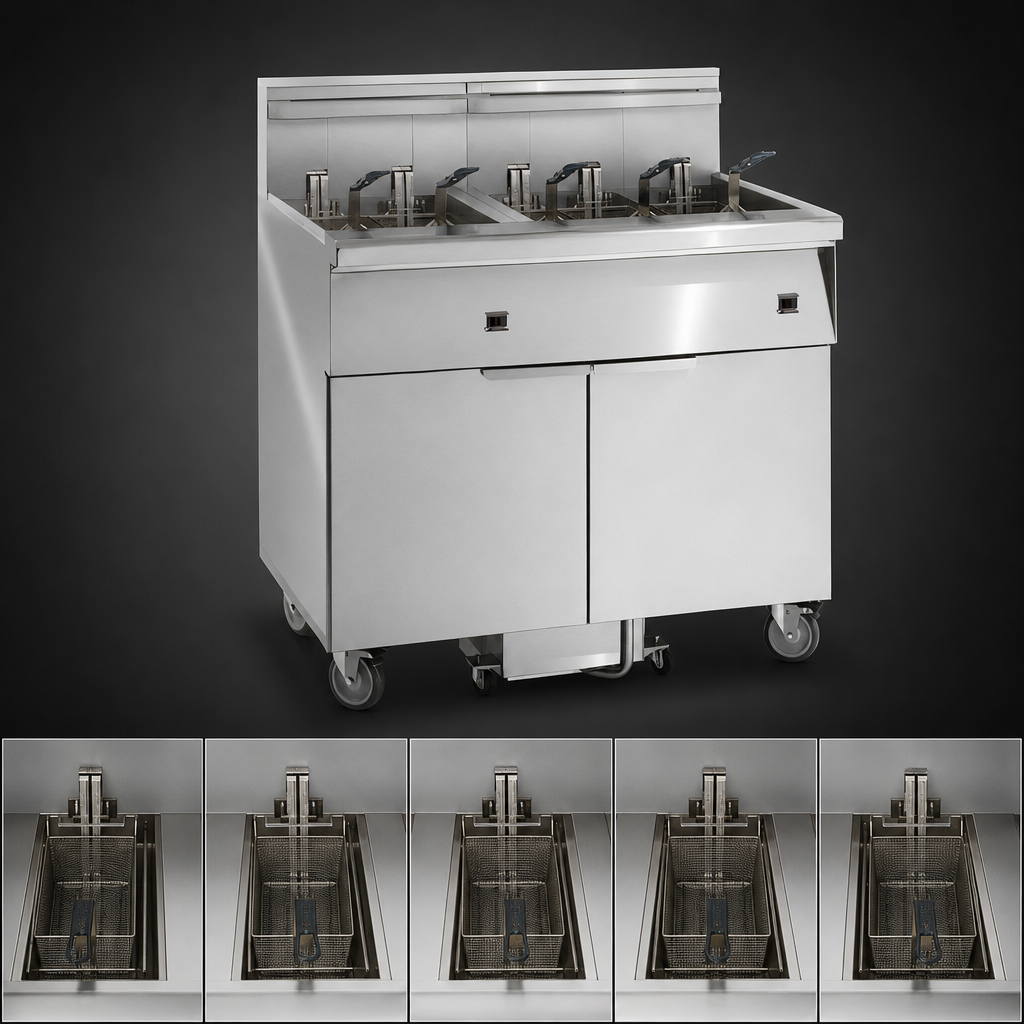

- Five independent 75 lb (51 L) stainless steel frypots—ideal for high-volume operations or varied menus.
- Immersed electric elements transfer heat directly to the oil for faster recovery and reduced energy loss.

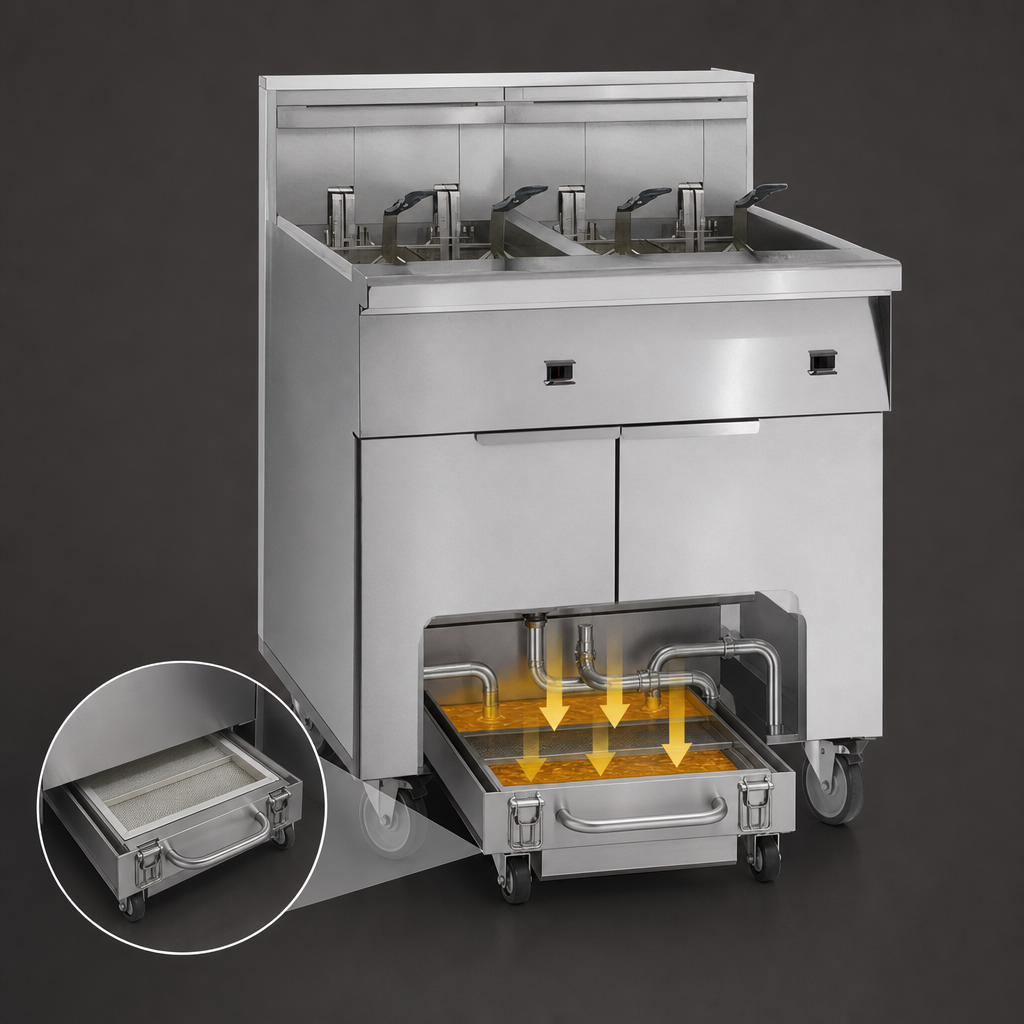

- Built-in Space Saver filter system—no extra floor space required; all drain and return lines are internally plumbed.
- 5.5 GPM roller pump with 1/3 HP motor quickly filters oil and can pump to a disposal vat up to 20 ft (6 m) away.
- Snap-action thermostats deliver precise temperature control and rapid response to load changes.
- Continuous stainless steel cabinet with 5" landing ledge offers a clean, professional look and extra plating space.
- Factory-installed heavy-duty casters allow easy cleaning and service access.
- Includes joiner strips & filter starter kit—everything you need to start frying day one.
- Certified to cETLus, CSA Flame, CSA Star, CSA-Sanitation & CE standards.
Specifications
| Model | IFSSP575E |
|---|---|
| Number of Fryers | 5 floor models (battery) |
| Oil Capacity | 75 lb (51 L) per frypot |
| Element Type | Immersed electric elements |
| Filtration System | Integrated Space Saver filter, 5.5 GPM roller pump, 1/3 HP motor, 115 V/1 ph/6.8 A |
| Electrical (per fryer) |
208 V / 3 ph / 60 Hz – 50.02 A 240 V / 3 ph / 60 Hz – 43.35 A 480 V / 3 ph / 60 Hz – 21.68 A |
| Exterior Construction | Stainless steel frypots, front & sides; welded and polished seams |
| Overall Dimensions | 97-1/2" W × 40-1/2" D × 44-1/8" H (2477 × 1029 × 1121 mm) |
| Shipping Weight | 1,400 lb (635 kg) |
| Clearance | 0" from non-combustible surfaces; 6" (152 mm) from combustible surfaces |
| Warranty | 1-year parts & labor; 5-year pro-rated stainless steel fry tank |
| Included | Heavy-duty casters, joiner strips, filter starter kit |
Popular Options & Accessories
- Automatic or manual basket lifts
- Stainless steel tank covers
- Side drain shelf or side splash
- Manual timer kit
- Imperial 40# / 20-micron filter paper (100-sheet box)
Legs or casters are required for installation on non-combustible floors. Follow all local codes and Imperial’s installation manual for safe operation.
$67,196.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IFSSP575E electric fryer: five 75 lb frypots with immersed elements, built-in space‑saver filter, 5.5 GPM pump, stainless steel, casters.
Manufacturer
Imperial (Middleby)
Certifications
CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame
Height
44.13in
Width
97.5in
Depth
40.5in
Shipping Weight
1400.0lbs
With or without basket lifts
without basket(s)
Fat Capacity (approximate)
75 lbs each
Controls
thermostatic controls
Fry pot
stainless steel
Filter
built-in filter
Fryer Quantity
(5) tanks
Exterior Finish
all stainless steel exterior
Specifications
Fryer, electric, (5) floor model, 75 lb. capacity each, immersed elements, built-in space saver filter system, immersed elements, built-in space saver filter system, 5.5 GPM roller pump, snap action thermostat, includes: joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
