Imperial (Middleby) IFSSP550EUT Electric Fryers
Description

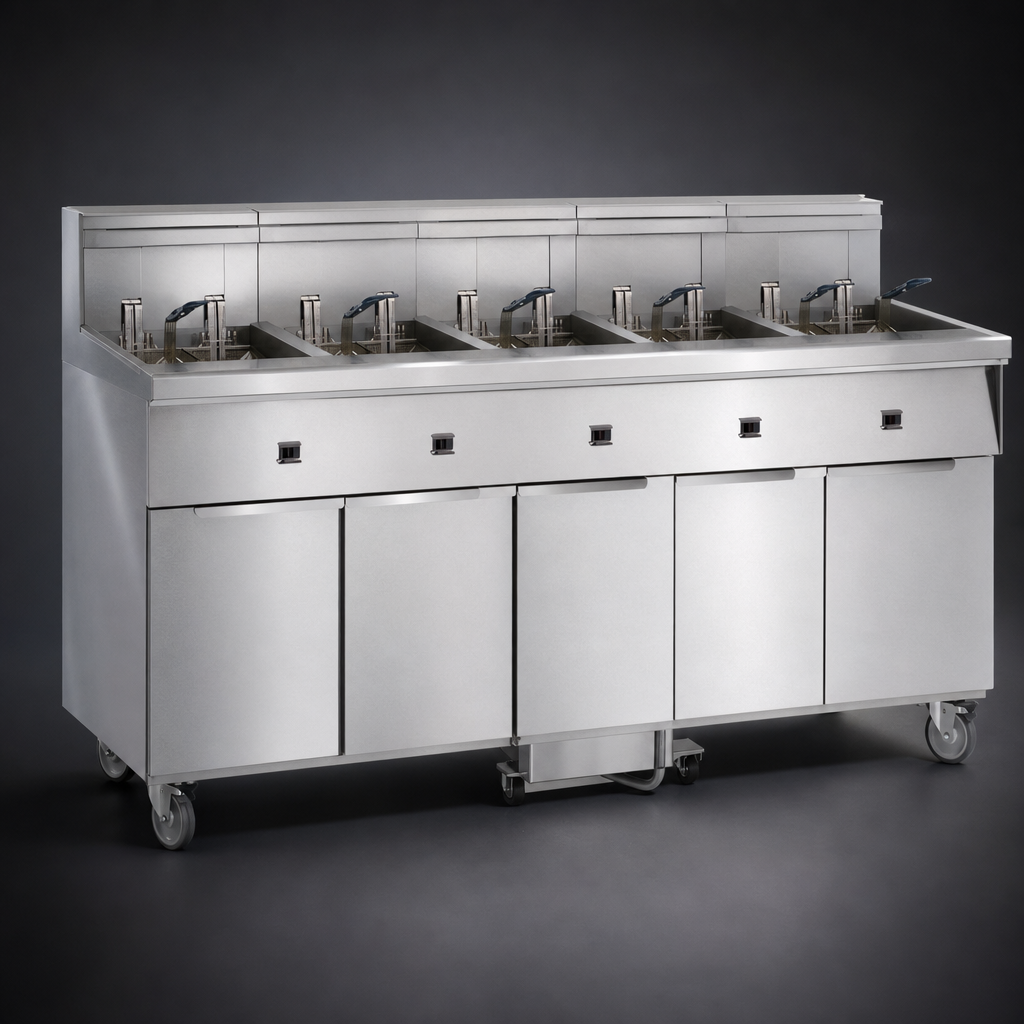

Imperial 5-Battery 50 lb Electric Fryer with Tilt-Up Elements & Space-Saver Filtration
IFSSP Series – 250 lb total capacity • Electronic Thermostats • Built-in Roller-Pump FilterEngineered for high-volume kitchens that refuse to compromise on floor space, this Imperial 5-vessel electric fryer battery delivers a combined 250 lb of oil capacity in a polished, single-piece cabinet. Tilt-up elements heat oil fast and evenly, while the integrated Space Saver filter system with a 5.5 GPM roller pump keeps every drop of oil clean and ready for peak-time production.
Key Performance Features
- Five independent 50 lb (41 L) stainless steel frypots – fry different menu items simultaneously without flavor transfer.
- Tilt-up, immersed elements for maximum heat recovery and effortless tank access.
- Factory-mounted electronic thermostats maintain precise fry temperatures for consistent results and extended oil life.
- Space-saving under-fryer filter system—no extra footprint required.
- 5.5 GPM roller pump (1/3 HP) returns filtered oil in minutes and can discharge to a disposal vat up to 20 ft away.
- Continuous stainless steel cabinet with 5" landing ledge stands up to the toughest commercial environments.
- Mounted on heavy-duty casters for easy cleaning and line re-configuration.
Built-In Space Saver Filter System
- Internally-plumbed drain & return lines keep hot oil safely contained.
- Positive-latching filter paper holder and quick-disconnect connections speed up change-outs.
- Stainless steel filter pan designed for maximum oil return and simple wash-down.
- Includes joiner strips & filter starter kit—arrives ready for first use.
Specifications
| Oil Capacity | 50 lb (41 L) per frypot × 5 = 250 lb (205 L) total |
|---|---|
| Overall Dimensions | 77-1/2" W × 34" D × 44-1/8" H (1969 × 864 × 1121 mm) |
| Shipping Weight | 1,315 lb (596 kg) |
| Per-Fryer Electrical |
208 V / 3 ph / 60 Hz – 42.38 A 240 V / 3 ph / 60 Hz – 36.73 A 480 V / 3 ph / 60 Hz – 18.36 A (export) |
| Filter System Electrical | 115 V / 1 ph / 60 Hz – 6.8 A (6 ft cord & 3-prong plug included) |
| Pump Motor | 5.5 GPM roller pump, 1/3 HP |
| Clearance | 0" non-combustible, 6" (152 mm) combustible; install on non-combustible floor with legs or casters. |
| Certifications | cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE |
What’s Included
- (5) Stainless steel frypots with immersed tilt-up elements
- Space Saver filter system, filter pan & starter kit
- Set of heavy-duty swivel casters (front locking)
- Joiner strips for seamless battery alignment
- User & service manuals
Popular Options & Accessories
- Automatic or manual basket lifts
- Stainless steel tank covers
- Side drain shelf or side splash
- Manual timer kit
- 20 µm filter paper (box of 100)
Warranty
1-year parts & labor. Frypot carries a pro-rated 5-year limited stainless steel warranty. Warranty service must be performed by an authorized Imperial agency.
