Imperial (Middleby) IFSSP550EU Electric Fryers
Description

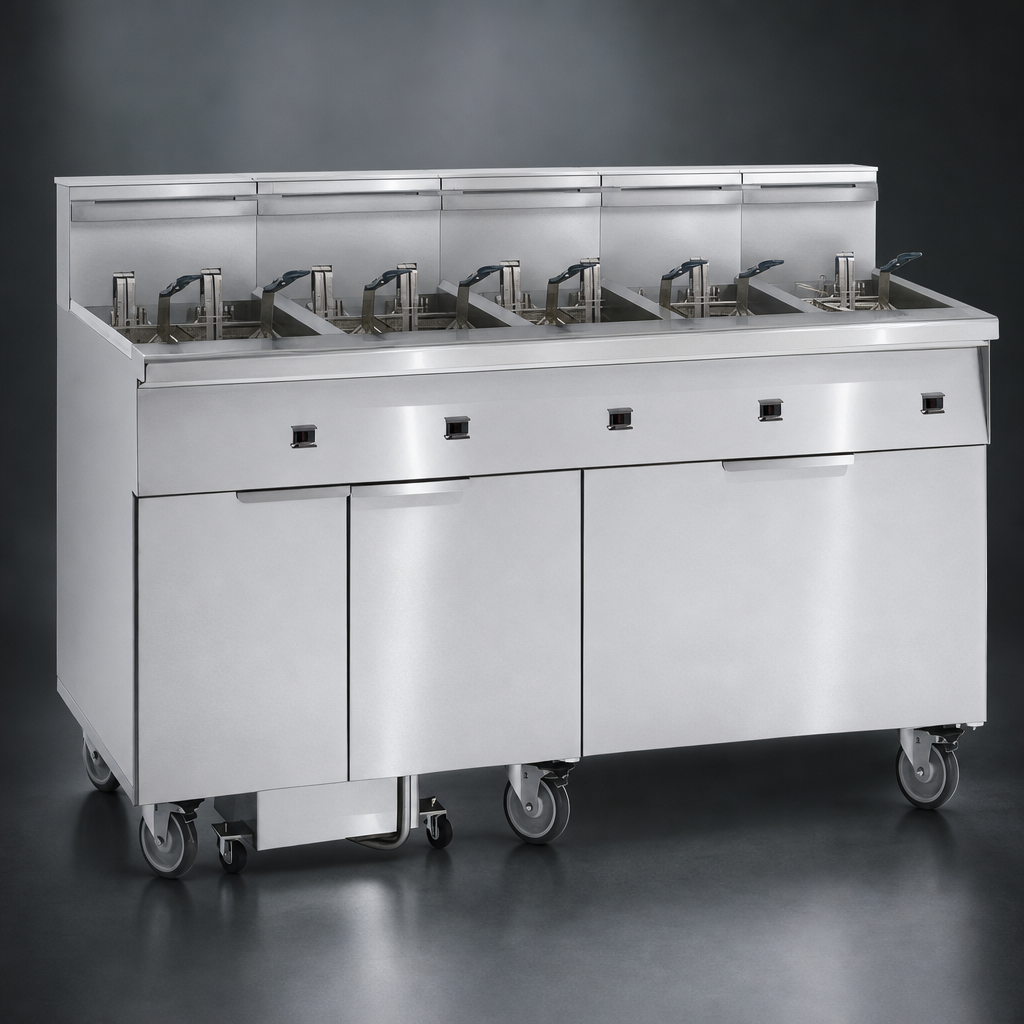

Imperial IFSSP550EU 5-Battery 50 lb Electric Floor Fryer w/ Space Saver Filter System
Tilt-Up Heating Elements | 250 lb Total Oil Capacity | 5.5 GPM Roller PumpBuilt for high-volume operators that demand maximum throughput without giving up floor space, the Imperial IFSSP550EU combines five independent 50 lb electric fryers with a fully integrated Space Saver filtration suite. Enjoy lightning-fast recovery, effortless oil maintenance, and the rugged reliability you expect from Imperial—all in one continuous stainless-steel cabinet.
Top Features
- Five 50 lb frypots deliver a massive 250 lb total capacity for simultaneous cooking of multiple menu items.
- Tilt-up immersed elements swing clear of the tank, giving full access for safe, thorough cleaning.
- Snap-action thermostats ensure rock-steady temperature control and rapid heat recovery.
- Integrated Space Saver filter drawer tucks beneath the battery, eliminating the need for a separate filter cart.
- 5.5 GPM roller pump (1/3 HP) filters an entire system quickly and can discharge oil up to 20 ft to a disposal vat.
- Positive-latching paper holder and quick-disconnect return line speed up daily filtration cycles.
- 5" stainless-steel landing ledge provides a safe staging area for hot baskets.
- Ships complete with heavy-duty casters, joiner strips, and a filter starter kit.
Durability & Certifications
- One-piece, precision-welded stainless-steel frypots carry a 5-year limited tank warranty.
- Stainless-steel front, sides, doors, and filter pan stand up to daily commercial abuse.
- cETLus, CSA Flame, CSA Star, CSA-Sanitation, and CE listed for worldwide compliance.
Specifications
| Model | IFSSP550EU |
|---|---|
| Fryers Included | 5 (battery) |

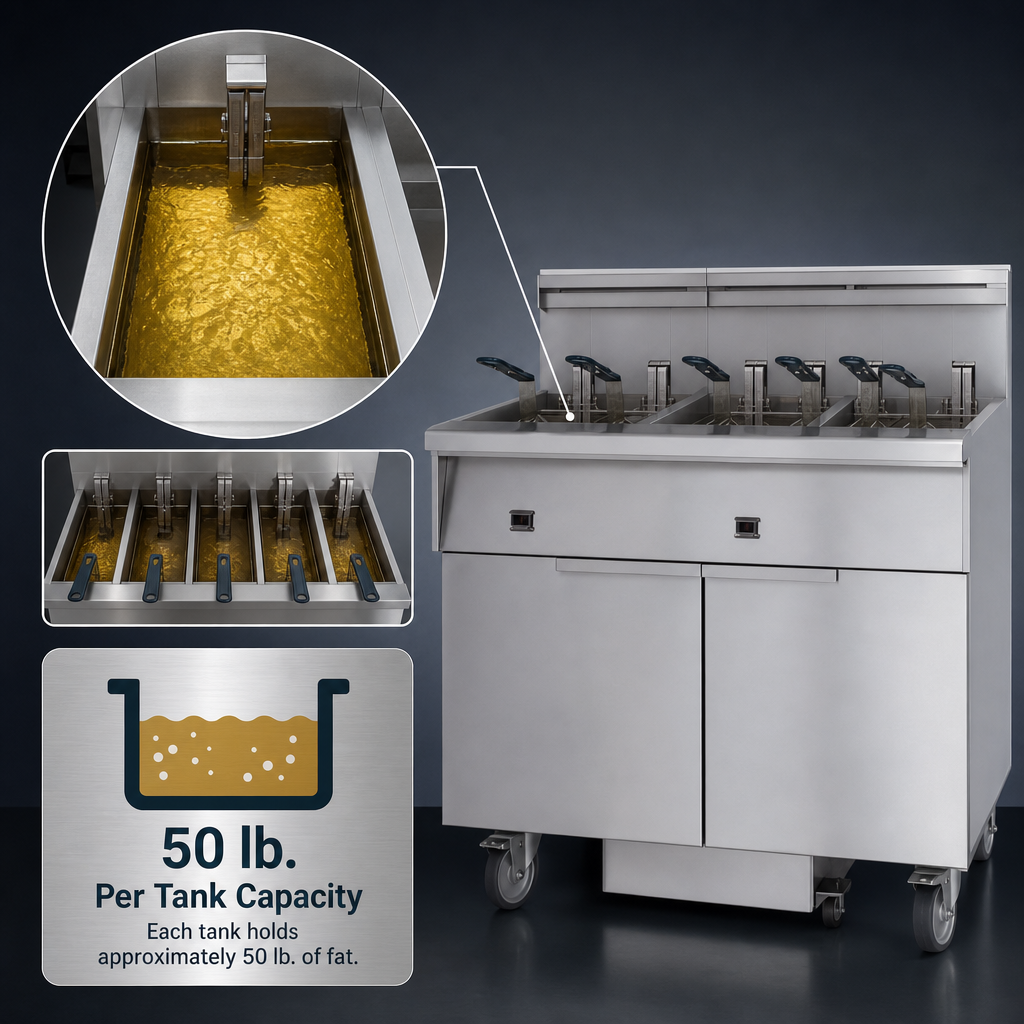

| Oil Capacity | 50 lb per frypot (41 L) | 250 lb total |
| Heating Elements | Tilt-up immersed electric elements |
| Filtration System | Built-in Space Saver drawer, 5.5 GPM roller pump, 1/3 HP motor |
| Overall Dimensions | 77-1/2" W × 34" D × 44-1/8" H (1969 × 864 × 1121 mm) |
| Ship Weight | 1,315 lb (596 kg) |
| Electrical – Each Fryer |
208 V / 3 PH / 60 Hz – 42.38 A 240 V / 3 PH / 60 Hz – 36.73 A 480 V / 3 PH / 60 Hz – 18.36 A* |
| Electrical – Filter Pump | 115 V / 1 PH / 60 Hz – 6.8 A (6 ft cord & 3-prong plug) |
| Clearances | 0" from non-combustible surfaces; 6" (152 mm) from combustible surfaces |
*480 V configuration available for export only.
What’s Included
- Complete 5-fryer battery on swivel casters
- Integrated filter drawer & pump assembly
- Joiner strips for seamless installation
- Filter starter kit (paper & powder)
- Installation / operation manual
Optional Accessories
- Automatic or manual basket lifts
- Stainless-steel tank covers, side splash, or side drain shelf
- Manual timer or computer controls
- Imperial 20-micron filter paper (box of 100 sheets)
Warranty
Imperial backs this unit with a 1-year parts & labor warranty and a 5-year pro-rated frypot warranty.
