Imperial (Middleby) IFSSP475 Gas Fryers
Description

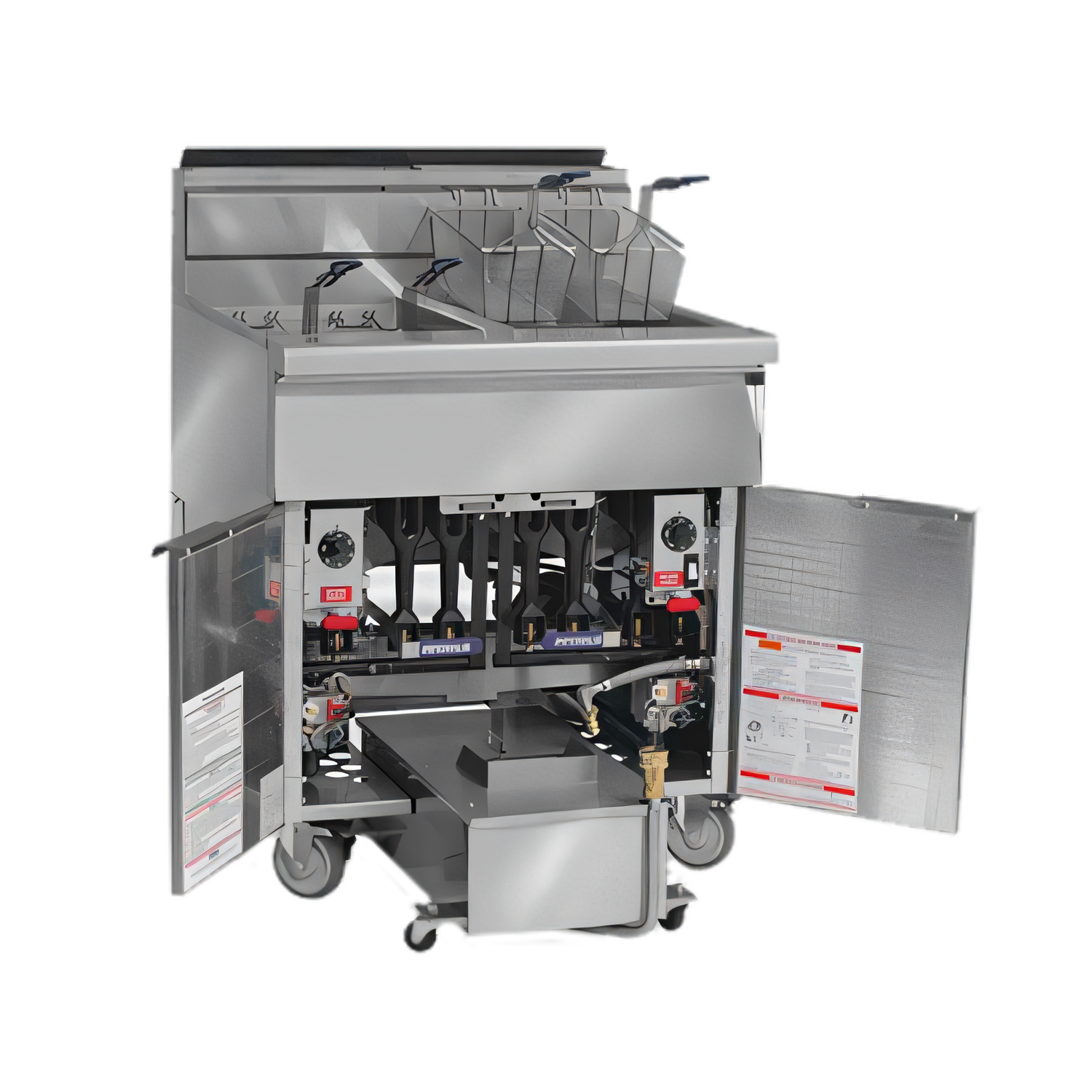

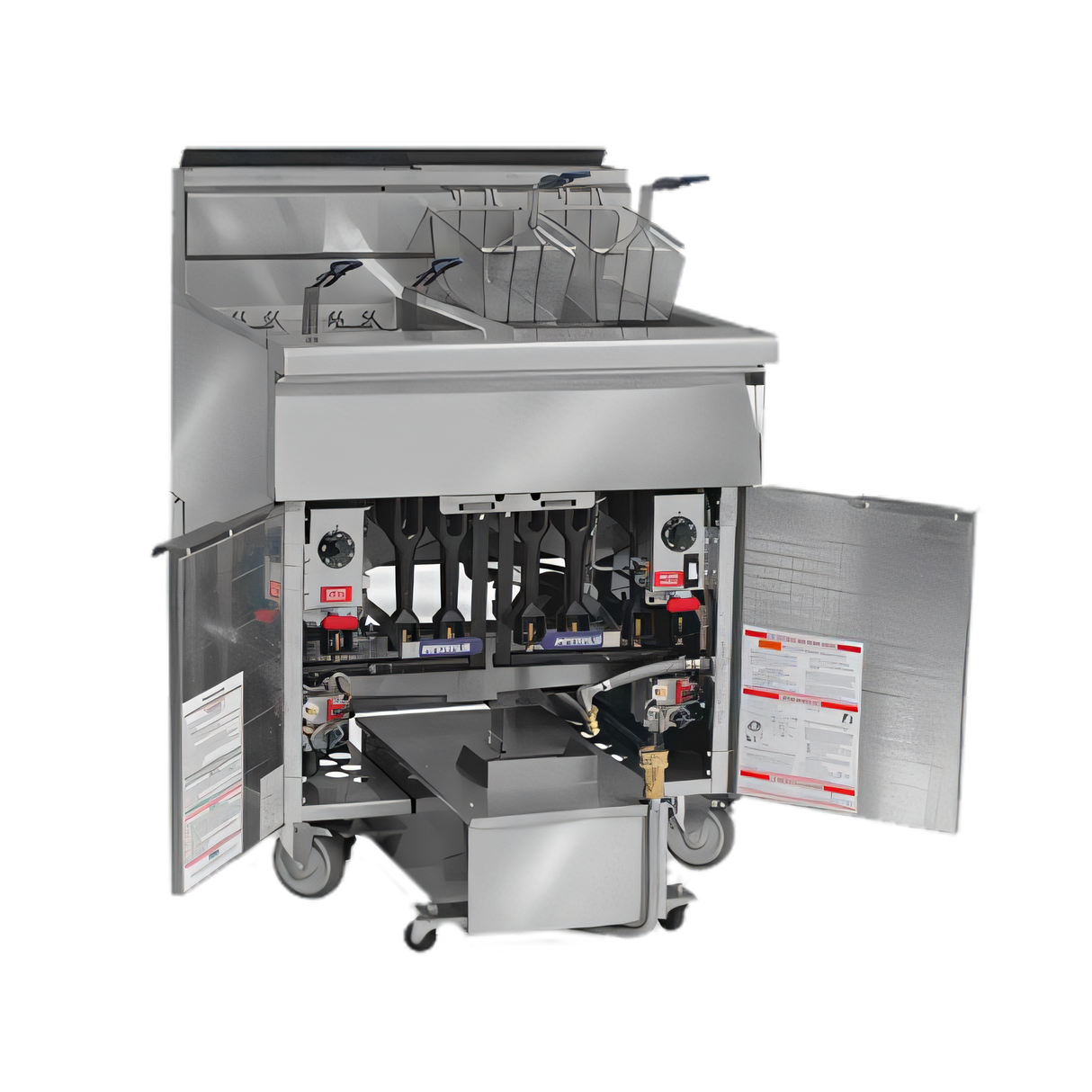

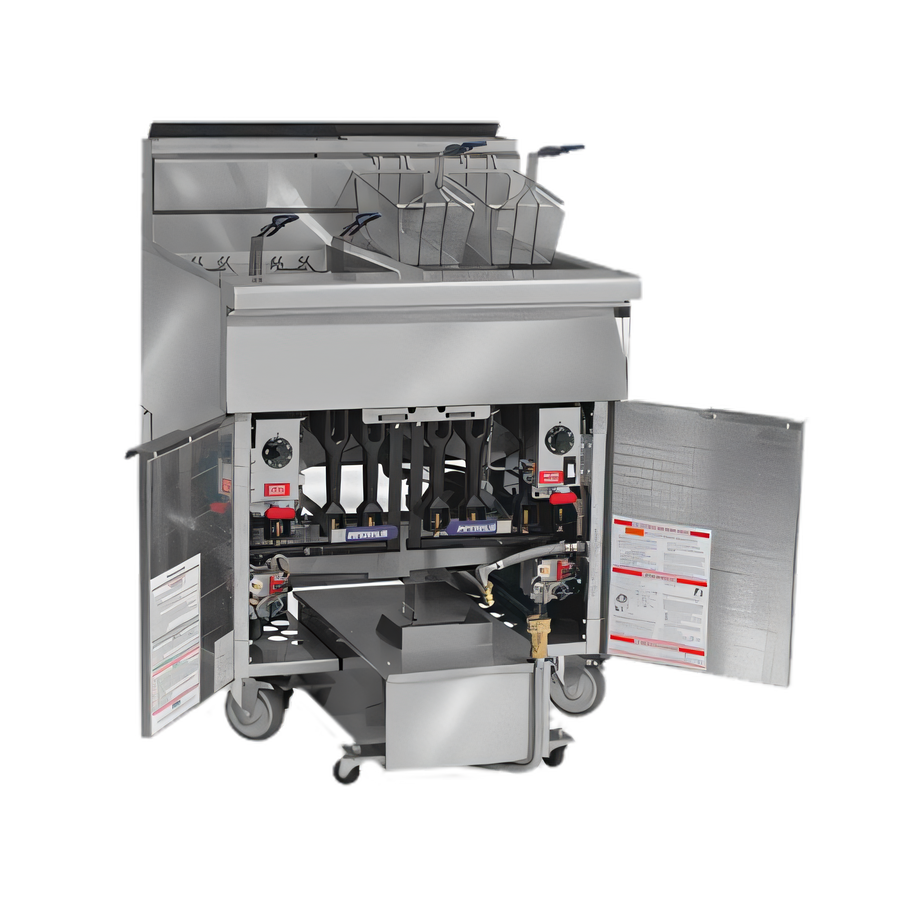

Imperial IFSSP475 Space Saver 4-Battery Gas Fryer/Filter System
75 lb capacity per frypot • 700,000 BTU • Integrated 5.5 GPM filter pumpPurpose-built for the busiest kitchens, the Imperial IFSSP475 combines four high-performance 75 lb tube-fired fryers with an under-cabinet Space Saver filter system. The result is a powerful, self-contained frying station that delivers exceptional throughput, longer oil life and a noticeably cleaner work area—all while occupying the footprint of a standard battery line.
Why this Imperial fryer rocks
- Space-saving filtration – filter pan and plumbing are tucked beneath the fryers, freeing up valuable floor space.
- Fast 5.5 GPM roller pump – 1/3 HP motor filters an entire frypot in minutes and can send oil to a disposal vat up to 20 ft away.
- Snap-action thermostats – maintain precise 200-400 °F (93-204 °C) oil temps for consistently crispy results.
- Heavy-duty build – all-stainless frypots, front and sides with continuous welded seams for strength and easy cleaning.
- High heat transfer – tube-fired design delivers a combined 700,000 BTU for rapid recovery during peak periods.
- Ready to roll – arrives with casters, joiner strips and a filter starter kit so you can install and start cooking fast.
- Certified & backed by warranty – CSA Flame, CSA Star, NSF & CE listed; 1-year parts & labour plus 5-year limited frypot warranty.
Technical specifications
| Model | IFSSP475 |
|---|---|
| Number of fryers | 4 (batteried) |
| Oil capacity | 75 lb (34 L) per frypot | 300 lb total |
| Heat input | 700,000 BTU/hr (natural or LP gas, rear manifold, single connection) |
| Filtration system | Built-in Space Saver with 5.5 GPM roller pump, 1/3 HP motor |
| Thermostat type | Mechanical snap-action (200-400 °F) |
| Electrical | 120 V / 60 Hz / 1-ph, 6.8 A, 6 ft cord & 3-prong plug included |
| Exterior construction | Stainless steel frypots, front & sides; continuous cabinet with 5" landing ledge |
| Overall dimensions | 78" W × 39" D × 45-3/4" H (1981 × 991 × 1162 mm) |
| Shipping weight | 1,130 lb (513 kg) |
| Casters | 4 – included (front locking) |
| Clearances | 0" sides/rear to non-combustible; 6" (152 mm) to combustible surfaces; must be on legs or casters |
| Certifications | CSA Flame, CSA Star, NSF, CE |
What’s in the box
- (4) 75 lb tube-fired fryers pre-plumbed to shared filter pan
- Joiner strips for a seamless battery line
- Filter starter kit – paper, powder and screens
- Set of heavy-duty locking casters
- Factory-installed rear gas manifold with single connection
- User/installation manual
Popular add-ons (sold separately)
- Automatic or manual basket lifts
- Stainless steel tank covers & side splash
- Side drain shelf for safe product staging
- 3/4" NPT gas shut-off valve
- Imperial 20-micron filter paper (100-pk)
1-year parts & labour warranty • Frypots carry a 5-year limited (pro-rated) warranty. Warranty work must be performed by an authorised Imperial service agency.
