Imperial (Middleby) IFSSP450EC Electric Fryers
Description

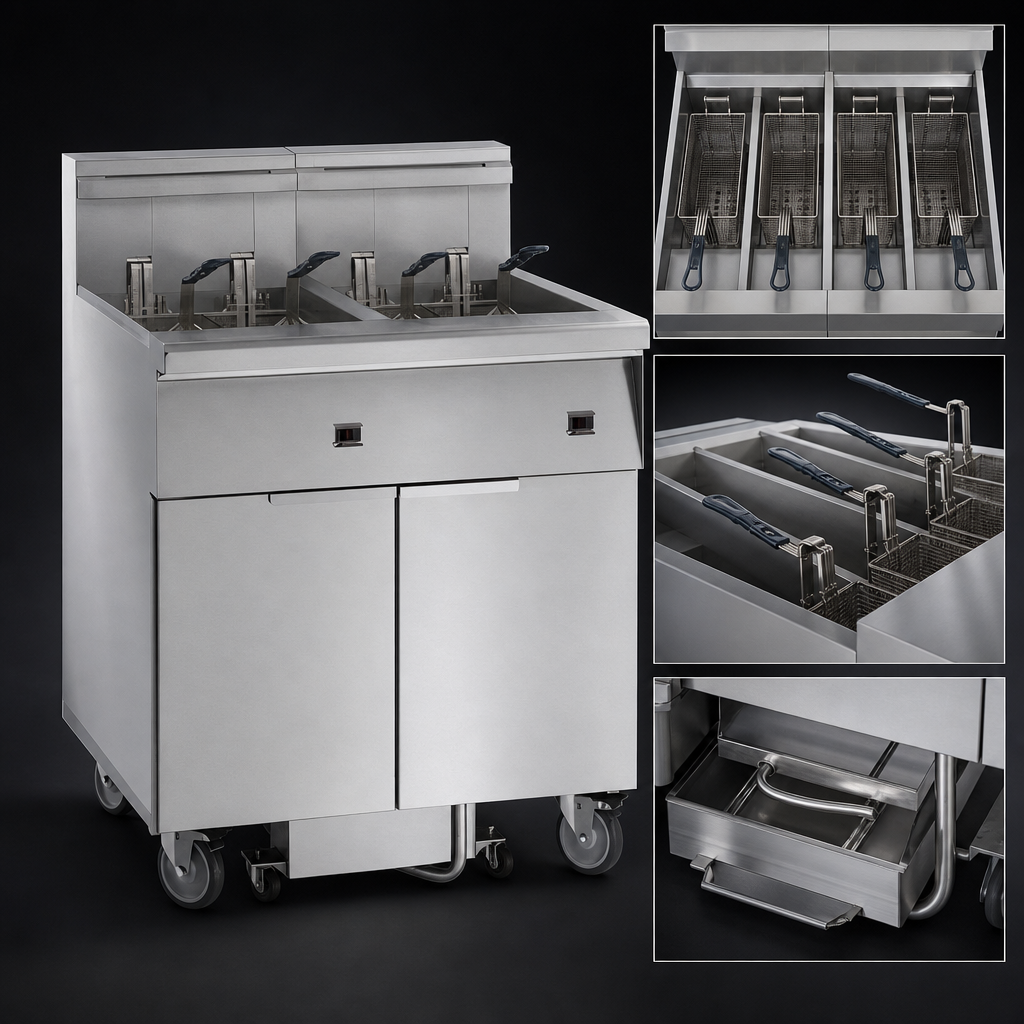

Imperial IFSSP450E-C 4-Bank 50 lb Electric Fryer with Space Saver Filter System
Immersed elements • Computer controls • 5.5 GPM roller pumpEngineered for high-volume kitchens that refuse to compromise on speed, quality or floor space, the Imperial IFSSP450E-C combines four independent 50 lb frypots with a built-in Space Saver filtration system. Immersed electric elements deliver lightning-fast recovery, while the 1/3 HP roller pump returns filtered oil in seconds—keeping your menu moving and your oil costs in check.
Performance & Efficiency

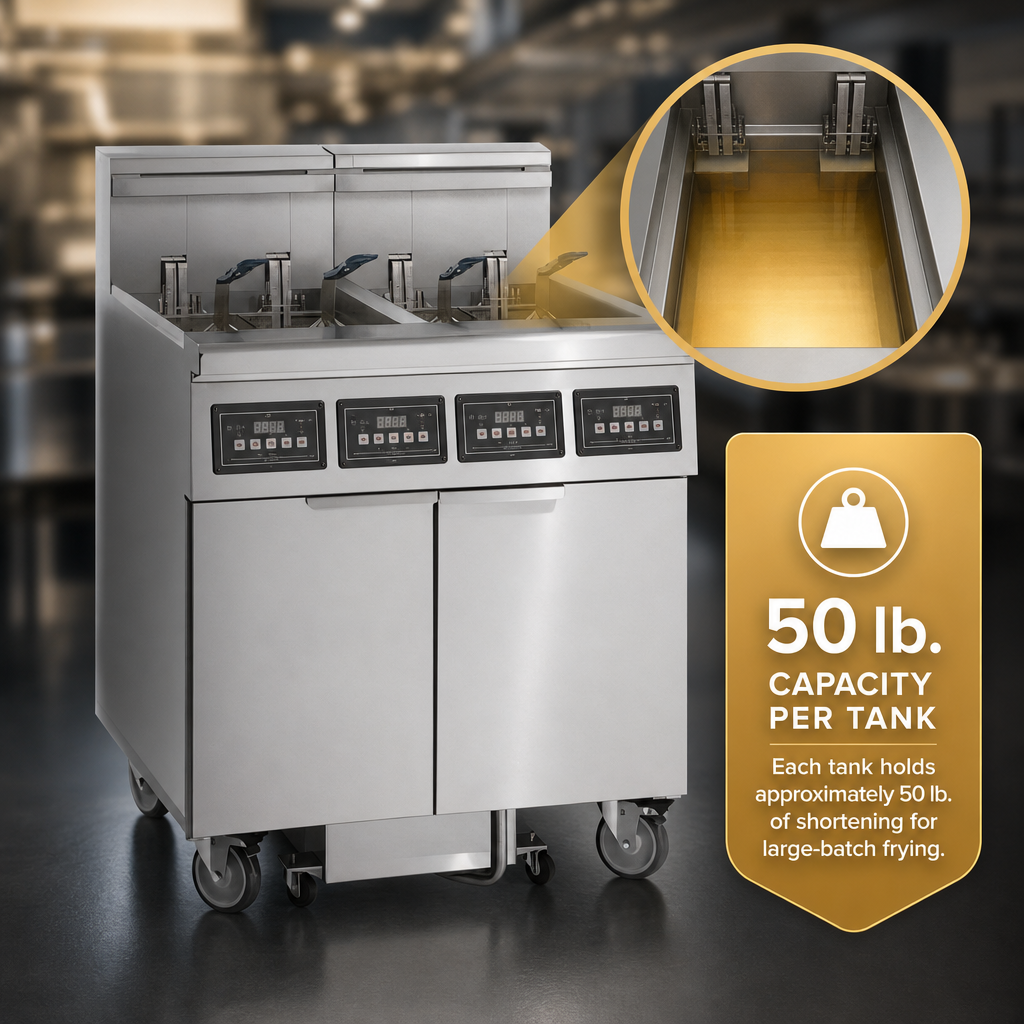

- Four 50 lb (41 L) stainless-steel frypots—200 lb total capacity.
- High-efficiency immersed elements heat oil directly for rapid recovery and even temperatures.
- Integrated Space Saver filtration under the fryers saves valuable line space.
- 5.5 GPM, 1/3 HP roller pump can return oil or pump to a disposal vat up to 20 ft away.
- Computer controls with programmable cook cycles, melt mode & digital temperature display.
- Continuous stainless-steel cabinet with 5" landing ledge provides a professional, easy-clean exterior.
- Includes casters for effortless cleaning and mobility.
Built-in Filtration Advantages
- Filter pan’s positive-latching frame keeps paper perfectly aligned for optimal filtration.
- Quick-disconnect return line makes reconnection fast and fool-proof.
- All drain & return lines are internally plumbed for operator safety.
At-a-Glance Specifications
| Model | IFSSP450E-C (Immersed Elements + Computer Controls) |
|---|---|
| Oil Capacity | 50 lb (41 L) per pot × 4 | 200 lb (164 L) total |
| Filtration System | Under-fryer “Space Saver” with 5.5 GPM roller pump, 1/3 HP motor, 115 V/1 ph/6.8 A |
| Electrical (per fryer) | 208 V/3 ph/42.4 A | 240 V/3 ph/36.7 A | 480 V/3 ph/18.4 A* |
| Overall Dimensions | 62" W × 34" D × 44-1/8" H (1575 × 864 × 1121 mm) |
| Shipping Weight | 1,062 lb (482 kg) |
| Clearances | 0" sides/back (non-combustible) | 6" (152 mm) combustible surfaces |
| Certifications | cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE |
| Warranty | 1-year parts & labor • 5-year pro-rated frypot |
Package Contents
- 4-bank electric fryer battery with computer controls
- Integrated filtration cabinet & pump
- Factory-installed locking/swivel casters
- Joiner strips for seamless battery installation
- Filter starter kit
*480 V configuration available for export only. Up to six fryers can be batteried on a single Space Saver system—contact us for a custom quote.
