Description

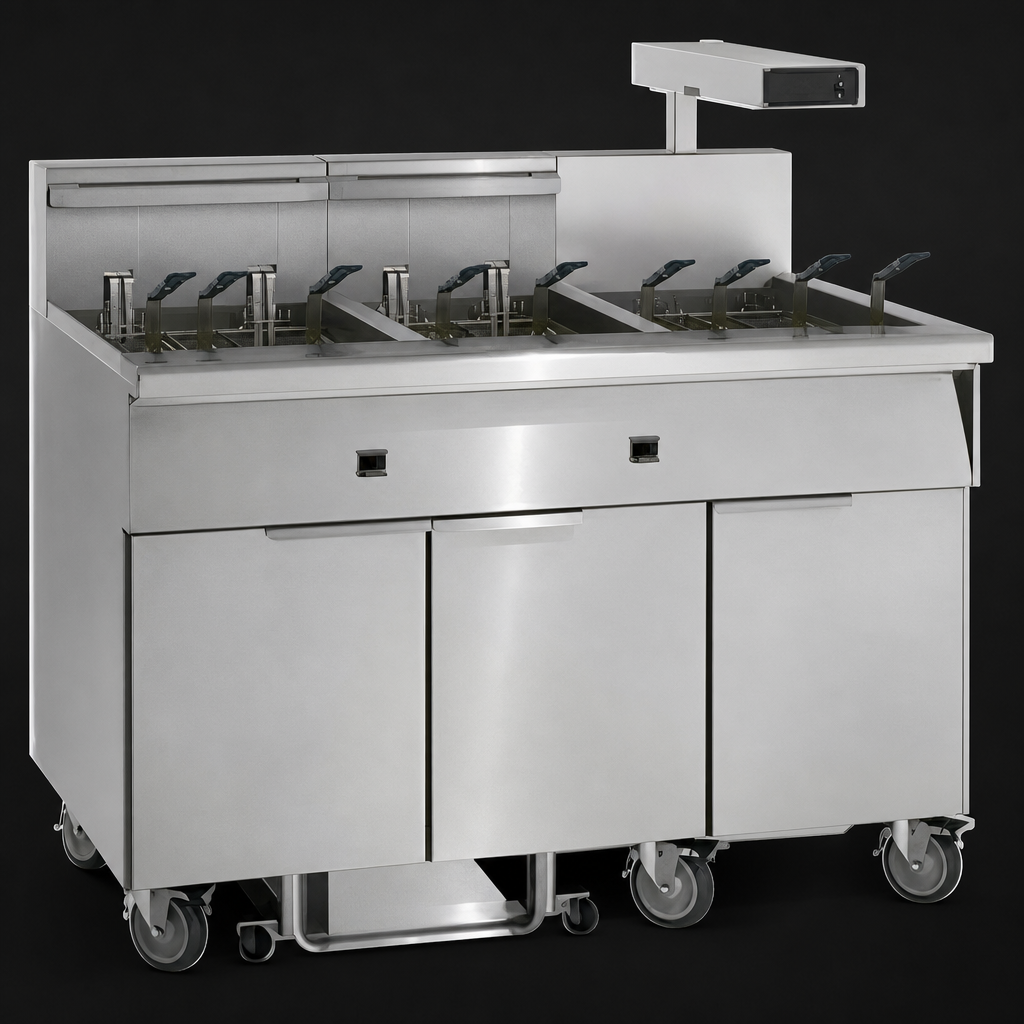

Imperial IFSCB675EU-T 6-Battery 75 lb Electric Fryer System

Built-in filtration • Dump station with food warmer • Tilt-up elements

Engineered for the highest-volume kitchens, the Imperial IFSCB675EU-T combines six independent 75 lb fryers, an under-fryer filtration package and a full dump station in one continuous stainless steel cabinet. The result? Faster production, longer oil life and consistently crispy foods—shift after shift.

Key Performance Benefits

  • Six precision-welded stainless steel frypots deliver a massive 450 lb total oil capacity.
  • Tilt-up immersed electric elements maximize heat transfer and swing up for effortless cleaning.
  • Electronic thermostat (200–400 °F) locks in exact temperatures and rapid recovery.
  • 5" (127 mm) deep landing ledge creates a convenient staging area for baskets.
  • Heavy-duty swivel casters (front locking) make cleaning and line re-configuration simple.

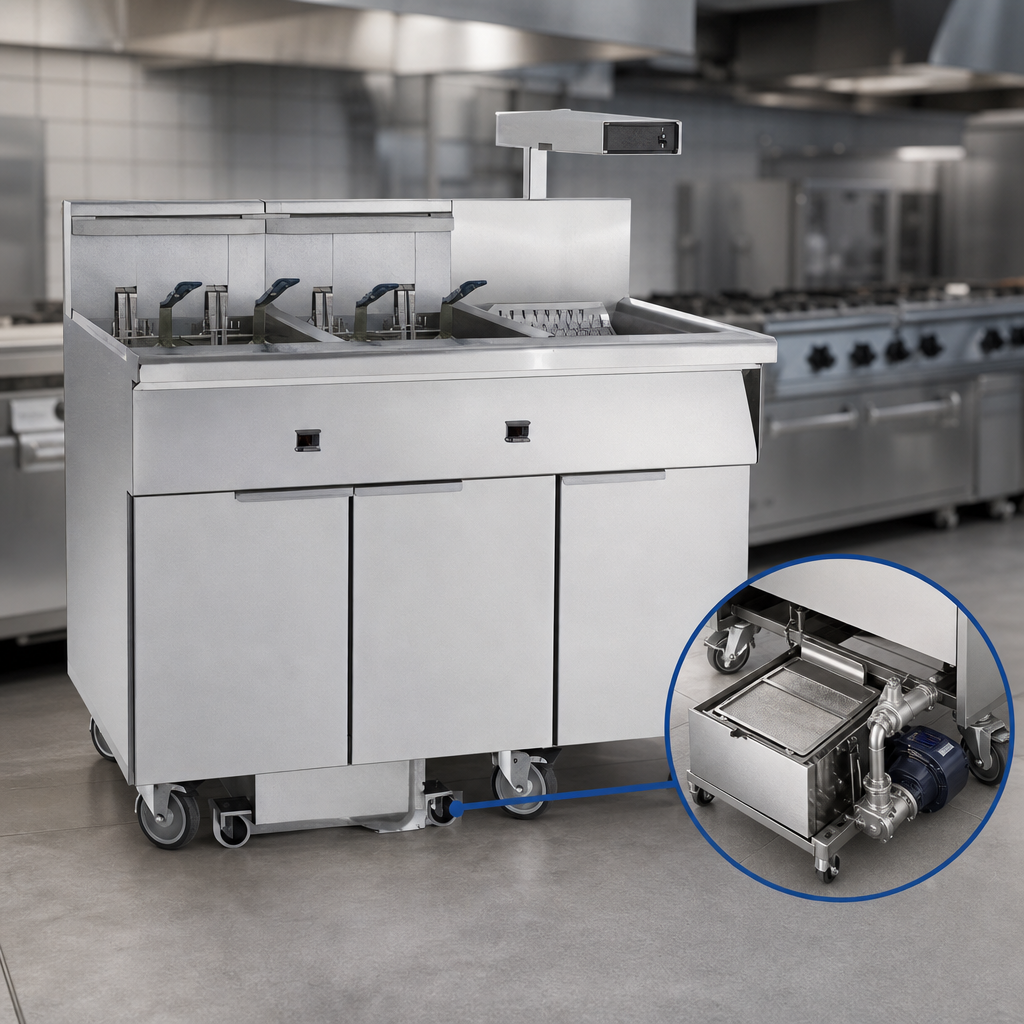

Integrated “Side-Car” Filtration

  • Filter pan rides under the fryer battery—no extra floor space required.
  • 5.5 GPM roller pump with a 1/3 HP motor completes a full-vat polish in minutes and can discharge oil up to 20 ft away.
  • Stainless filter pan, positive-latching paper holder and quick-disconnect return line for clean, safe operation.
  • All drain and return lines are internally plumbed, protecting staff from hot-oil exposure.

Dump Station & Holding

  • Built-in heated food warmer keeps finished product at the perfect serving temperature.
  • Removable dump pan makes seasoning and draining easy.
  • Cabinet doubles as extra storage when located at the end of the battery.

Specifications

Model IFSCB675EU-T
Type Electric floor model fryer battery with under-fryer filter & dump station
Oil Capacity 75 lb (51 L) per frypot  /  450 lb total
Heating Elements Tilt-up immersed elements
Thermostat Range 200–400 °F (93–204 °C) electronic
Filtration Pump 5.5 GPM roller pump, 1/3 HP motor
Electrical (per frypot) 208 V / 3 ph / 60 Hz / 50 A  •  240 V / 3 ph / 60 Hz / 43 A  •  480 V / 3 ph / 60 Hz / 22 A
Electrical (filter system) 115 V / 1 ph / 60 Hz / 6.8 A
Exterior Dimensions 136-1/2" W × 40-1/2" D × 44-1/8" H (3467 × 1029 × 1121 mm)
Shipping Weight 1,800 lb (816 kg)
Clearances 0" from non-combustible surfaces; 6" (152 mm) from combustibles
Construction Stainless steel frypots, front, sides & cabinet
Included Food warmer, dump pan, joiner strips, filter starter kit, fryer baskets
Certifications cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE

Optional Accessories

  • Automatic or manual basket lifts
  • Stainless steel tank covers
  • Side splash guards or side drain shelf
  • Manual timers
  • Imperial 40# 20-micron filter paper (100-sheet box)
Installation Note: Verify electrical specification and phase at the time of order. Unit must be installed on a non-combustible floor by qualified personnel.

Warranty: 1-year parts & labor, plus a 5-year pro-rated stainless steel frypot warranty (see Imperial terms for full details).

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame

Height

44.13in

Width

136.5in

Depth

40.5in

Shipping Weight

1800.0lbs

With or without basket lifts

without basket(s)

Exterior Finish

stainless steel front & sides

Controls

thermostatic controls

Fry pot

stainless steel

Fat Capacity (approximate)

75 lbs each

Fryer Quantity

(6) tanks

Filter

built-in filter

Specifications

Fryer, electric, floor model, (6) battery, 75 lb. capacity each, tilt-up elements, built-in filter system, dump station, 5.5 GPM roller pump, electronic thermostat, includes: food warmer, dump pan, joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
