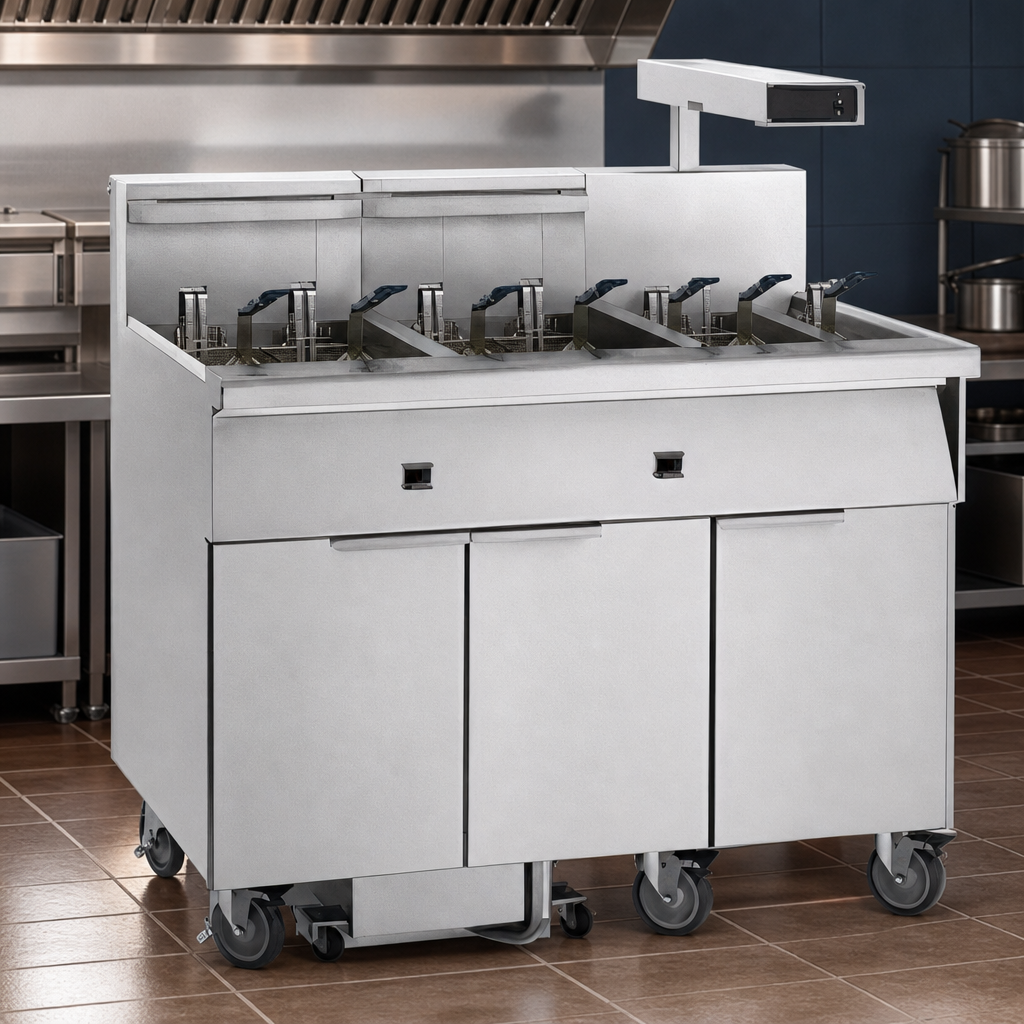

Imperial IFSCB675EU 6-Battery 75 lb Electric Floor Fryer with Side-Car Filter System
Tilt-Up Elements • Built-In Dump Station & Warmer • 5.5 GPM Roller PumpMaximize throughput, streamline filtering and keep your kitchen footprint tight with Imperial’s largest electric fryer battery. The IFSCB675EU links six 75 lb frypots to a space-saving under-fryer filter package and a stainless steel dump station – giving high-volume operators continuous production and fast, mess-free filtration at the push of a button.
Key Features & Benefits

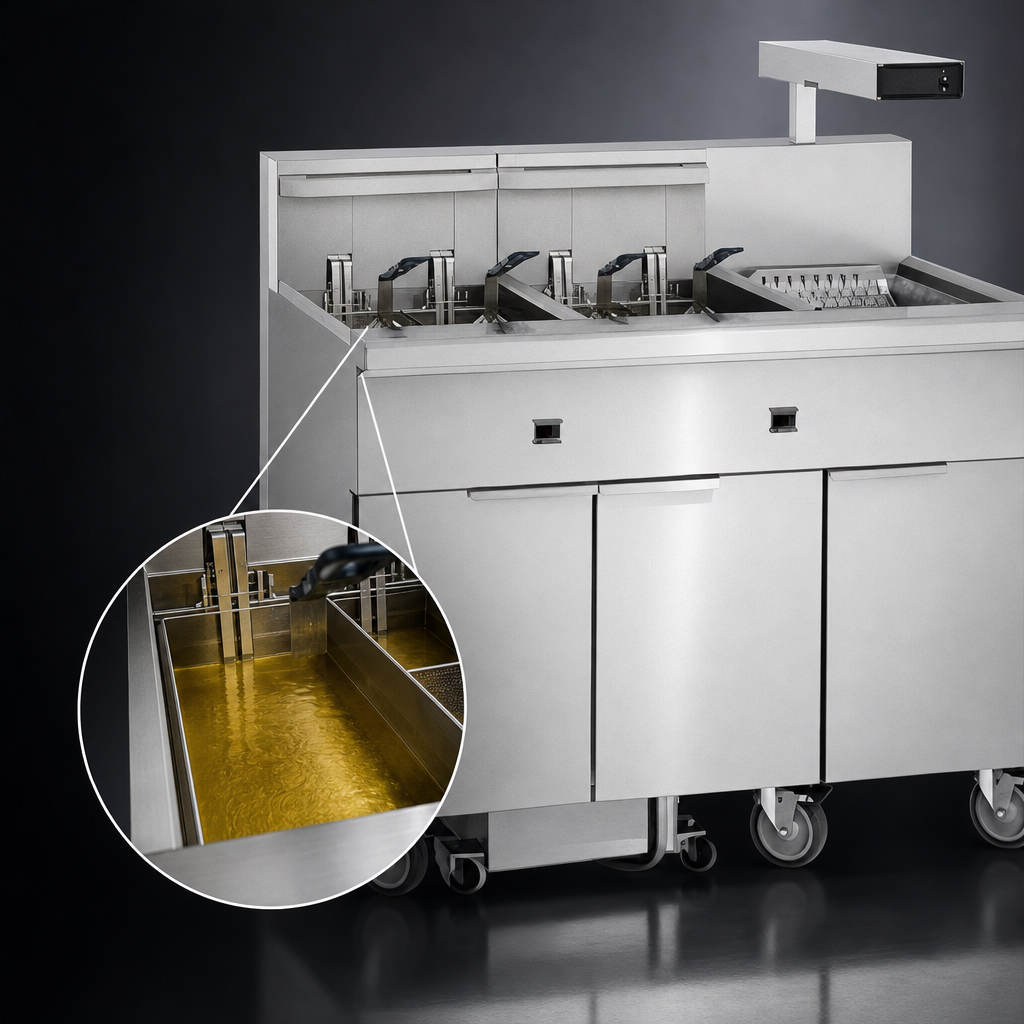

- 450 lb total oil capacity (6 × 75 lb) keeps the fries, wings & seafood coming during peak rushes.
- Tilt-up, immersed elements transfer heat directly to the oil for quick recovery and energy savings.
- Snap-action thermostats maintain a tight 3 °F swing for consistent, crispy results.
- Built-in 5.5 GPM filter system with 1/3 HP roller pump – filters a full charge in minutes and can discharge waste oil up to 20 ft away.
- Side-car drain station includes food warmer & dump pan so product can be seasoned and held right at the fryer.
- All stainless steel frypots, front & sides plus a 5" landing ledge deliver durability and an easy-to-clean, professional look.
- Factory-supplied casters, joiner strips & filter starter kit make installation fast and simple.
- cETLus, CSA Flame, CSA Star, CSA-Sanitation and CE listed for worry-free compliance.
Included With Your Fryer
- (6) 75 lb electric fryers with tilt-up elements
- Integrated under-fryer filter drawer & pan
- Side-car dump station with heated food warmer & dump pan
- 5-pack filter paper starter kit
- Stainless steel joiner strips
- Heavy-duty swivel casters (front locking)
Technical Specifications
| Model | IFSCB675EU |
|---|---|
| Oil Capacity | 75 lb (51 L) per frypot × 6 – 450 lb total |
| Heating Elements | Immersed electric, tilt-up for cleaning |
| Thermostat Type | Mechanical snap-action, 200 – 400 °F range |
| Filter Pump | 5.5 GPM roller pump, 1/3 HP motor |
| Overall Dimensions (W × D × H) | 136-1/2" × 40-1/2" × 44-1/8" (3467 × 1029 × 1121 mm) |
| Electrical – Fryers | 208 V / 3 ph / 60 Hz – 50 A per frypot 240 V / 3 ph / 60 Hz – 43.35 A per frypot 480 V / 3 ph / 60 Hz – 21.68 A per frypot |
| Electrical – Filter System | 115 V / 1 ph / 60 Hz – 6.8 A |
| Shipping Weight | 1,800 lb (816 kg) |
| Clearances | 0" sides/back from non-combustible; 6" from combustible surfaces |
| Certifications | cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE |
| Warranty | 1-year parts & labor; 5-year pro-rated frypot |
Perfect For
- High-volume QSR & fast-casual chains
- Stadiums, arenas and concession hubs
- Ghost kitchens needing maximum output in minimal space
- Seafood shacks & chicken concepts with heavy breading
Important: Verify available voltage and amperage before ordering. Electrical specifications vary
by installation and may require field wiring by a licensed electrician.
Imperial Commercial Cooking Equipment reserves the right to alter design or specifications without notice. Images may show optional accessories.
$92,547.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?

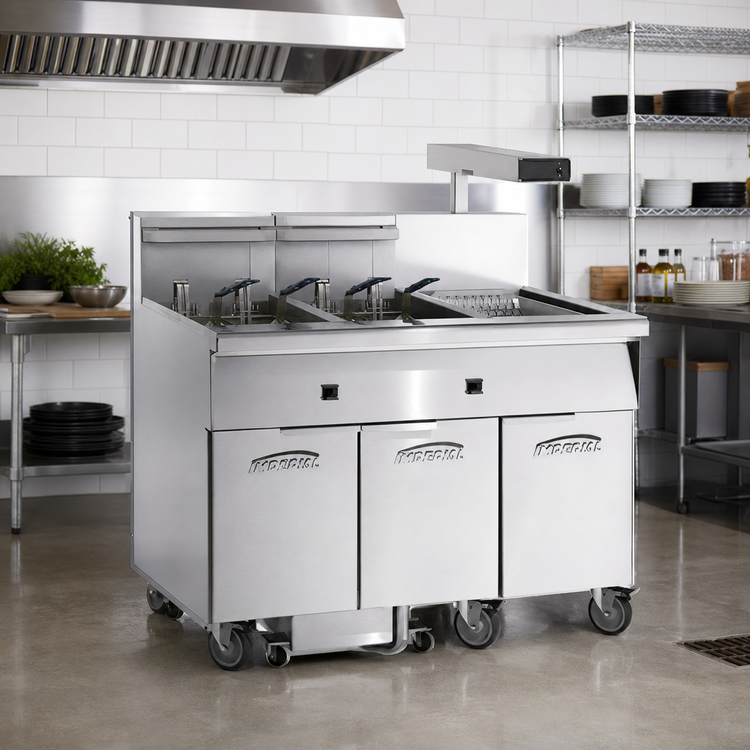

Commercial Imperial IFSCB675EU electric floor fryer with six 75 lb frypots, built-in filter, dump station, tilt-up elements and casters for easy service.
Manufacturer
Imperial (Middleby)
Certifications
CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame
Height
44.13in
Width
136.5in
Depth
40.5in
Shipping Weight
1800.0lbs
With or without basket lifts
without basket(s)
Exterior Finish
stainless steel front & sides
Controls
thermostatic controls
Fry pot
stainless steel
Fat Capacity (approximate)
75 lbs each
Fryer Quantity
(6) tanks
Filter
built-in filter
Specifications
Fryer, electric, floor model, (6) battery, 75 lb. capacity each, tilt-up elements, built-in filter system, dump station, 5.5 GPM roller pump, snap action thermostat, includes: food warmer, dump pan, joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
