Imperial (Middleby) IFSCB675EC Electric Fryers
Description

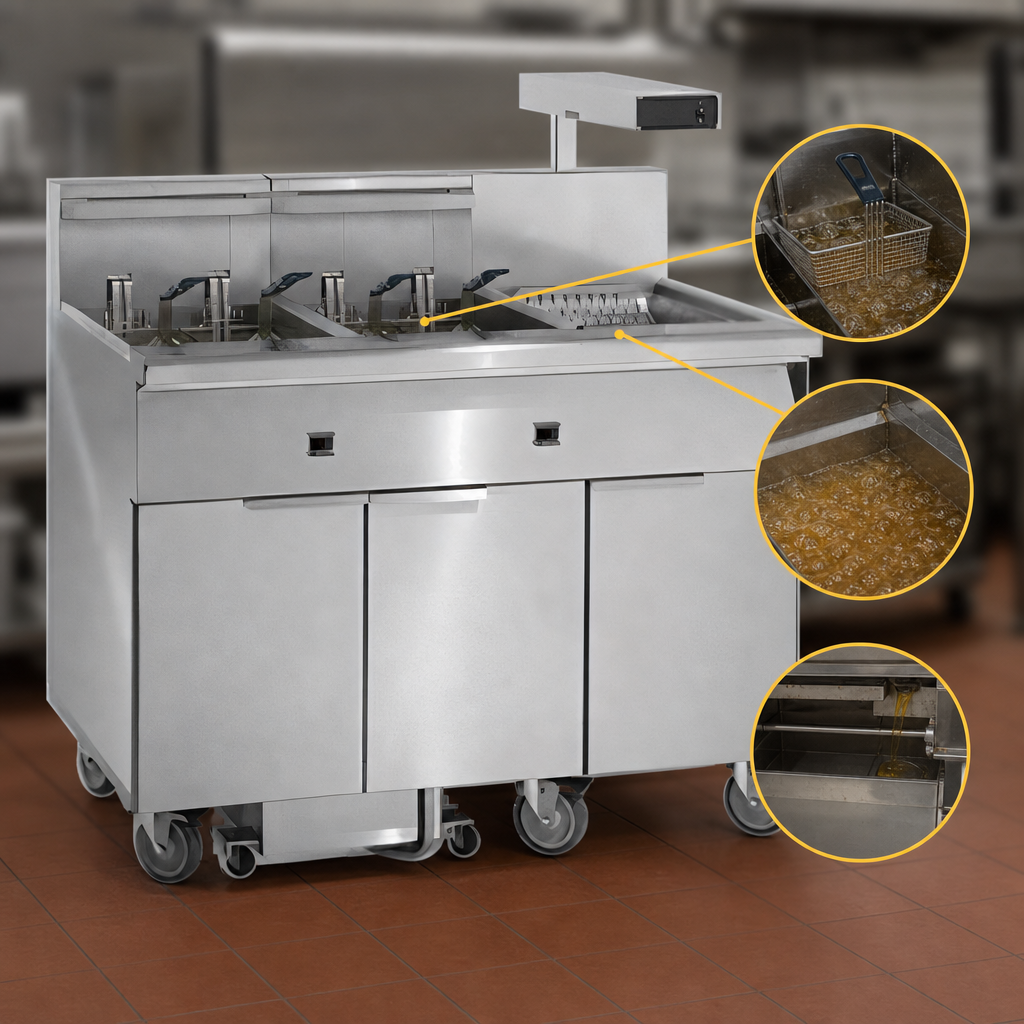

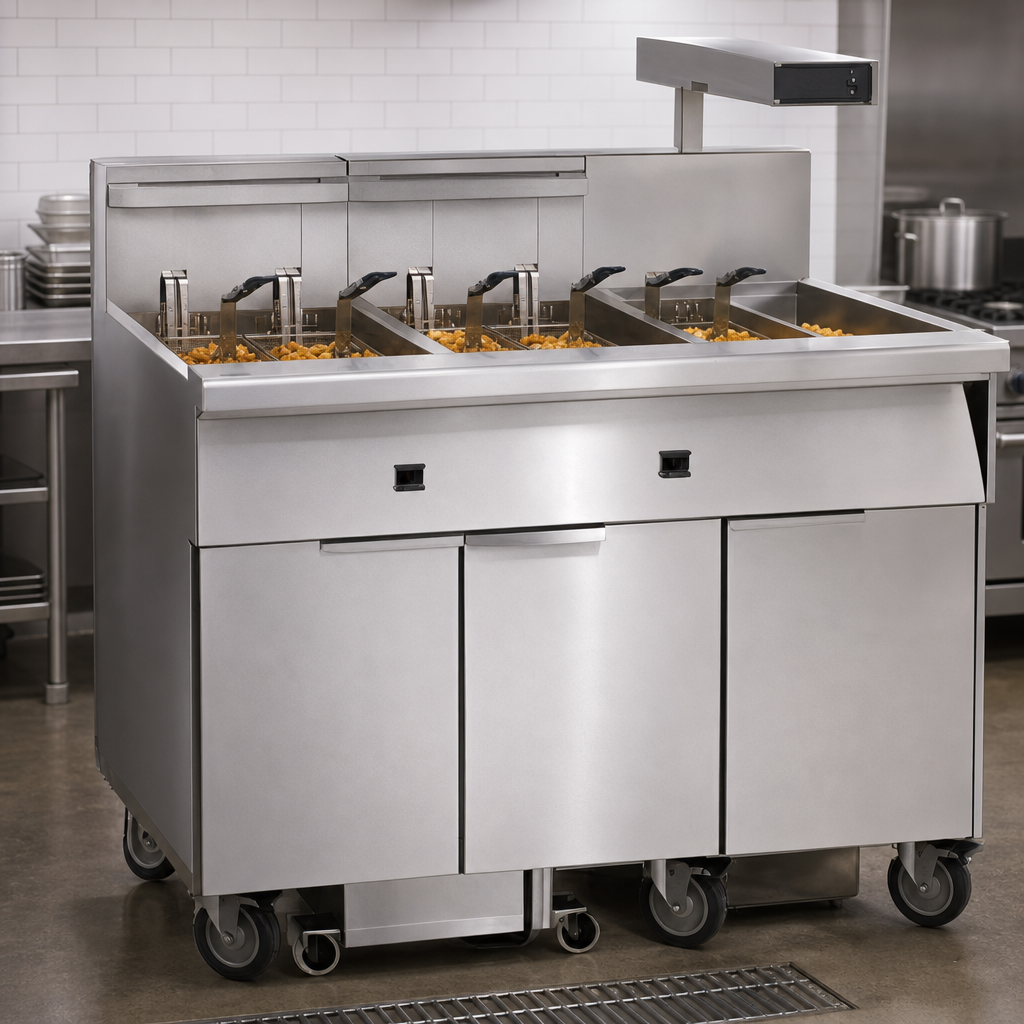

Imperial IFSCB675E-C 6-Battery 75 lb Electric Fryer System
Built-in filtration, dump station & computer controlsTackle your highest-volume frying with the Imperial IFSCB675E-C. Six 75-lb frypots share a space-saving under-cabinet filter system that keeps oil fresh, while immersed elements and computer controls deliver lightning-fast recovery and pinpoint accuracy. A stainless side-car dump station with food warmer lets you season, drain and serve—all in one continuous, caster-mounted battery.
Why Choose the IFSCB675E-C?
- Six full-size fryers – 450 lb total oil capacity (75 lb each) for true high-volume output.
- Immersed elements – 14 kW per vat* for rapid heat transfer and quick recovery.
- Integrated filter system – 5.5 GPM, 1/3 HP roller pump filters all vats in minutes and can discharge up to 20 ft away.
- Computer controls – Store multiple cook programs and guarantee consistent results shift after shift.
- Space-saving side-car dump station – Includes heated food warmer and removable dump pan.
- All stainless steel frypots, front & sides for strength, easy cleaning and a professional look.
- Caster base & joiner strips – Roll the entire battery for cleaning; strips create a seamless front.
- Filter starter kit included – Everything you need to begin filtering on day one.
Space-Saving Under-Cabinet Filtration
- Filter pan and plumbing reside entirely beneath the fryers—no extra footprint.
- Positive-latching filter paper holder keeps media flat for maximum particulate capture.
- Quick-disconnect return line for safe, splash-free oil transfer back to the frypots.
Technical Specifications
| Model | IFSCB675E-C (immersed elements, computer controls) |
|---|---|
| Number of Fryers | 6 |
| Oil Capacity | 75 lb (51 L) per frypot | 450 lb total |
| Overall Dimensions | 136 1/2″ W x 40 1/2″ D x 44 1/8″ H (3467 × 1029 × 1121 mm) |
| Electrical (Per Fryer) | 208 V / 3 ph / 60 Hz – 50.02 A 240 V / 3 ph / 60 Hz – 43.35 A 480 V / 3 ph / 60 Hz – 21.68 A |
| Filter System Power | 115 V / 1 ph / 60 Hz – 6.8 A (1/3 HP pump) |
| Pump Capacity | 5.5 GPM roller pump |
| Certifications | cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE |
| Clearances | 0″ sides/back (non-combustible); 6″ (152 mm) from combustible surfaces |
| Shipping Weight | 1,800 lb (816 kg) |
What’s Included
- 6 stainless steel frypots with immersed elements
- Built-in filtration system with pump & pan
- Side-car cabinet with heated food warmer & dump pan
- Casters (front locking)
- Joiner strips for a continuous front
- Filter starter kit
Popular Accessories (Sold Separately)
- Automatic or manual basket lifts
- Stainless steel tank covers
- Side drain shelf or side splash
- Manual timer kit
- Imperial 40-lb filter paper (20 micron, 100 pk)
Warranty
• One-year limited parts & labor
• Pro-rated 5-year warranty on stainless steel fry tanks
