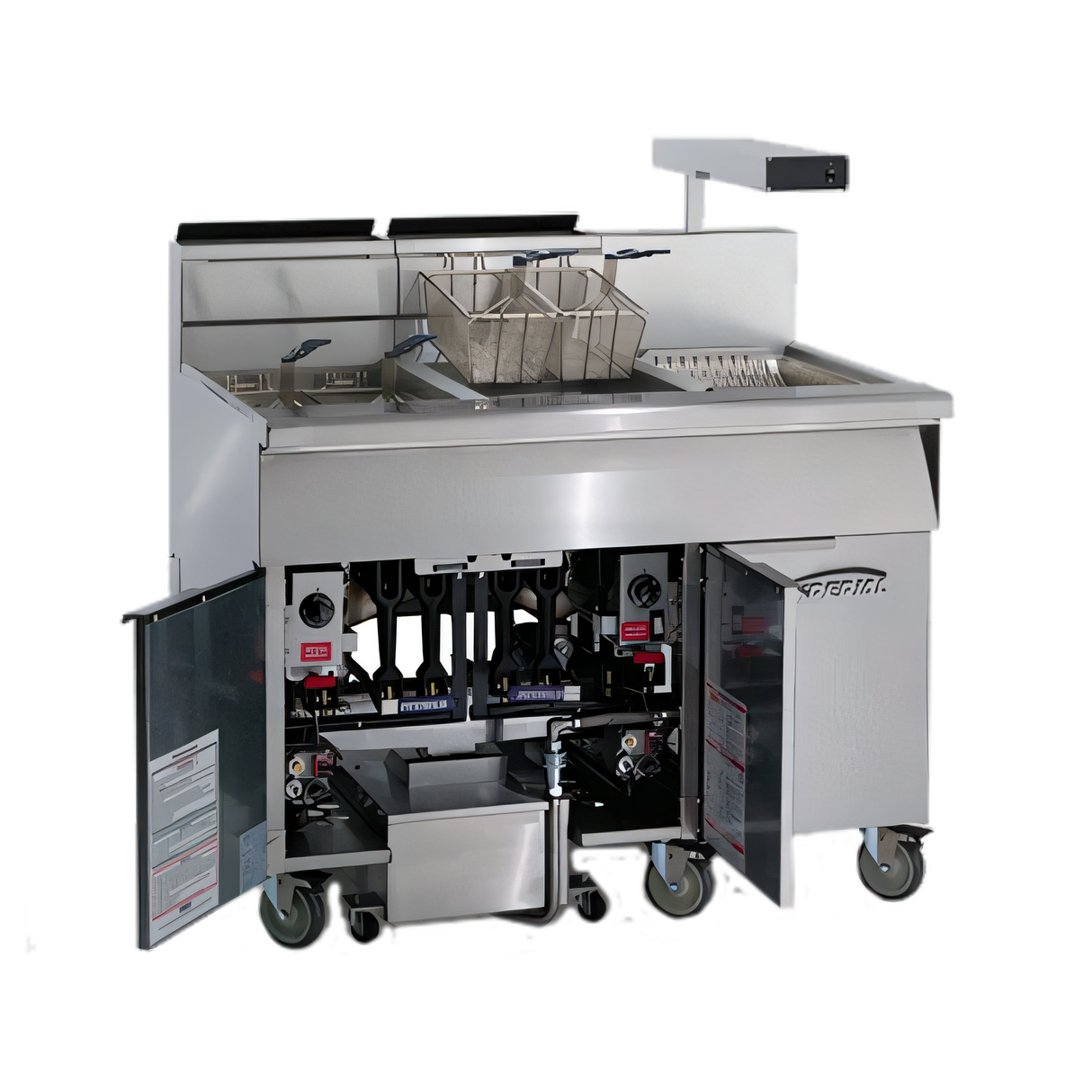

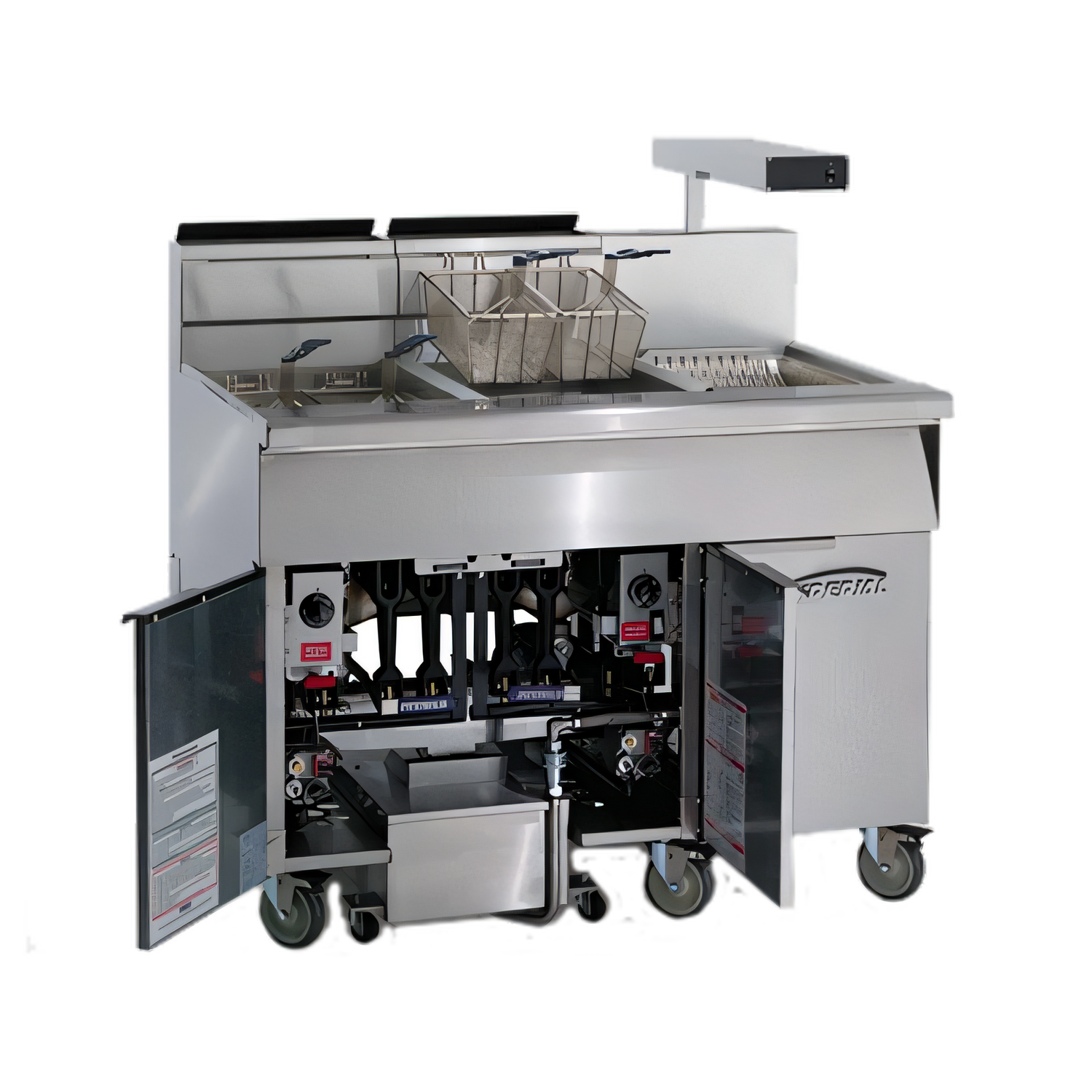

Imperial IFSCB675 Tube-Fired Gas Side Car Fryer Filter System with Drain Station, 6-Battery, 75 lb. Capacity Each
Imperial IFSCB675 Tube-Fired Gas Side Car Fryer Filter System with Drain Station, 6-Battery, 75 lb. Capacity Each
Built-In Under-Fryer Filter, 5.5 GPM Roller Pump, Stainless Steel Construction
Built for high-volume frying operations, this six-battery side-car system combines under-fryer filtration, a 5.5 GPM pump, and a stainless drain station to save space and streamline oil handling.
- Six-battery system is designed for 75 lb. fryers, giving high-capacity oil handling in one integrated package.
- Built-in under-fryer filtration saves floor space and keeps oil drain and return lines internally plumbed.
- 5.5 GPM roller pump with 1/3 HP motor speeds oil filtration and reclamation.
- Matching stainless steel drain station cabinet includes a food warmer and dump pan.
- Stainless steel frypot, front, sides, landing ledge, and cabinet are built for durability and easy cleaning.
- Configured without basket(s); series options include alternate thermostat and basket-lift configurations.
Overall Dimensions:
136.5"W x 40.5"D x 45.75"HProduct Weight:
1800.0 lbUnder-Fryer Filter Location
Filter is located under the fryers to save valuable space, with internally plumbed oil drain and return lines.
Maximum Oil Return Filter Pan
Stainless steel filter pan is designed for maximum oil return and uses a positive-latching filter paper holder.
5.5 GPM Roller Pump
The 5.5 GPM pump with 1/3 HP motor speeds the filtering process and can pump oil to a disposal vat up to 20 feet away.
Drain Station Cabinet
Includes a matching stainless steel cabinet with a food warmer and dump pan; cabinet can be located anywhere within the fryer battery.
Stainless Steel Construction
Precision welded stainless steel frypot, front, sides, continuous landing ledge, and cabinet support durability and easy cleaning.
Hands-Free Filter Connection System
Quick-disconnect connection provides fast and safe reconnection of filtered oil back to the frypots.
Included Accessories
Casters, joiner strips, and a filter starter kit are included.
Snap Action Thermostatic Controls
Base configuration uses snap action thermostatic controls; electronic thermostat and computer control versions are available in the series.
Rear Gas Manifold
Rear gas manifold with one-point gas connection simplifies utility hookup.
Installation and Electrical Requirements
For use on non-combustible floors only, with 0 in. clearance from non-combustible surfaces and 6 in. from combustible surfaces. Filter electrical requirement is 115 V, 1-phase, 60 Hz, 6.8 amps with a 6-ft cord and 3-prong plug.
Certifications & Compliance
Warranty & Protection
1-year parts and labor; fry tank has a 5-year limited prorated warranty.
