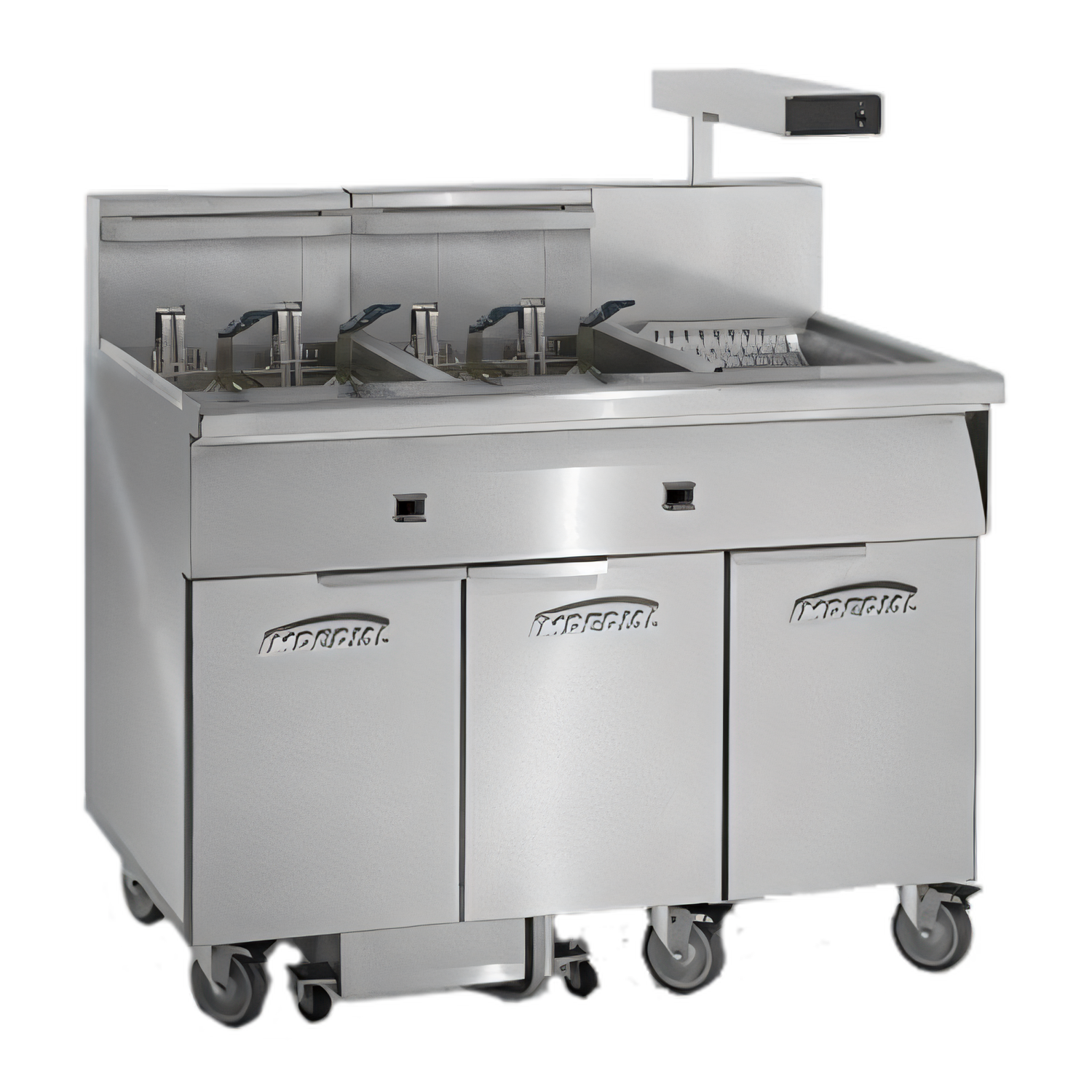

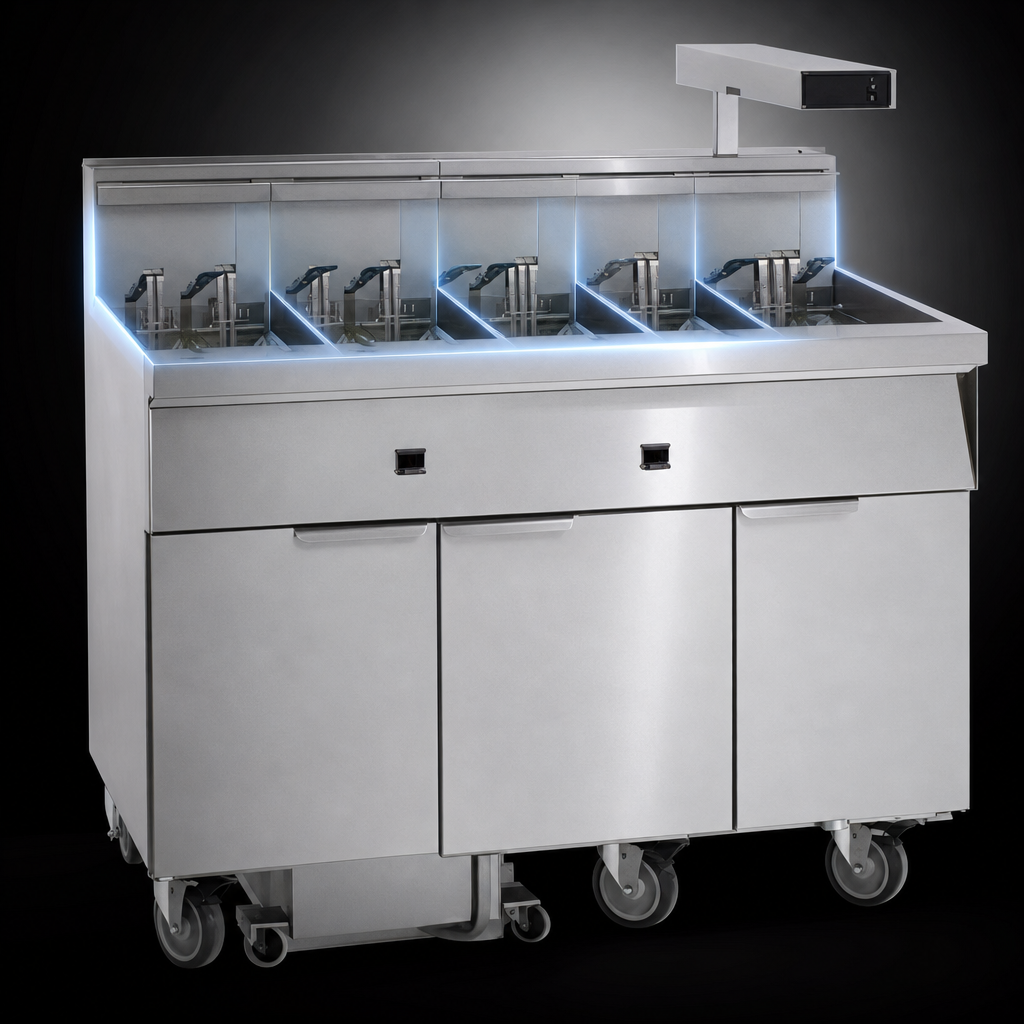

Imperial IFSCB575E 5-Battery 75 lb Electric Floor Fryer w/ Side-Car Filter System
Immersed Elements • 1/3 HP 5.5 GPM Roller Pump • Built-In Dump StationTackle the highest-volume frying programs without sacrificing floor space. The Imperial IFSCB575E combines five independent 75 lb fry vessels with a powerful under-fryer filtration system and convenient dump station—delivering relentless production, cleaner oil, and a streamlined workflow in one continuous stainless steel cabinet.
Key Features

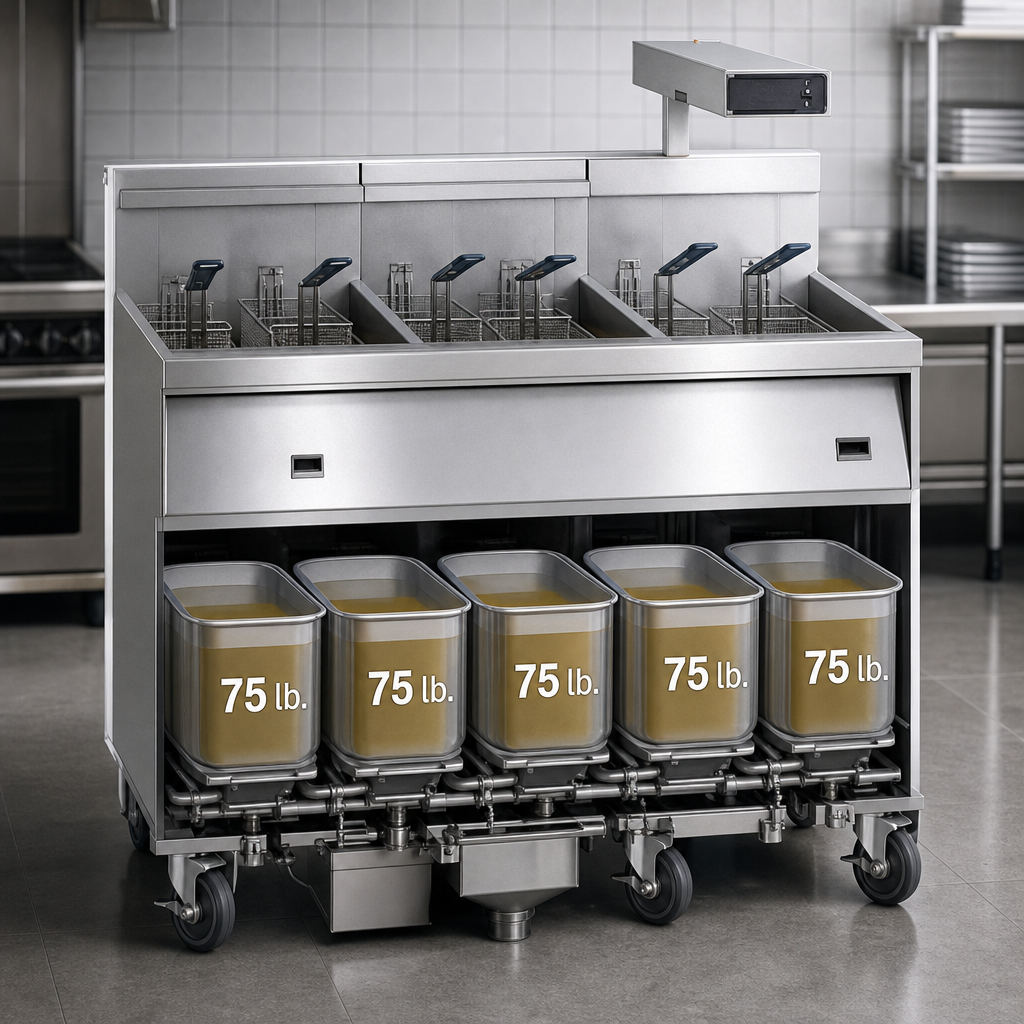

- Five 75 lb (51 L) stainless steel frypots – 375 lb total oil capacity.
- High-efficiency immersed heating elements for rapid recovery and even heat distribution.
- Self-contained filter system located under the fryers—no external carts required.
- 5.5 GPM roller pump powered by a 1/3 HP motor filters a full pot in minutes and can discharge oil up to 20 ft.
- Snap-action thermostats maintain a precise 200-400 °F (93-204 °C) range.
- Integrated dump station with heated food warmer and stainless steel dump pan for seasoning and holding.
- Continuous stainless steel front, sides, frypots and 5" landing ledge for superior durability and easy cleaning.
- Ships complete with heavy-duty casters, joiner strips and a filter starter kit for fast, hassle-free installation.
- Certified to cETLus, CSA Flame, CSA Star, CSA-Sanitation and CE standards.
At-a-Glance Specifications
| Model | IFSCB575E |
|---|---|
| Frypots / Capacity | 5 × 75 lb (51 L) each |
| Total Oil Capacity | 375 lb (255 L) |
| Overall Dimensions | 117"W × 40.5"D × 44.125"H (2972 × 1029 × 1121 mm) |
| Shipping Weight | 1,530 lb (694 kg) |
| Heating Elements | Immersed, tilt-out type |
| Filter Pump | 5.5 GPM roller pump, 1/3 HP, 115 V / 1 Φ / 6.8 A |
| Fryer Electrical (per vessel) | 208 V 3 Φ 60 Hz 50.02 A | 240 V 3 Φ 43.35 A | 480 V 3 Φ 21.68 A |
| Thermostat Range | 200–400 °F (93–204 °C) |
| Clearances | 0" to non-combustible / 6" (152 mm) to combustible surfaces |
| Included | Food warmer, dump pan, joiner strips, filter starter kit, 5" casters |
| Certifications | cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE |
| Warranty | 1-year parts & labor; 5-year pro-rated fry tank |
Why Choose Imperial’s Side-Car System?
- Space Saver – Filtration and pump are tucked under the battery, freeing up valuable floor space.
- Cleaner Oil, Better Food – Quick, operator-friendly filtering encourages more frequent cycles for longer oil life and consistent quality.
- Labor Efficiency – Filter and return oil in the time it takes to load the next basket—no messy hoses to connect.
- Durability – Stainless steel filter pan rolls out easily for paper changes and sanitation.
Options such as automatic or manual basket lifts, stainless steel tank covers, side drain shelves and side splashes are available. Contact us for details and pricing.
Installation Note: Unit must be mounted on casters or legs on a non-combustible floor and hard-wired by a qualified electrician. Verify site voltage, phase and amperage prior to ordering.
$69,168.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IFSCB575E electric floor fryer: five 75 lb frypots, built-in filtration, dump station, 5.5 GPM pump, stainless steel, caster mobility, NSF-ready.
Manufacturer
Imperial (Middleby)
Certifications
CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame
Height
44.13in
Width
117.0in
Depth
40.5in
Shipping Weight
1530.0lbs
With or without basket lifts
without basket(s)
Exterior Finish
stainless steel front & sides
Controls
thermostatic controls
Fry pot
stainless steel
Fat Capacity (approximate)
75 lbs each
Fryer Quantity
(5) tanks
Filter
built-in filter
Specifications
Fryer, electric, floor model, (5) battery, 75 lb. capacity each, immersed elements built-in filter system, dump station, 5.5 GPM roller pump, snap action thermostat, includes: food warmer, dump pan, joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
