Imperial (Middleby)  |  SKU: IFSCB550EUT

Imperial (Middleby) IFSCB550EUT Electric Fryers

$70,533.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Training video Parts manual Owner's manual Warranty sheet
Related Searches
Food Prep Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

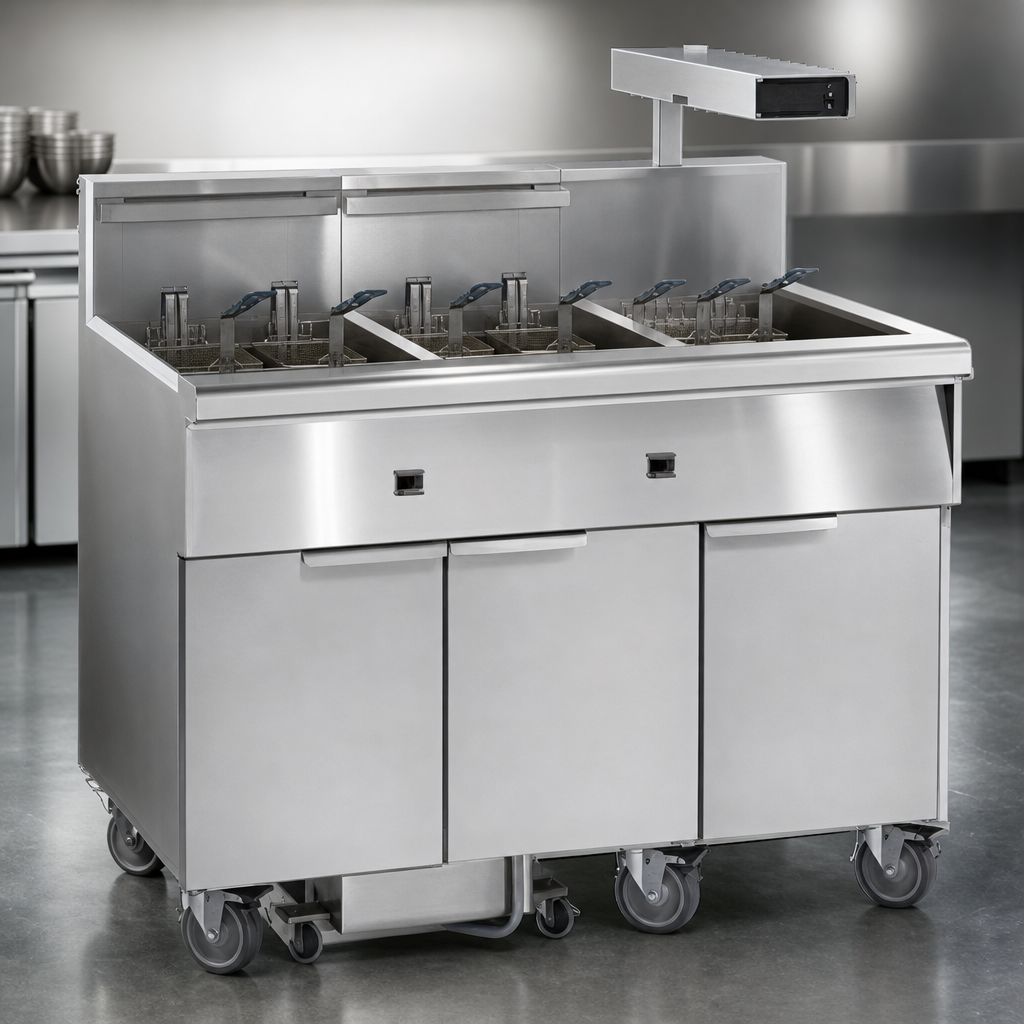

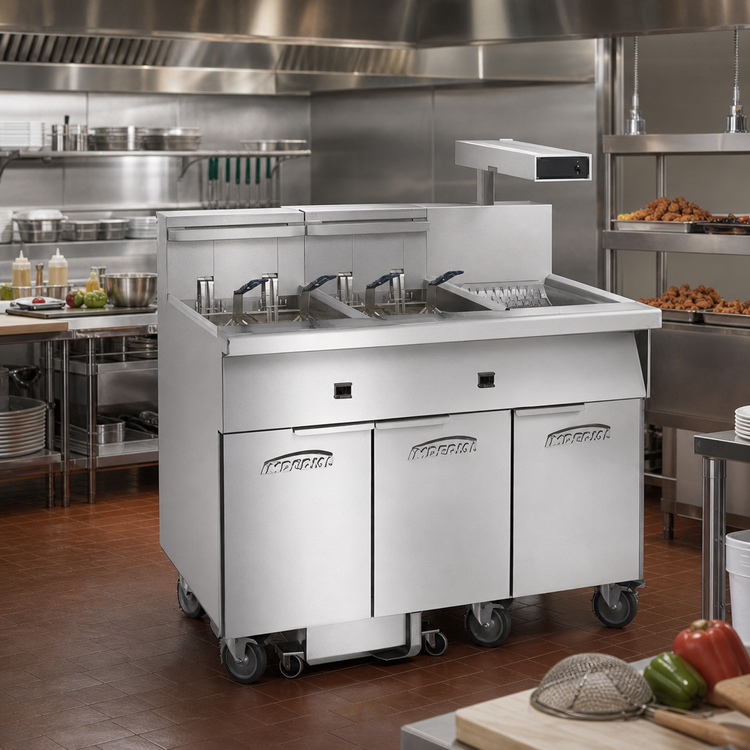

Imperial IFSCB550EU 5-Battery 50 lb Electric Fryer System

Tilt-Up Elements • Integrated Side-Car Filtration • Food-Warmer & Dump Station Included

Engineered for the demands of the highest-volume kitchens, the Imperial IFSCB550EU unites five independent 50-lb electric fryers with a space-saving, under-cabinet filtration system and a convenient dump station. Precise electronic thermostats, fast-acting tilt-up elements and a powerful roller pump keep production moving, oil fresh and profits up.

Why You’ll Love It

  • Five 50 lb (41 L) stainless-steel frypots – 250 lb total capacity.
  • Tilt-up, immersed heating elements swing clear for fast, safe vat cleaning.
  • Electronic thermostats deliver rock-solid temperature control for consistent, crispy results.

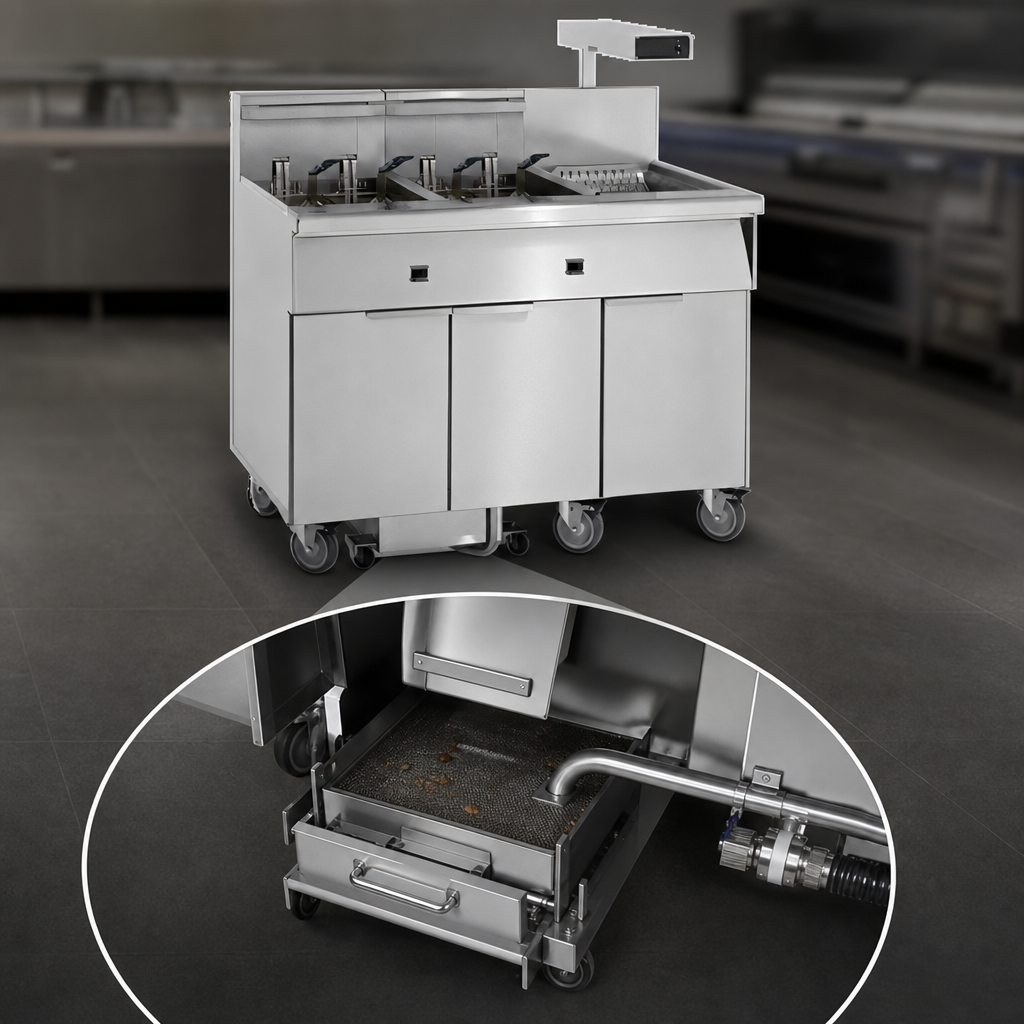

  • Integrated side-car filter located directly under the fryers saves floor space and encourages more frequent filtering.
  • 5.5 GPM roller pump with 1/3 HP motor filters a full frypot in minutes and can discharge oil up to 20 ft away.
  • Dump station with heated food warmer & stainless dump pan keeps finished product hot and ready to serve.
  • Positive-latching filter paper holder and quick-disconnect return hose streamline filter paper changes.
  • Continuous stainless-steel front, sides & precision-welded frypots withstand the toughest commercial environments.
  • Heavy-duty swivel casters provide easy mobility for cleaning and kitchen re-configuration.
  • Ships complete with joiner strips and a filter starter kit—no surprise add-ons.

Specifications

Model IFSCB550EU
Number of fryers 5 (battery configuration)
Oil capacity 50 lb (41 L) per frypot  |  250 lb (205 L) total
Overall dimensions (W × D × H) 93" × 34" × 44 1/8" (2362 × 864 × 1121 mm)
Ship weight 1,445 lb (655 kg)
Filtration pump 5.5 GPM roller pump  |  1/3 HP motor
Electrical (per fryer) 208 V / 3 ph / 60 Hz / 42.38 A
240 V / 3 ph / 60 Hz / 36.73 A
480 V / 3 ph / 60 Hz / 18.36 A*
Filter system electrical 115 V / 1 ph / 60 Hz / 6.8 A
Clearances 0" from non-combustibles, 6" (152 mm) from combustibles – legs or casters required
Certifications cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE

*480 V models are for export only.

Warranty

Imperial backs the IFSCB series with a 1-year parts & labor warranty and a 5-year limited fry-tank warranty (pro-rated, stainless steel).

Popular Options (sold separately)

  • Automatic or manual basket lifts
  • Stainless-steel tank covers
  • Side drain shelf or side splash
  • Manual timer
  • 40# 20 µm filter paper (100-sheet box)

Need flexible financing? Ask about Middleby Equipment Financing for fast credit decisions and affordable monthly payments.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame

Height

44.13in

Width

93.0in

Depth

34.0in

Shipping Weight

1445.0lbs

With or without basket lifts

without basket(s)

Exterior Finish

stainless steel front & sides

Controls

thermostatic controls

Fat Capacity (approximate)

50 lbs each

Fryer Quantity

(5) tanks

Fry pot

stainless steel

Filter

built-in filter

Specifications

Fryer, electric, floor model, (5) battery, 50 lb. capacity each, tilt-up elements, built-in filter system, dump station, 5.5 GPM roller pump, electronic thermostat, includes: food warmer, dump pan, joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
