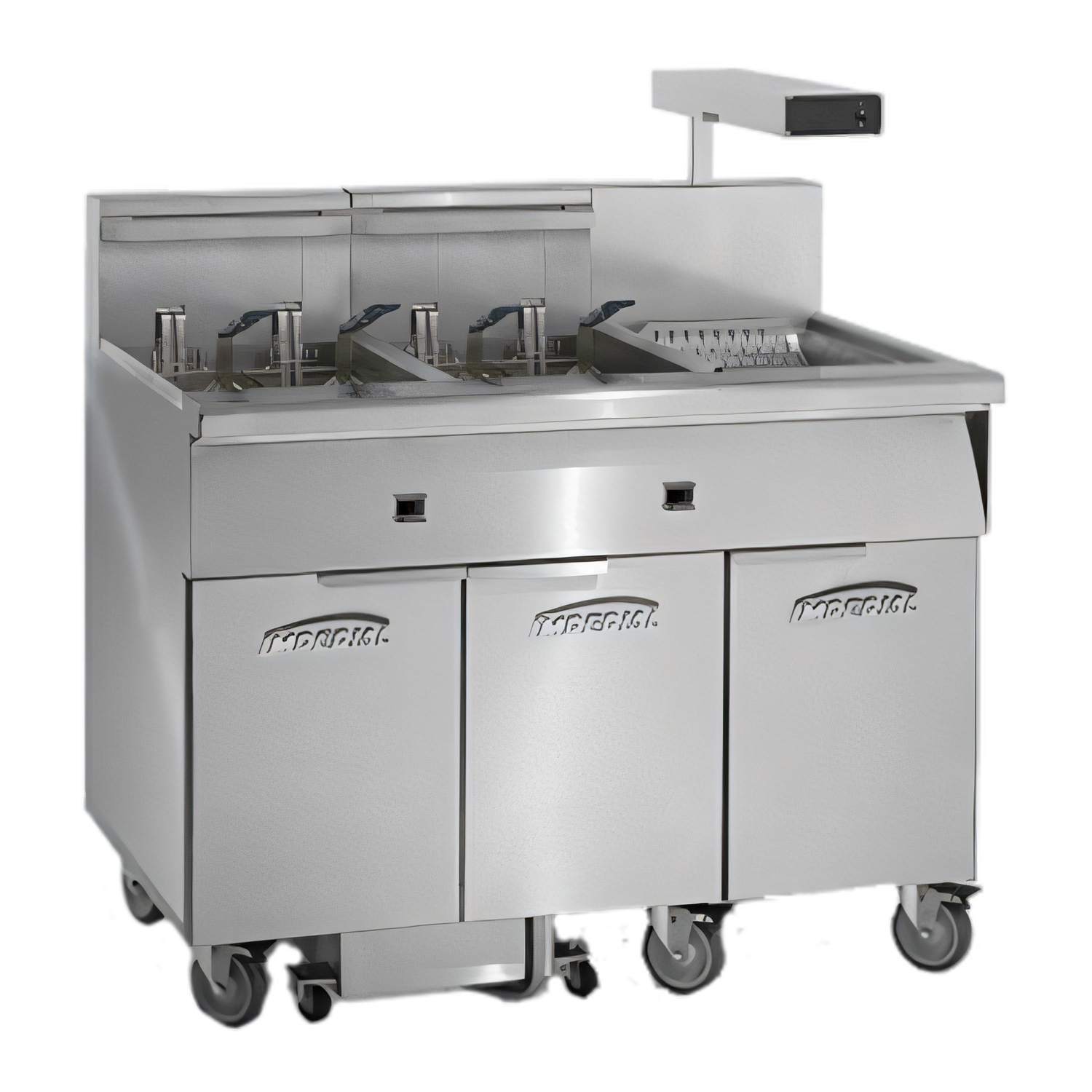

Imperial IFSCB550EU 5-Battery 50 lb Electric Fryer System with Side-Car Filter & Dump Station

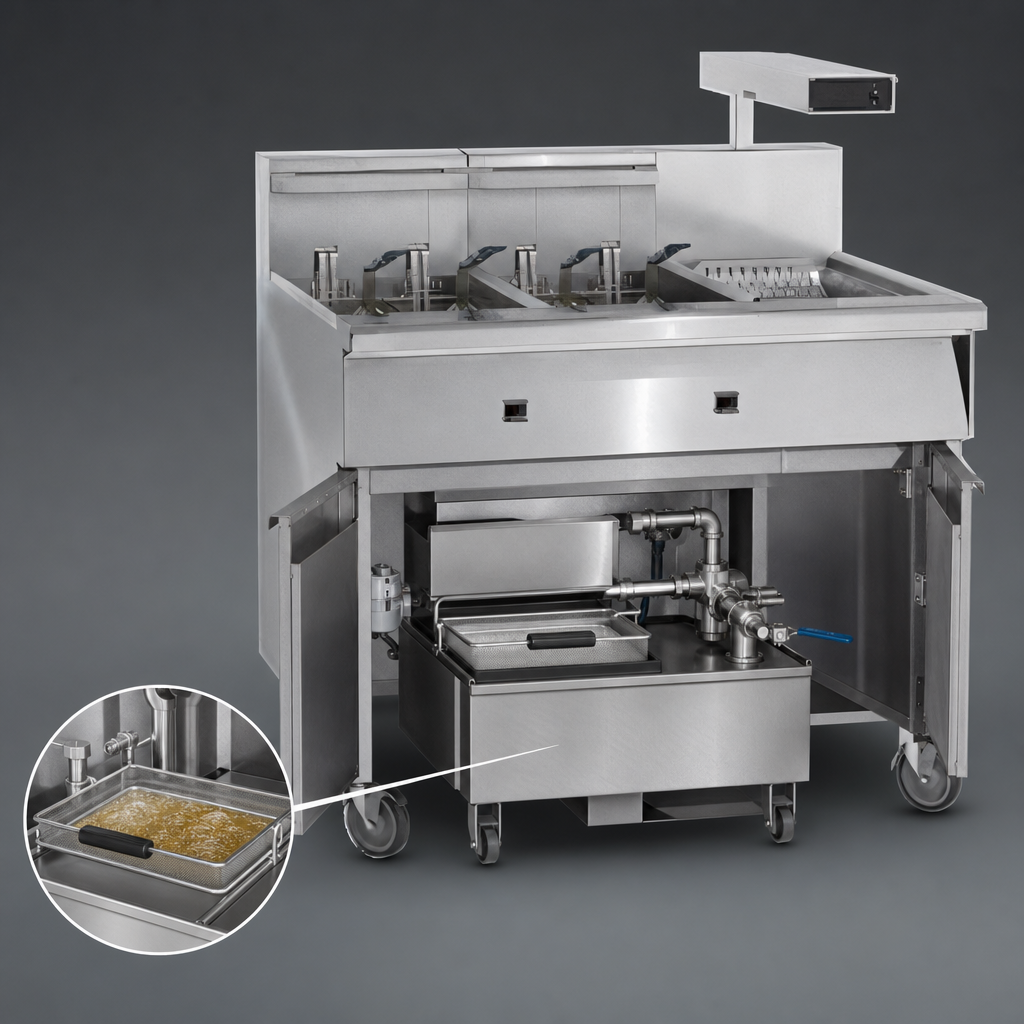

High-volume, space-saving frying power for the busiest kitchensKeep the fries—and the profits—flowing with Imperial’s IFSCB550EU. Five independent 50 lb stainless-steel frypots are plumbed to a single, under-fryer filtration cabinet that returns clean oil in seconds. The result is higher food quality, lower oil costs and a seamless cookline footprint.
Key Features

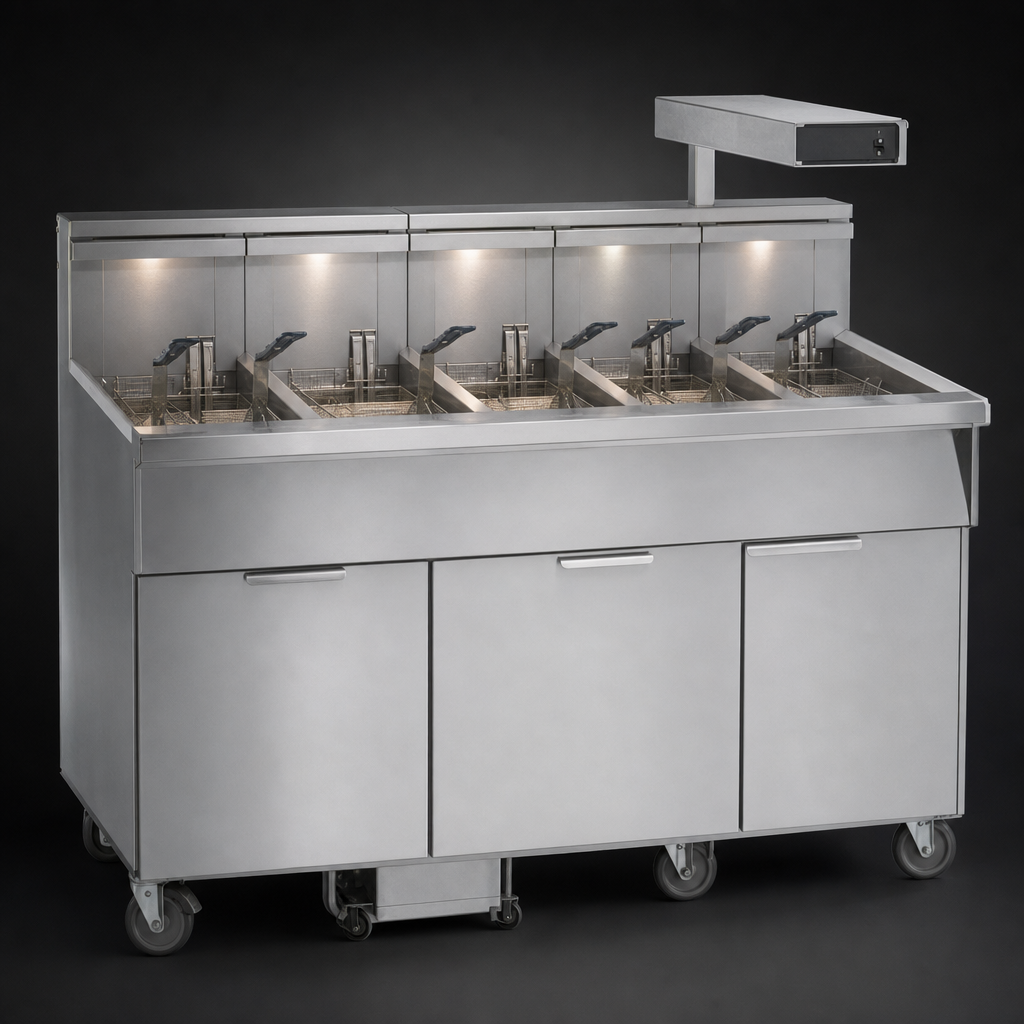

- Five 50 lb (41 L) fryers for a total 250 lb oil capacity.
- Tilt-up immersed elements deliver rapid heat recovery and swing clear for easy vat cleaning.
- Integrated 5.5 GPM roller pump (1/3 HP, 115 V) filters a full frypot in minutes.
- Snap-action thermostats hold target temperature within ± 3 °F for consistent results.
- Side-car dump station includes a heated food warmer and stainless-steel dump pan.
- Internally plumbed drain & return lines—no external hoses or messy connections.
- Stainless-steel frypots, front, sides and continuous cabinet for durability and a pro finish.
- 5" deep stainless-steel landing ledge provides generous staging space.
- Heavy-duty locking casters, joiner strips and filter starter kit included.
- Safety & sanitation certified: cETLus, CE, CSA Flame, CSA Star & CSA-Sanitation.
Operational Advantages
- Positive-latching filter paper holder maximizes filtration efficiency.
- Pumps oil to a disposal vat up to 20 ft away, promoting safer oil handling.
- Continuous cabinet face creates a clean, high-end look across the cookline.
- 0" clearance required from non-combustible surfaces—ideal for tight footprints.
Specifications
| Model | IFSCB550EU |
|---|---|
| Fryers Included | 5 × 50 lb electric fryers (tilt-up elements) |
| Total Oil Capacity | 250 lb (≈ 205 L) |
| Filtration Pump | 5.5 GPM roller pump, 1/3 HP, 115 V, 6.8 A |
| Per Fryer Electrical | 208 V / 3 ph / 60 Hz / 42.38 A 240 V / 3 ph / 60 Hz / 36.73 A 480 V / 3 ph / 60 Hz / 18.36 A (export) |
| Overall Dimensions | 93" W × 34" D × 44-1/8" H (2362 × 864 × 1121 mm) |
| Ship Weight | 1,445 lb (655 kg) |
| Clearances | 0" to non-combustible surfaces; 6" (152 mm) to combustible |
| Included Items | Food warmer, dump pan, joiner strips, filter starter kit, locking casters |
| Warranty | 1-year parts & labor; 5-year pro-rated frypot |
| Certifications | cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE |
Need financing? Ask about flexible Middleby equipment financing to put this high-production fryer system to work without the heavy upfront cost.
Specifications are taken from Imperial sheet E-18 and are subject to change without notice.
$64,380.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Commercial Imperial IFSCB550EU electric floor fryer with five 50 lb pots, built-in filter, dump station, tilt elements, casters for easy service.
Manufacturer
Imperial (Middleby)
Certifications
CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame
Height
44.13in
Width
93.0in
Depth
34.0in
Shipping Weight
1445.0lbs
With or without basket lifts
without basket(s)
Exterior Finish
stainless steel front & sides
Controls
thermostatic controls
Fat Capacity (approximate)
50 lbs each
Fryer Quantity
(5) tanks
Fry pot
stainless steel
Filter
built-in filter
Specifications
Fryer, electric, floor model, (5) battery, 50 lb. capacity each, tilt-up elements, built-in filter system, dump station, 5.5 GPM roller pump, snap action thermostat, includes: food warmer, dump pan, joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
