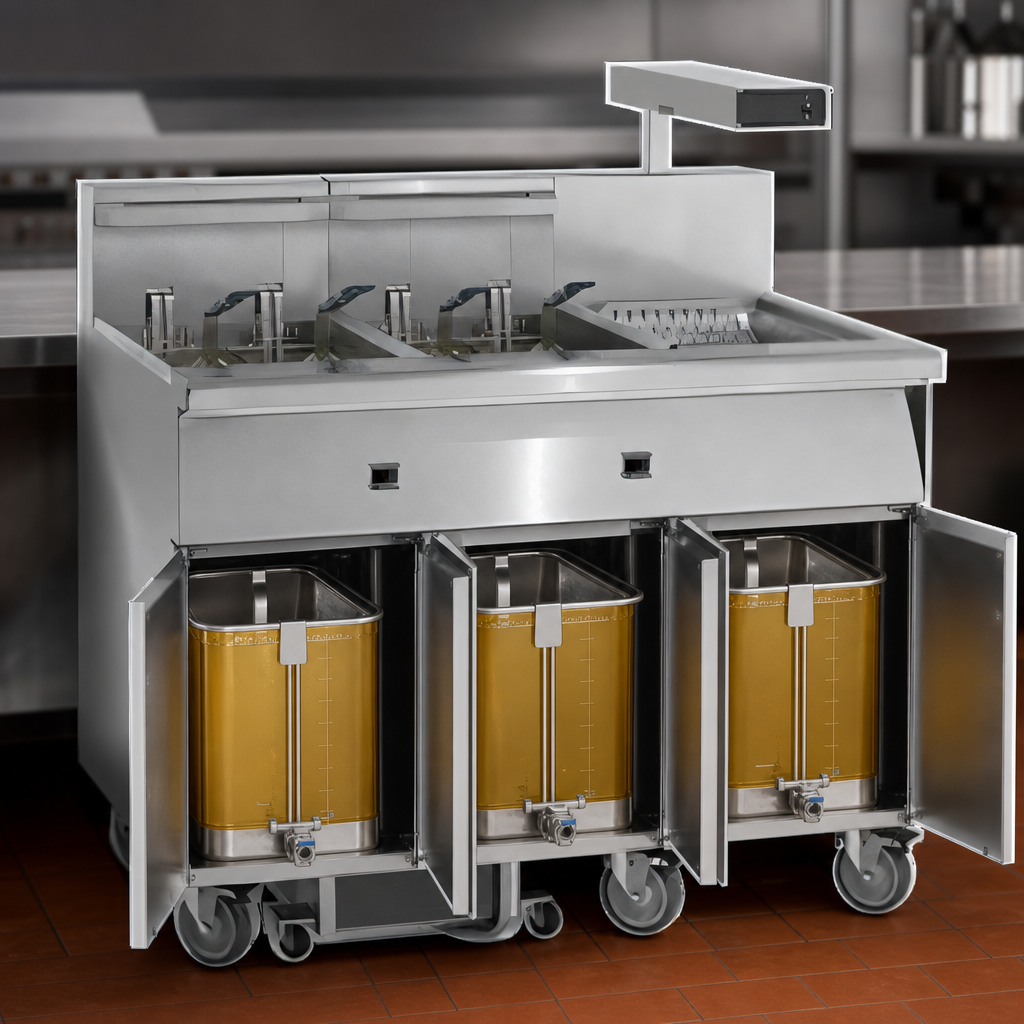

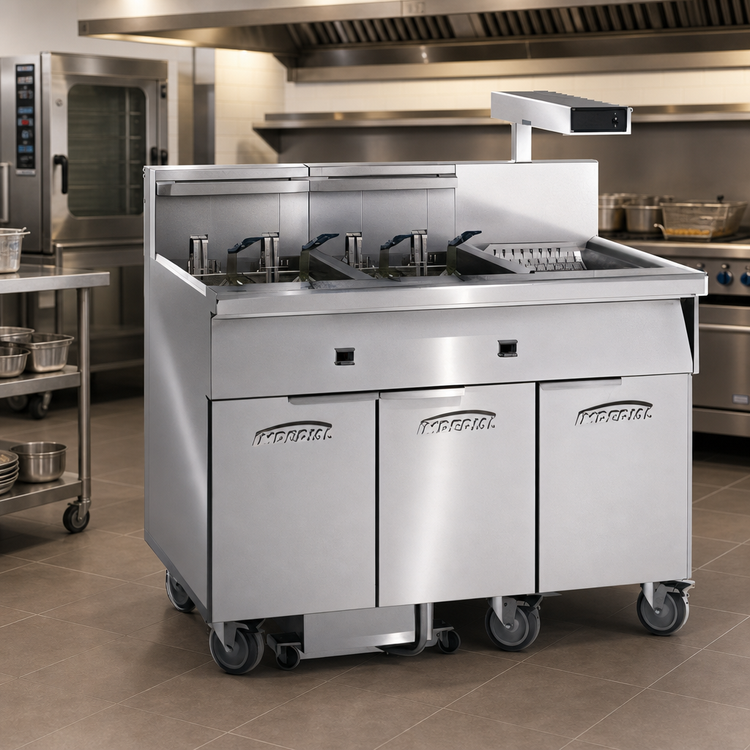

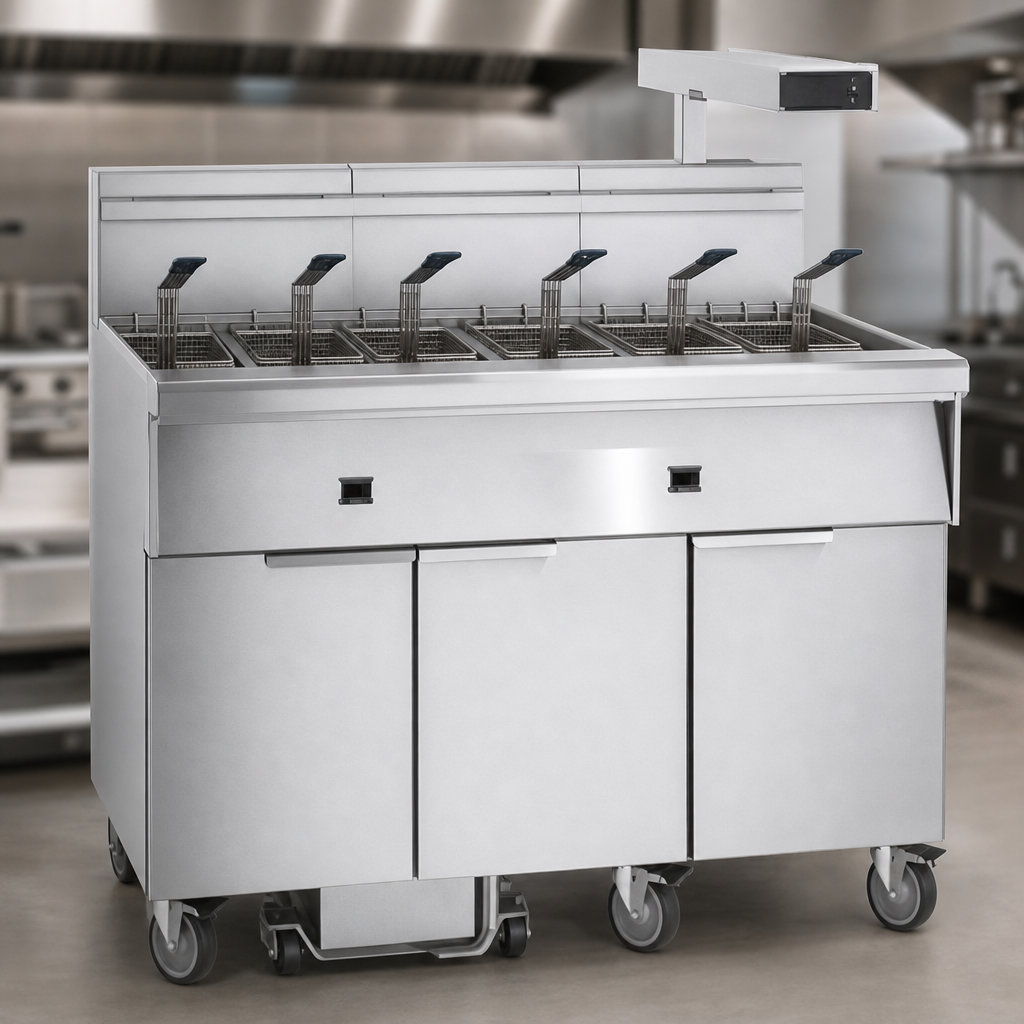

Imperial IFSCB550E 5-Battery 50 lb Electric Floor Fryer System
Built-In Filter • Immersed Elements • Heated Dump StationPower through peak service with five independent 50 lb frypots, an under-fryer filtration package, and a convenient dump station—everything you need in one sleek, stainless steel battery. The Imperial IFSCB550E maximizes output, minimizes downtime, and delivers the durability operators expect from a Middleby brand.
Why Choose the IFSCB550E?
- Immersed elements sit directly in the oil for lightning-fast heat recovery and lower energy costs.
- 5.5 GPM roller pump with 1/3 HP motor completes a full-pot filtration cycle in minutes—no external hoses required.
- Heated dump station with food warmer and removable dump pan keeps finished product hot and crispy.
- Stainless steel frypots, cabinet, front & sides guarantee long-term corrosion resistance and an easy-to-clean surface.
- Factory-installed casters, joiner strips and a filter starter kit speed up installation and first start-up.
- Full compliance with cETLus, CSA Flame, CSA Star, CSA-Sanitation and CE standards.
Performance Benefits
- Snap-action thermostats (200 – 400 °F) deliver precise temperature control for consistently golden results.
- Under-fryer filter location saves valuable floor space and eliminates messy external filter carts.
- Internally plumbed drain & return lines promote operator safety—no open hot-oil transfers.
- Continuous 5" stainless steel landing ledge provides a handy staging area for baskets and food pans.
- Scalable design lets you battery up to six fryers on one filter system as your volume grows.
What’s in the Box?
- (5) 50 lb stainless steel frypots with immersed heating elements
- Integrated filter system with 5.5 GPM roller pump & positive-latching filter pan
- Heated food warmer, dump pan & matching stainless steel cabinet
- Casters (front locking)
- Joiner strips for seamless battery alignment
- Filter starter kit (paper & powder)
Specifications
| Oil Capacity | 5 × 50 lb (41 L) frypots – 250 lb total |
|---|---|
| Overall Dimensions (W × D × H) | 93" × 34" × 44-1/8" (2362 × 864 × 1121 mm) |
| Ship Weight | 1445 lb / 655 kg |
| Electrical (per fryer) |
208 V / 3 ph / 60 Hz – 42.38 A 240 V / 3 ph / 60 Hz – 36.73 A 480 V / 3 ph / 60 Hz – 18.36 A* |
| Electrical (filter system) | 115 V / 1 ph / 60 Hz – 6.8 A |
| Filter Pump | 5.5 GPM roller pump, 1/3 HP motor |
| Clearances | 0" non-combustible • 6" combustible |
| Certifications | cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE |
*480 V model is intended for export markets.
Warranty: 1-Year Parts & Labor – plus a pro-rated 5-Year fry tank warranty. Service must be performed by an authorized Imperial agency.
Looking for automatic basket lifts, tank covers, or side splashes? Ask our team about available factory options to customize your fryer line.
$55,984.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IFSCB550E electric floor fryer, five 50 lb frypots with built-in filter, dump station, 5.5 GPM pump, stainless steel, caster mobility.
Manufacturer
Imperial (Middleby)
Certifications
CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame
Height
44.13in
Width
93.0in
Depth
34.0in
Shipping Weight
1445.0lbs
With or without basket lifts
without basket(s)
Exterior Finish
stainless steel front & sides
Controls
thermostatic controls
Fat Capacity (approximate)
50 lbs each
Fryer Quantity
(5) tanks
Fry pot
stainless steel
Filter
built-in filter
Specifications
Fryer, electric, floor model, (5) battery, 50 lb. capacity each, immersed elements, built-in filter system, dump station, 5.5 GPM roller pump, snap action thermostat, includes: food warmer, dump pan, joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
