Imperial (Middleby) IFSCB475EU Electric Fryers
Description

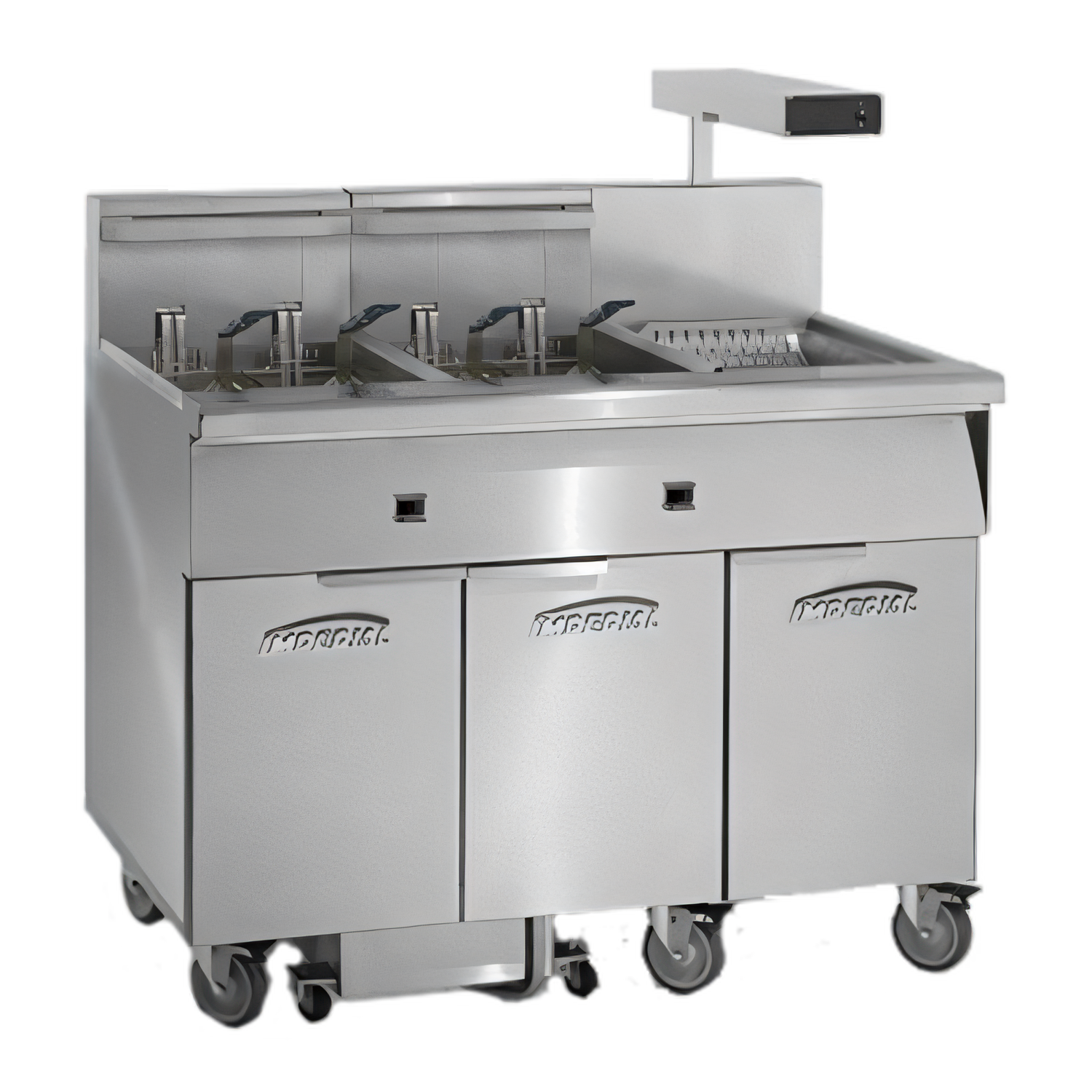

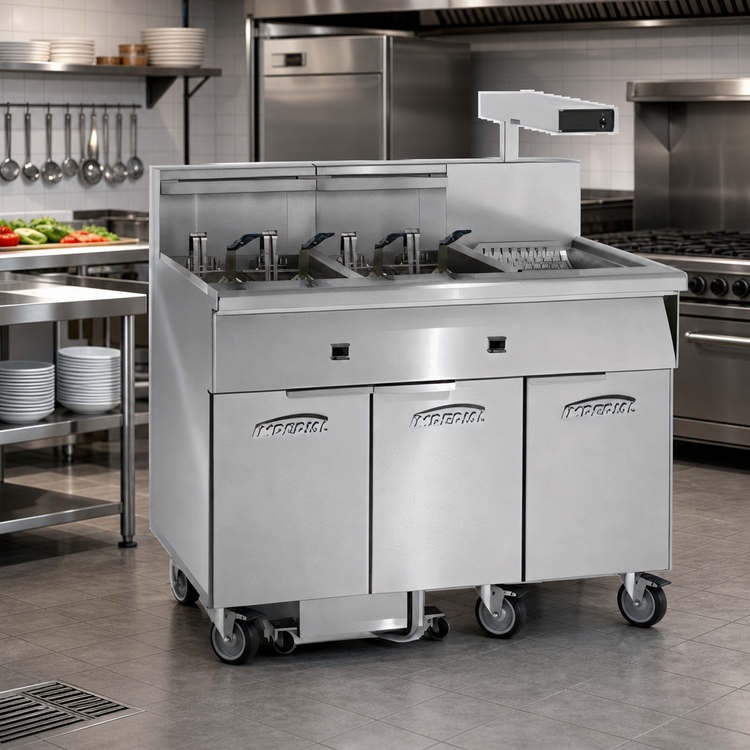

Imperial IFSCB475EU 4-Battery 75 lb Electric Fryer w/ Side-Car Filter System
300 lb total capacity • Tilt-Up immersed elements • Built-in dump station & food warmerEngineered for high-volume kitchens that can’t afford downtime, the Imperial IFSCB475EU combines four 75 lb electric fryers with an under-fryer filtration package and a side-car dump station—all in one continuous, stainless-steel cabinet. Filter, polish and return oil in minutes, keep fried food hot and crisp, and roll the entire battery wherever you need it.
Why It Stands Out

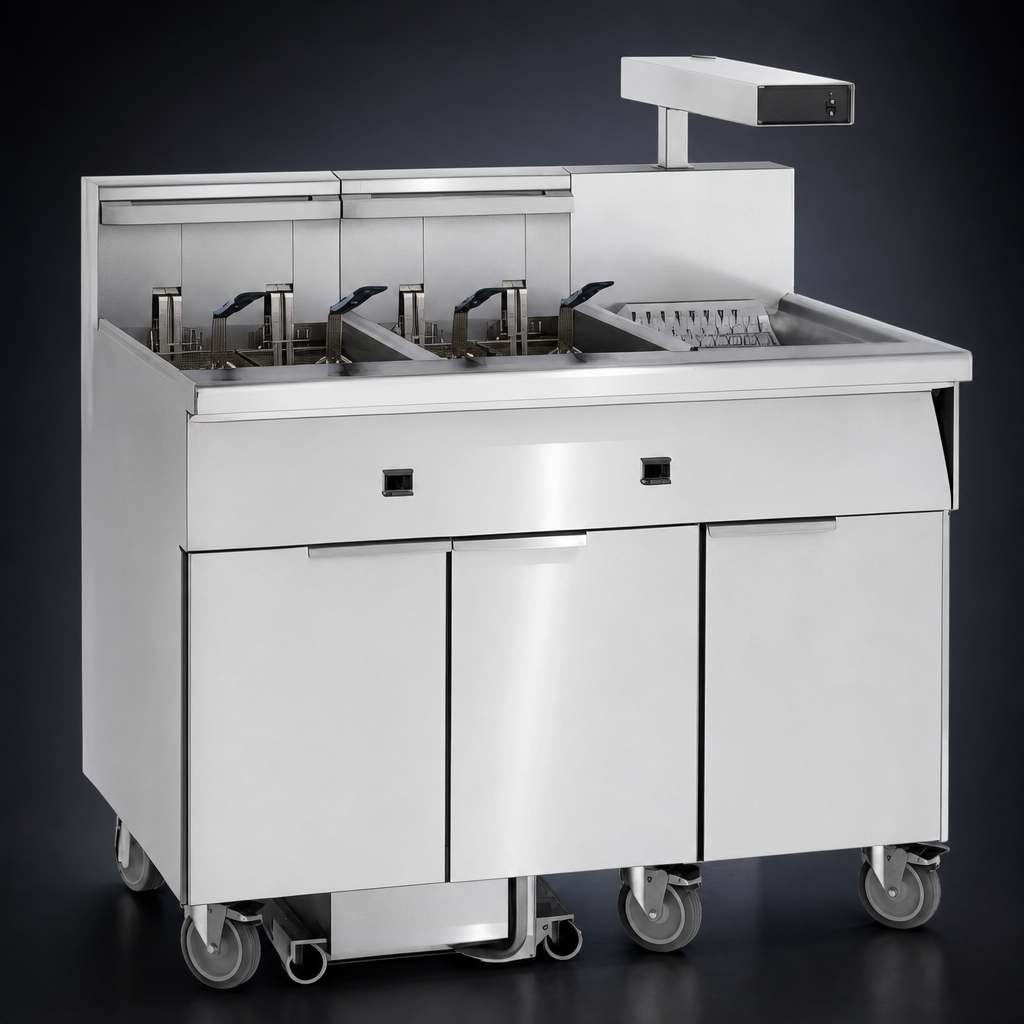

- 4 x 75 lb stainless-steel frypots (300 lb total) handle peak-hour volume with ease.
- Tilt-up, immersed heating elements put 72 kW of electric power* directly in the oil for rapid recovery.

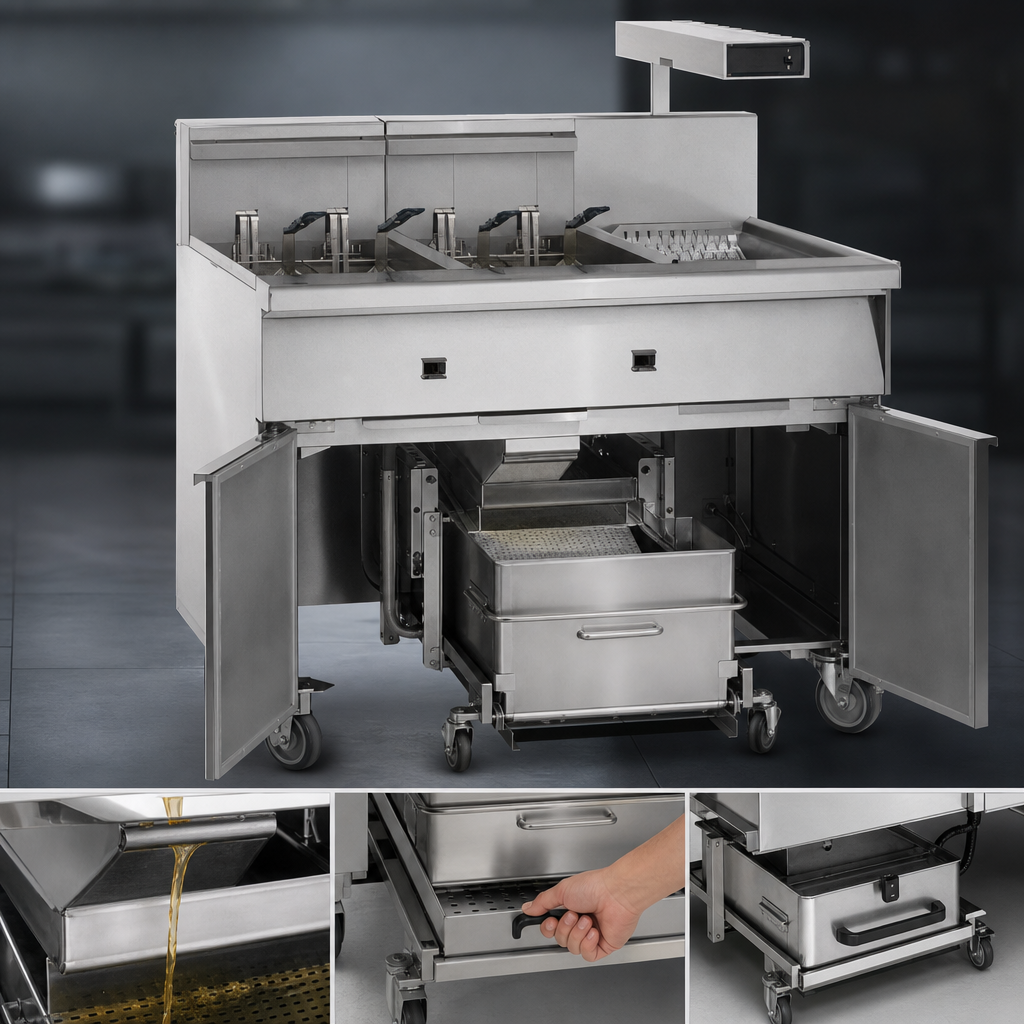

- Under-fryer filter pan saves floor space and keeps plumbing internal for a safer, cleaner work area.
- 5.5 GPM roller pump (1/3 HP) filters and returns oil in about 60 seconds per pot.
- Snap-action thermostats maintain precise temperature control from 200-400 °F (93-204 °C).
- Side-car dump station includes a thermostatically-controlled food warmer and removable dump pan.
- Positive-latching filter-paper holder & quick-disconnect return line simplify daily filtration.
- Mounted on heavy-duty casters for effortless cleaning and flexible kitchen layouts.
Included With Your Fryer
- Food warmer w/ overhead heat lamp
- Stainless-steel dump pan
- Joiner strips for seamless battery alignment
- Filter starter kit & sample filter paper
- Four (4) swivel casters, two locking
Specifications
| Model | IFSCB475EU |
|---|---|
| Oil capacity | 75 lb (51 L) per frypot × 4 |
| Heating elements | Tilt-up, immersed electric elements |
| Thermostat | Snap-action, 200-400 °F (93-204 °C) |
| Filtration system | Built-in; 5.5 GPM roller pump, 1/3 HP motor, positive-latching paper rack |
| Electrical (each fryer) | 208 V / 3 ph / 60 Hz / 50.02 A 240 V / 3 ph / 60 Hz / 43.35 A 480 V / 3 ph / 60 Hz / 21.68 A |
| Electrical (filter) | 115 V / 1 ph / 60 Hz / 6.8 A |
| Overall dimensions | 97-1/2 W × 40-1/2 D × 44-1/8 H in (2477 × 1029 × 1121 mm) |
| Shipping weight | 1,260 lb (572 kg) |
| Clearances | 0" sides & rear (non-combustible); 6" (152 mm) combustible surfaces |
| Construction | All stainless steel frypots, front & sides; welded and polished |
| Casters | (4) heavy-duty, front two locking |
| Certifications | cETLus, CE, CSA Flame, CSA Star, CSA-Sanitation |
| Warranty | 1-year parts & labor; 5-year pro-rated fry tank warranty |
*Total kW draw varies by supply voltage. Always consult the electrical specification table and your local codes before ordering or installing.
