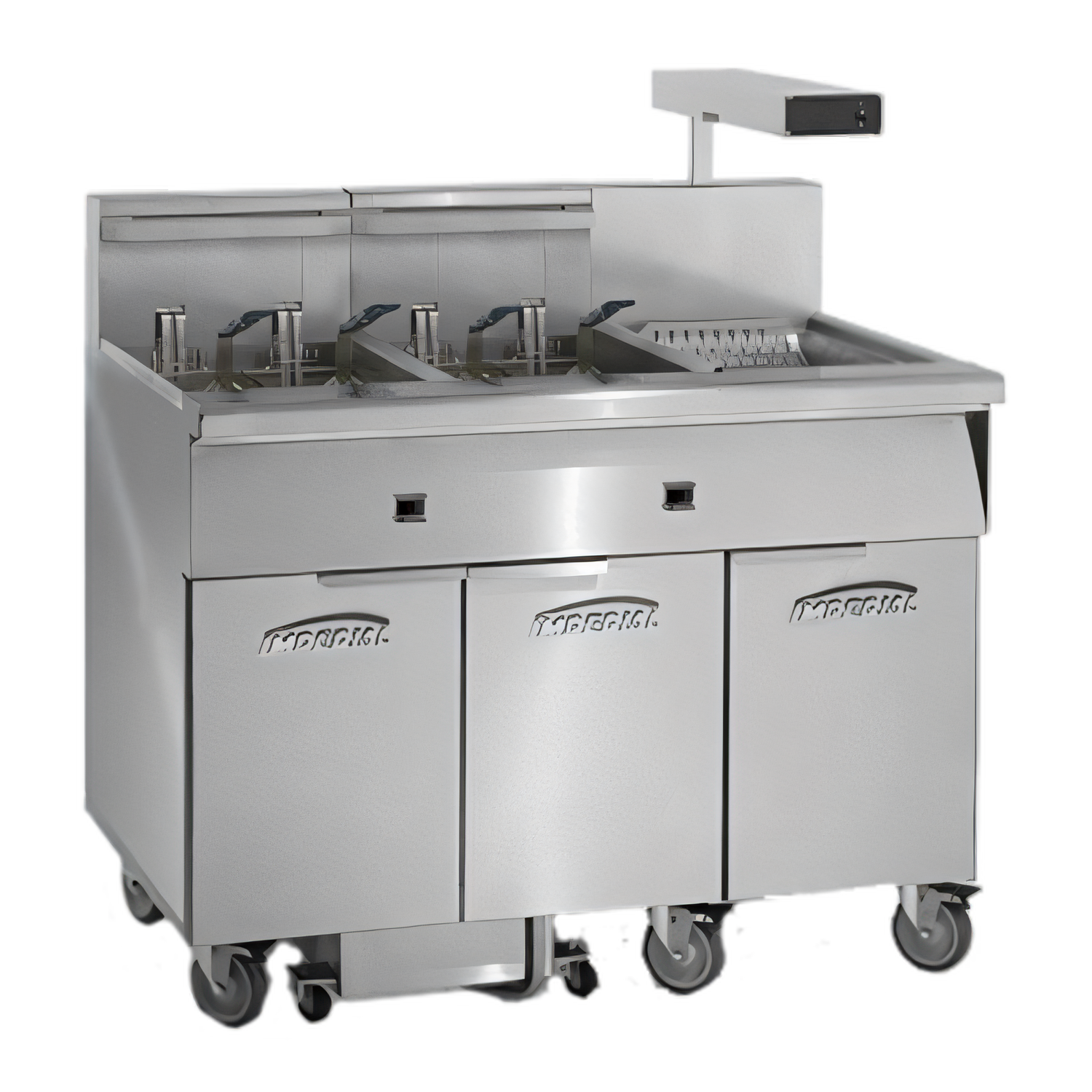

Imperial IFSCB475E 4-Battery 75 lb Electric Fryer with Side-Car Filter System
High-volume, space-saving solution with immersed elements & built-in dump stationPower through peak service with four independent 75 lb frypots, an under-cabinet filter, and a stainless steel dump station that keeps finished product hot and ready. The Imperial IFSCB475E delivers the speed and consistency of electric immersed-element frying while helping you extend oil life and maintain top-tier food quality—all in one seamless, mobile battery.
Key features & benefits

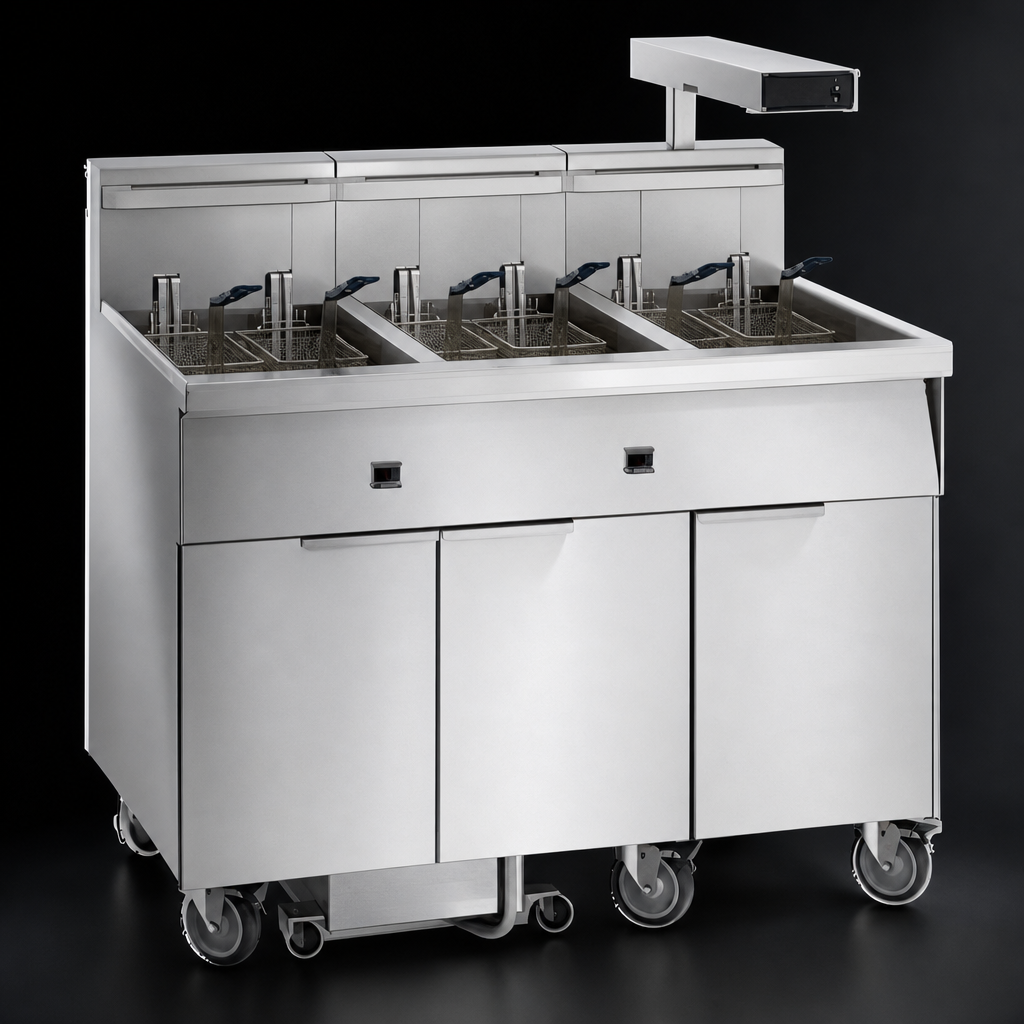

- Four 75 lb (51 L) stainless steel frypots—run multiple menu items at once.
- Immersed electric elements for fast heat recovery and energy efficiency.

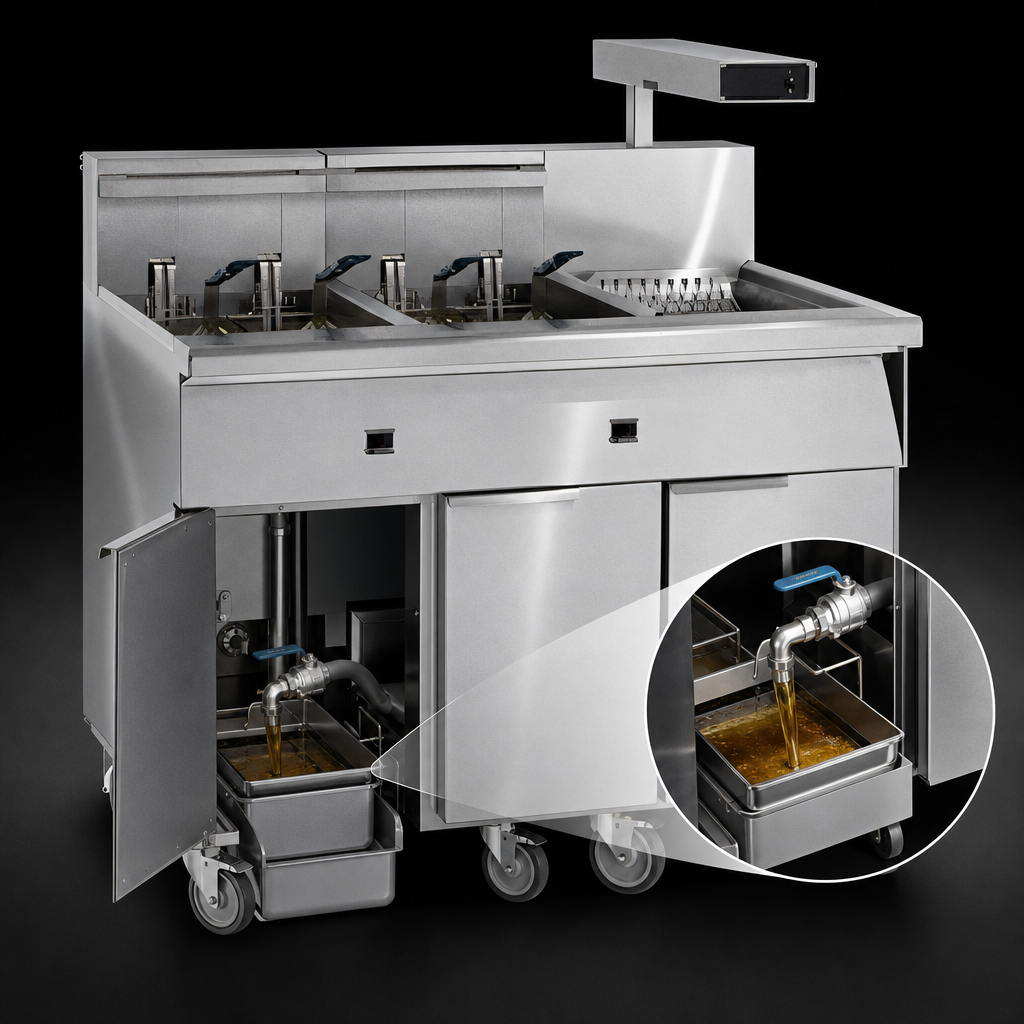

- Integrated 5.5 GPM roller pump (1/3 HP) filters oil and can discharge up to 20 ft away.
- Internally plumbed drain & return lines keep hot oil safely inside the cabinet.
- Snap-action thermostat holds set temperature within ±3 °F for consistent results.
- Side-car dump station with heated lamp and dump pan simplifies seasoning & staging.
- Continuous stainless steel front, sides & frypots resist corrosion and wipe clean fast.
- Factory-installed swivel casters (2 lock) make cleaning and repositioning easy.
What’s included
- Imperial IFSCB475E 4-battery electric fryer with under-cabinet filter
- Stainless steel dump station with food warmer lamp
- Dump pan
- Joiner strips for seamless battery appearance
- Filter starter kit & filter paper holder
- Heavy-duty swivel casters
Technical specifications
| Oil capacity | 75 lb / 51 L per frypot (4 frypots) |
|---|---|
| Total capacity | 300 lb / 204 L |
| Overall dimensions | 97-1/2″ W × 40-1/2″ D × 44-1/8″ H (2477 × 1029 × 1121 mm) |
| Shipping weight | Approx. 1,260 lb (572 kg) |
| Heating elements | Immersed electric elements |
| Filter pump | 5.5 GPM roller pump, 1/3 HP motor |
| Thermostat | Mechanical snap-action, 200–400 °F (93–204 °C) |
| Electrical (per frypot) | 208 V / 3-ph / 50.0 A • 240 V / 3-ph / 43.4 A • 480 V / 3-ph / 21.7 A |
| Electrical (filter) | 115 V / 1-ph / 6.8 A |
| Clearances | 0″ sides & back (non-combustible); 6″ (152 mm) from combustible surfaces |
| Certifications | cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE |
| Warranty | 1-year parts & labor • 5-year pro-rated frypot warranty |
Optional accessories (sold separately)
- Automatic or manual basket lifts
- Stainless steel tank covers
- Side drain shelf or side splash
- Manual production timer
- Imperial 40 lb filter paper (20 µ, 100 sheets/box)
Important: Electrical hookup must be performed by a qualified electrician in accordance with local
codes. Verify voltage and phase compatibility before installation.
Imperial reserves the right to modify specifications without notice. Images are for reference only; actual unit may vary.
$58,113.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IFSCB475E electric floor fryer: four 75 lb frypots, built-in filter, dump station, 5.5 GPM pump, stainless steel, caster mobility, CSA certified.
Manufacturer
Imperial (Middleby)
Certifications
CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame
Height
44.13in
Width
97.5in
Depth
40.5in
Shipping Weight
1260.0lbs
With or without basket lifts
without basket(s)
Exterior Finish
stainless steel front & sides
Fryer Quantity
(4) tanks
Fry pot
stainless steel
Controls
thermostatic controls
Fat Capacity (approximate)
75 lbs each
Filter
built-in filter
Specifications
Fryer, electric, floor model, (4) battery, 75 lb. capacity each, immersed elements, built-in filter system, dump station, 5.5 GPM roller pump, snap action thermostat, includes: food warmer, dump pan, joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
