Imperial (Middleby)  |  SKU: IFSCB450EC

Imperial (Middleby) IFSCB450EC Electric Fryers

$59,009.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts manual Middleby financial flyer Training video Owner's manual Warranty sheet
Related Searches
Food Prep Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Imperial IFSCB450E 4-Bank 50 lb Electric Fryer w/ Built-In Filter

Computer-controlled, space-saving “Side-Car” system with dump station & food warmer

Engineered for high-volume kitchens that refuse to compromise on efficiency or oil quality, the Imperial IFSCB450E combines four independent 50 lb fryers with a factory-integrated filter and dump station — all in one continuous stainless steel cabinet. Immersed heating elements deliver rapid heat recovery, while the 5.5 GPM roller pump polishes oil in minutes, keeping product crisp and profits high.

Key Features

  • 4 independently controlled 50 lb (41 L) stainless steel frypots – 200 lb total capacity
  • Immersed electric elements for maximum heat transfer and fast recovery times

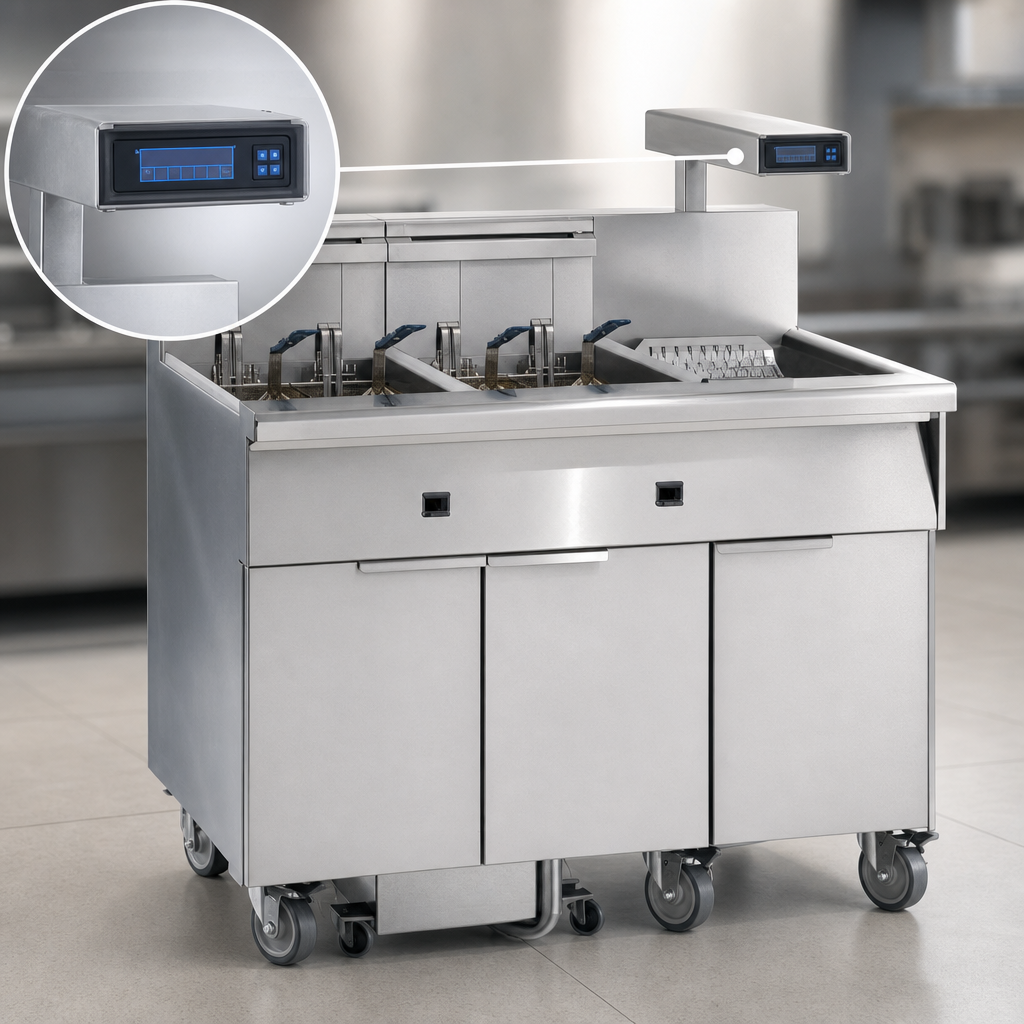

  • Computer controls with precise temperature & cook-cycle programming
  • Under-fryer “Side-Car” filtration saves floor space and filters all vats in one cycle
  • 5.5 GPM roller pump driven by a 1/3 HP motor – pumps to disposal vats up to 20 ft away
  • Positive-latching filter paper holder & quick-disconnect return line for mess-free operation
  • Integrated dump station with heated food warmer and stainless steel dump pan
  • Continuous 5" deep stainless steel front landing ledge for safe staging
  • Casters, joiner strips & starter filter kit included for plug-and-play installation
  • Certified: cETLus, CSA-Flame, CSA-Star, CSA-Sanitation & CE

Specifications

Model IFSCB450E (battery of 4 fryers with side-car filter system)
Total Oil Capacity 200 lb / 164 L (4 × 50 lb frypots)
Overall Dimensions 77 1⁄2" W × 34" D × 44 1⁄8" H (1969 × 864 × 1121 mm)
Shipping Weight 1,092 lb / 541 kg
Electrical (per fryer) 208 V / 3 Ph / 60 Hz – 42.38 A
240 V / 3 Ph / 60 Hz – 36.73 A
480 V / 3 Ph / 60 Hz – 18.36 A (export)
Filter Electrical 115 V / 1 Ph / 60 Hz – 6.8 A
Clearances 0" from non-combustible surfaces; 6" (152 mm) from combustible surfaces
Construction Stainless steel frypots, front & sides; precision-welded
Warranty 1-year parts & labor; 5-year pro-rated frypot warranty

Included With Your Fryer

  • Food warmer & stainless steel dump pan
  • Joiner strips for seamless battery installation
  • Filter starter kit & sample filter paper
  • Heavy-duty locking casters

Popular Options (sold separately)

  • Automatic or manual basket lifts
  • Stainless steel tank covers & side splash
  • Side drain shelf
  • Replacement filter paper (40 # / 20 µm, box of 100)
Installation Notice: For safe operation, unit must be leveled on the supplied casters and connected by a qualified electrician in accordance with local codes. Use on non-combustible floors only.

Imperial reserves the right to modify specifications or design without prior notice.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame

Height

44.13in

Width

77.5in

Depth

34.0in

Shipping Weight

1092.0lbs

Fryer Quantity

(4) tanks

Exterior Finish

stainless steel front & sides

With or without basket lifts

without basket(s)

Fat Capacity (approximate)

50 lbs each

Controls

computer controls

Fry pot

stainless steel

Filter

built-in filter

Specifications

Fryer, electric, floor model, (4) battery, 50 lb. capacity each, immersed elements, built-in filter system, dump station, 5.5 GPM roller pump, computer controls, includes: food warmer, dump pan, joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
