Imperial IFSCB375EU Triple 75 lb Electric Fryer System
Built-in filtration • Tilt-up elements • Computer controlsMaximize production without adding footprint. The IFSCB375EU unites three high-performance 75 lb (51 L) fryers, a side-car filter system, and a heated dump station in one continuous stainless-steel cabinet. With immersed, tilt-up elements and on-board computer controls, operators enjoy faster recovery, longer oil life, and consistently golden results every shift.
Why you’ll love it

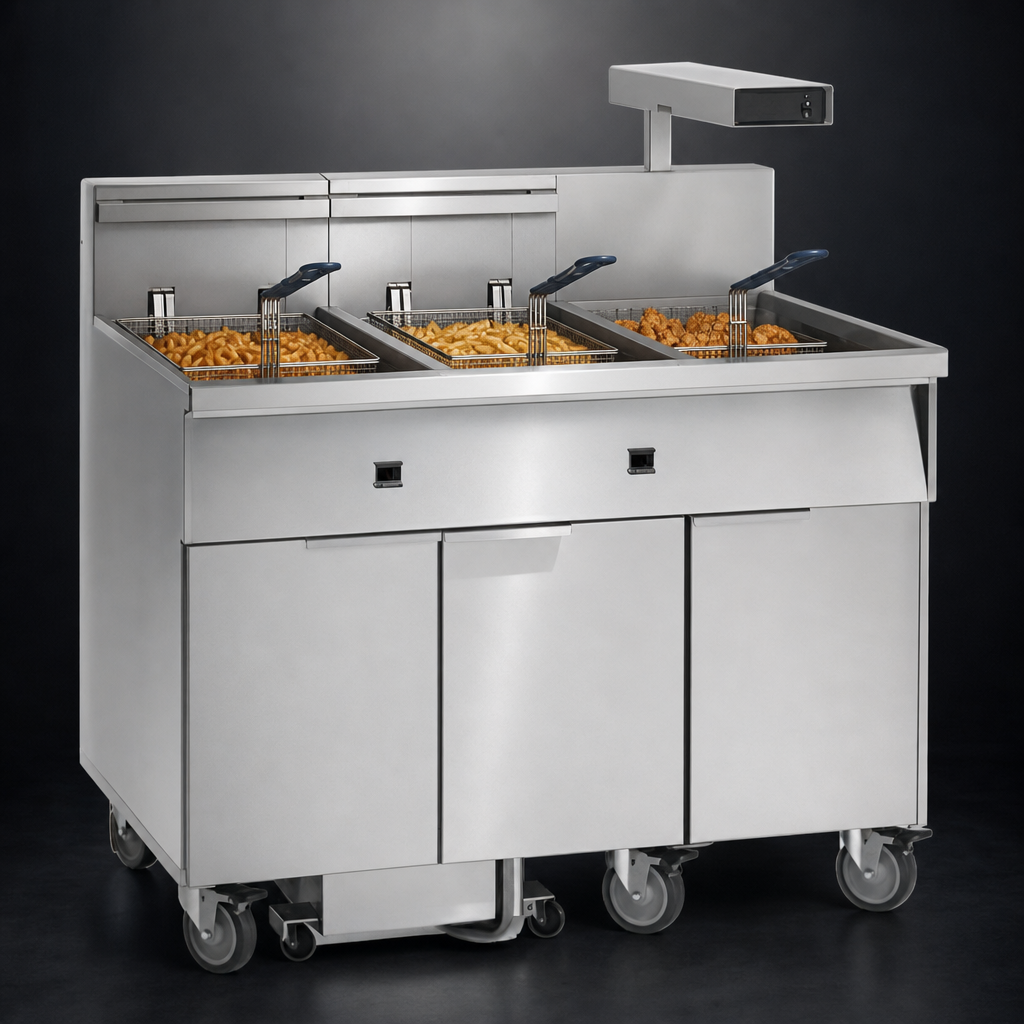

- High volume output – Three full-size frypots handle 225 lb of product at once.
- Tilt-up immersed elements swing up for easy cleaning and provide rapid heat transfer for quick recovery.
- Side-car filtration built in – No external filter cart needed; all drain and return lines are internally plumbed to save floor space.
- 5.5 GPM roller pump | 1/3 HP motor returns filtered oil in seconds and can discharge to a disposal vat up to 20 ft away.
- Heated dump station & food warmer keep finished product crisp and ready for service.
- Intuitive computer controls offer programmable cook cycles, automatic melt, and precise temperature accuracy.
- All stainless-steel construction (frypot, front & sides) for maximum durability and effortless wipe-down.
- Factory-included kit – casters, joiner strips, dump pan, and filter starter kit ship with every unit.

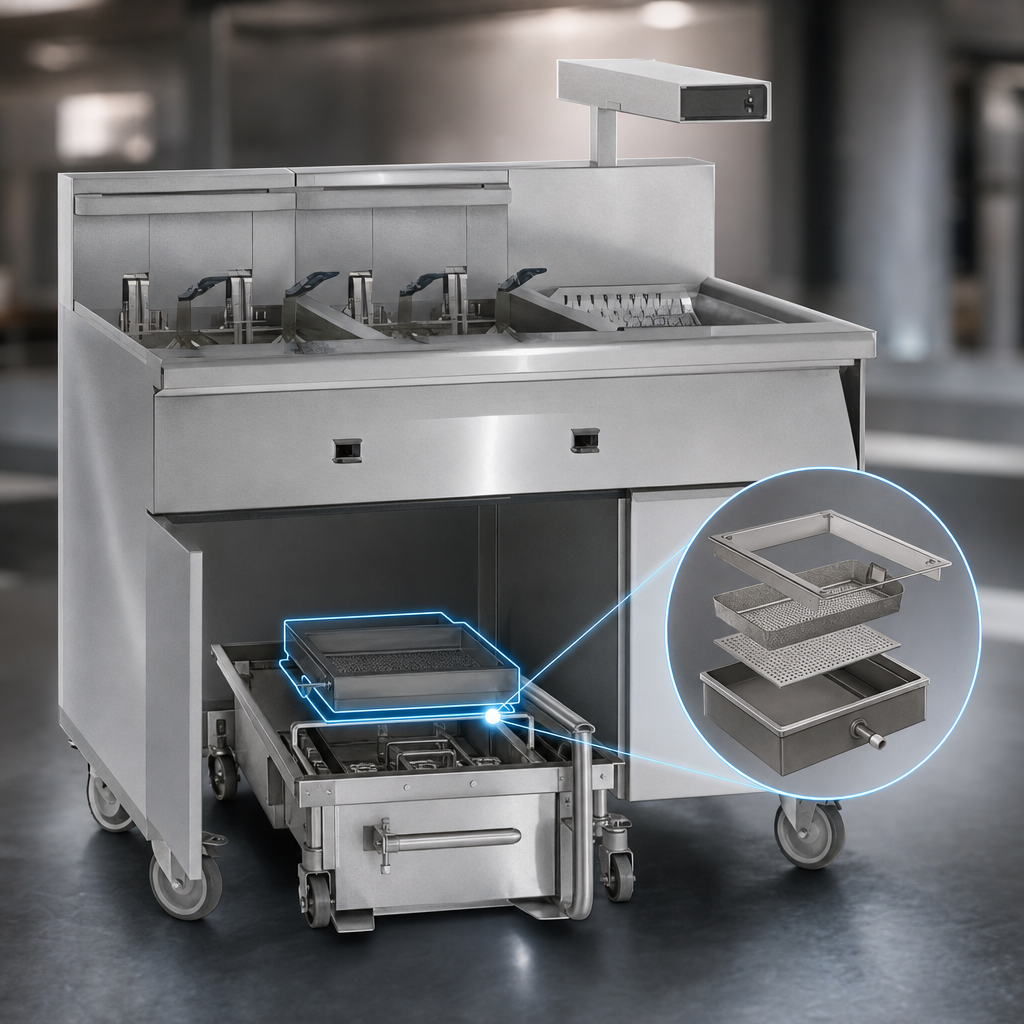

Built-in filtration = longer oil life
- Positive-latching paper holder keeps filter media flat for optimal capture of crumbs & carbon.
- Quick-disconnect hose speeds set-up and prevents messy cross-threading.
- Filter pan’s sloped design ensures maximum oil return so nothing is left behind.
- Entire housing tucks under the fryers, protecting staff flow in tight cooklines.
At-a-glance specs
| Model | IFSCB375EU |
|---|---|
| Number of fryers | 3 batteried |
| Oil capacity | 75 lb (51 L) per frypot • 225 lb (153 L) total |
| Heating elements | Immersed, tilt-up tubular elements |
| Filtration pump | 5.5 GPM roller pump, 1/3 HP motor |
| Controls | Full-function computer with programmable cook times & temperature |
| Exterior dimensions | 78" W × 40-1/2" D × 44-1/8" H (1981 × 1029 × 1121 mm) |
| Ship weight | 990 lb (449 kg) |
| Electrical (per fryer) | 208 V / 3 ph / 60 Hz – 50.02 A 240 V / 3 ph / 60 Hz – 43.35 A 480 V / 3 ph / 60 Hz – 21.68 A |
| Filter electrical | 115 V / 1 ph / 60 Hz – 6.8 A |
| Included accessories | Food warmer, dump pan, joiner strips, filter starter kit, 6" casters |
| Certifications | cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE |
| Warranty | 1-year parts & labor • 5-year pro-rated fry tank |
Installation notes
- For use on non-combustible floors with supplied casters or legs.
- 0" clearance from non-combustible surfaces; 6" (152 mm) from combustible.
- One electrical J-box per vessel is housed inside the cabinet for convenient field wiring.
Always consult the specification sheet and local codes prior to installation.
Peace-of-mind coverage
Imperial backs every fryer with a 1-year parts & labor warranty and a pro-rated 5-year stainless-steel fry tank warranty, when installed and serviced by an authorized technician.
Ready to elevate your fry station? Add the IFSCB375EU to cart or contact us today for a custom quote.
