Imperial IFSCB250EU 50 lb Electric Fryer Battery with Side-Car Filter System
Two 50 lb frypots • Tilt-up elements • Built-in dump station & food warmerBuilt for high-volume kitchens that refuse to compromise on floor space, the Imperial IFSCB250EU combines two 50 lb electric fryers, an integrated under-fryer filtration package and a full stainless steel dump station into one streamlined 46 ½" footprint. Faster turnarounds, cleaner oil and consistent results—right where you need them.
Performance & Productivity

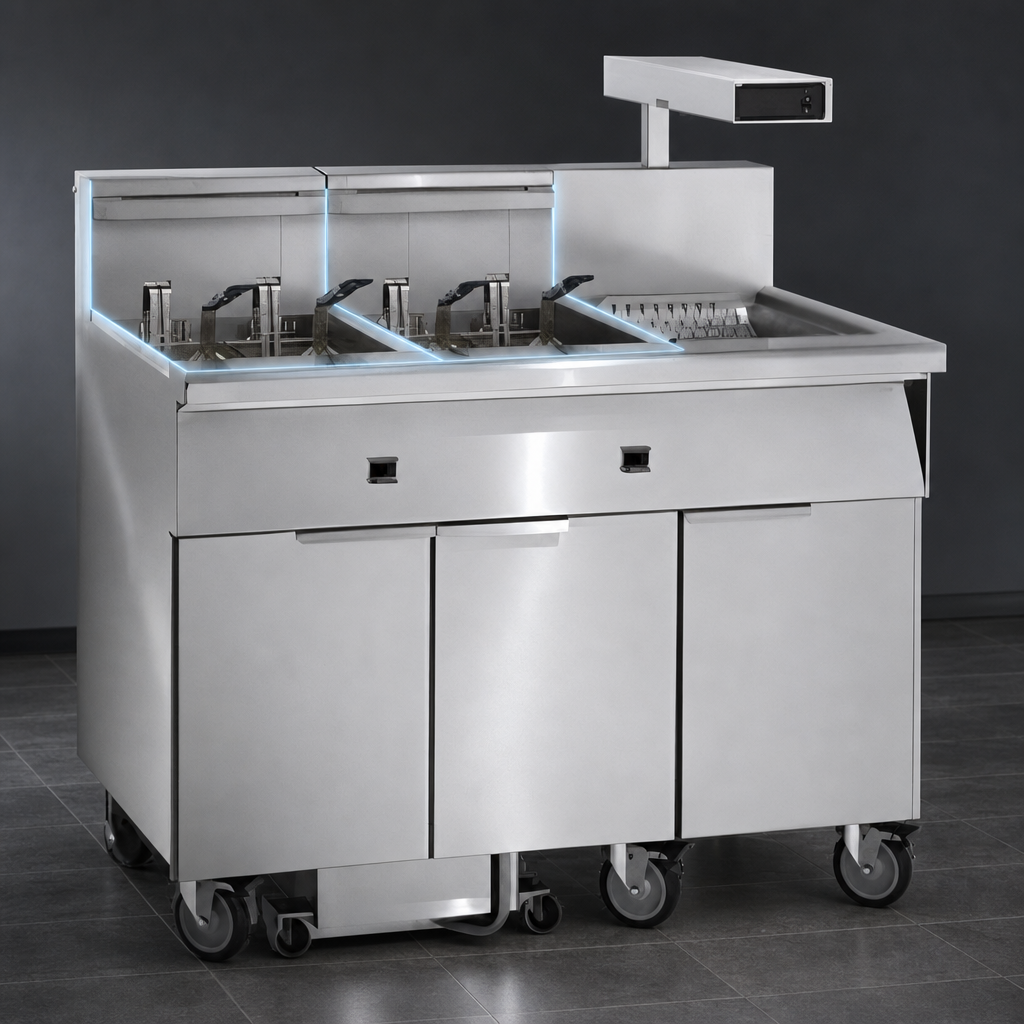

- (2) 50 lb stainless steel frypots deliver 100 lb total oil capacity for peak rushes.
- Tilt-up, immersed elements maximize heat transfer and swing clear for effortless tank access.
- Snap-action thermostats react instantly to load changes, keeping oil in the ideal frying zone.
- 1/3 HP 5.5 GPM roller pump filters an entire frypot in minutes and can discharge oil up to 20 ft away.

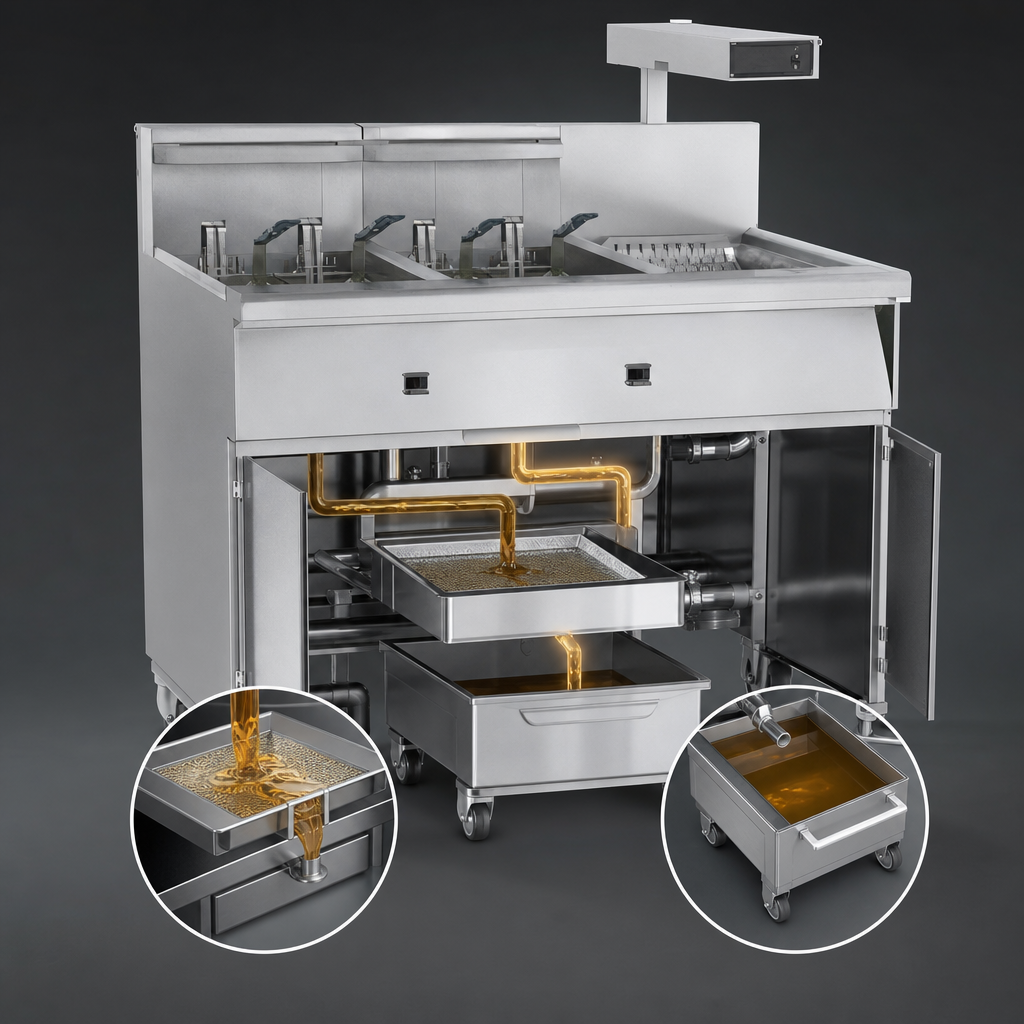

- Under-fryer, side-car filter pan saves valuable aisle space and is internally plumbed for mess-free operation.
- Positive-latching filter paper holder and quick-disconnect return line speed up daily maintenance.
- Stainless steel dump station with heated holding lamp keeps finished product hot and crisp.
Designed for Demanding Kitchens
- Continuous stainless steel cabinet, front & sides—easy to wipe down, built to last.
- 5" deep front landing ledge doubles as a staging area.
- Heavy-duty swivel casters (front locking) and joiner strips included for a seamless battery set-up.
- Ships with dump pan, food warmer, filter starter kit and everything required for immediate installation.
Specifications
| Model | IFSCB250EU |
|---|---|
| Frypots / Capacity | 2 × 50 lb (41 L) stainless steel tanks |
| Element Style | Tilt-up immersed electric elements |
| Thermostat | Snap-action, millivolt controls |
| Filtration | Under-fryer, side-car system with positive-latch paper holder |
| Pump | 5.5 GPM roller pump, 1/3 HP motor |
| Electrical (per fryer) | 208 V / 3 φ / 60 Hz – 42.38 A 240 V / 3 φ / 60 Hz – 36.73 A 480 V / 3 φ / 60 Hz – 18.36 A* |
| Filter Electrical | 115 V / 1 φ / 60 Hz – 6.8 A |
| Dimensions (W × D × H) | 46 ½" × 34" × 44 ⅛" (1181 × 864 × 1121 mm) |
| Shipping Weight | 626 lb (311 kg) |
| Certifications | cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE |
| Warranty | 1-year parts & labor • 5-year limited fry tank (pro-rated) |
*480 V configuration available for export markets.
What’s in the Box
- Stainless steel dump pan
- Heated food-warming lamp assembly
- Joiner strips for seamless battery installation
- Filter starter kit (paper & powder)
- Four heavy-duty casters (front locking)
Installation Notice: For use on non-combustible floors only. Maintain 6" (152 mm)
clearance from combustible surfaces. Professional electrical connection required.
Looking to spread out the cost? Ask us about Middleby Equipment Financing and turn this purchase into affordable monthly payments.
$33,060.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IFSCB250EU electric floor fryer: dual 50 lb vats, tilt-up elements, built-in filtration, dump station, roller pump, stainless steel, castered.
Manufacturer
Imperial (Middleby)
Certifications
CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame
Height
44.13in
Width
46.5in
Depth
34.0in
Shipping Weight
626.0lbs
With or without basket lifts
without basket(s)
Exterior Finish
stainless steel front & sides
Controls
thermostatic controls
Fat Capacity (approximate)
50 lbs each
Fryer Quantity
(2) tanks
Filter
built-in filter
Fry pot
stainless steel
Specifications
Fryer, electric, floor model, (2) battery, 50 lb. capacity each, tilt-up elements, built-in filter system, dump station, 5.5 GPM roller pump, snap action thermostat, includes: food warmer, dump pan, joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
