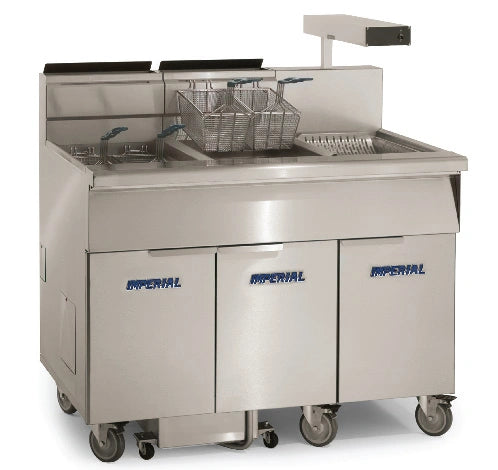

Imperial IFSCB250 Tube-Fired Gas Fryer & Filter System
2-Battery • 50 lb Pots • Side-Car Drain Station & Food WarmerHigh-volume performance meets space-saving design. The Imperial IFSCB250 combines two powerful 50 lb tube-fired fryers with an under-fryer filtration system and a heated drain station—delivering cleaner oil, faster turnarounds and a tidier cookline, all from a single, factory-matched package.
Key advantages
- Two 50 lb (41 L) stainless steel frypots; 280,000 BTU total input for ultra-fast recovery.
- Built-in 5.5 GPM roller pump (1⁄3 HP) filters oil in minutes and can discharge up to 20 ft.
- Snap-action mechanical thermostats maintain °F within ±3 °F for consistent, crisp results.

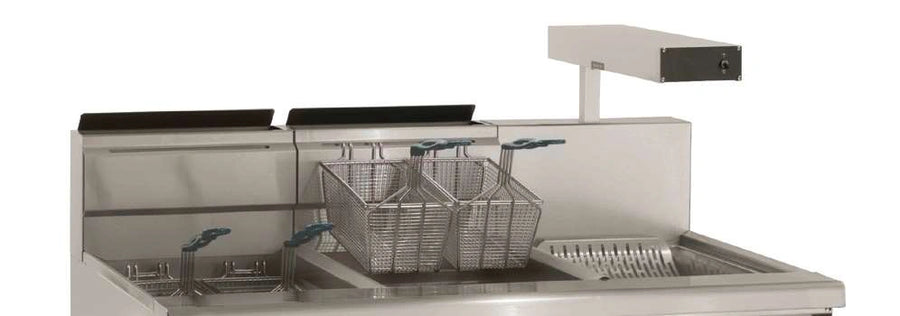

- Stainless drain station with heated landing area, dump pan and food warmer keeps batches fresh and ready to serve.
- Positive-latch filter pan, quick-disconnect return line and internally plumbed drains for safer, mess-free operation.
- All-stainless exterior—front, sides, 5″ landing ledge & cabinet—paired with heavy-duty casters for durability and mobility.
- Ships complete with joiner strips and filter starter kit for plug-and-play installation.
- Safety & sanitation approvals: CSA Flame, CSA Star, NSF, CE.
Operator benefits
- Filter oil without moving hot liquids—reduces labor and burn risk.
- Cleaner oil extends product life and lowers yearly oil costs.
- 5″ stainless landing ledge doubles as a plating or resting station.
- Rear gas manifold with single-point hook-up simplifies installation.
Technical specifications
| Model | IFSCB250 |
|---|---|
| Number of fryers | 2 (battery) |
| Total oil capacity | 100 lb (2 × 50 lb) |
| BTU input | 280,000 BTU/hr |
| Heat source | Tube-fired gas burners |
| Filtration pump | 5.5 GPM roller pump, 1⁄3 HP |
| Thermostat range | 200 – 400 °F snap-action |
| Exterior dimensions | 46-1/2″ W × 36-1/2″ D × 45-3/4″ H |
| Electrical | 120 V / 60 Hz / 1-ph, 6.8 A (6 ft cord, NEMA 5-15P) |
| Shipping weight | 686 lb (311 kg) |
| Floor/clearance | Non-combustible floor with casters; 0″ sides & rear (non-comb), 6″ (combustible) |
| Included accessories | Food warmer, dump pan, joiner strips, filter start kit, locking casters |
| Warranty | 1-year parts & labor; 5-year pro-rated frypot |
Looking for automatic basket lifts or additional accessories? Contact our team—we’ll configure your IFSCB250 to match your exact kitchen workflow.
$21,180.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IFSCB250 gas floor fryer: dual 50 lb frypots, built-in filtration, 5.5 GPM pump, snap thermostat, cabinet with warmer & accessories, 280k BTU.
Manufacturer
Imperial (Middleby)
Certifications
NSF, CE, CSA Star, CSA Flame
Height
45.75in
Width
46.5in
Depth
36.5in
Shipping Weight
686.0lbs
Exterior Finish
stainless steel front & sides
Controls
thermostatic controls
Fry pot
stainless steel
Fat Capacity (approximate)
50 lbs each
With or without basket lifts
without basket(s)
Fryer Quantity
(2) tanks
Filter
built-in filter
Specifications
Fryer, gas, floor model, (2) battery, 50 lb. capacity each, built-in filter system, 5.5 GPM roller pump, snap action thermostat, drain station, cabinet, includes: food warmer, dump pan, joiner strips & filter start kit, stainless steel frypot, front, sides, landing ledge, & cabinet, casters, 120v/60/1-ph, 6.8 amps, 1/3 HP, 280,000 BTU, CSA Flame, CSA Star, NSF, CE
