Description

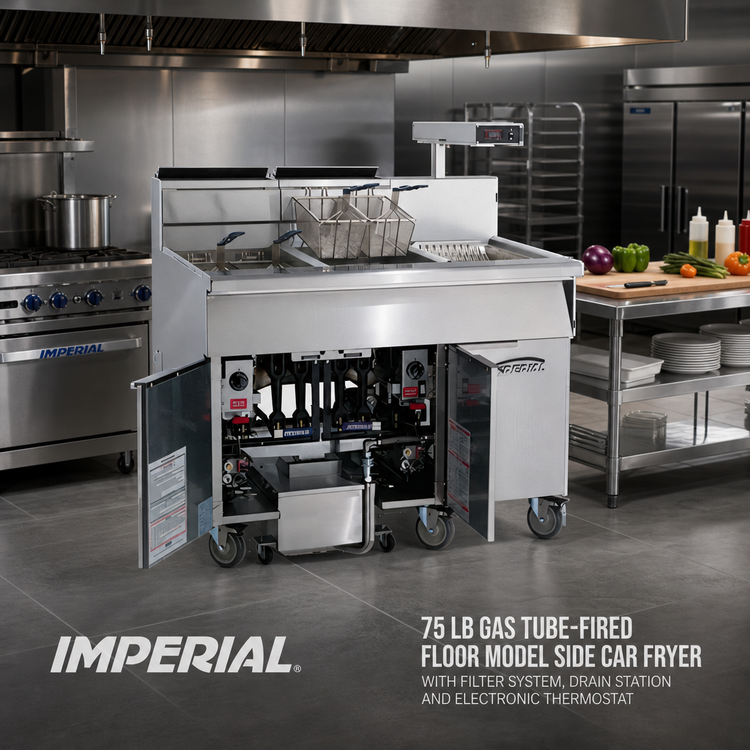

Imperial IFSCB175T 75 lb Gas Fryer with Built-In Filter & Drain Station

175,000 BTU • Space-Saving Side-Car Filter System • Electronic Thermostat

Keep up with peak-hour demand while protecting your oil and your bottom line. The Imperial IFSCB175T combines a high-performance tube-fired fryer with an under-fryer filtration package, food-warming dump station and stainless-steel cabinet—all in one 39" wide footprint.

Why you’ll love it

  • 75 lb (51 L) oil capacity handles large batch cooking for chicken, fries, appetizers and more.

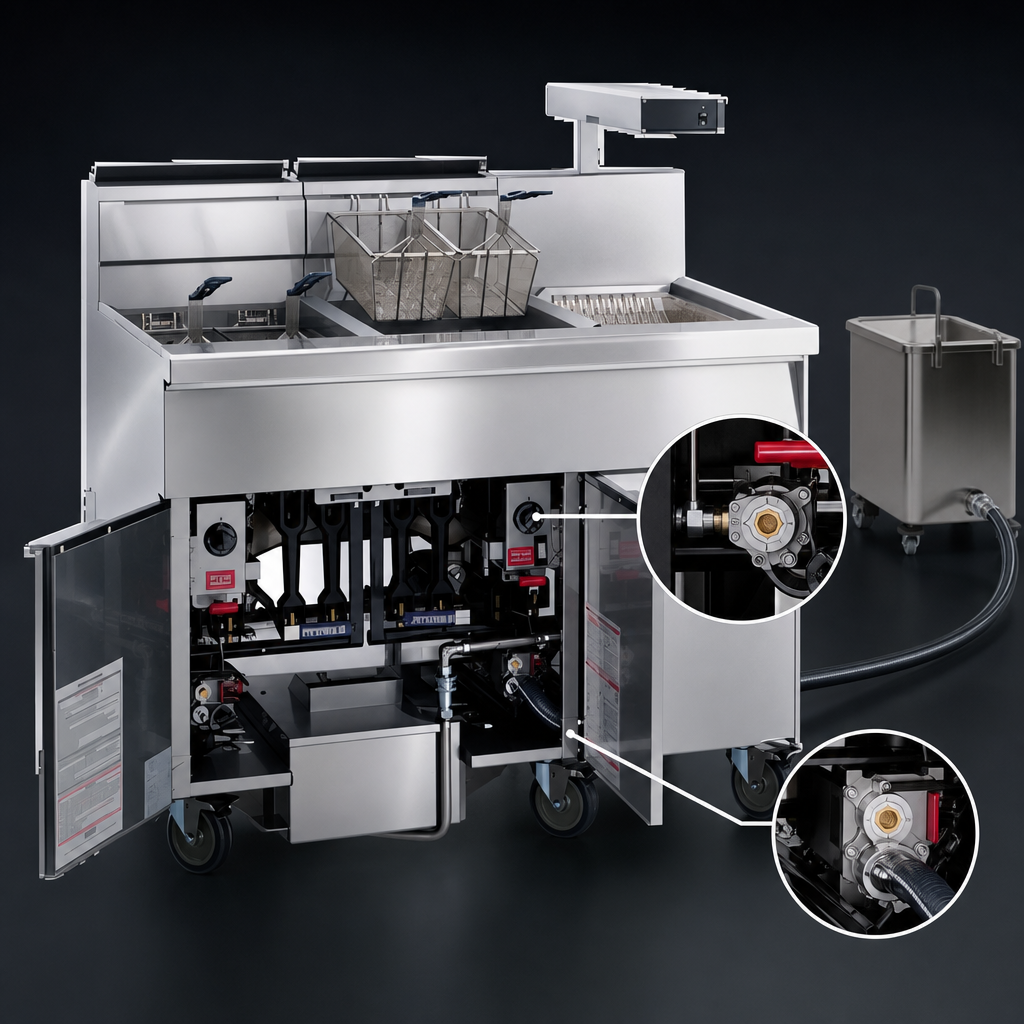

  • Built-in 5.5 GPM roller pump (1/3 HP) lets you filter a full frypot in minutes—no heavy carts or messy hoses.
  • Electronic thermostat (T-suffix) delivers fast temperature recovery and ±3°F accuracy for consistent crispness.
  • Integrated drain station includes a heated food warmer & dump pan to season, hold and serve product right at the fryer.

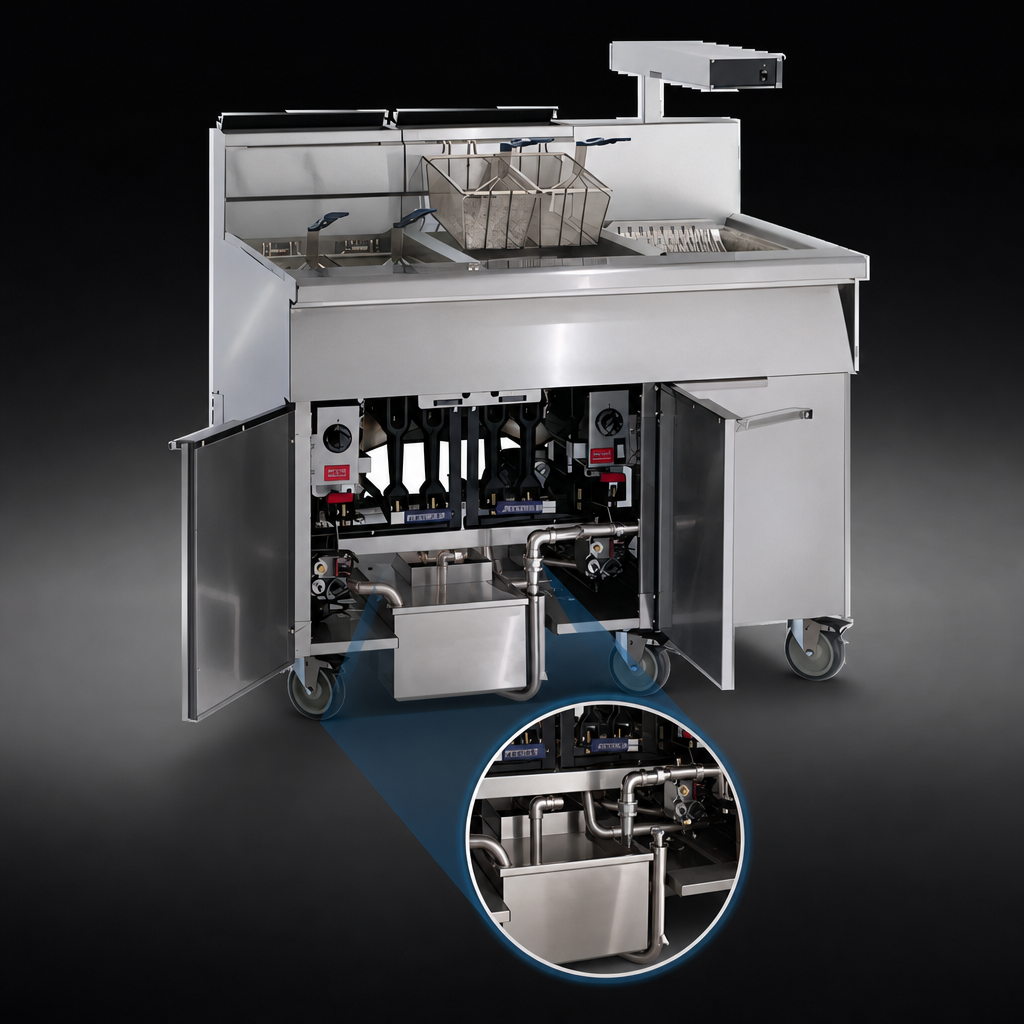

  • Space-saving design: filter pan, pump and plumbing are tucked under the frypot—zero added floor space required.
  • All-stainless exterior—frypot, front, sides, landing ledge & cabinet—for superior durability and easy wipe-down.
  • Ships on heavy-duty casters with joiner strips & starter filter kit for quick, professional installation.
  • Rear gas manifold with single connection simplifies hookup when batteried with additional units.
  • Certified for safety & sanitation: CSA Flame, CSA Star, NSF, CE.

At-a-glance specs

Model IFSCB175T
Oil capacity 75 lb / 51 L
Heat input 175,000 BTU/hr (natural or LP gas, field convertible)
Thermostat Electronic, 200-400°F range
Filtration system 5.5 GPM roller pump • 1/3 HP motor • Quick-disconnect return line
Electrical 120 V / 60 Hz / 1-ph • 6.8 A • 6 ft cord & NEMA 5-15P plug
Overall dimensions 39" W × 40-1/2" D × 45-3/4" H (991 × 1029 × 1162 mm)
Clearances 0" non-combustible • 6" (152 mm) combustible
Included Heated food warmer, dump pan, joiner strips, filter starter kit, 4 casters
Certifications CSA Flame • CSA Star • NSF • CE
Shipping weight ≈ 450 lb (204 kg)
Limited warranty: 1 year parts & labor • 5 year pro-rated frypot. See Imperial warranty statement for full details.
Installation note: For use on non-combustible floors only. Legs or casters are required. Follow local codes for gas & electrical connections and provide specified clearances to combustible surfaces.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

NSF, CE, CSA Star, CSA Flame

Height

45.75in

Width

39.0in

Depth

40.5in

Shipping Weight

450.0lbs

Controls

thermostatic controls

Exterior Finish

stainless steel front & sides

Filter

built-in filter

Type

restaurant

Fat Capacity (approximate)

75 lb

Basket Lifts

without basket lifts

Fry pot

stainless steel fry pot

Specifications

Fryer, gas, floor model, 75 lb. capacity, built-in filter system, 5.5 GPM roller pump, electronic thermostat, drain station, cabinet, includes: food warmer, dump pan, joiner strips & filter start kit, stainless steel frypot, front, sides, landing ledge, & cabinet, casters, 120v/60/1-ph, 6.8 amps, 1/3 HP, 175,000 BTU, CSA Flame, CSA Star, NSF, CE
