Imperial (Middleby) IFSCB175EUT Electric Fryers
Imperial (Middleby) IFSCB175EUT Electric Fryers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Imperial (Middleby) IFSCB175EUT Electric Fryers
Description

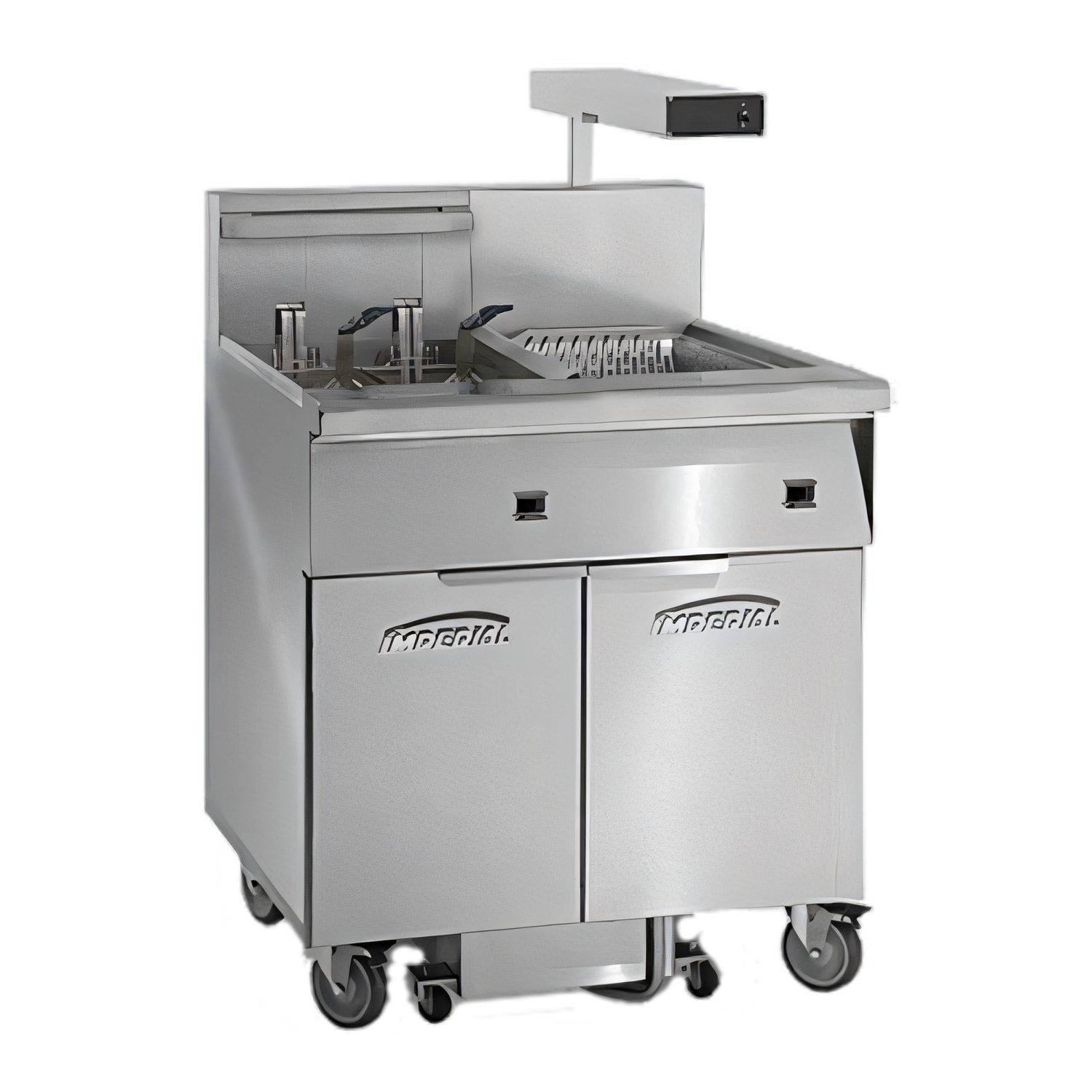

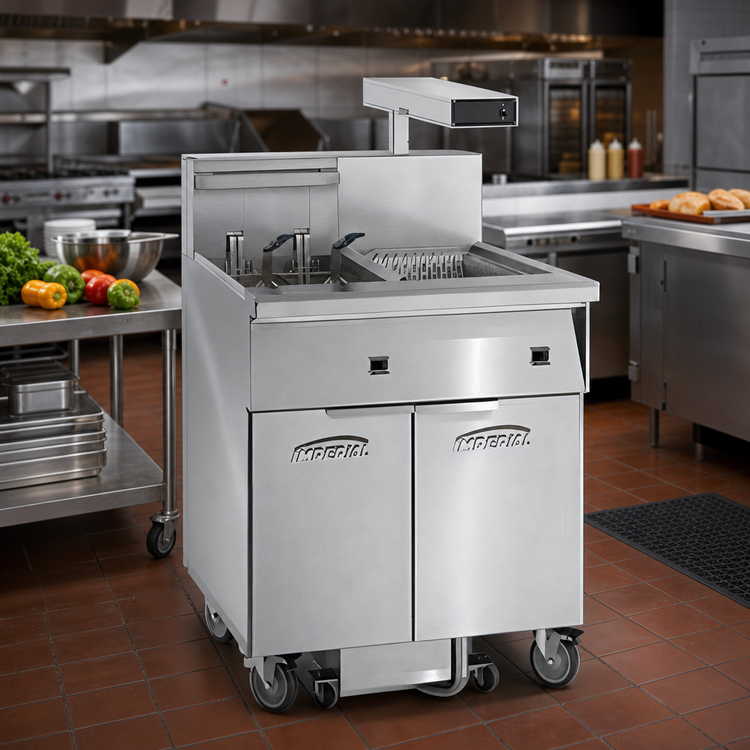

Imperial IFSCB175EU-T 75 lb Electric Fryer w/ Built-In Filter & Dump Station
Floor model • Tilt-up elements • Electronic thermostatEngineered for high-volume kitchens that demand speed, safety and oil quality, the Imperial IFSCB175EU-T combines a 75 lb stainless steel frypot with a space-saving, side-car filtration system and heated dump station—everything you need to keep fried menu items crisp, consistent and profitable.
Key Features & Benefits

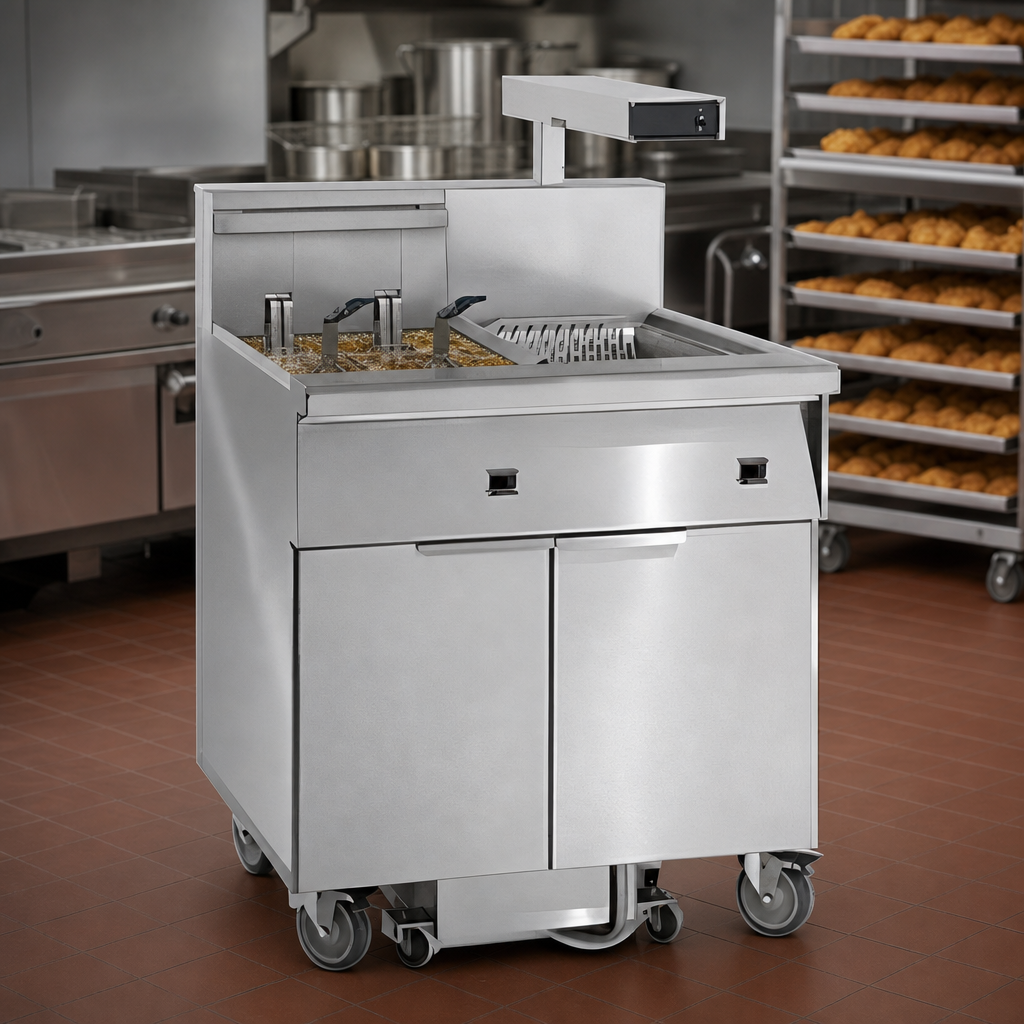

- 75 lb (51 L) oil capacity handles peak-time production without slowing down.

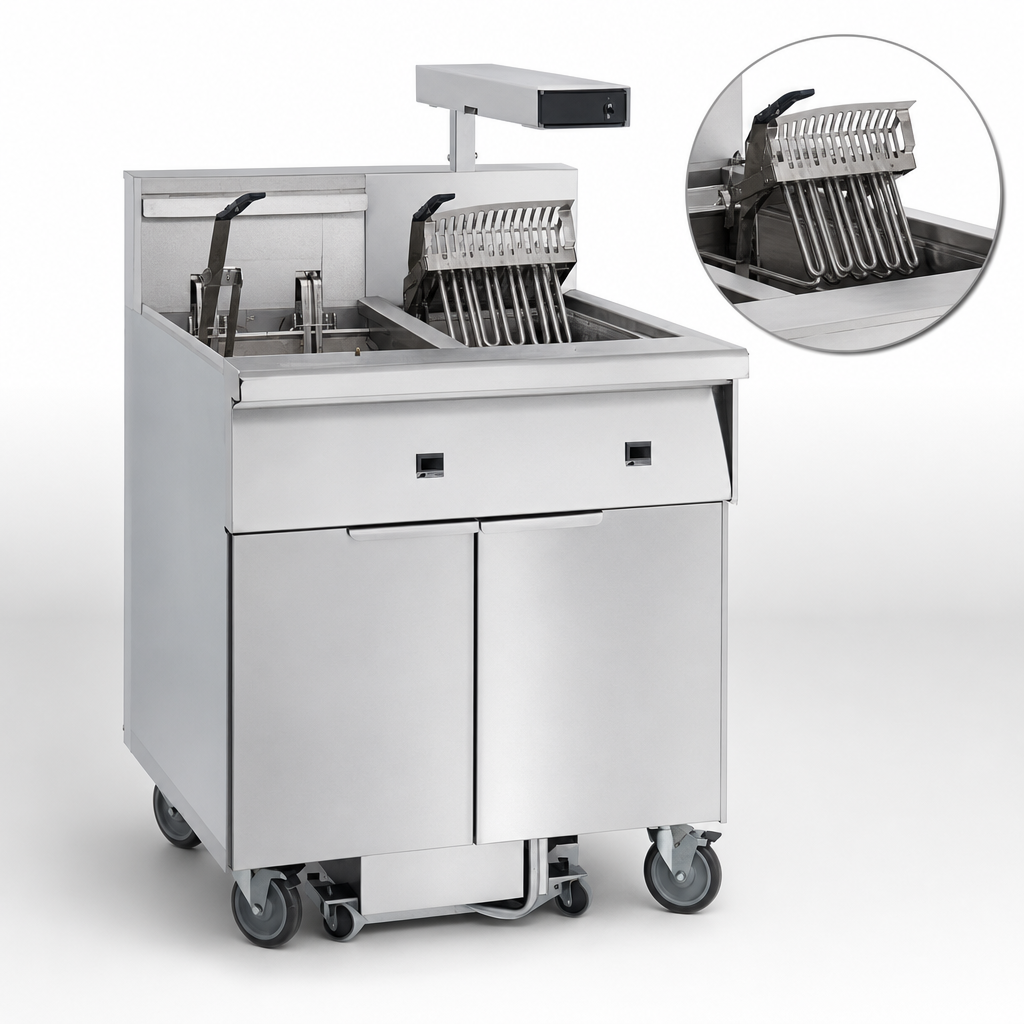

- Tilt-up, immersed electric elements provide fast recovery and swing out of the way for easy cleaning.
- Integrated 5.5 GPM, 1/3 HP roller pump filters an entire frypot in minutes and can send oil to a disposal vat up to 20 ft away.
- Electronic thermostat (200-400°F) holds target temperatures within ±2°F for uniform, golden results.
- Side-car filtration system sits under the frypot—no extra floor space required.
- Heated food warmer and stainless steel dump pan let you season, hold and serve in one ergonomic station.
- Positive-latching filter paper frame and quick-disconnect return line speed up daily oil polishing.
- Continuous stainless steel front, sides & precision-welded frypot deliver long-term durability and easy wipe-downs.
- Factory-installed casters, joiner strips & filter starter kit included—roll it in, hook it up and fry.
- Certified safe: cETLus, CSA-Flame, CSA-Star, CSA-Sanitation & CE.
At-a-Glance Specs
| Oil Capacity | 75 lb / 51 L |
|---|---|
| Element Type | Tilt-up, immersed electric elements |
| Filtering System | Built-in, side-car; roller pump 5.5 GPM, 1/3 HP |
| Dump Station | Stainless cabinet with heated food warmer & dump pan |
| Thermostat | Electronic (200-400°F / 93-204°C) |
| Exterior Construction | Stainless steel frypot, front & sides; casters standard |
| Overall Dimensions | 39"W × 40-1/2"D × 44-1/8"H (991 × 1029 × 1121 mm) |
| Clearances | 0" sides/back (non-combustible); 6" (152 mm) from combustibles |
| Electrical – Fryer | 208, 240 or 480 V / 3 ph / 60 Hz (50-21.68 A depending on voltage) |
| Electrical – Filter Pump | 115 V / 1 ph / 6.8 A (inside cabinet) |
| Shipping Weight | 480 lb (217 kg) |
| Certifications | cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE |
| Warranty | 1 yr parts & labor; 5 yr pro-rated frypot |
Need multiple fryers? Up to six Imperial electric fryers can share one filtration system—ask our team about battery configurations, automatic basket lifts and other accessories.
Specifications are based on manufacturer data and are subject to change without notice. Always refer to the data plate and installation manual shipped with the unit for the most current information.
