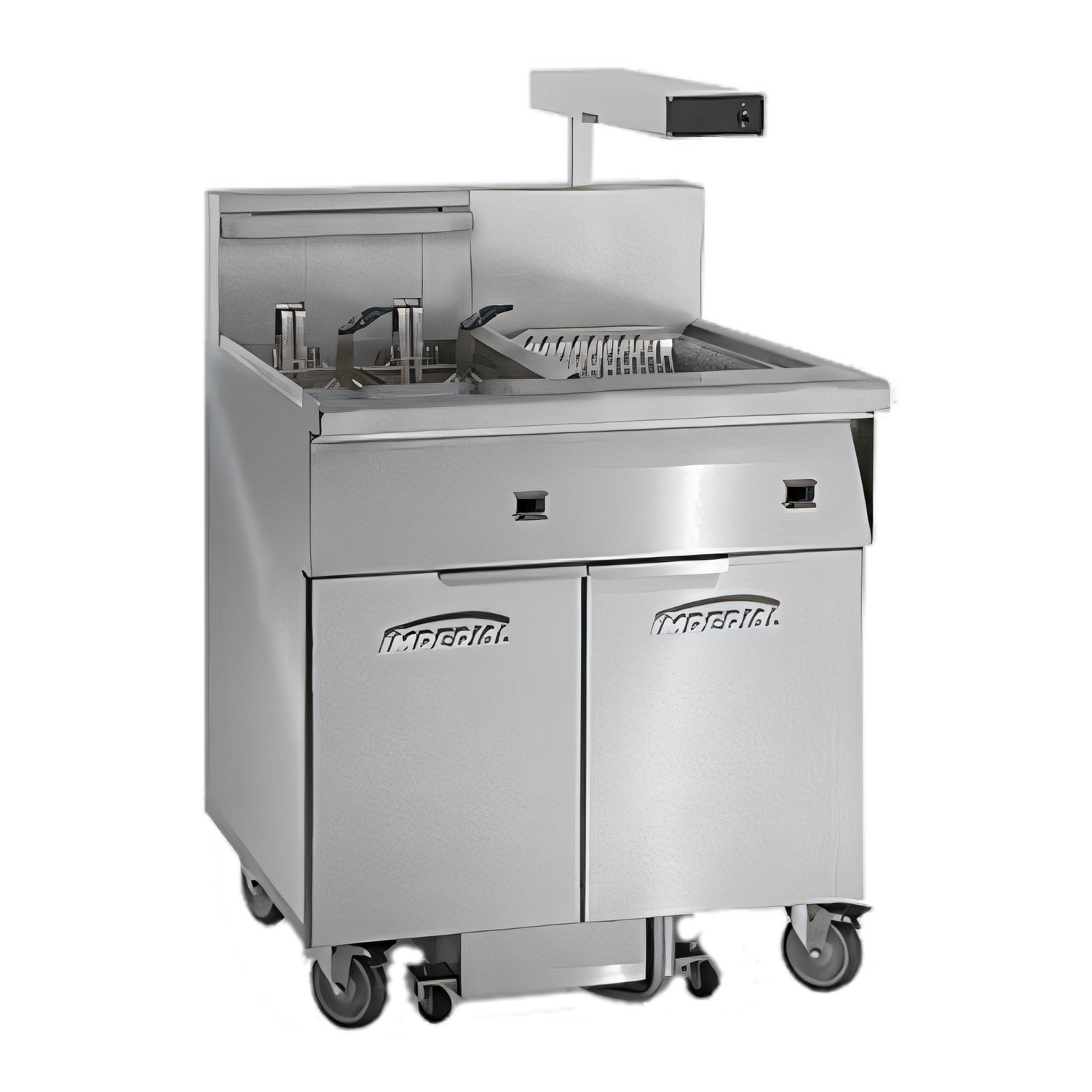

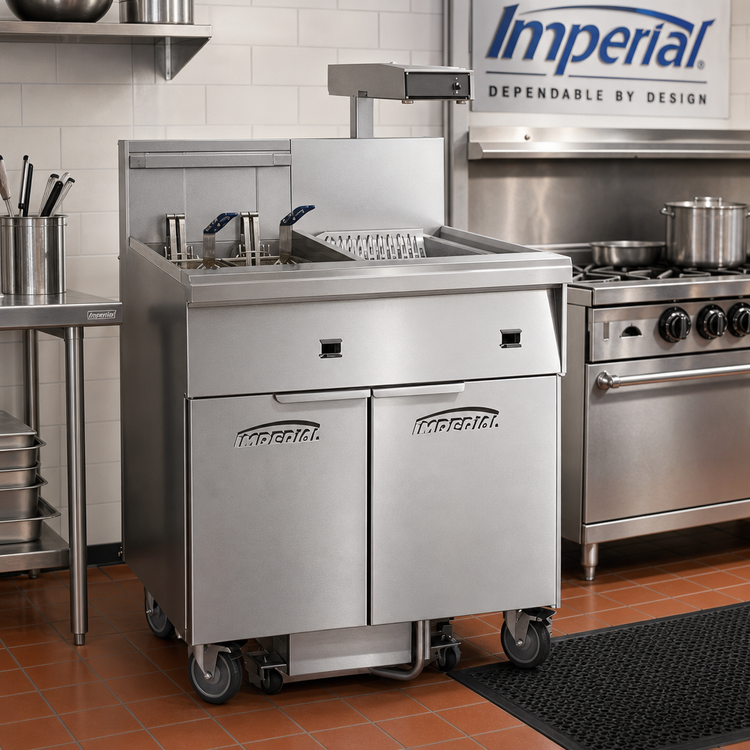

Imperial IFSCB175EU 75 lb Electric Fryer w/ Built-In Filter & Dump Station
High-volume performance in a single, space-saving footprintKeep oil fresher, speed up cook times and maximize kitchen space with the Imperial IFSCB175EU. This floor-model, 75 lb electric fryer features tilt-up immersed elements for rapid recovery, a powerful under-fryer filtration system and a convenient heated dump station—everything you need for crispy, consistent results shift after shift.
Key Features
- 75 lb (51 L) stainless-steel frypot with precision-welded seams.

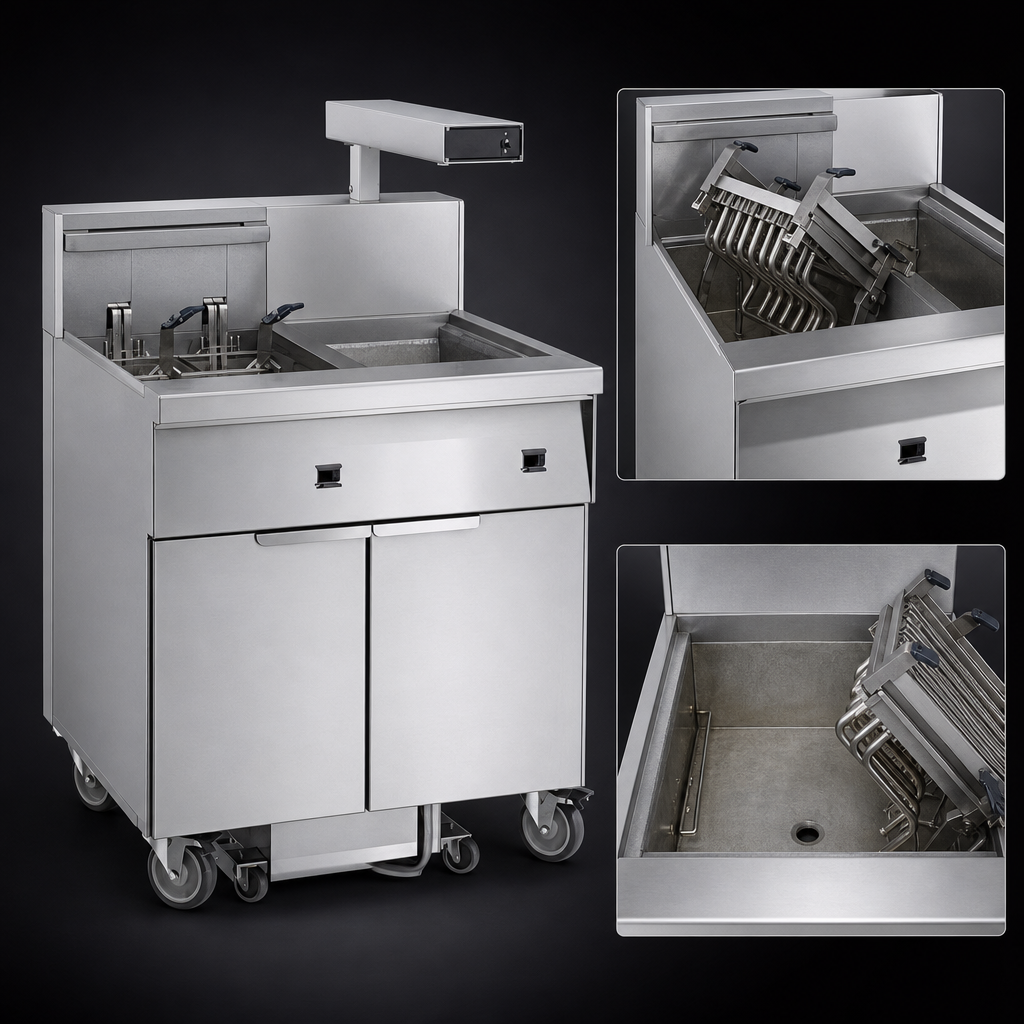

- Tilt-up, submerged heating elements for easy cleaning and fast heat transfer.

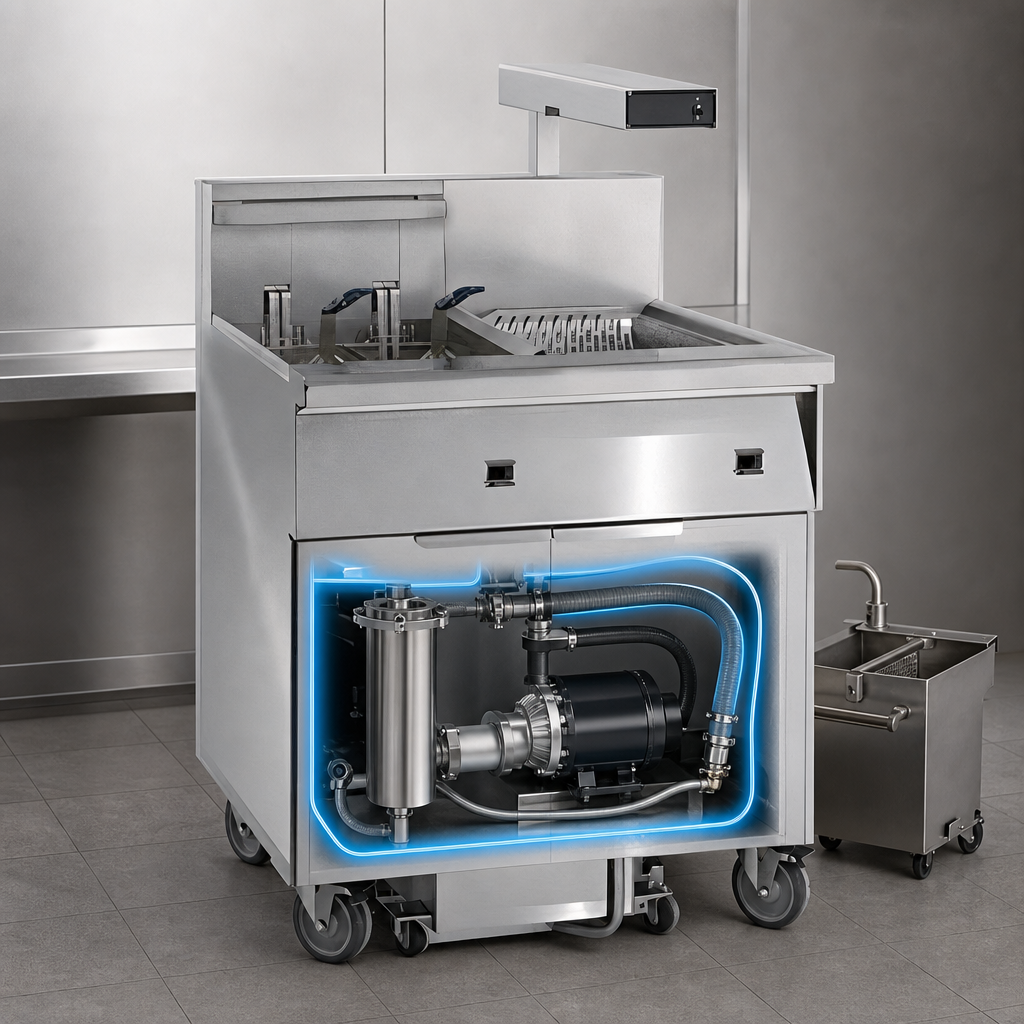

- Integrated 5.5 GPM roller pump (1/3 HP) filters oil in minutes and can discharge up to 20 ft.
- Snap-action thermostat maintains 200 – 400 °F (93 – 204 °C) for uniform frying.
- Side-car dump station with food warmer and dump pan keeps product hot and ready to serve.
- Positive-latching filter pan, internally plumbed drain & return lines, quick-disconnect fittings.
- Continuous stainless-steel front, sides and 5" landing ledge for a professional, durable finish.
- Factory-installed casters plus joiner strips for seamless line-ups and easy mobility.
- Ships with filter starter kit—start frying right out of the crate.
- Safety listings: cETLus, CSA Flame, CSA Star, CSA-Sanitation and CE.
Why It’s Better
- Cleaner oil extends fry-life and lowers operating costs.
- All-in-one design saves valuable floor space versus separate filter carts.
- Fast filter cycle minimizes downtime between batches.
- Dump station can be positioned anywhere in a fryer battery for optimal workflow.
- One-year parts & labor warranty plus 5-year pro-rated frypot warranty.
Specifications
| Model | IFSCB175EU |
|---|---|
| Oil Capacity | 75 lb / 51 L |
| Heating Elements | Tilt-up, immersed electric elements |
| Overall Dimensions | 39" W × 40-1/2" D × 44-1/8" H (991 × 1029 × 1121 mm) |
| Shipping Weight | 480 lb (217 kg) |
| Filter Pump | 5.5 GPM roller pump, 1/3 HP motor |
| Electrical (Fryer) | 208 V / 240 V / 480 V, 3 ph, 60 Hz (50.02 A @ 208 V, 43.35 A @ 240 V, 21.68 A @ 480 V) |
| Electrical (Filter) | 115 V, 1 ph, 60 Hz, 6.8 A |
| Clearance | 0" from non-combustible surfaces, 6" (152 mm) from combustible |
| Listings | cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE |
What’s Included
- Heated food warmer
- Dump pan
- Joiner strips
- Filter starter kit & paper
- Heavy-duty locking casters
Important: Unit must be installed on a non-combustible floor with legs or casters
and connected by a qualified electrician. Review the specification sheet and local codes before ordering.
Building a multi-fryer battery? Up to six Imperial electric fryers can share a single filter system. Contact us for custom configurations, lead times and flexible financing options.
$28,420.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IFSCB175EU electric floor fryer — 75 lb capacity, tilt elements, built-in filter, dump station, roller pump, stainless frypot, casters, NSF-ready.
Manufacturer
Imperial (Middleby)
Certifications
CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame
Height
44.13in
Width
39.0in
Depth
40.5in
Shipping Weight
480.0lbs
Exterior Finish
stainless steel front & sides
Fry pot
stainless steel
Fat Capacity (approximate)
75 lb
Controls
thermostatic controls
Type
Restaurant
With or without basket lifts
without basket(s)
Filter
built-in filter
Specifications
Fryer, electric, floor model, 75 lb. capacity, tilt-up elements, built-in filter system, dump staion, 5.5 GPM roller pump, snap action thermostat, includes: food warmer, dump pan, joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
