Imperial (Middleby)  |  SKU: IFSCB175EC

Imperial (Middleby) IFSCB175EC Electric Fryers

$26,637.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Training video Middleby financial flyer Parts manual Warranty sheet
Related Searches
Braising Pan & Tilt Skillet Cooking Equipment Cooking Equipment Restaurant Equipment Steam Cooking Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

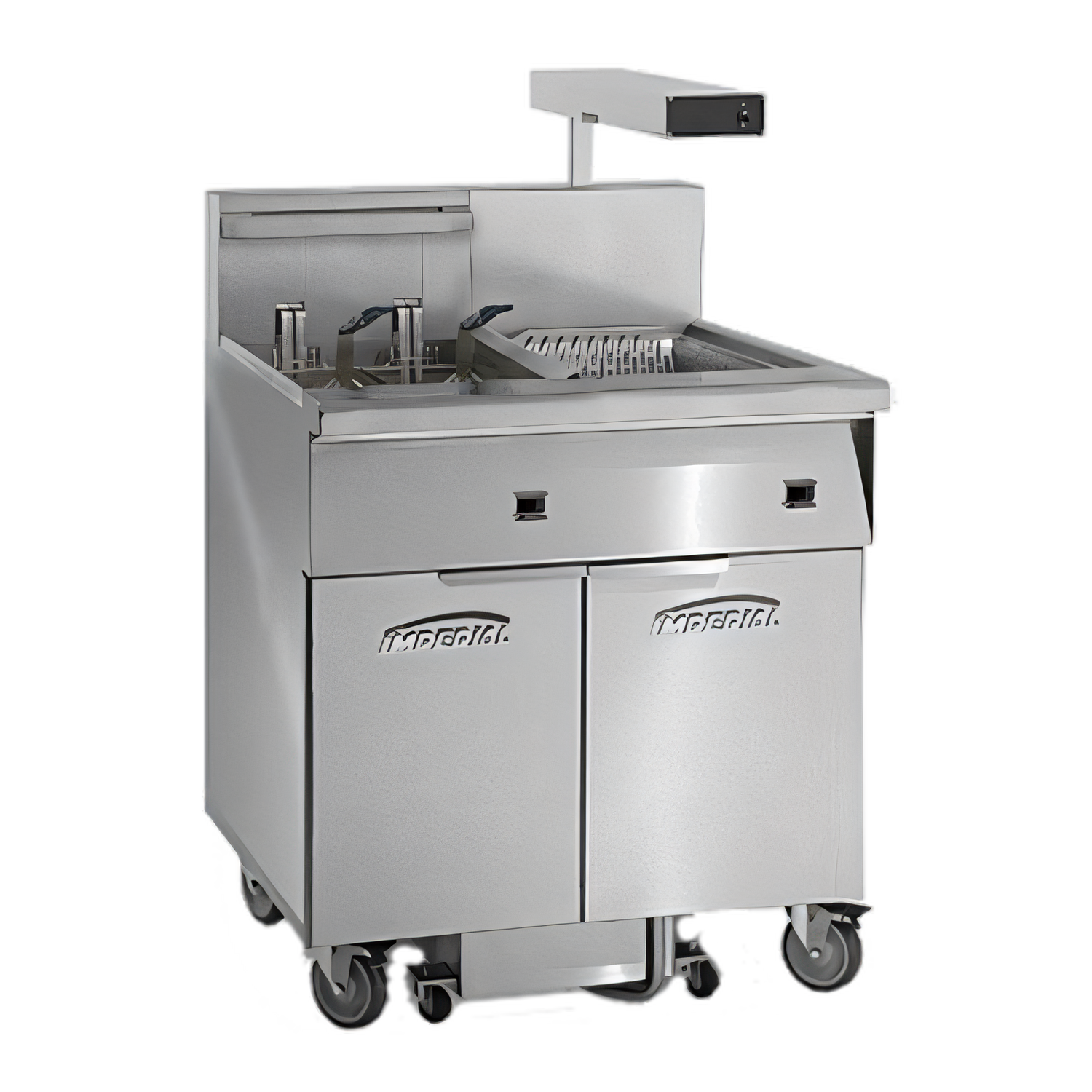

Imperial 75 lb Electric Floor Fryer with Built-In Filtration & Dump Station

Immersed Elements • Computer Controls • Side-Car Filter System

Power through the rush with Imperial’s high-capacity, space-saving frying station. A single, easy-to-move cabinet combines fast-recovering immersed elements, an under-fryer filtration package and a heated dump station—giving your kitchen everything it needs to serve consistently crispy, great-tasting food shift after shift.

Why You’ll Love It

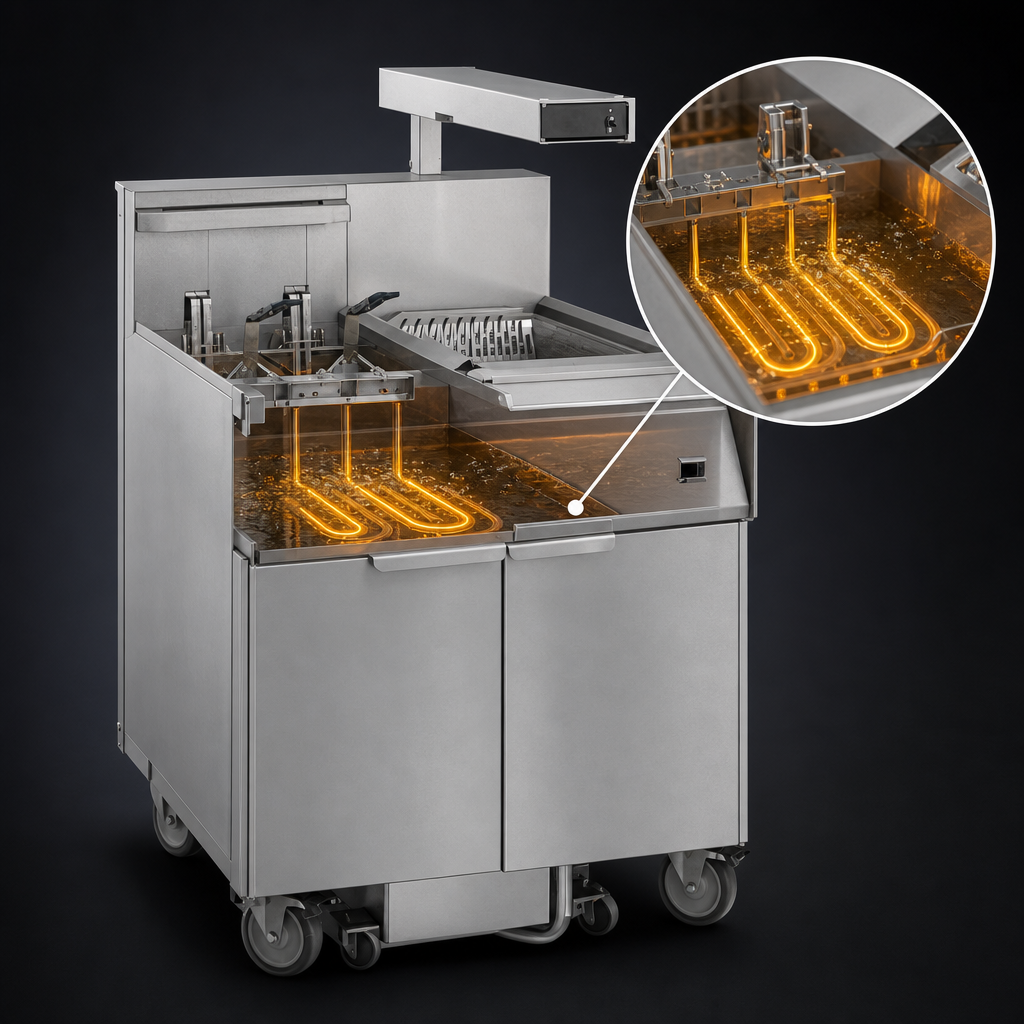

  • 75 lb (51 L) stainless steel frypot with immersed elements for rapid temperature recovery.

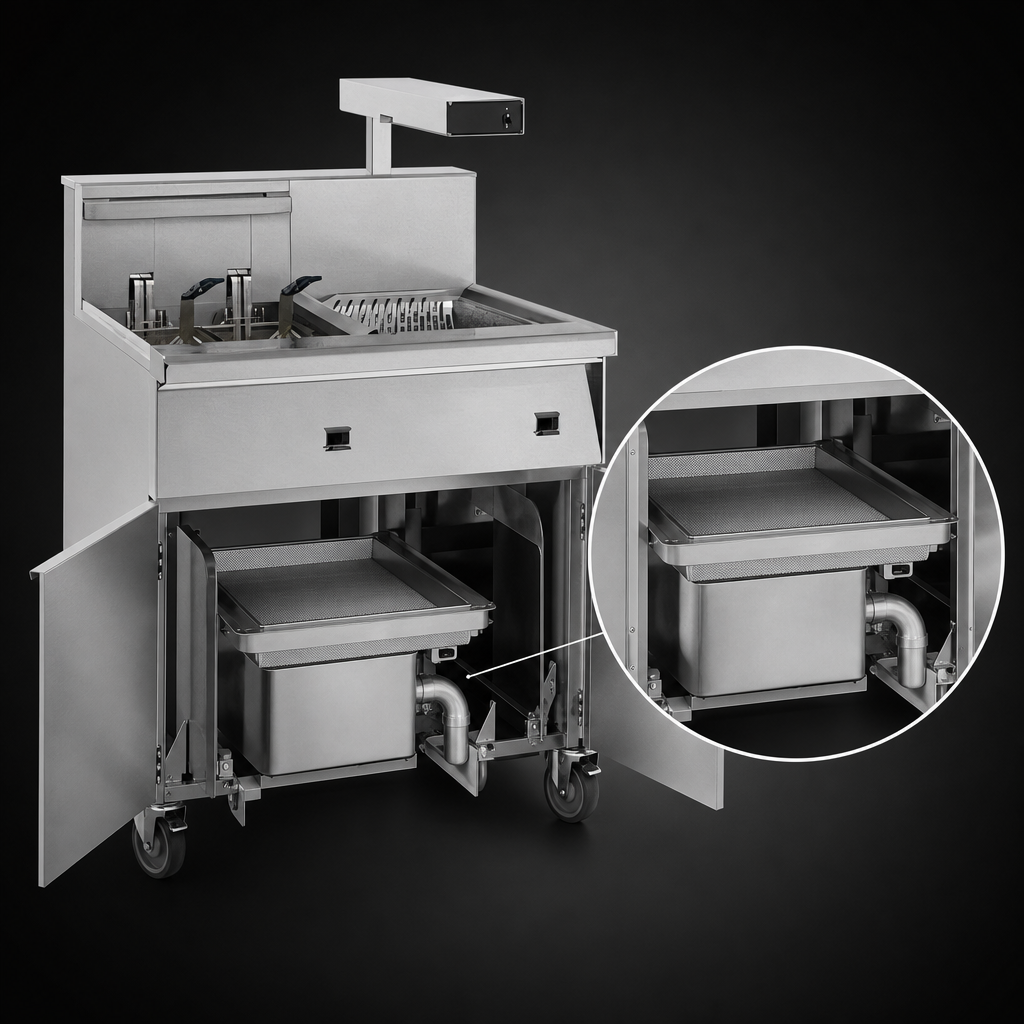

  • Integrated side-car filter system located under the fryer—no extra floor space or external hoses.
  • 5.5 GPM roller pump with a 1/3 HP motor filters a full vat quickly and can discharge oil up to 20 ft away.
  • On-board dump station features a food warmer, drain area and dump pan to keep fried product hot & organized.
  • Programmable computer controls with multiple cook programs, countdown timers and melt/boil-out modes.
  • Positive-latching filter paper holder and quick-disconnect return line for safe, mess-free filtration.
  • Heavy-gauge stainless steel front, sides and precision-welded frypot stand up to daily commercial use.
  • Ships complete with casters, joiner strips and a filter starter kit—roll it in, hook it up and start frying.
Specifications
Oil Capacity 75 lb / 51 L
Filtration Pump 5.5 GPM roller pump, 1/3 HP  |  115 V, 1-phase, 6.8 A
Controls Computerized (programmable) with solid-state thermostat
Heat Source Electric immersed elements
Fryer Electrical 208 V / 3-ph / 60 Hz / 50 A
240 V / 3-ph / 60 Hz / 43 A
480 V / 3-ph / 60 Hz / 22 A
Overall Dimensions (W × D × H) 39" × 40-1/2" × 44-1/8" (911 × 1029 × 1121 mm)
Shipping Weight Approx. 480 lb (217 kg)
Clearances 0" from non-combustible surfaces, 6" (152 mm) from combustible surfaces
Included With This Unit
  • Heated food warmer / dump pan assembly
  • Joiner strips for seamless battery alignment
  • Filter starter kit (paper & powder)
  • Heavy-duty swivel casters (front locking)
Certifications
  • cETLus
  • CSA Flame
  • CSA Star
  • CSA-Sanitation
  • CE
Important: This equipment must be installed on a non-combustible floor and connected by a qualified electrician in accordance with all local and national codes.

Warranty: 1-year parts & labor | 5-year limited frypot warranty (pro-rated). Imperial reserves the right to change specifications without notice.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame

Height

44.13in

Width

39.0in

Depth

40.5in

Shipping Weight

480.0lbs

Type

Restaurant

Fry pot

stainless steel

Fat Capacity (approximate)

75 lb

Filter

built-in filter

Exterior Finish

stainless steel front & sides

With or without basket lifts

without basket(s)

Controls

computer controls

Specifications

Fryer, electric, floor model, 75 lb. capacity, immersed elements, built-in filter system, dump staion, 5.5 GPM roller pump, computer controls, includes: food warmer, dump pan, joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
