Imperial (Middleby)  |  SKU: IFSCB175E

Imperial (Middleby) IFSCB175E Electric Fryers

$23,648.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Parts manual Owner's manual Training video Warranty sheet
Related Searches
Braising Pan & Tilt Skillet Cooking Equipment Cooking Equipment Restaurant Equipment Steam Cooking Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

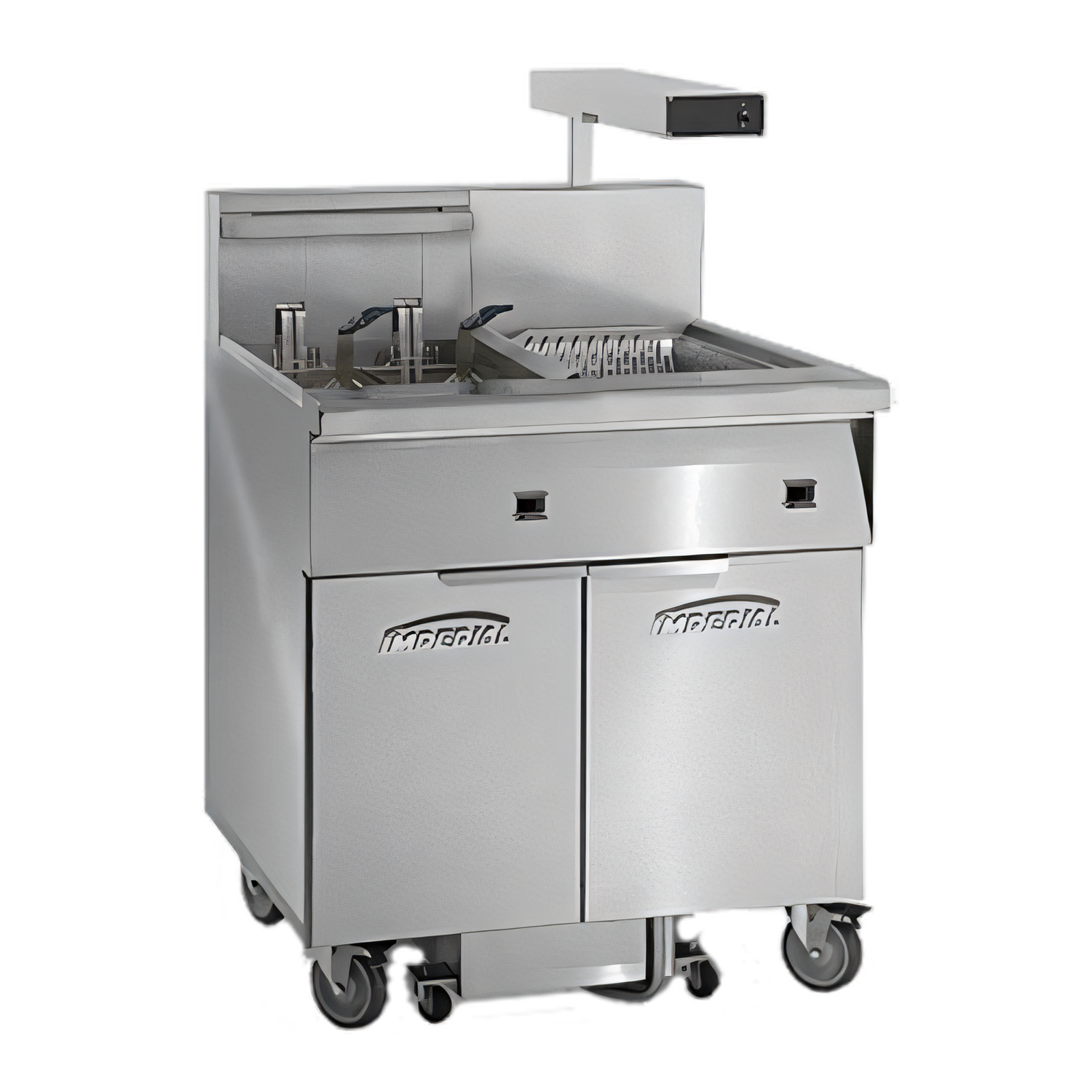

Imperial IFSCB175E 75-lb Electric Fryer with Side-Car Filter System

High-volume frying, built-in filtration & space-saving dump station – all in one floor model

Engineered for the busiest kitchens, the Imperial IFSCB175E combines a 75 lb stainless-steel frypot with an integrated filter cabinet and dump station. Immersed electric elements deliver fast heat recovery, while the 5.5 GPM roller pump lets you filter, polish and return oil in minutes – extending oil life and keeping food quality at its peak.

Why you’ll love it

  • 75 lb (51 L) oil capacity handles high-volume frying without slowing the line.

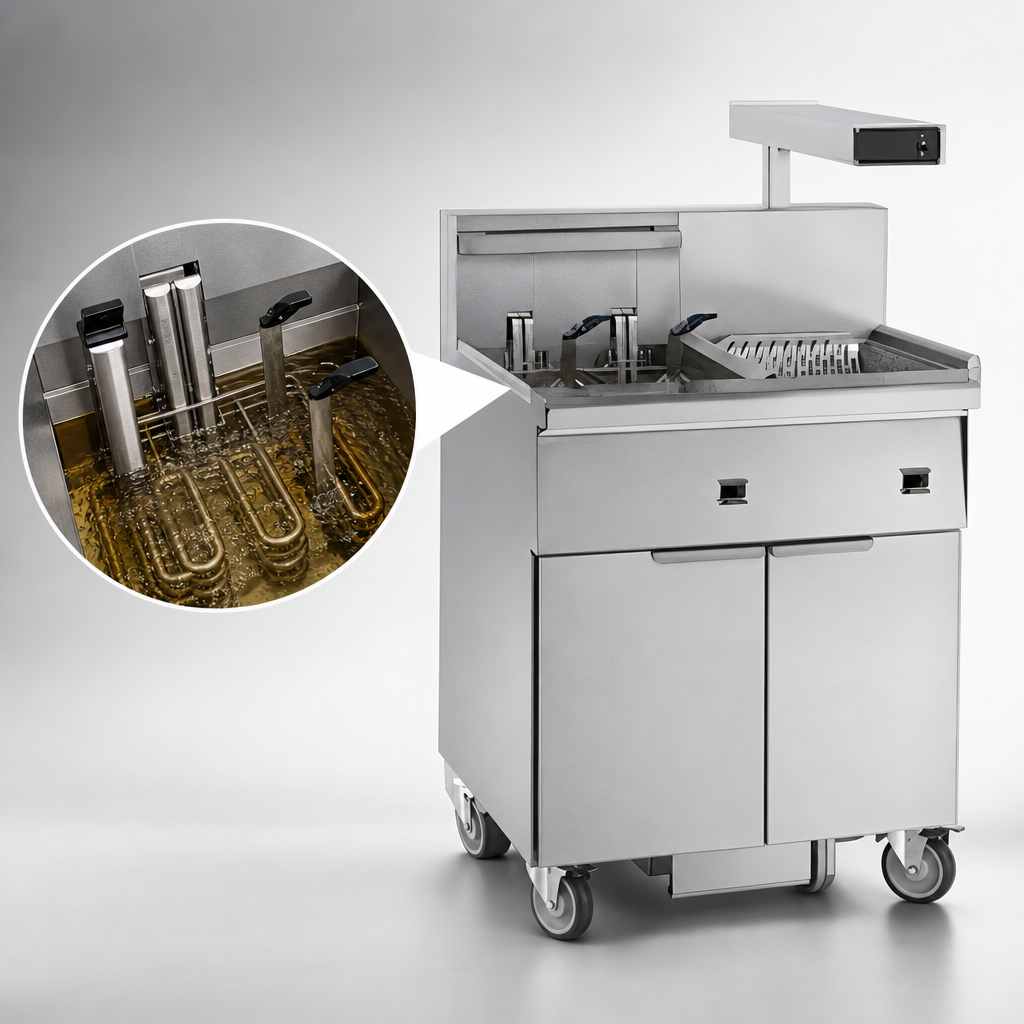

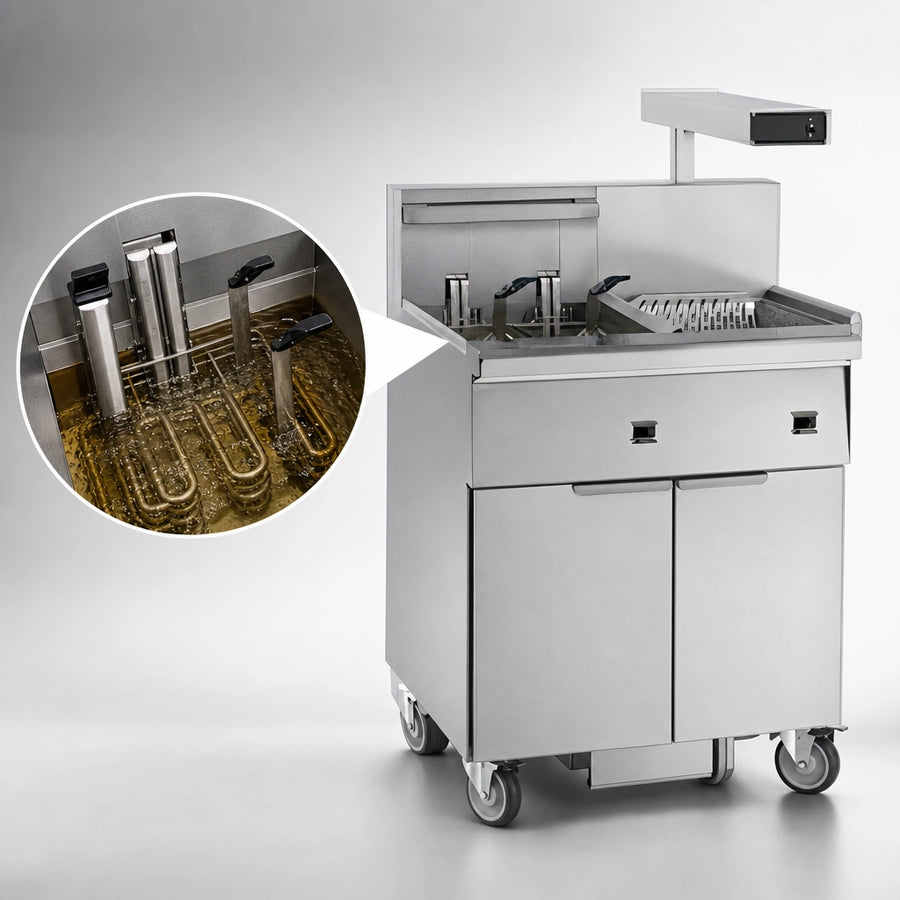

  • Immersed elements sit directly in the oil for superior heat transfer and quicker recovery.

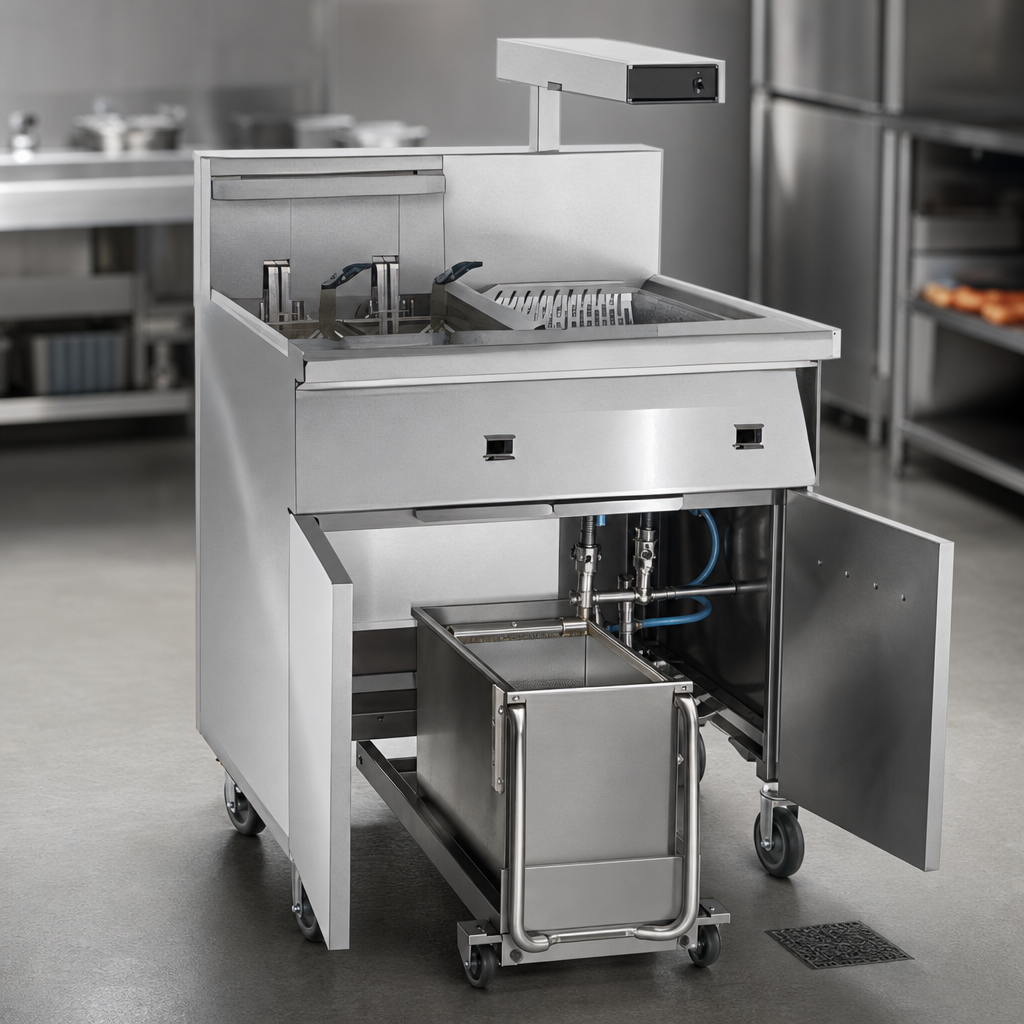

  • Built-in side-car filter system tucks neatly under the cabinet to save floor space – no external carts needed.
  • 5.5 GPM, 1/3 HP roller pump filters oil in one touch and can discharge up to 20 ft to a disposal vat.
  • Snap-action thermostat maintains consistent 200-400 °F (93-204 °C) frying temperatures.
  • Dump station with food warmer & fry dump pan keeps finished product hot and crisp before service.
  • Continuous stainless-steel front, sides & precision-welded frypot resist corrosion and wipe clean fast.
  • Factory-included casters, joiner strips & filter starter kit make installation effortless.
  • cETLus, CSA Flame, CSA Star, CSA-Sanitation & CE certified for worldwide compliance.

Specifications

Model IFSCB175E
Oil capacity 75 lb (51 L)
Heat source Electric, immersed elements
Thermostat type Mechanical snap-action, 200 – 400 °F (93 – 204 °C)
Filter system Integrated side-car, stainless pan with positive-latching paper holder
Pump / motor 5.5 GPM roller pump, 1/3 HP
Fryer electrical 208 V / 240 V / 480 V, 3 Ph, 60 Hz (50.02 A @ 208 V  |  43.35 A @ 240 V  |  21.68 A @ 480 V)
Filter electrical 115 V, 1 Ph, 60 Hz, 6.8 A
Exterior dimensions 39 in W × 40.5 in D × 44.1 in H (991 × 1029 × 1121 mm)
Shipping weight 480 lb (217 kg)
Included accessories Food warmer, fry dump pan, joiner strips, filter starter kit, 4 × casters
Certifications cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
Warranty 1-year parts & labor, 5-year limited frypot (stainless-steel)

For optimum performance, install on a non-combustible floor with 0" clearance to non-combustible surfaces and 6" (152 mm) from combustible surfaces.

Important: Electrical connections must be performed by a qualified technician in accordance with all applicable codes.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame

Height

44.13in

Width

39.0in

Depth

40.5in

Shipping Weight

480.0lbs

Type

Restaurant

Fry pot

stainless steel

Fat Capacity (approximate)

75 lb

Controls

thermostatic controls

Exterior Finish

stainless steel front & sides

Filter

built-in filter

With or without basket lifts

without basket(s)

Specifications

Fryer, electric, floor model, 75 lb. capacity, immersed elements, built-in filter system, dump station, 5.5 GPM roller pump, snap action thermostat, includes: food warmer, dump pan, joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
