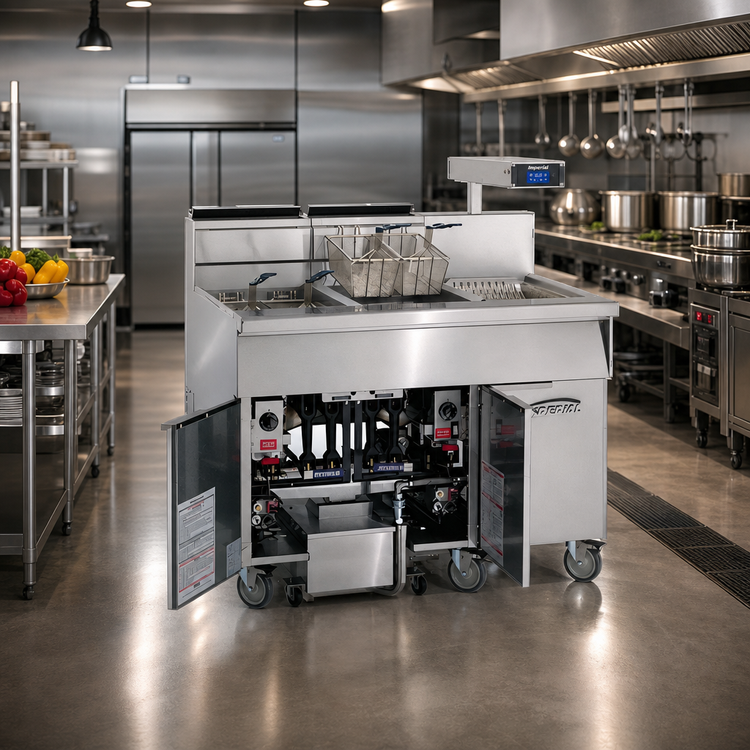

Imperial IFSCB175C 75 lb Tube-Fired Gas Fryer w/ Built-In Filter & Drain Station
Computer Controls • 175,000 BTU • 120V / 6.8 ADesigned for high-volume kitchens that refuse to compromise on speed, safety, or oil quality, the Imperial IFSCB175C combines a 75 lb gas fryer, an under-fryer filtration system, and a stainless side-car drain station with food warmer—all in a single, mobile cabinet. Filter, fry and serve from one footprint while extending oil life and maximizing uptime.
Why You’ll Love It
- 75 lb oil capacity handles peak-time baskets of chicken, fries, seafood and more.
- Tube-fired heat delivers a powerful 175,000 BTU for rapid recovery and even temperature distribution.

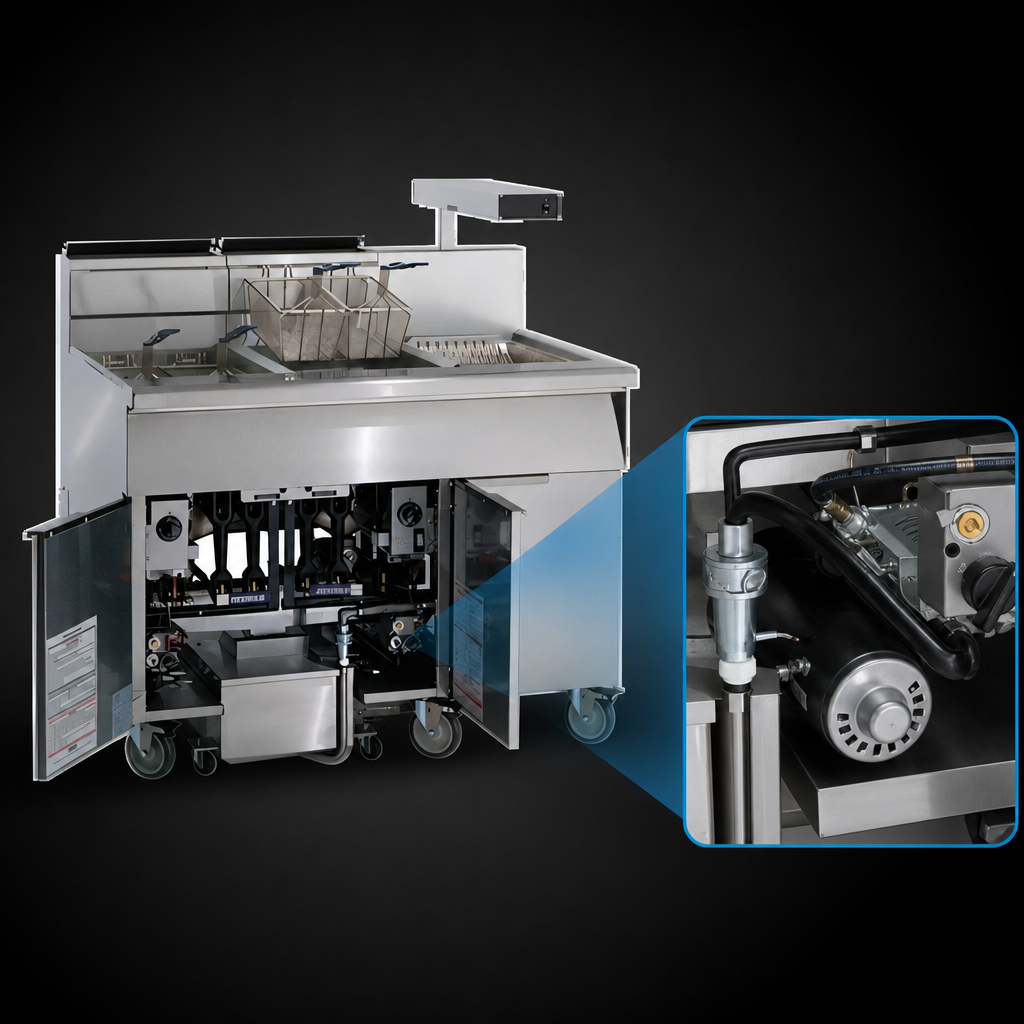

- Built-in, 5.5 GPM roller pump filters oil in minutes—no exterior carts or messy transfers.
- Computer controls store multiple cook programs and maintain precise temperatures for consistent results.
- Space-saving side-car cabinet provides a drain area, heated food warmer and dump pan for effortless workflow.
- All-stainless construction (frypot, front, sides, landing ledge & cabinet) stands up to years of commercial abuse.
- Mounted on locking casters for easy cleaning and service access.

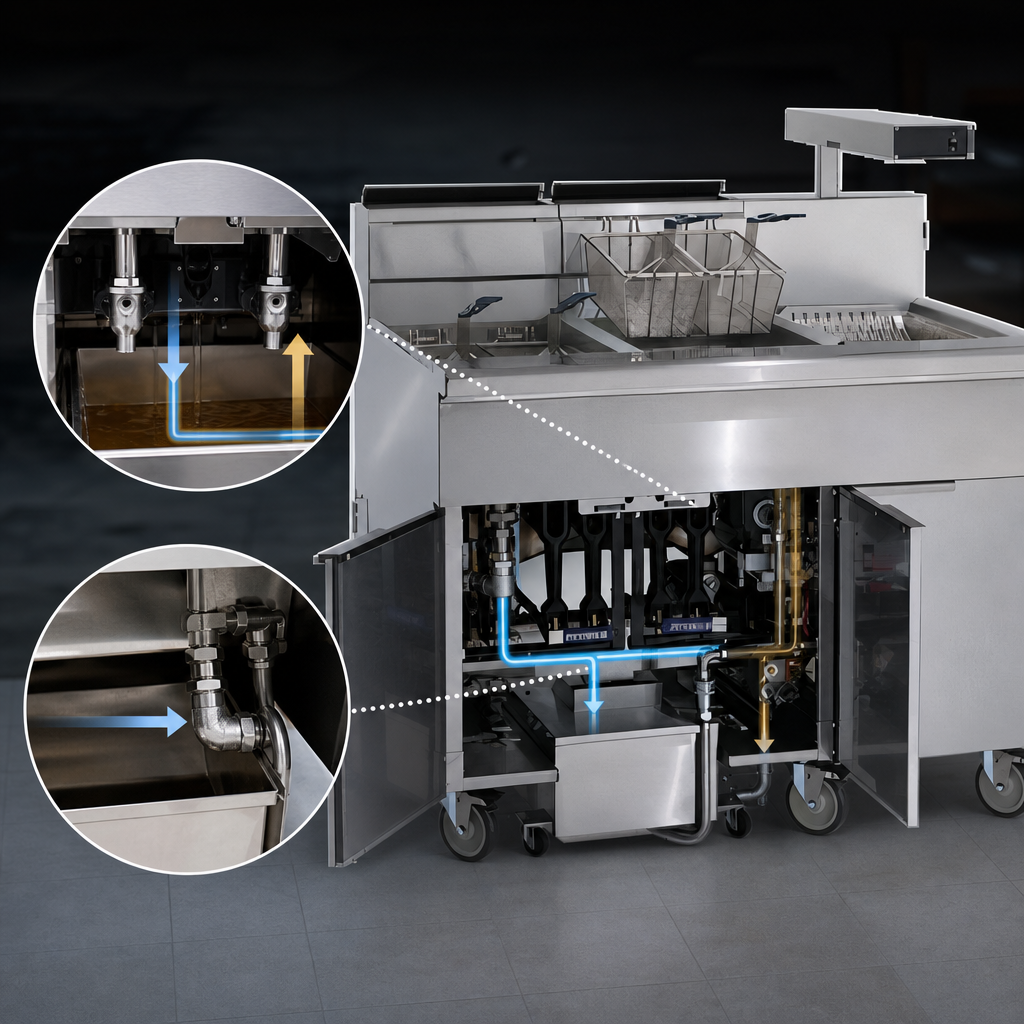

Integrated Filtration Advantage
- Filter pan sits directly under the fryer—no extra floor space needed.
- Internally plumbed drain & return lines keep hot oil fully contained.
- Positive-latching paper holder and quick-disconnect return hose speed up change-outs.
- Pump can send used oil to a disposal vat up to 20 ft away, reducing handling risks.
At-a-Glance Specs
| Model | IFSCB175C |
|---|---|
| Oil Capacity | 75 lb / 51 L |
| Heating Style | Gas, tube-fired, 175,000 BTU/hr |
| Control System | Computerized, multi-product programming |
| Filtration Pump | 5.5 GPM, 1/3 HP roller pump |
| Electrical (Filter System) | 120 V / 60 Hz / 1 ph / 6.8 A 6 ft cord & 3-prong plug included |
| Gas Connection | ¾" NPT rear manifold (one-point connection) |
| Overall Dimensions | 39" W × 40½" D × 45¾" H |
| Clearances | 0" sides & rear (non-combustible); 6" (combustible) |
| Shipping Weight | 450 lb / 204 kg |
| Certifications | CSA Flame, CSA Star, NSF, CE |
| Included Accessories | Casters, joiner strips, filter start kit, food warmer, dump pan |
| Warranty | 1-yr parts & labor; 5-yr limited frytank |
What’s in the Box
- Imperial IFSCB175C fryer with integrated filter system
- Stainless side-car cabinet, food warmer & dump pan
- Filter starter kit & joiner strips
- Set of heavy-duty casters (front locking)
- User, installation & warranty manuals
Installation Note: Unit must be placed on included legs/casters and installed on a non-combustible floor with the clearances specified above. All utility connections should be performed by qualified personnel in accordance with local codes.
Looking to spread out the cost? Ask us about Middleby Equipment Financing for quick credit decisions and affordable monthly payments.
$21,635.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IFSCB175C gas floor fryer: 75 lb capacity, built-in filter, computer controls, 175,000 BTU, stainless steel, included warmer & accessories.
Manufacturer
Imperial (Middleby)
Certifications
NSF, CE, CSA Star, CSA Flame
Height
45.75in
Width
39.0in
Depth
40.5in
Shipping Weight
450.0lbs
Filter
built-in filter
Exterior Finish
stainless steel front & sides
Controls
computer controls
Basket Lifts
without basket lifts
Fry pot
stainless steel fry pot
Type
restaurant
Fat Capacity (approximate)
75 lb
Specifications
Fryer, gas, floor model, 75 lb. capacity, built-in filter system, 5.5 GPM roller pump, computer controls, drain station, cabinet, includes: food warmer, dump pan, joiner strips & filter start kit, stainless steel frypot, front, sides, landing ledge, & cabinet, casters, 120v/60/1-ph, 6.8 amps, 1/3 HP, 175,000 BTU, CSA Flame, CSA Star, NSF, CE
