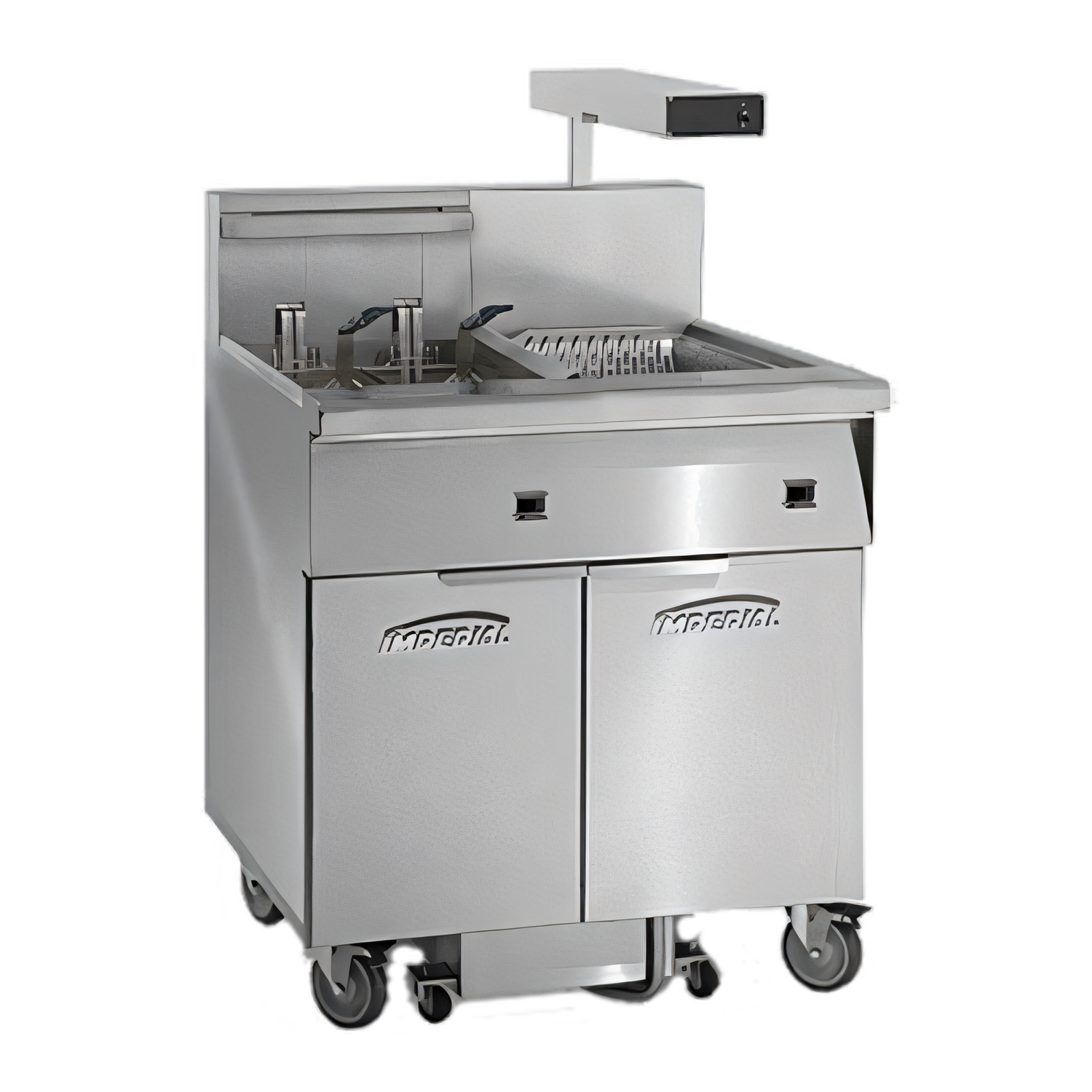

Imperial IFSCB150EU 50 lb Electric Fryer with Built-In Filtration & Dump Station
Space-saving side-car system with tilt-up elements & 5.5 GPM roller pumpKeep your kitchen running at peak performance with Imperial’s IFSCB150EU. This single-well, 50 lb electric fryer combines rapid-response tilt-up elements with an integrated, under-counter filter and heated dump station—giving you cleaner oil, faster turnover and a smaller footprint, all in one heavy-duty stainless steel cabinet.
Highlights
- 50 lb (41 L) stainless steel frypot with precision-welded seams for superior durability.
- Tilt-up immersed elements provide quick access for cleaning and powerful heat recovery.

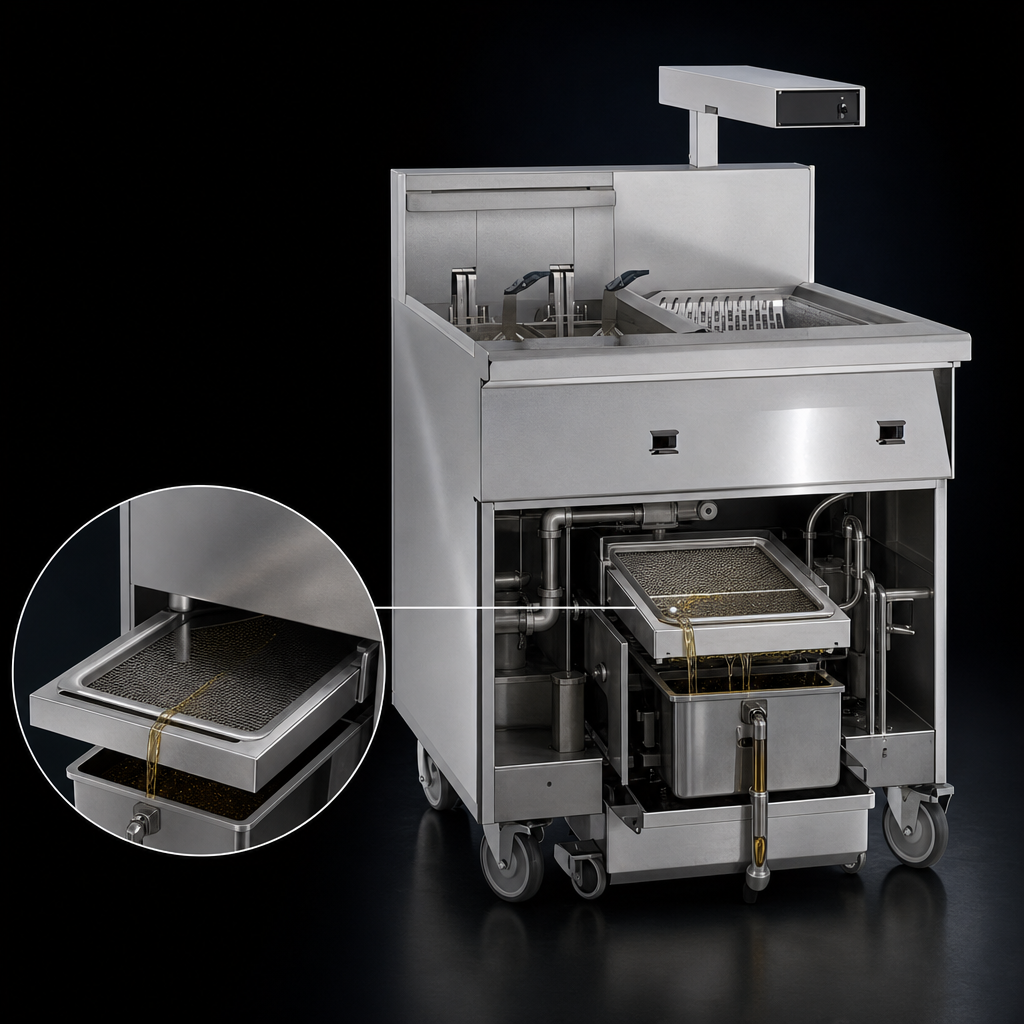

- Built-in filter pan sits under the fryer, saving floor space and eliminating messy hoses.

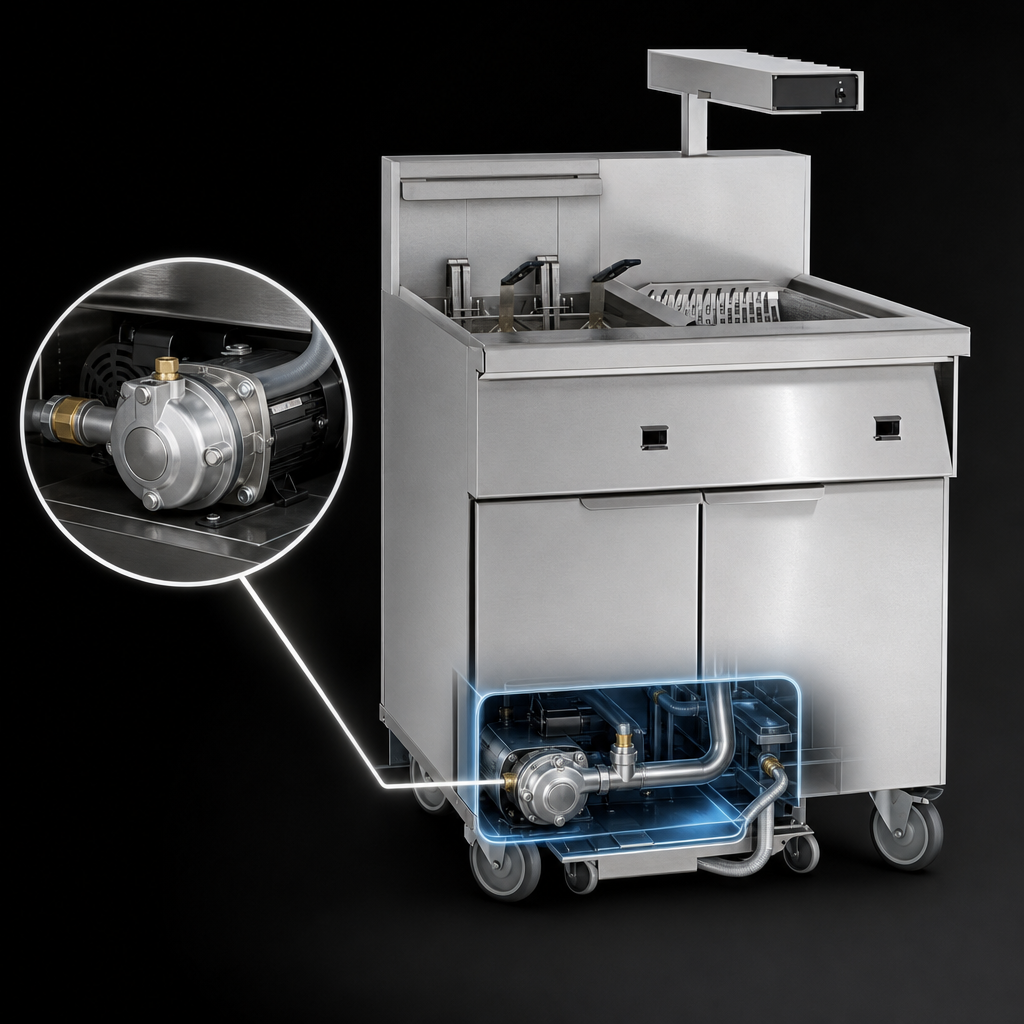

- 5.5 GPM roller pump with a 1/3 HP motor returns filtered oil in seconds — or up to 20 ft away for disposal.
- Snap-action thermostat maintains accurate frying temperatures for consistent product quality.
- Side-car dump station includes a food warmer and stainless steel dump pan for effortless staging.
- Continuous stainless front & sides plus 5" landing ledge create a clean, professional battery line-up.
- Factory-installed heavy-duty casters, joiner strips and a filter starter kit get you frying right out of the box.
- Meets cETLus, CSA Flame, CSA Star, CSA-Sanitation & CE standards.
Specification Sheet
| Model | IFSCB150EU |
|---|---|
| Oil Capacity | 50 lb / 41 L |
| Heating Elements | Tilt-up, immersed electric elements |
| Thermostat | Snap-action mechanical (optional electronic or computer controls) |
| Filtration Pump | 5.5 GPM roller pump | 1/3 HP |
| Voltage (Fryer) | 208 V / 240 V / 480 V, 3-phase, 60 Hz |
| Max Amp Draw | 42.38 A @ 208 V | 36.73 A @ 240 V | 18.36 A @ 480 V |
| Filtration Electrical | 115 V, 1-phase, 6.8 A, 60 Hz |
| Overall Dimensions | 31" W × 34" D × 44-1/8" H (787 × 864 × 1121 mm) |
| Shipping Weight | 433 lb / 196 kg |
| Floor Clearance | 0" (non-combustible) | 6" / 152 mm (combustible) |
| Included Items | Food warmer • Dump pan • Joiner strips • Filter starter kit • 4 casters (2 locking) |
| Certifications | cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE |
Need more capacity? Up to six Imperial 50 lb electric fryers can share one side-car filtration system. Contact us for custom battery configurations.
Popular Accessories
- Automatic or manual basket lifts
- Stainless steel frypot cover
- Side drain shelf or side splash
- Manual timer
- 20-micron filter paper (40 lb, 100-sheet box)
Warranty Notice : 1-year parts & labor on the complete unit. Stainless steel frypot carries a prorated 5-year limited warranty. Service must be performed by an Imperial-authorized agency to maintain coverage.
$22,661.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Commercial Imperial IFSCB150EU electric fryer, 50 lb capacity with tilt-up elements, built-in filter, dump station, roller pump, stainless frypot, casters.
Manufacturer
Imperial (Middleby)
Certifications
CE, cETLus, CSA-Sanitation, CSA Star, CSA Flame
Height
44.13in
Width
31.0in
Depth
34.0in
Shipping Weight
433.0lbs
Type
Restaurant
Fry pot
stainless steel
Controls
thermostatic controls
Fat Capacity (approximate)
50 lb
With or without basket lifts
without basket(s)
Exterior Finish
all stainless steel exterior
Filter
built-in filter
Specifications
Fryer, electric, floor model, 50 lb. capacity, tilt-up elements, built-in filter system, dump station, 5.5 GPM roller pump, snap action thermostat, includes: food warmer, dump pan, joiner strips & filter starter kit, stainless steel frypot, front & sides, casters, 1/3 HP, cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE
