Imperial (Middleby) IFSCB150E Electric Fryers
Description

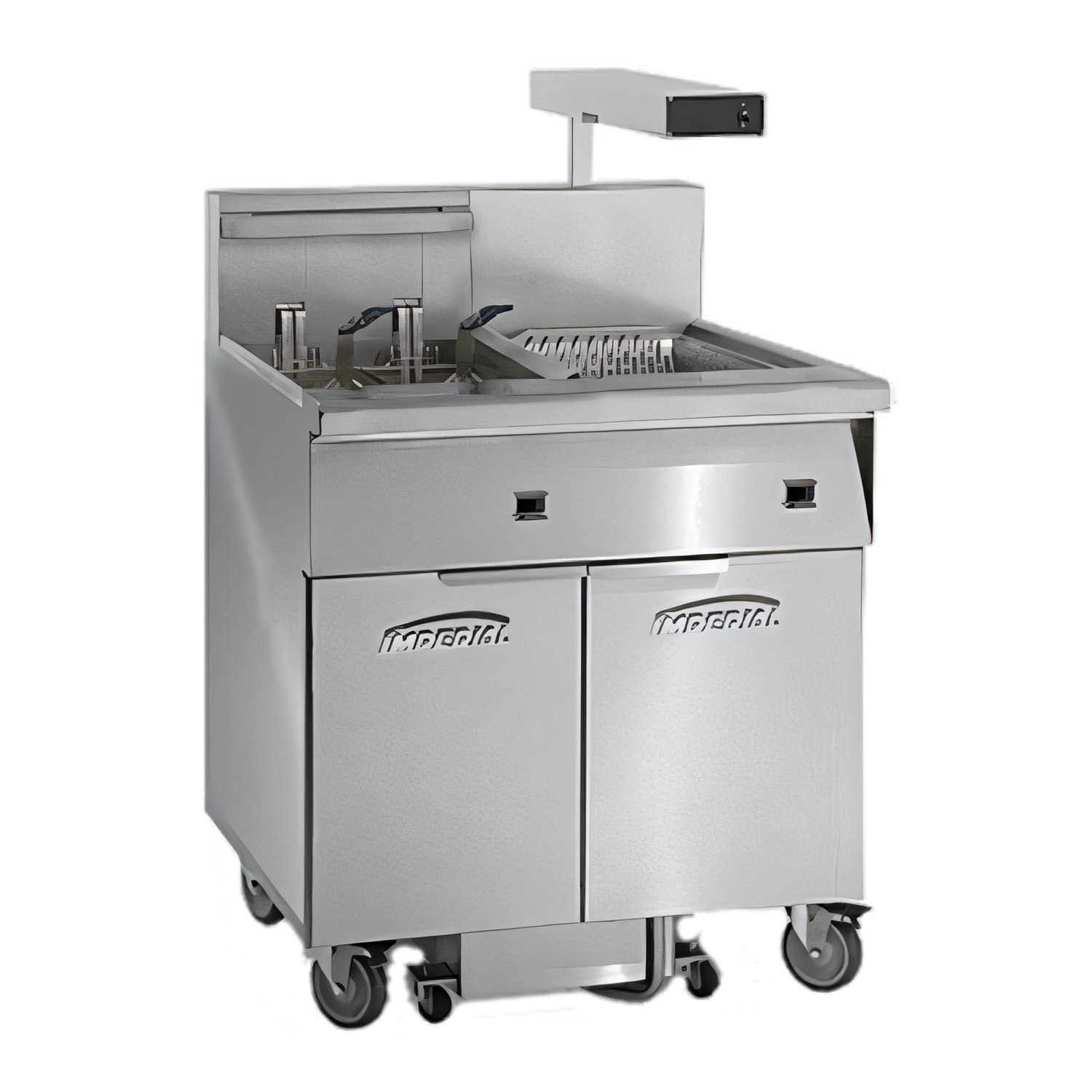

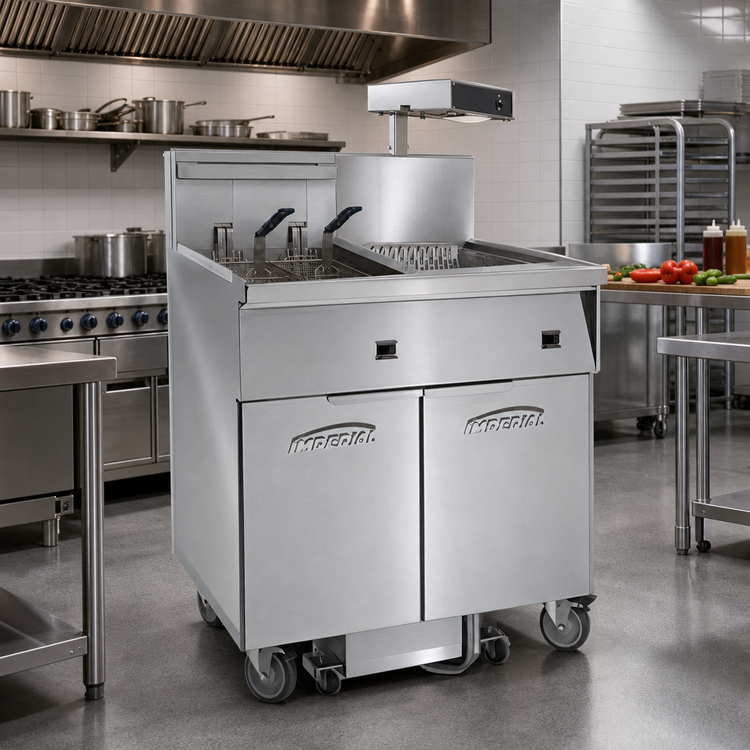

Imperial IFSCB150E Electric 50 lb Fryer with Integrated Filter & Dump Station
High-performance frying, built-in filtration & product holding in one compact footprintKeep your oil fresh, your food crisp and your workflow smooth with Imperial’s IFSCB150E. This all-in-one 31-inch floor model combines a powerful immersed-element electric fryer, an under-fryer filter system and a stainless steel dump station with food warmer—perfect for space-conscious operations that refuse to compromise on quality.
Key Features
- 50 lb (41 L) stainless steel frypot is precision-welded for durability and quick heat recovery.

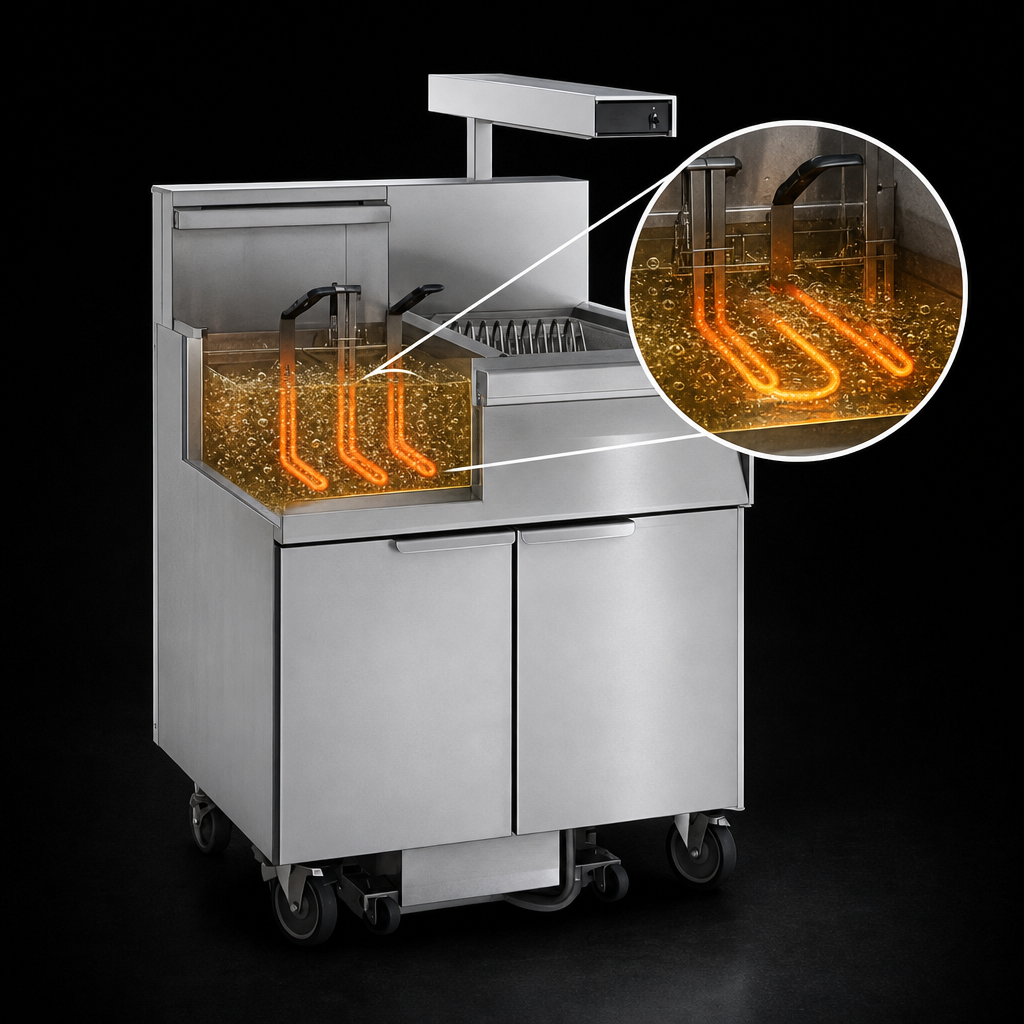

- Immersed electric elements transfer heat directly to the oil for faster turnover and lower energy costs.

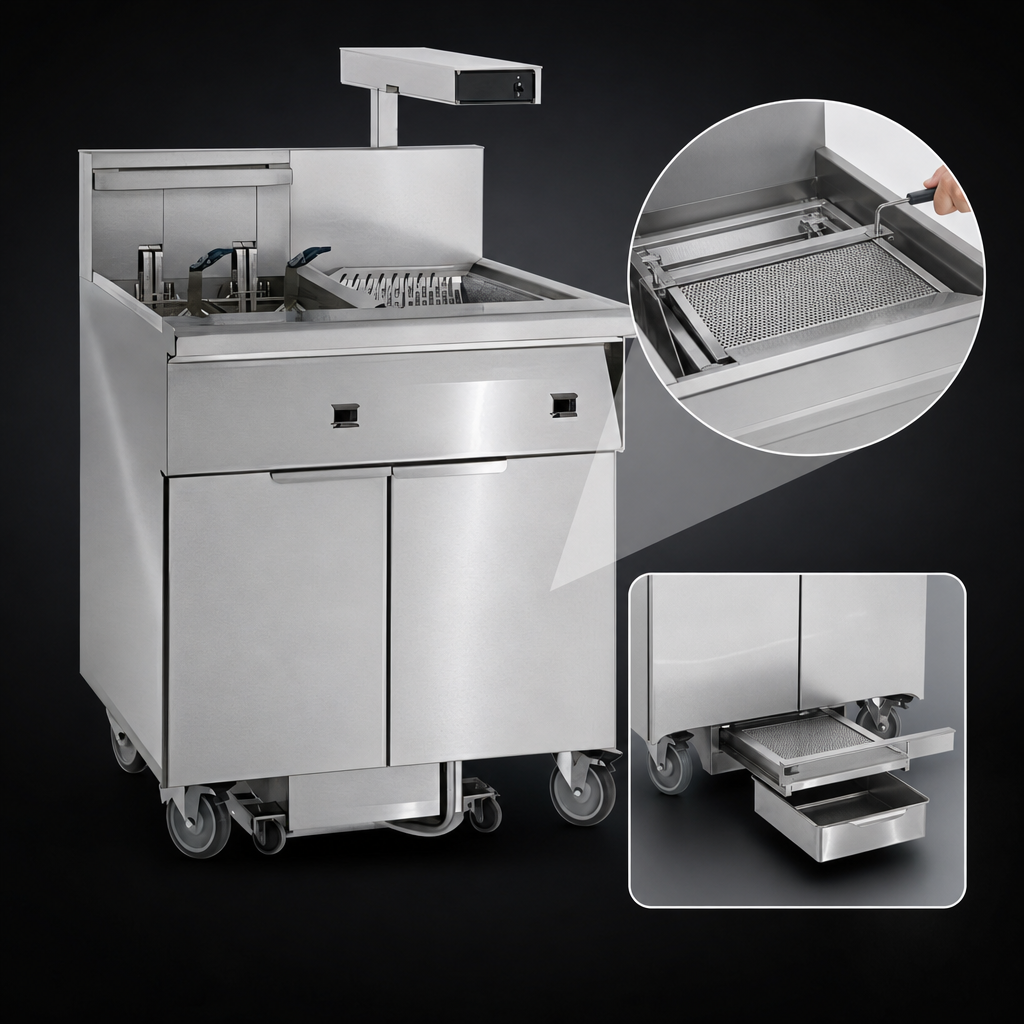

- Built-in 5.5 GPM roller pump with 1/3 HP motor filters a full vat in minutes—no heavy oil transport required.
- Snap-action thermostat maintains a steady 200 – 400 °F (93 – 204 °C) for consistent, golden results.
- Side-car dump station features a heated landing zone and dump pan for safe, convenient product handling.
- Continuous stainless steel front landing ledge and cabinet deliver a professional, easy-to-clean appearance.
- Ships ready to work with food warmer, dump pan, joiner strips and filter starter kit included.
- Mounted on heavy-duty swivel casters (front locking) for effortless cleaning and line re-configuration.
- Certified cETLus, CSA Flame, CSA Star, CSA-Sanitation & CE for broad code compliance.
Technical Specifications
| Model | IFSCB150E |
|---|---|
| Oil Capacity | 50 lb / 41 L |
| Heat Source | Electric immersed elements |
| Thermostat | Snap-action, 200 – 400 °F range |
| Filter System | Under-fryer stainless pan, 5.5 GPM roller pump, 1/3 HP motor |
| Dump Station | Stainless drain area with heated food warmer & dump pan |
| Cabinet Width | 31" (787 mm) |
| Depth × Height | 34" D × 44-1/8" H (864 × 1 121 mm) |
| Electrical – Fryer | 208 V / 240 V / 480 V*, 3-ph, 60 Hz 42.38 A (208 V) • 36.73 A (240 V) • 18.36 A (480 V*) |
| Electrical – Filter Pump | 115 V, 1-ph, 6.8 A |
| Ship Weight | 433 lb (196 kg) |
| Clearances | 0" to non-combustible • 6" (152 mm) to combustible surfaces |
| Certifications | cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE |
*480 V available for export only.
What’s in the Box
- Food warmer with overhead heat lamp
- Stainless steel dump pan
- Joiner strips for batteried line-ups
- Filter starter kit (paper & powder)
- Four industrial casters (2 locking)
Warranty
Enjoy worry-free operation with Imperial’s 1-year parts & labor warranty plus a 5-year pro-rated stainless steel fry tank warranty.
