Imperial (Middleby) IFSCB150C Gas Fryers
Description
Imperial IFSCB150-C 50 lb Gas Fryer with Built-In Filtration & Drain Station
140,000 BTU | Computer Controls | Side-Car Cabinet & Food WarmerEngineered for high-volume kitchens that refuse to compromise on workflow, the Imperial IFSCB150-C combines a powerful tube-fired fryer, a space-saving under-fryer filtration system, and a full drain station—all in one sleek, fully welded stainless-steel package on locking casters.
Key Performance Benefits
- 50 lb (27 L) oil capacity cooks up to 75 lb of fries per hour.
- High-efficiency tube burners deliver 140,000 BTU for fast heat-up and quick recovery.

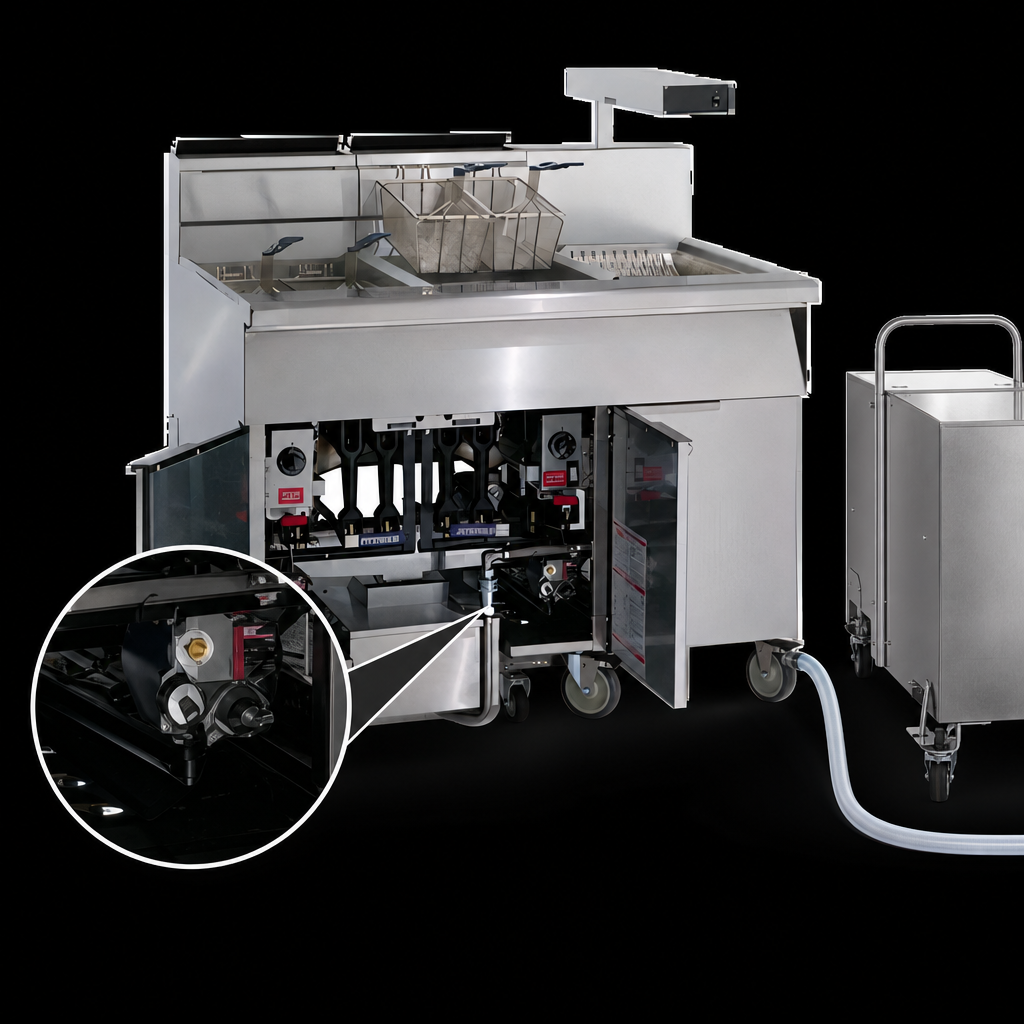

- Built-in 5.5 GPM roller pump (1/3 HP) filters an entire frypot in under a minute—no external hoses needed.
- Advanced computer controls provide precise temperature management, cook timers, melt-cycle and standby modes.
- Side-car cabinet features a heated food warmer and stainless dump pan for effortless staging and seasoning.
- One-touch “Polish” and “Return” buttons speed up the filtration routine and extend oil life.
- Ships fully assembled with casters, joiner strips and a filter start kit—roll it in, hook it up, start frying.

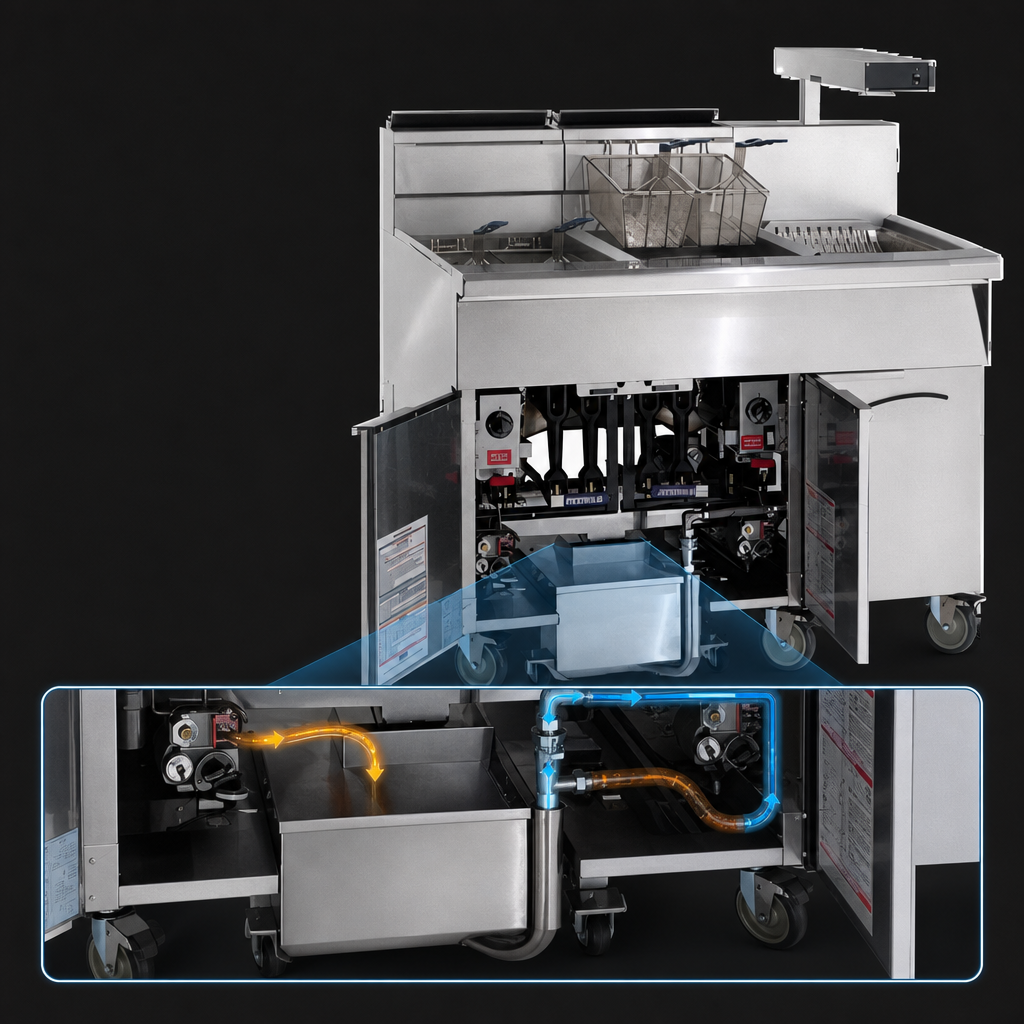

Space-Saving Filtration System
Located directly beneath the frypot, Imperial’s side-car filter keeps valuable line space clear while eliminating messy, exposed drain lines. The positive-latching filter pan and quick-disconnect return hose guarantee a tight seal for optimum oil polish and virtually drip-free cleanup.
Built to Last
- Seam-welded stainless steel frypot with 5-year pro-rated tank warranty.
- Stainless steel front, sides, landing ledge and side-car cabinet resist corrosion and wipe clean fast.
- 5″ deep front landing ledge doubles as a plating or resting area.
- Rear gas manifold with single ¾″ NPT connection simplifies installation into a battery of up to six fryers.
Certified Safe & Compliant
CSA Flame, CSA Star, NSF and CE listed for gas, sanitation and global safety compliance.
Technical Specifications
| Oil Capacity | 50 lb (27 L) |
|---|---|
| Heat Source | Natural or LP Gas, 140,000 BTU/hr |
| Controls | Computerized, programmable cook cycles & melt mode |
| Filtration Pump | 5.5 GPM roller pump, 1/3 HP motor |
| Electrical | 120 V / 60 Hz / 1-Ph, 6.8 A (6 ft grounded cord included) |
| Overall Dimensions | 31″ W × 36.5″ D × 45.75″ H (787 × 927 × 1162 mm) |
| Shipping Weight | 433 lb (196 kg) |
| Clearance | 0″ to non-combustible, 6″ (152 mm) to combustible surfaces |
| Included Accessories | Food warmer assembly, dump pan, joiner strips, filter start kit, 4 locking casters |
| Warranty | 1-year parts & labor; 5-year pro-rated fry tank |
Specifications are subject to change without notice. Always consult the installation manual before ordering or installing.
