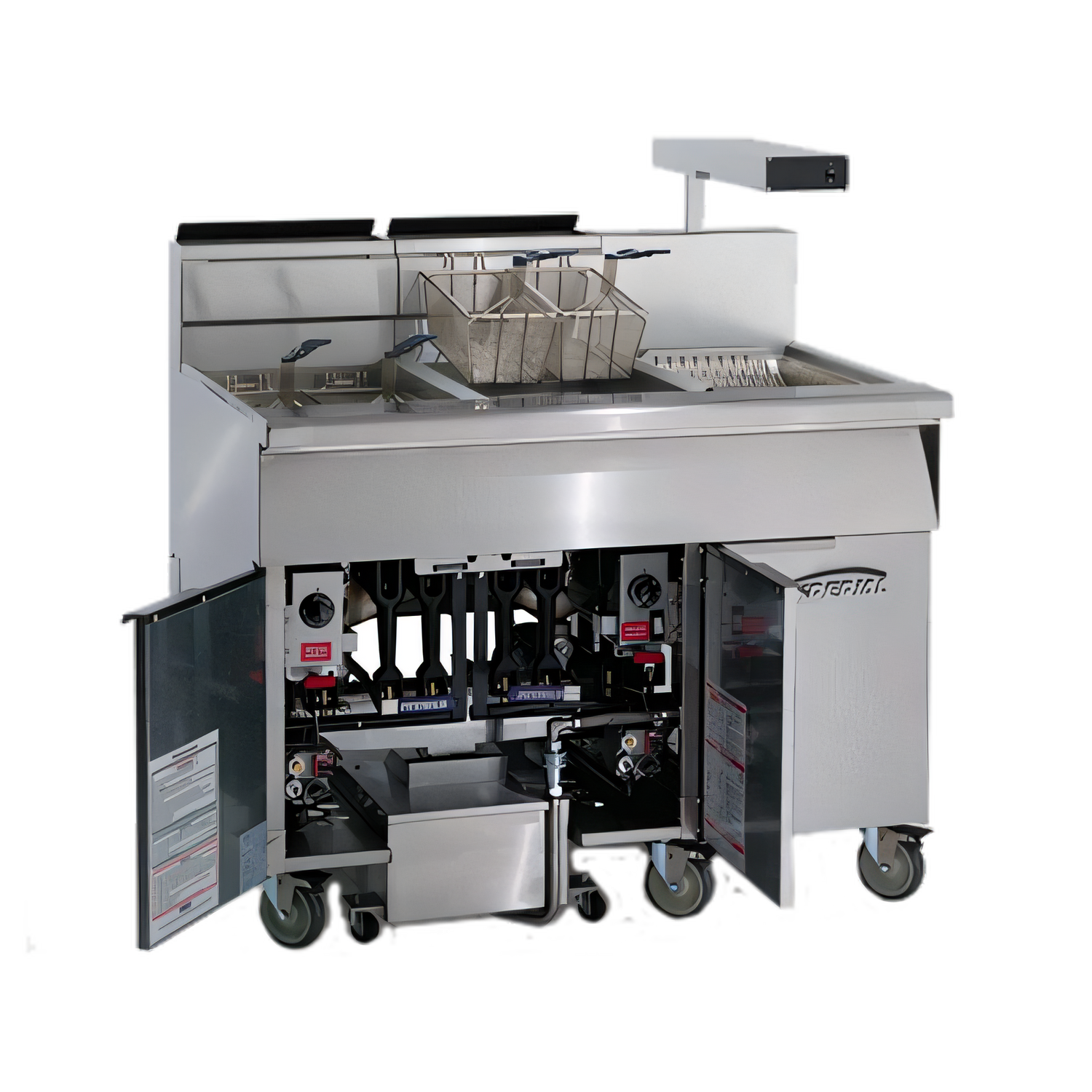

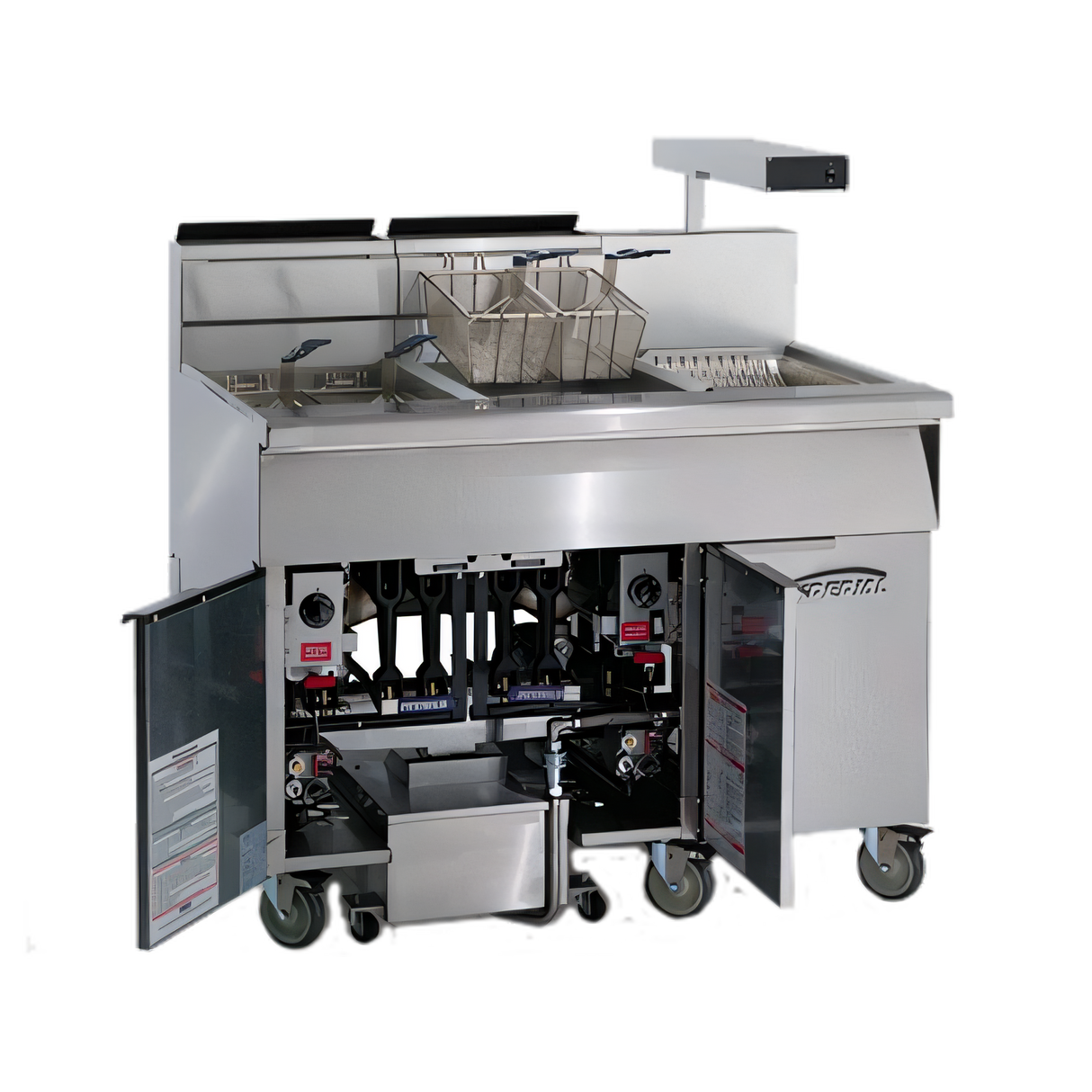

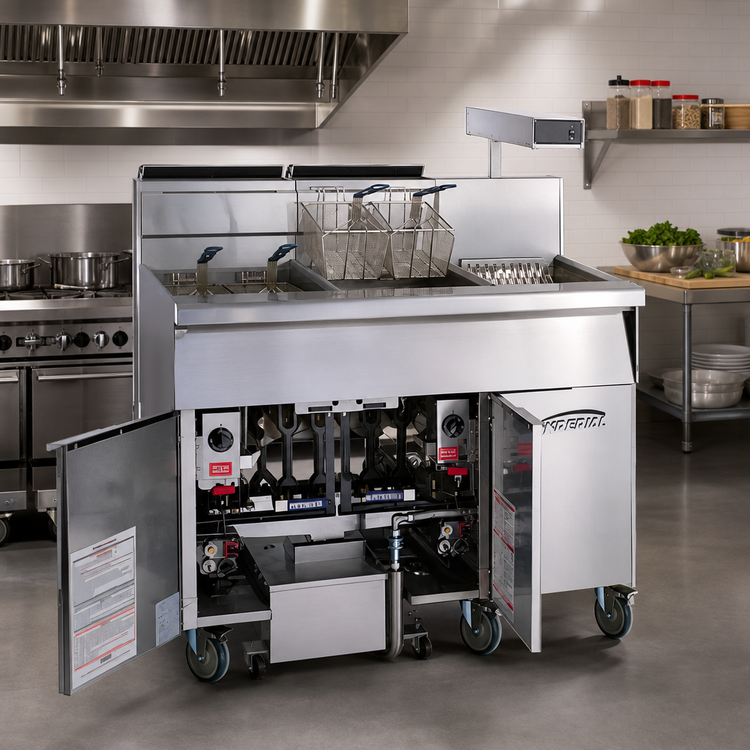

Imperial IFSCB150T Tube-Fired 50 lb Gas Fryer with Built-In Filter & Drain Station
Side-Car system • Electronic thermostat • 140,000 BTUEngineered for high-volume, space-conscious kitchens, the Imperial IFSCB150T combines a powerful tube-fired fryer with a fully integrated Side-Car filter, food-warming dump station, and storage cabinet—all in a single 31-inch footprint. Keep oil fresh, food hot and workflow smooth while saving labor, floor space and utility costs.
Key advantages
- 50 lb (27 L) stainless-steel frypot delivers fast recovery and consistent frying.
- 140,000 BTU tube-fired heat exchanger maximizes heat transfer for lower energy cost.
- Side-Car filter system sits beneath the fryer—no extra floor space required.
- 5.5 GPM roller pump with 1/3 HP motor filters an entire frypot in minutes and can discharge oil up to 20 ft away.

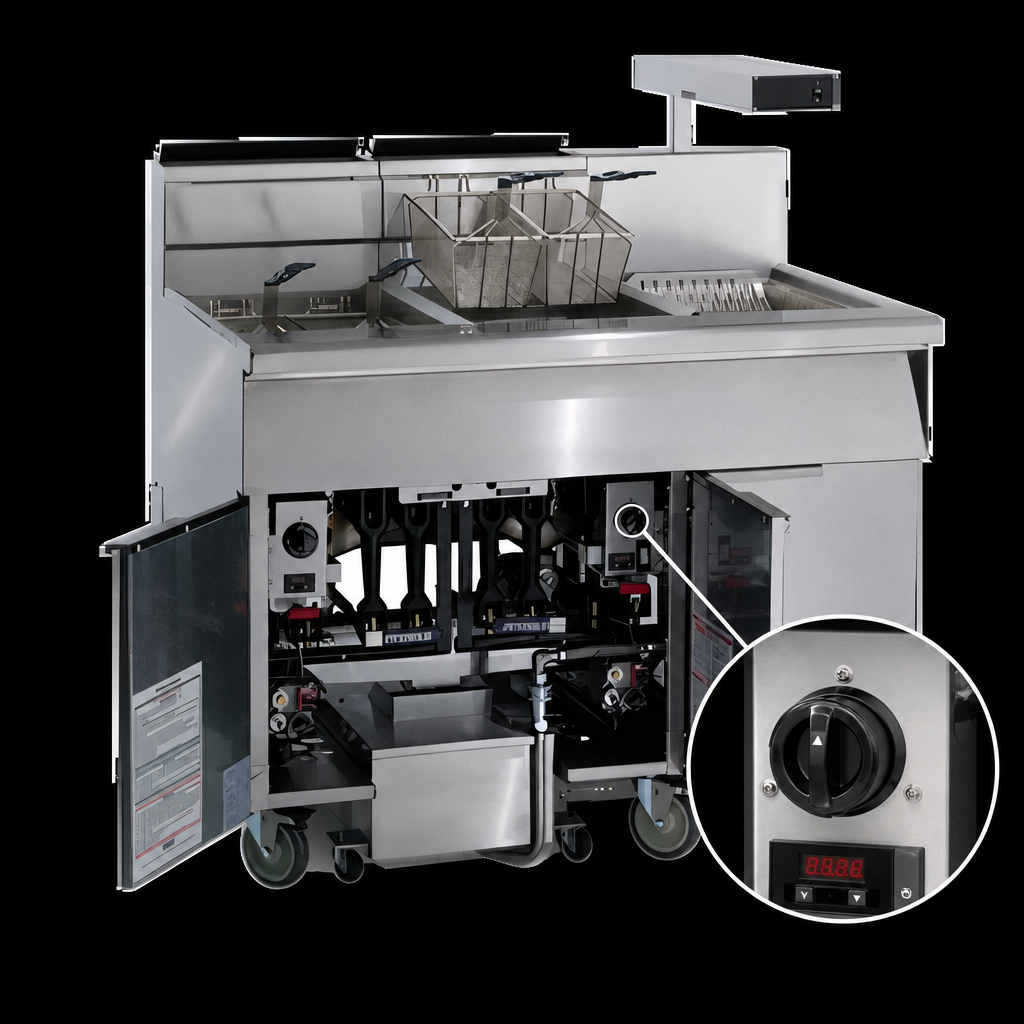

- Electronic thermostat (T suffix) maintains precise 200 – 400 °F temperatures.
- Stainless-steel landing ledge, front, sides & cabinet stand up to years of heavy use.
- Dump station with heated food warmer and removable dump pan keeps product crispy and ready to serve.
- Factory-installed casters, joiner strips & starter filter kit included for immediate installation.
- Rear gas manifold provides a single-point gas connection for clean line-ups or future battery expansion.

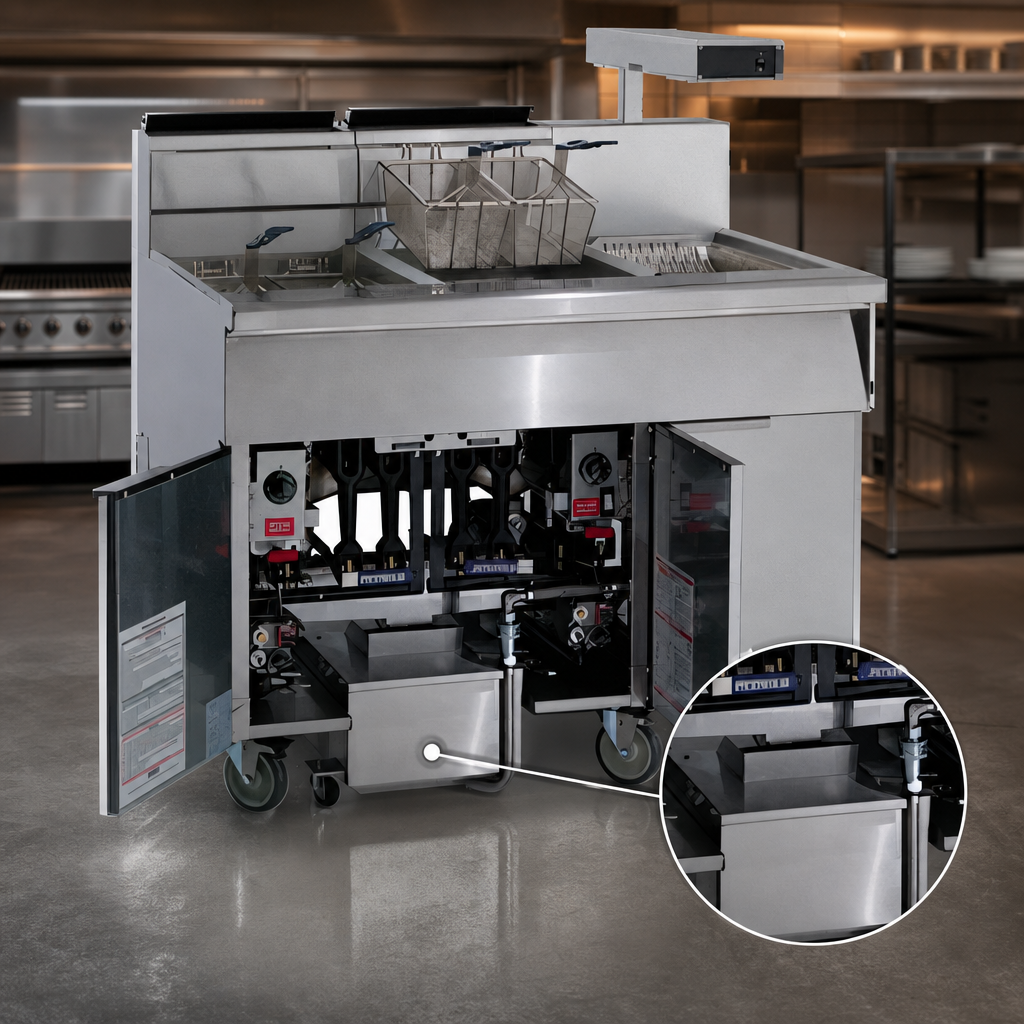

Integrated Side-Car filter system
- Filter pan’s positive-latch paper holder and quick-disconnect return line simplify operation.
- All drain and return lines are internally plumbed—no messy hoses on the floor.
- Stainless construction throughout makes cleanup fast and sanitary.
- Filter cabinet doubles as dry storage when positioned at the end of a fryer battery.
Specifications
| Model | IFSCB150T |
|---|---|
| Oil capacity | 50 lb (27 L) |
| Heat source | Natural or LP gas, 140,000 BTU/hr |
| Thermostat range | 200 °F – 400 °F (93 °C – 204 °C) |
| Filter pump | 5.5 GPM roller pump, 1/3 HP motor |
| Electrical | 120 V / 60 Hz / 1-ph, 6.8 A (6 ft cord & NEMA 5-15P plug) |
| Overall dimensions | 31" W × 36.5" D × 45.75" H (787 × 927 × 1162 mm) |
| Clearance | 0" non-combustible, 6" combustible side/rear |
| Construction | Stainless steel frypot, front, sides, landing ledge & cabinet |
| Included accessories | Food warmer, dump pan, joiner strips, filter start kit, 4 casters |
| Certifications | CSA Flame, CSA Star, NSF, CE |
| Warranty | 1-year parts & labor; 5-year pro-rated frypot (stainless) |
Built to grow with your kitchen
The IFSCB platform allows you to battery up to six fryers on a shared filter system—perfect for expanding menus without sacrificing square footage. Optional automatic or manual basket lifts, gas shut-off valves, and side splash guards are available to further customize your line.
Imperial reserves the right to modify design or specifications without notice.
