Imperial (Middleby)

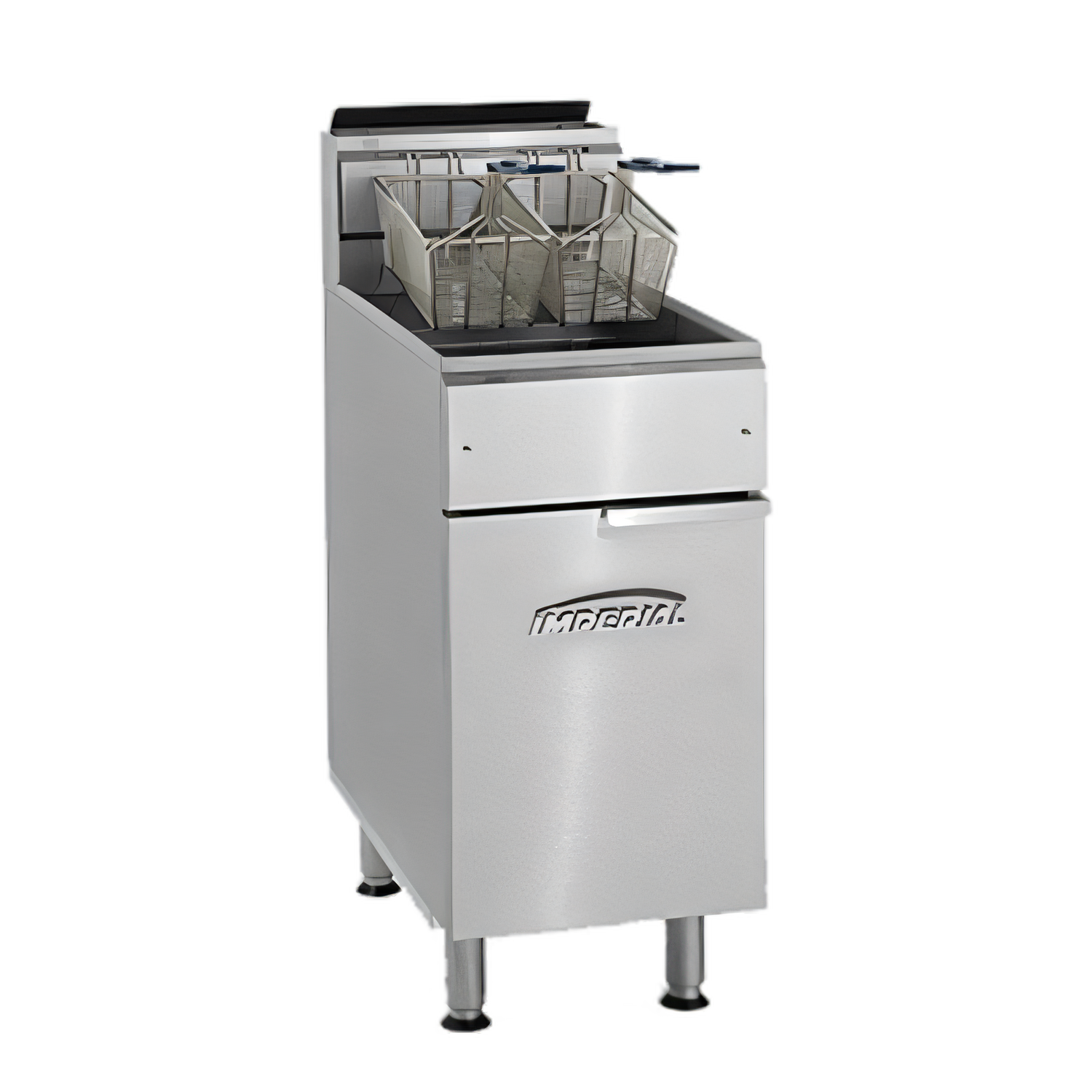

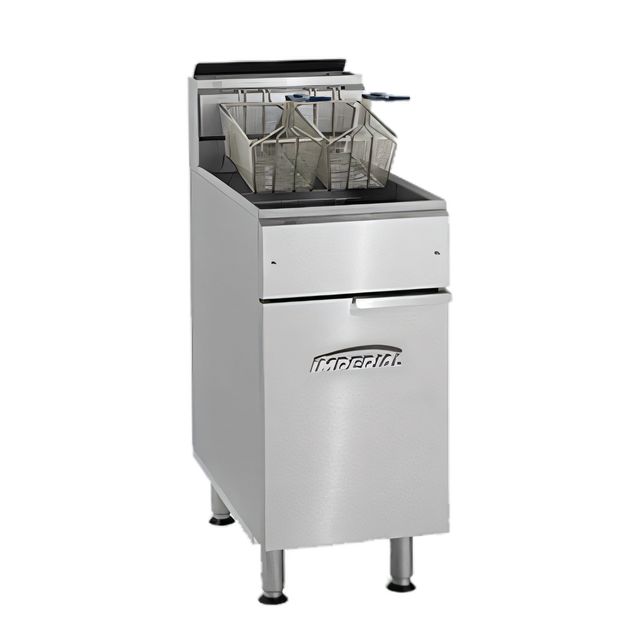

Imperial IFS-75 75 lb. Floor Model Tube Fired Gas Fryer

SKU: IFS-75
$3,006.48
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ranges Fryers Gas Fryers Imperial (Middleby) New Arrivals Restaurant Equipment Stock Pot Ranges

Imperial IFS-75 75 lb. Floor Model Tube Fired Gas Fryer

Millivolt Controls, Stainless Steel Frypot, 175,000 BTU

Built for high-volume frying, this 75 lb. floor fryer combines fast-recovery tube-fired heat with durable stainless steel construction and included baskets.

  • 75 lb. floor model gas fryer designed for busy commercial kitchens.
  • Tube-fired cast iron burners deliver 175,000 BTU for fast recovery and consistent heat.
  • Millivolt controls and a snap-action thermostat provide dependable temperature management from 200°F to 400°F.
  • Stainless steel frypot and exterior components help improve durability and ease cleanup.
  • Includes a wire mesh crumb screen and two nickel-plated fry baskets.
  • Optional casters, oil reclamation system, and other accessories are available.

Overall Dimensions:

19.5"W x 34.5"D x 45.75"H

Product Weight:

270.0 lb

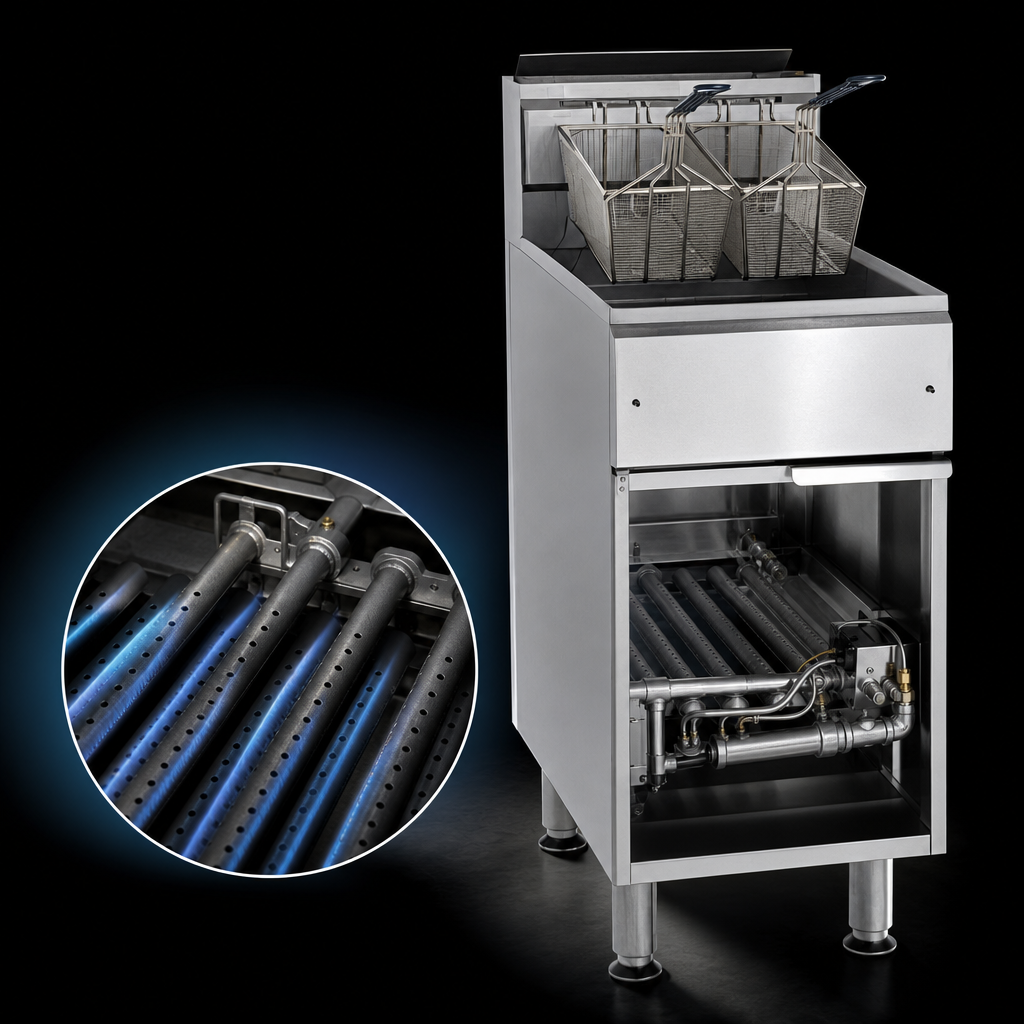

Tube Fired Cast Iron Burners

High-efficiency burners provide a large heat transfer area and built-in deflector system for rapid, even heating.

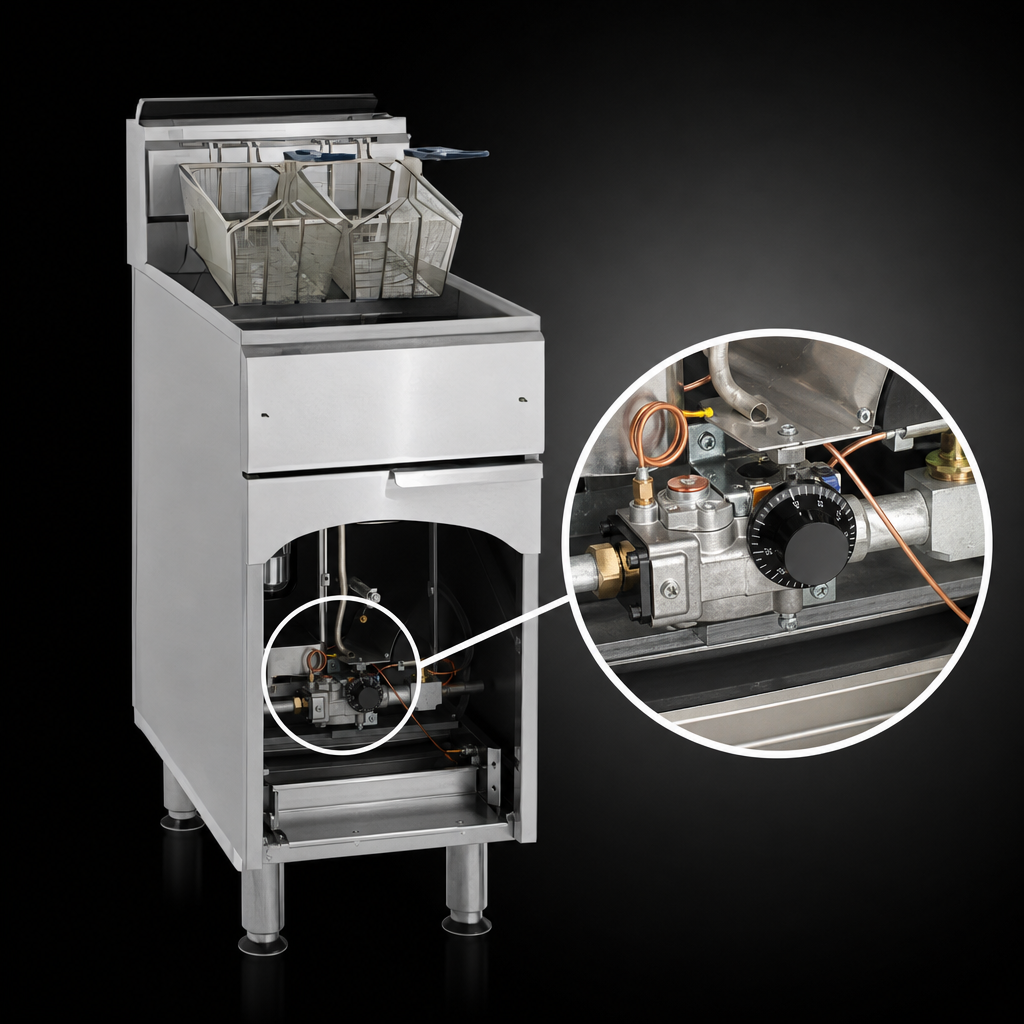

Millivolt Temperature Control

Millivolt control circuit supports reliable operation and straightforward temperature control.

Snap-Action Thermostat

Provides a 200°F to 400°F temperature range with fast recovery to set temperature.

Stainless Steel Frypot

Robotically welded stainless steel frypot, tubes, and sides help minimize leaks and improve durability.

Large Cool Zone

Captures and holds particles below the tubes to reduce taste transfer and help keep oil cleaner.

Included Frying Accessories

Comes with a fine mesh wire crumb screen and two large nickel-plated fry baskets with vinyl-coated handles.

Drain and Safety Features

Includes a recessed bottom that slopes toward the drain, a 1-1/4 inch full port drain valve, and 100% safety shut-off.

Heavy-Duty Exterior Construction

Stainless steel front, door, sides, basket hanger, and frypot with welded and polished seams for long-term use.

Type Gas Fryer
Style Tube Fired
Installation Type Floor Model
Capacity 75 lb. (41 L)
Controls Millivolt Controls
Temperature Range 200°F to 400°F (93°C to 204°C)
BTU 175,000 BTU
Gas Connection Size 3/4 Inch N.P.T.
Material Stainless Steel
Finish Stainless Steel
Shipping Width 20 Inches
Shipping Depth 35 Inches
Shipping Height 46 Inches
Shipping Weight 270 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor; limited 5-year pro-rated frypot warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Training video PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The fryer has a 75 lb. (41 L) oil capacity.
The snap-action thermostat provides a 200°F to 400°F (93°C to 204°C) temperature range.
It includes a wire mesh crumb screen and two nickel-plated fry baskets.
The listed manifold pressures are 4.0 inches W.C. for natural gas and 11.0 inches W.C. for propane.
The fryer includes a one-year parts and labor warranty, and the stainless steel frypot has a limited five-year pro-rated warranty.
