Imperial (Middleby)  |  SKU: IFS-40-EU

Imperial (Middleby) IFS-40-EU Electric Fryers

$7,753.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts manual Owner's manual Middleby financial flyer Training video Warranty sheet
Related Searches
Braising Pan & Tilt Skillet Cooking Equipment Cooking Equipment Restaurant Equipment Steam Cooking Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

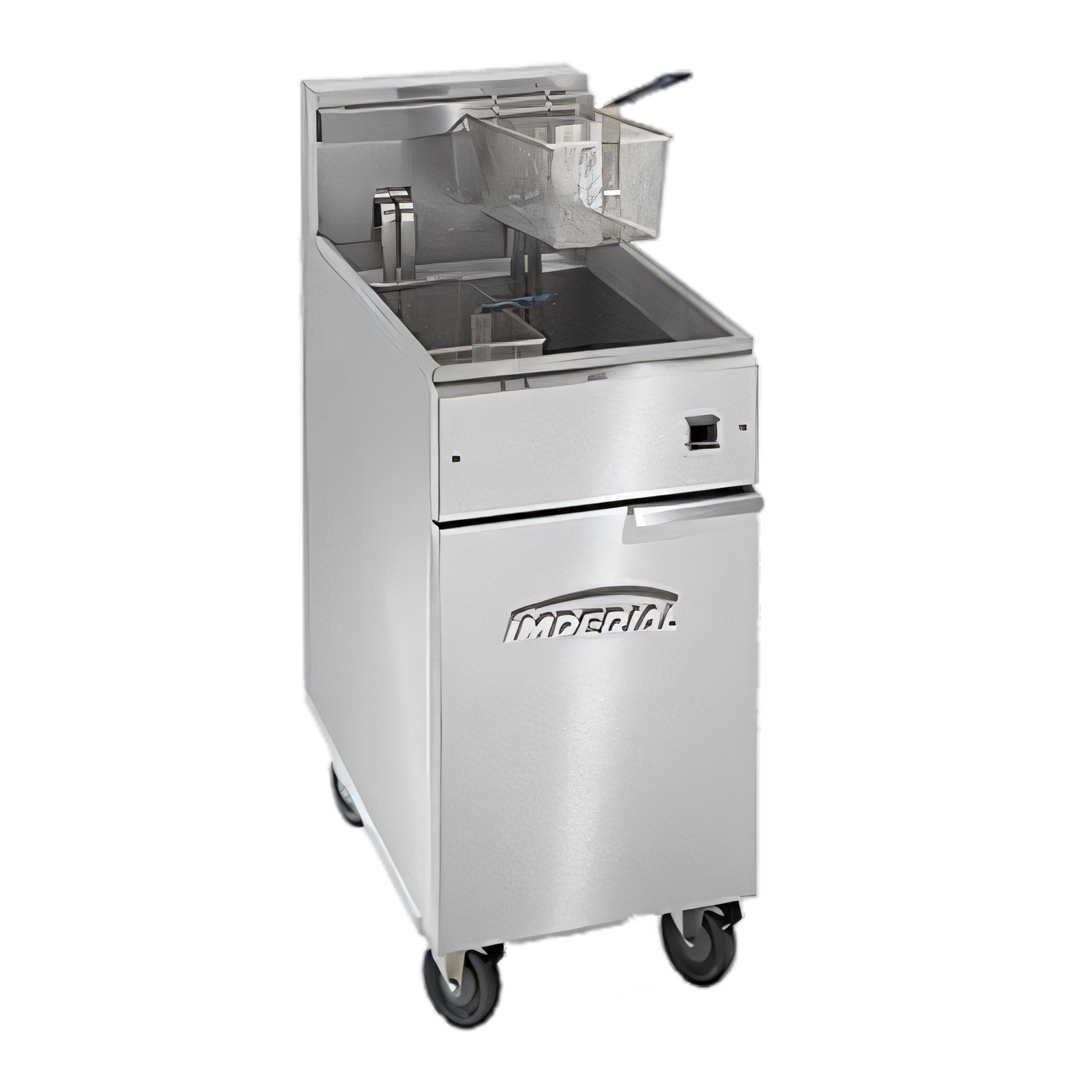

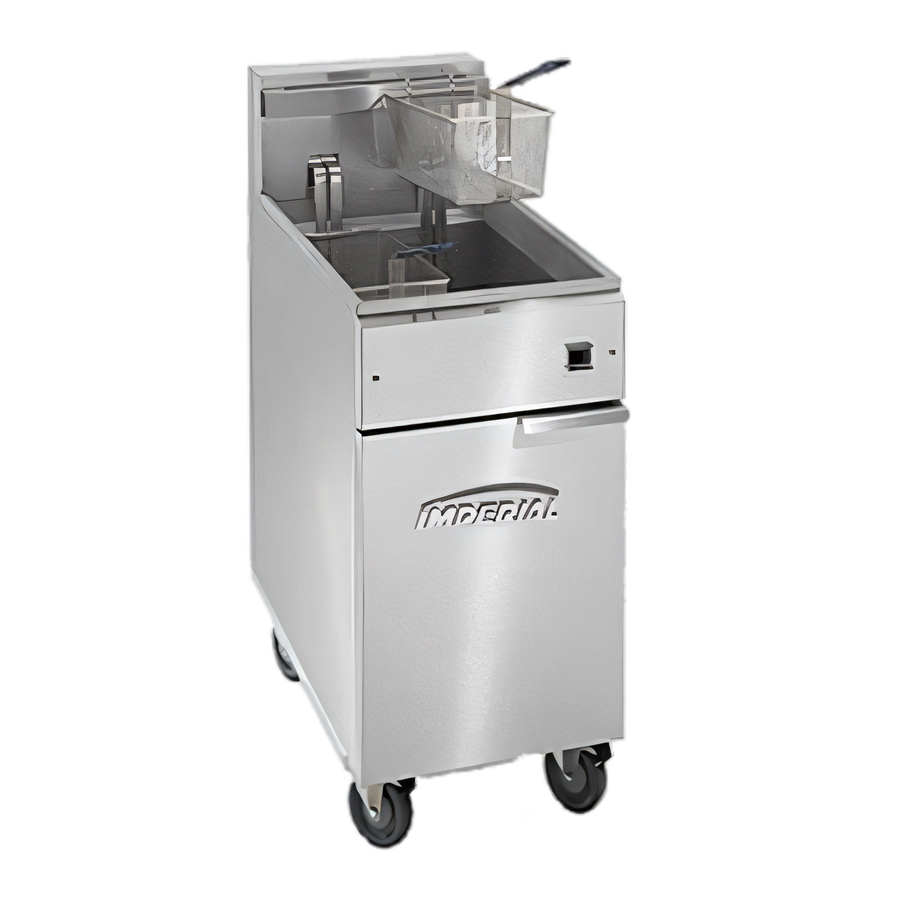

Imperial IFS-40-E Electric Floor Fryer – 40 lb Oil Capacity

14 kW | Tilt-Up Immersed Elements | Snap-Action Thermostat

Give every batch the crunch customers crave. Compact yet powerful, the Imperial IFS-40-E floods its stainless steel frypot with 14 kW of direct-contact heat, driving lightning-fast recovery times and extending oil life—all inside a 16 inch-wide footprint that frees up valuable line space.

Why You’ll Love It

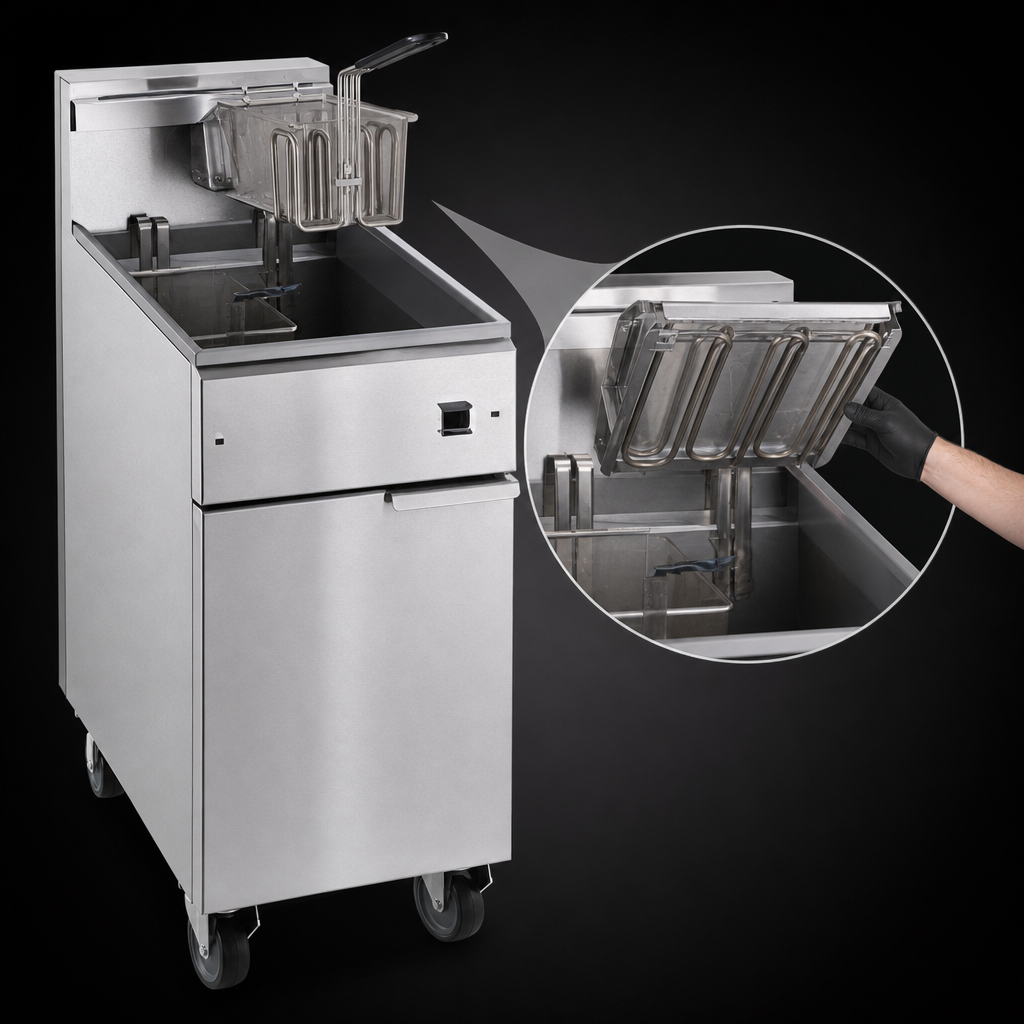

  • Rapid, even heating – 14 kW tilt-up elements sit below the fry zone for maximum efficiency, then lift clear for full-pot access when it’s time to clean.
  • Consistent results – Snap-action thermostat maintains a precise 200 °F – 400 °F (93 °C – 204 °C) range to preserve oil and guarantee uniform color & texture.
  • Built to last – Entire exterior, basket hanger and frypot are heavy-gauge stainless steel with robotic-welded seams that virtually eliminate leaks.
  • Cleaner oil, better flavor – Extra-large cool zone and included wire-mesh crumb screen capture debris before it carbonizes or scorches.
  • Ready to work – Ships with (2) nickel-plated fry baskets (vinyl-coated handles) and adjustable 6 inch stainless steel legs.
  • Certified & compliant – cETLus, CSA-Sanitation & CE approvals meet the latest safety and hygiene standards.

At-a-Glance Specs

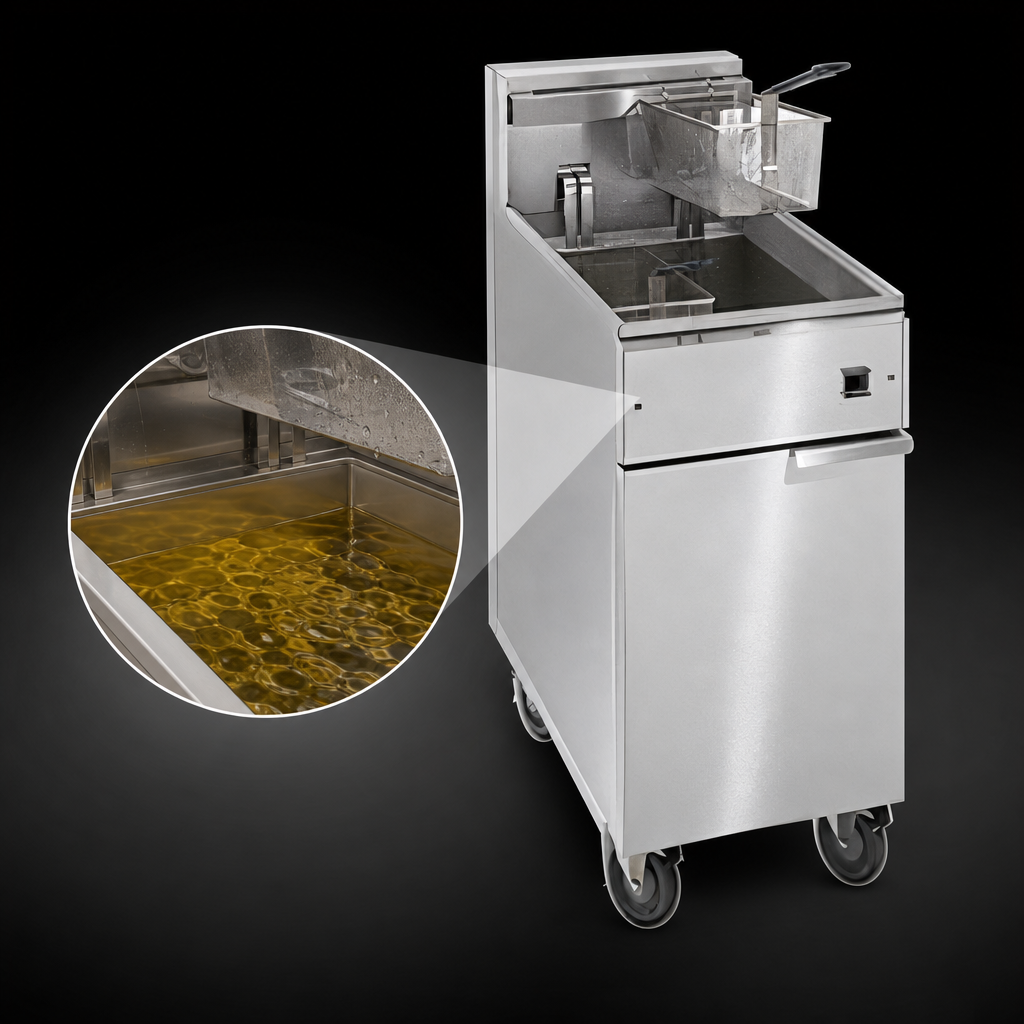

Oil Capacity 40 lb / 18 L
Frying Area 14 in × 14 in (356 × 356 mm)
Overall Dimensions (W × D × H) 15.5 in × 30.5 in × 44.125 in
(394 × 775 × 1121 mm)
Element Output 14 kW
Voltage / Phase 208 V 1 ph – 68 A
240 V 1 ph – 59 A
480 V 1 ph – 30 A
208 V 3 ph – 39 A
240 V 3 ph – 34 A
480 V 3 ph – 17 A
Drain Valve 1 ¼ in full-port, front-mounted
Shipping Weight 221 lb / 100 kg
Certifications cETLus, CSA-Sanitation, CE
Warranty 1 year parts & labor
5-year pro-rated frypot (stainless steel)

What’s In the Box

  • (2) Nickel-plated fry baskets with cool-touch vinyl handles
  • Wire-mesh crumb screen
  • Stainless steel basket hanger
  • 6 in (152 mm) adjustable stainless steel legs
  • User & installation manual

Popular Factory Options (Sold Separately)

  • Drain station with heat lamp & storage cabinet
  • Automatic basket lifts or computer controls
  • 20½ in high backguard, joiner strips for battery lines
  • 6 in heavy-duty casters & catering transport package
  • Extra fry baskets
Installation Requirements: For use on non-combustible floors only. Provide 0 in clearance from non-combustible surfaces and 6 in (152 mm) from combustible surfaces. All electrical connections must be performed by a qualified professional in accordance with local codes.

Imperial reserves the right to modify specifications without notice. Always refer to the factory-supplied manual for the most current information.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

CE, cETLus, CSA-Sanitation

Height

44.13in

Width

15.5in

Depth

30.5in

Shipping Weight

221.0lbs

Filter

no filter

Fat Capacity (approximate)

40 lb

Type

Restaurant

Fry pot

stainless steel

Exterior Finish

all stainless steel exterior

Controls

thermostatic controls

With or without basket lifts

without basket(s)

Specifications

Fryer, electric, floor model, 40 lb. capacity, tilt-up electrical elements, snap action thermostat, includes: wire mesh crumb screen & (2) nickel-plated baskets, stainless steel front, door, sides, basket hanger & frypot, 6" legs, 14.0kW, cETLus, CSA-Sanitation, CE
