Imperial (Middleby)  |  SKU: IFS-40-D

Imperial (Middleby) IFS-40-D Gas Fryers

$5,548.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Warranty sheet
Related Searches
Fryers Gas Fryers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

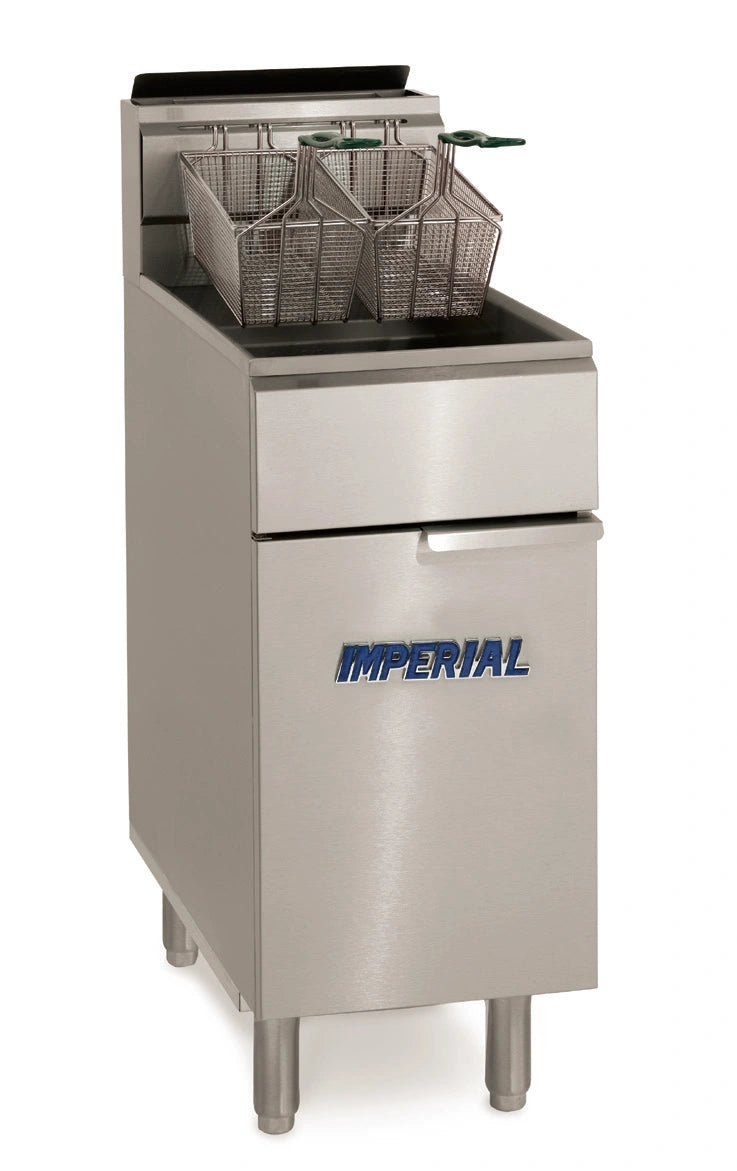

Imperial IFS-40-D Tube-Fired Gas Fryer

40-45 lb oil capacity | 115,000 BTU | Floor Model

Keep up with the highest lunch-rush demands while serving consistently crisp, golden-brown results. The Imperial IFS-40-D combines a heavy-duty stainless tank, four high-output tube burners, and a millivolt snap-action thermostat for dependable, electricity-free frying in any commercial kitchen.

Key Features

  • 40-45 lb (18-20 kg) oil capacity – ideal for restaurants, food trucks & concession stands
  • Four tube-fired burners deliver a powerful 115,000 BTU for rapid heat-up & fast recovery
  • 304 stainless steel welded tank with extra-smooth peened finish for easy clean-up
  • Millivolt snap-action thermostat maintains 200-400 °F (93-190 °C) – no electrical hookup required
  • Standing pilot light ensures a ready flame whenever heat is needed
  • Integrated gas control valve with built-in pressure regulator & safety shut-offs
  • 1 ¼" NPT front drain valve plus included drain extension for quick, safe oil removal

Standard Accessories

  • (2) Twin-size fry baskets with cool-touch vinyl-coated handles
  • Removable basket hanger for thorough tank cleaning
  • (1) Drain extension
  • 6" (152 mm) adjustable stainless steel legs

Built for the Long Haul

  • Stainless steel front, door & sides resist dents, scratches and corrosion
  • High-temperature alloy stainless baffles maximize heat transfer and fuel efficiency
  • Temperature-limit switch automatically shuts off gas if the fryer exceeds safe limits

Specifications

Model IFS-40-D
Oil Capacity 40-45 lb (18-20 kg)
Heat Output 115,000 BTU (31 kW)
Burners 4 tube-fired
Thermostat Range 200-400 °F (93-190 °C)
Frying Area 14" × 14" (356 × 356 mm)
Gas Connection ¾" NPT, 4" W.C. Natural / 10" W.C. LP
Overall Dimensions 15 ½" W × 30 ½" D × 45 ¾" H
(394 × 775 × 1162 mm)
Shipping Weight 221 lb (100 kg)
Clearances 0" sides & rear (non-combustible); 6" sides (combustible)
Warranty 1-year parts & labor; 5-year pro-rated fry tank

Popular Options & Accessories

  • 6" (152 mm) heavy-duty casters
  • Fryer drain station with storage cabinet
  • Manual timer kit
  • Additional fry baskets
  • Quick-disconnect gas hose, ¾" NPT
  • 3/4" NPT gas shut-off valve
Installation Notice: This fryer must be installed on a non-combustible floor by a qualified technician and operated in accordance with local codes and the manufacturer’s manual.

Need multiple units or flexible payment terms? Ask us about Middleby Equipment Financing for fast, affordable monthly payments.

Features & Specs

Manufacturer

Imperial (Middleby)

Height

30.5in

Width

45.75in

Depth

15.5in

Shipping Weight

221.0lbs

Exterior Finish

stainless steel front & sides

Controls

thermostatic controls

Basket Lifts

without basket lifts

Fat Capacity (approximate)

40 lb

Fry pot

stainless steel fry pot

Specifications

Fryer, gas, floor model, 40-45 lb. capacity, tube fired cast iron burners, snap action thermostat, millivolt temperature control, includes (2) twin size baskets, (1) drain extensions, basket hanger, 6" adjustable legs, stainless steel front and sides, 115,000 BTU
