Imperial (Middleby)  |  SKU: ICRA-7

Imperial (Middleby) ICRA-7 Wok Ranges

$41,100.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Middleby financial flyer Warranty sheet
Related Searches
Commercial Ranges Ranges Restaurant Equipment Wok Ranges Wok Ranges

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Imperial ICRA-7 7-Hole Gas Wok Range – 194" Water-Cooled Top, 770,000 BTU

Heavy-duty Chinese range with hands-free knee controls & built-in drain

Turn out nonstop stir-fries, soups and sauces with the muscle and cooling capacity of Imperial’s flagship ICRA-7. Seven powerful burners, a full-length water-cooled deck and an integrated drain system keep your line cooler, cleaner and ready for the heaviest rushes.

Why you’ll love it

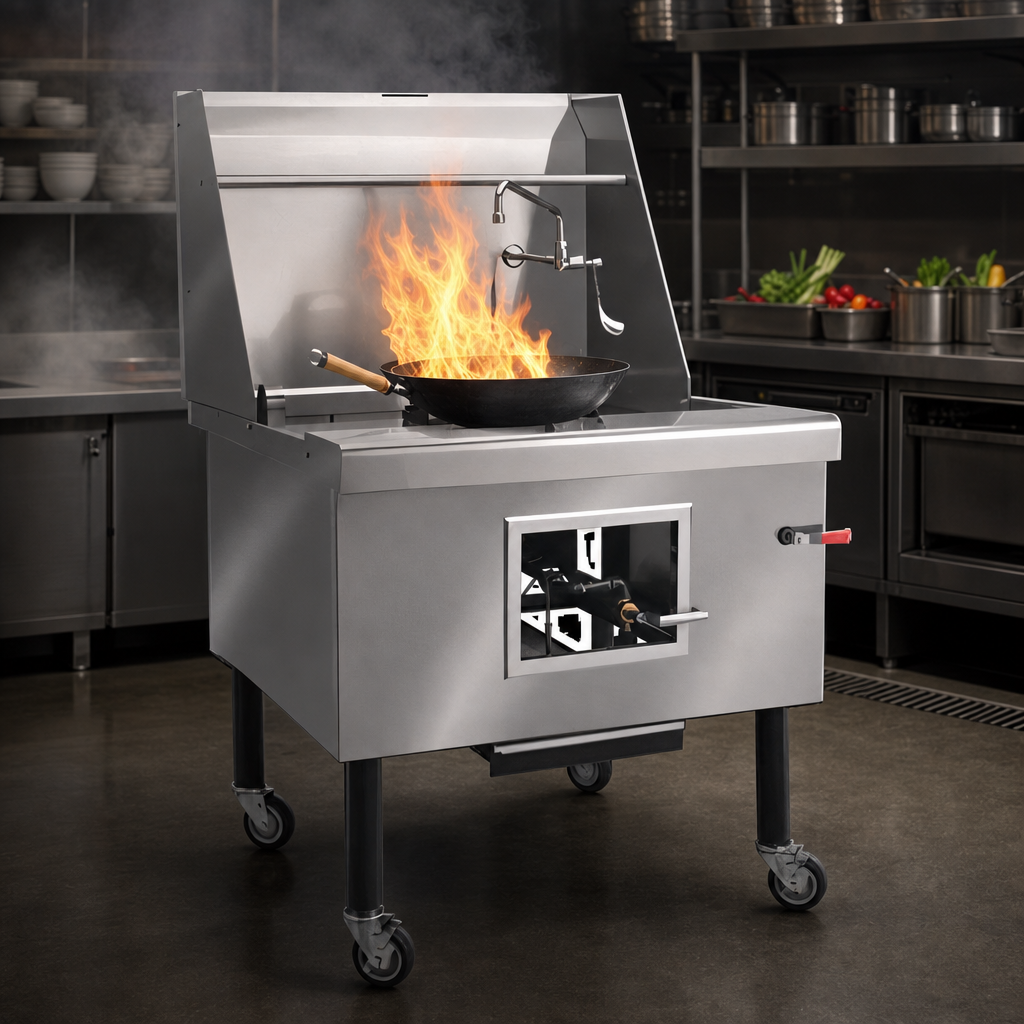

  • Up to 770,000 BTU/hr total output delivers authentic wok-hei sear in seconds.

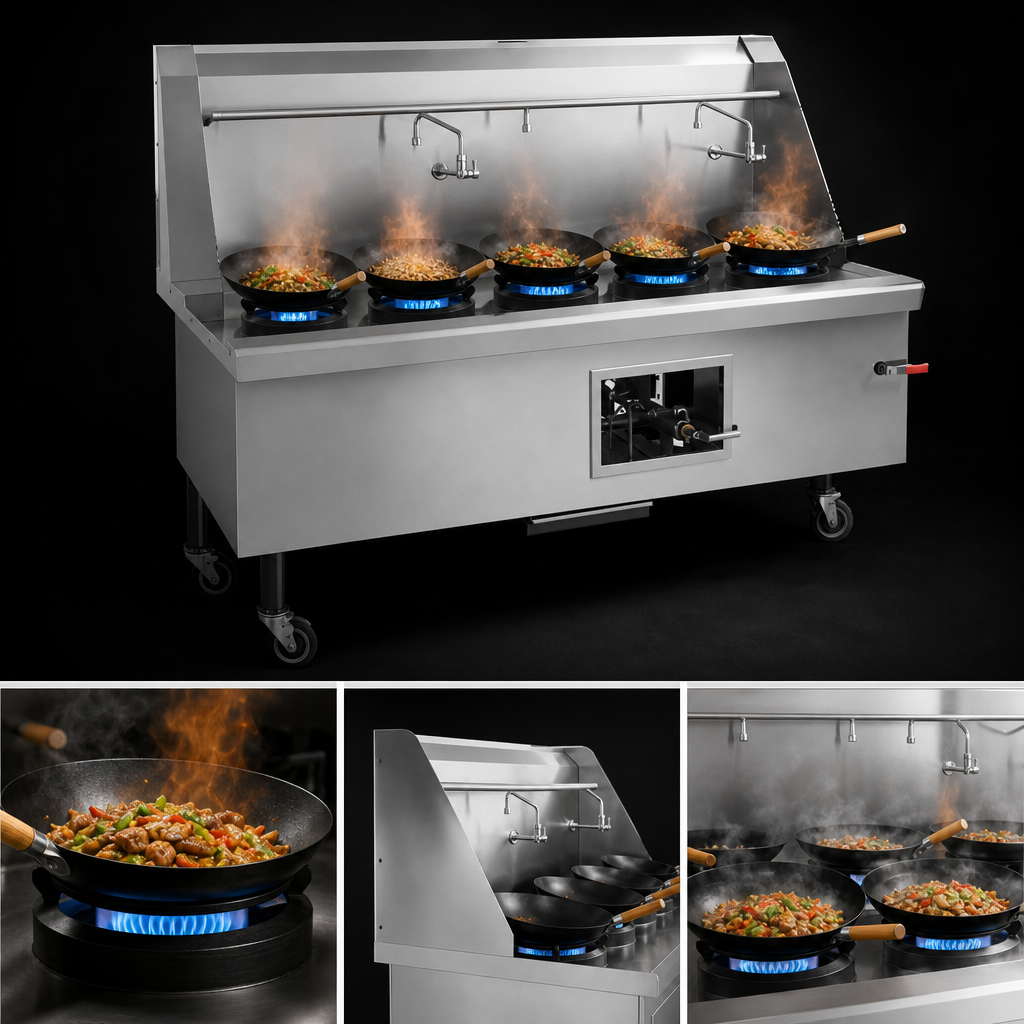

  • Choose jet or ring burners (18-, 23-, 32-tip or 3-ring) for each hole—continuous pilots provide instant ignition.
  • Knee-level “L” handles let chefs modulate flame without letting go of the wok.
  • Water-cooled top with built-in drain keeps the surface cool and flushes away food debris & grease.
  • Chinese swing faucet behind every wok hole for fast pot-filling and surface rinsing.
  • Rugged stainless steel front, 24" flue riser, backsplash, landing ledge & pipe rack for long-term durability.
  • 12-3/4" heavy-duty legs with adjustable feet make leveling on uneven floors simple.
  • cETLus & NSF listed; backed by a 1-year parts & labor warranty.

Technical specifications

Model ICRA-7
Overall width 194" / 4928 mm
Depth 41" / 1041 mm
Height to cooktop 33" / 838 mm
Number of wok holes 7 (13"–24" dia. options)
Burner choices 18-tip jet 125 k BTU • 23-tip jet 125 k BTU • 32-tip jet 160 k BTU • 3-ring 110 k BTU
Total BTU Up to 770,000 BTU/hr (natural or LP)
Gas connection 3/4" NPT, 5" W.C. NG / 10" W.C. LP
Water connection Swing faucet, 8" rough-in from floor/wall
Drain location Built-in; specify left rear, right rear or front
Construction All stainless steel exterior with welded seams
Certifications cETLus, NSF
Warranty 1 year parts & labor

Perfect for

  • High-volume Chinese, Thai, Vietnamese and fusion restaurants
  • Hotel, resort & casino production kitchens
  • Ghost kitchens specializing in wok or noodle concepts
Installation note: Unit must be installed on a non-combustible floor. Allow 0" clearance at rear and non-combustible sides, and 6" (152 mm) to combustible side walls. Specify gas inlet and drain outlet locations when ordering.

Need a different size? Imperial Chinese ranges are available with 1–8 burners and a full suite of accessories including casters, burner covers and sauce racks—ask for details.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

NSF, cETLus

Height

33.0in

Width

194.0in

Depth

41.0in

Shipping Weight

2000.0lbs

Controls

knee "L" lever

Depth (front - back)

41"

Burner Section Qty

(7)

Flue/Back-Splash Height

24"

Exterior Finish

all stainless steel exterior

Specifications

Wok Range, gas, 194", (7) burners, water cooled top, built-in drain system, Chinese swing faucet, knee "L" lever gas valve handle, 24"H flue riser, stainless steel front, landing ledge, backsplash, & pipe rack, 12-3/4" legs, adjustable feet, 770,000 BTU, cETLus, NSF
