Imperial (Middleby) ICRA-5 Wok Ranges
Description
Imperial ICRA-5 142" 5-Burner Water-Cooled Chinese Wok Range – 550,000 BTU
Heavy-duty power and precision for high-volume Asian cookingBuilt for demanding commercial kitchens, the Imperial ICRA-5 Chinese wok range delivers the speed, control and reliability chefs need to keep stir-fry service moving fast. Five powerful jet or ring burners, a water-cooled top and hands-free knee-level controls let you turn out consistent, authentic flavors shift after shift while keeping the work surface cool and easy to clean.
Key Features

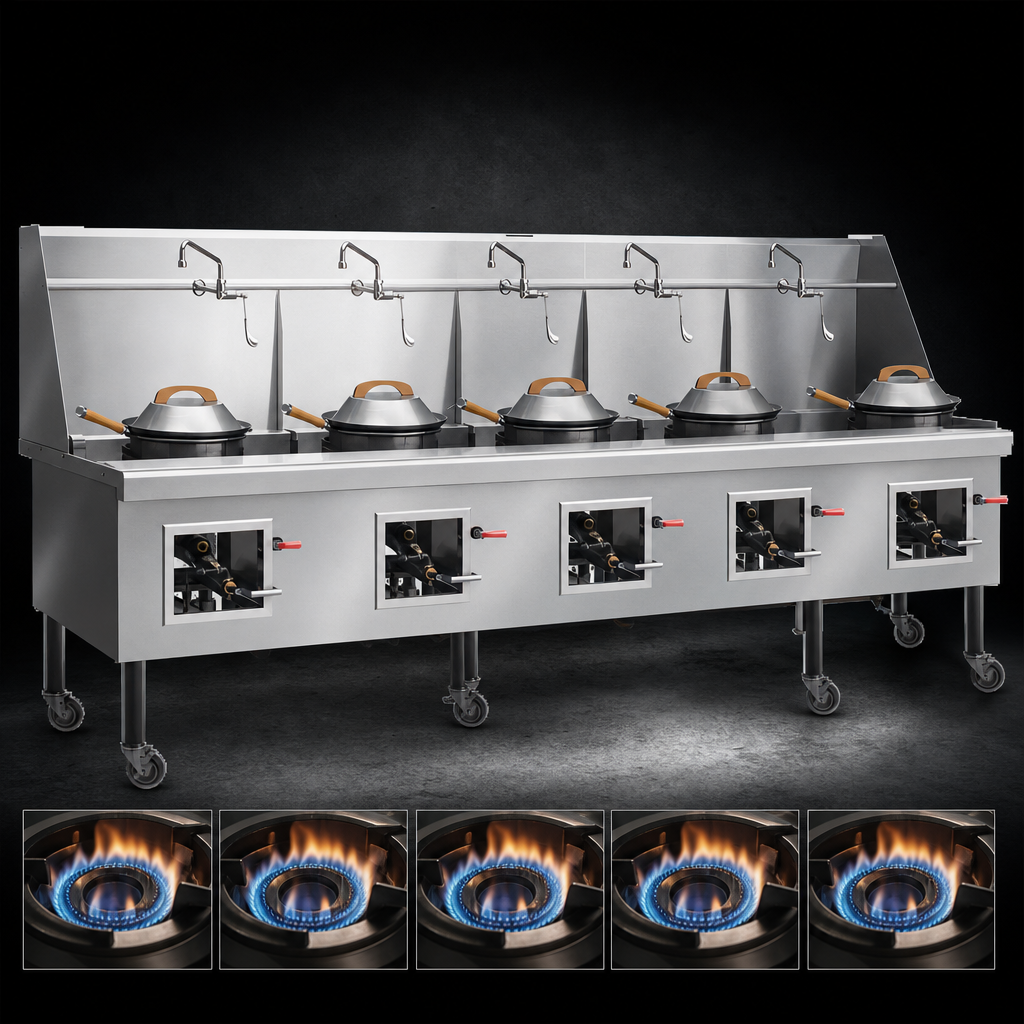

- Five high-output burners (jet or three-ring) for a combined 550,000 BTU/hr.
- Water-cooled cooktop with built-in drain system prevents overheating and simplifies cleanup.
- Manual Chinese swing faucet (services two wok holes) included; automatic faucets optional.
- Knee-level “L” gas valve handles for instant flame adjustment without lifting your hands from the wok.
- 24" flue riser, high backsplash and overhead pipe rack keep utensils and sauces within reach.
- 7" stainless steel landing ledge provides plating & staging space.
- Fully welded stainless steel front, sides, top and back for maximum durability and a professional finish.
- 12-3/4" heavy-duty legs with adjustable feet ensure level placement on any non-combustible floor.
- Continuous pilots on every burner for quick, reliable ignition.
- cETLus & NSF listed for safety and sanitation; 1-year parts & labor warranty included.
Specification Summary
| Manufacturer / Model | Imperial ICRA-5 |
|---|---|
| Range Type | Gas Chinese wok range, water-cooled top |
| Overall Width | 142" (3607 mm) |
| Overall Depth | 41" (1041 mm) |
| Height to Cooktop | 33" (838 mm) + 24" flue riser |
| Number of Burners | 5 (jet or three-ring style, field specified) |
| Total BTU Output | 550,000 BTU/hr (161 kW) |
| Gas Connection | 3/4" NPT (left or right rear, specify) |
| Manifold Pressure | Natural 5.0" W.C. / Propane 10.0" W.C. |
| Drain Connection | Rear, left or right (specify) |
| Legs | 12-3/4" stainless legs, adjustable feet |
| Ship Weight | Approx. 1,400 lb (634 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1 year parts & labor |
Ideal For
- High-volume Asian restaurants & banquet operations
- Hotel or casino production kitchens
- Food-court and ghost-kitchen concepts specializing in stir-fry or noodle bowls
- University & corporate dining programs
Need different wok hole diameters (13"–24"), automatic swing faucets, Hong Kong style rings or casters? Imperial offers extensive factory options—contact us for a custom quote today.
