Imperial ICRA-4 114" Gas Chinese Wok Range – 4 Burners / 500,000 BTU
Water-Cooled Top • Built-In Drain • Knee-Level ControlsEngineered for the demanding pace of professional Asian kitchens, the Imperial ICRA-4 combines searing heat with smart, labor-saving features that keep your line moving and your cooks comfortable.
Performance & Convenience

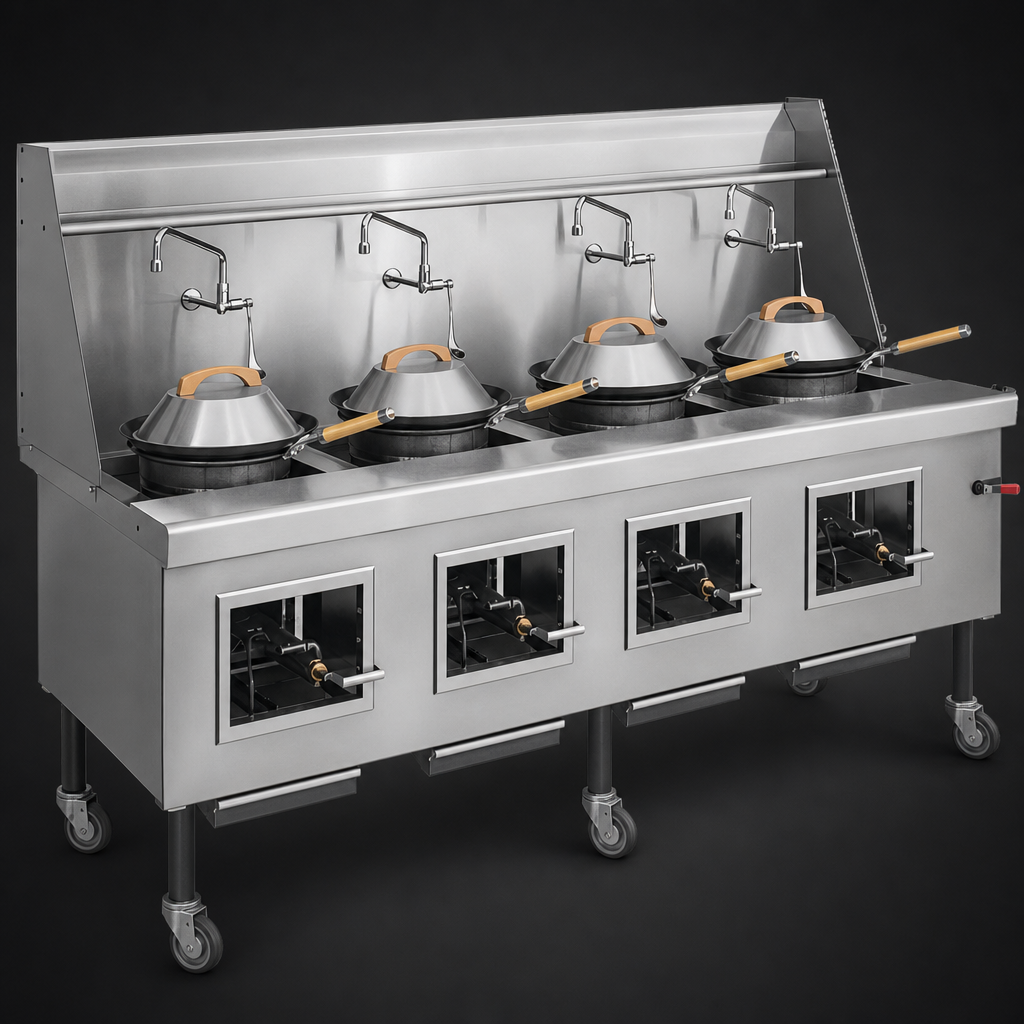

- Four high-output burners (jet or 3-ring) with continuous pilots – a powerful 500,000 BTU total.

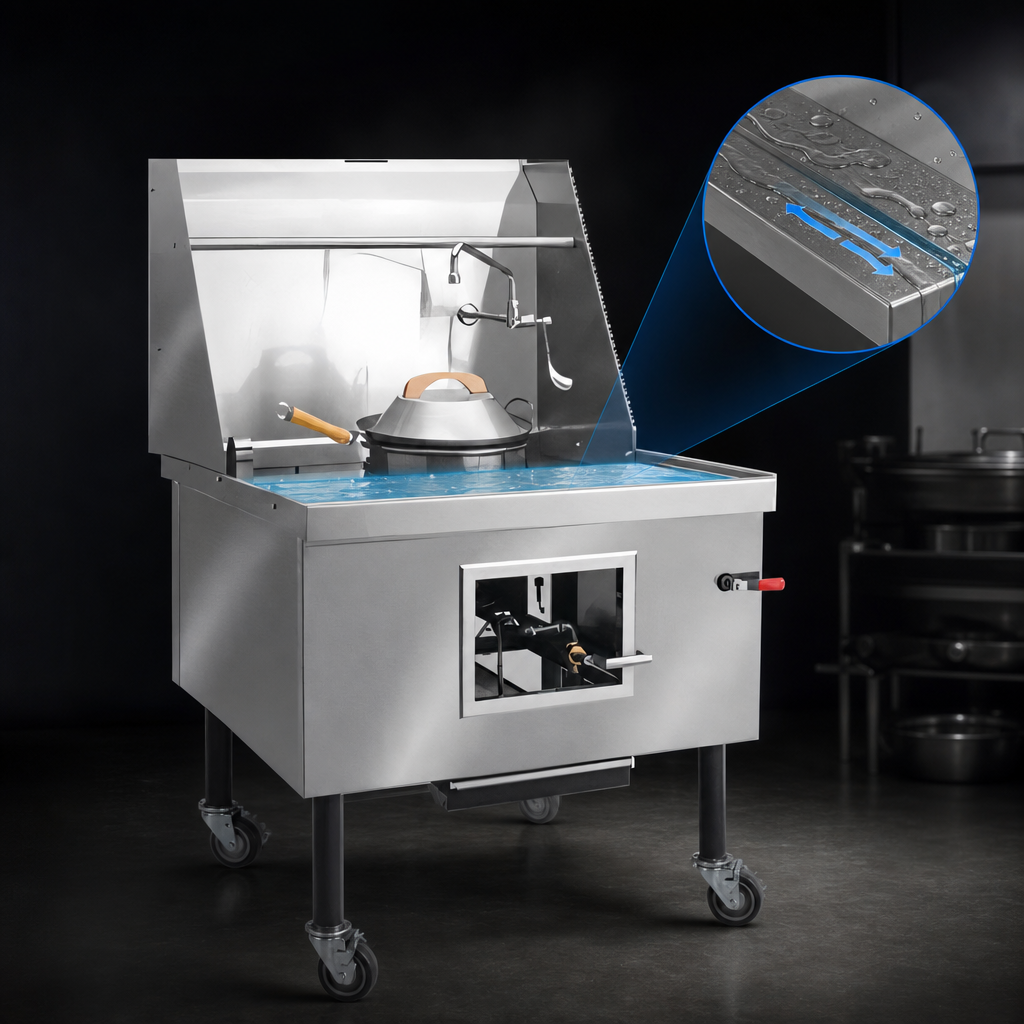

- Water-cooled top and integrated drain system help control deck temperature and extend equipment life.
- Manually-controlled Chinese swing faucet (services two wok holes) speeds pan cooling and clean-up.
- Ergonomic knee-level “L” lever gas valves keep the chef’s hands free for cooking.
- 24" flue riser with stainless steel backsplash and overhead pipe rack keeps utensils within reach.
- Large 7" stainless steel landing ledge provides extra space for plating and staging.
- All-stainless front, sides, ledge & backsplash with welded seams for a professional, easy-to-clean finish.
- 12-3/4" heavy-duty legs with adjustable feet for a rock-solid, level installation.
- Continuous pilots for instant ignition on every burner.
- Certified to cETLus gas safety and NSF sanitation standards.
Technical Specifications
| Model | ICRA-4 |
|---|---|
| Overall width | 114" (2896 mm) |
| Overall depth | 41" (1041 mm) |
| Height to cooktop | 33" (838 mm) |
| Flue riser height | 24" |
| Number of burners | 4 |
| Total BTU | 500,000 BTU/hr |
| Manifold pressure (Natural Gas) | 5.0" W.C. |
| Gas connection | 3/4" NPT (specify left or right rear) |
| Water connection | 3/8" NPT – built-in drain (specify drain outlet location) |
| Clearances | 0" rear & non-combustible sides • 6" combustible side walls |
| Ship weight | 1,055 lb (478 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor |
Perfect For
- High-volume Chinese, Thai & Pan-Asian restaurants
- Hotel & resort banquet kitchens
- Food courts, ghost kitchens and culinary schools
When ordering, please specify burner style, wok hole diameter, gas type, and desired locations for gas and drain connections.
Installation Notice: This appliance is for commercial use only and must be installed
on a non-combustible floor by qualified personnel in accordance with all local codes.
A water supply and drain are required for the water-cooled top.
$24,820.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial ICRA-4 gas wok range, 500,000 BTU, 4 burners, water-cooled top, built-in drain, stainless front, NSF/cETLus — durable high-volume cooking.
Manufacturer
Imperial (Middleby)
Certifications
NSF, cETLus
Height
33.0in
Width
114.0in
Depth
41.0in
Shipping Weight
1055.0lbs
Controls
knee "L" lever
Burner Section Qty
(4)
Exterior Finish
all stainless steel exterior
Flue/Back-Splash Height
24"
Depth (front - back)
41"
Specifications
Wok Range, gas, 114", (4) burners, water cooled top, built-in drain system, Chinese swing faucet, knee "L" lever gas valve handle, 24"H flue riser, stainless steel front, landing ledge, backsplash, & pipe rack, 12-3/4" legs, adjustable feet, 500,000 BTU, cETLus, NSF
