Imperial (Middleby) IABF-48 Steakhouse Gas Charbroilers
Description

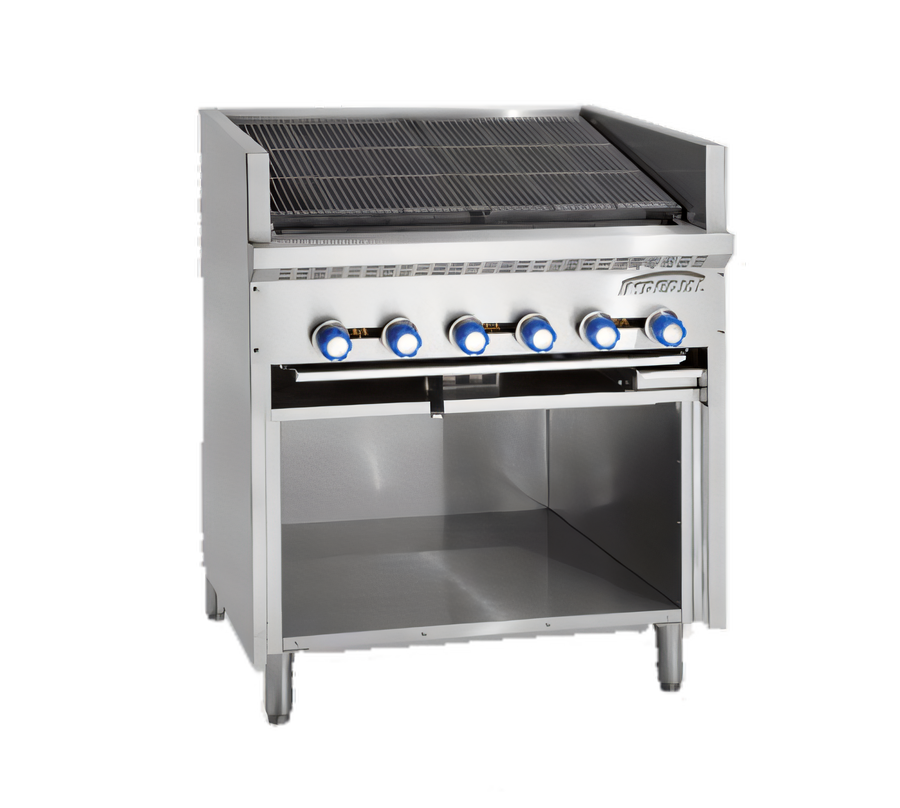

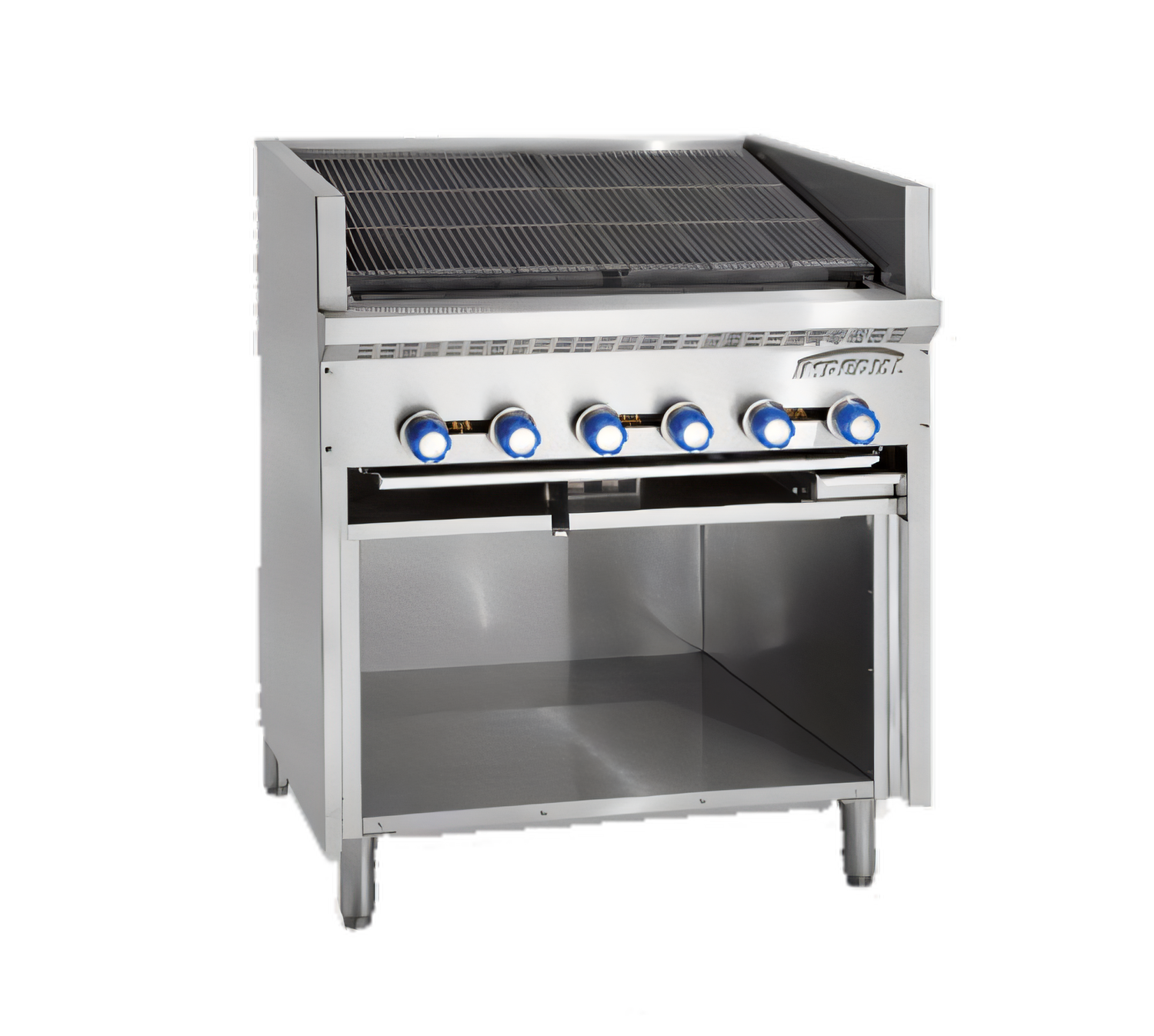

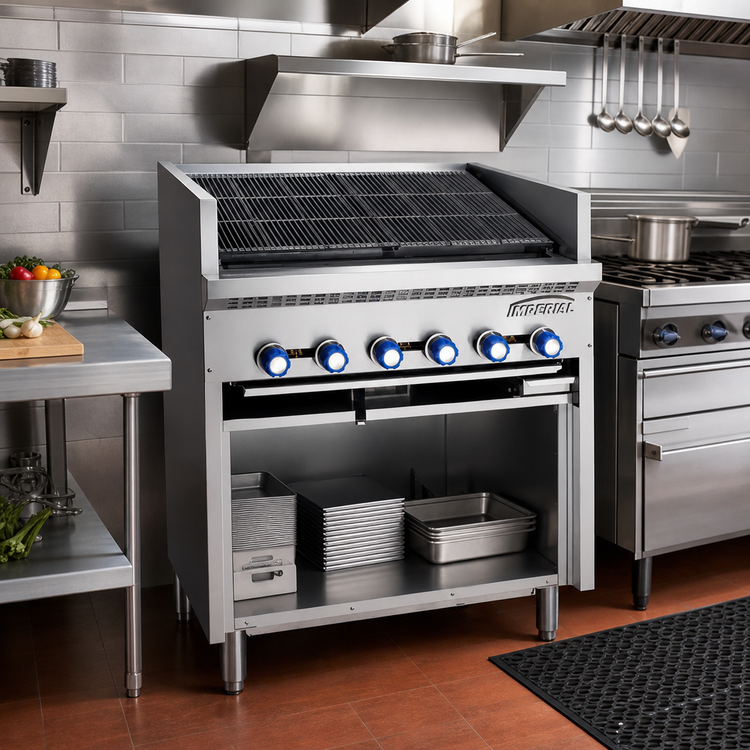

Imperial Steakhouse 48" Gas Charbroiler
Model IABFR-48 | 160,000 BTU • cETLus • NSFBuilt for high-volume steakhouses, hotels and busy casual dining, the Imperial Steakhouse 48" floor-model charbroiler delivers searing heat, signature grill marks and rock-solid reliability in a space-saving footprint.
Key performance benefits

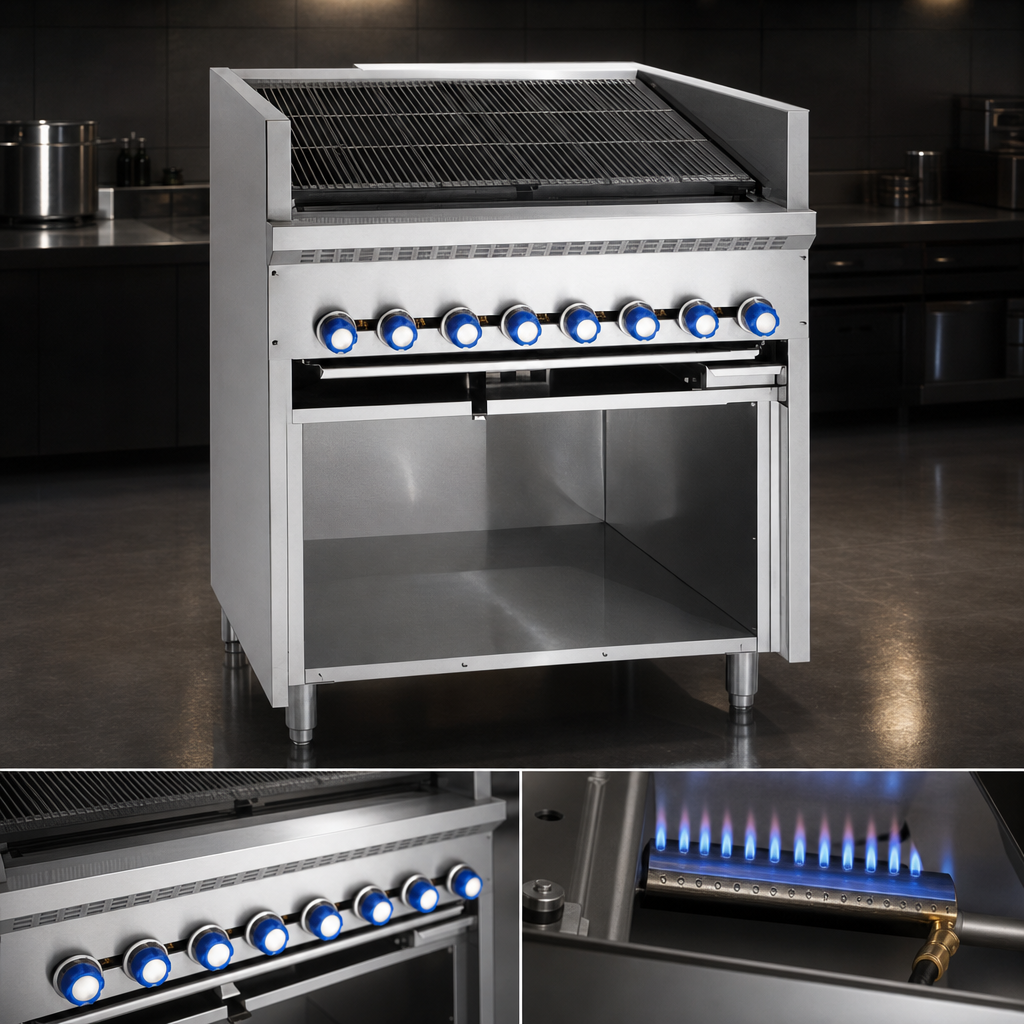

- 8 individually controlled stainless-steel burners (20,000 BTU each) spaced every 6" for precision zone control.
- Removable cast-iron radiants store and radiate intense, even heat while shielding burners from drips.
- Three-position, slanted 9-bar cast-iron grates create hot, medium and holding zones in one pass.
- Cast-in grease trough on every grate feeds a full-width front gutter to minimize flare-ups.
- Full stainless-steel exterior, open cabinet base and landing ledge stand up to the toughest kitchens and wipe clean fast.
- Tool-less removal of grates, radiants, burners and the 3"-wide grease can speeds end-of-shift cleanup.
- High-visibility, stay-cool Valox™ grip knobs make adjustments safe and simple.
- Completely insulated cooktop conserves energy and keeps side panels cooler to the touch.
Technical specifications
| Cooking width | 48" (1219 mm) |
|---|---|
| Number of burners | 8 × 20,000 BTU stainless-steel (independent control) |
| Total output | 160,000 BTU / 53 kW |
| Grates | Heavy-duty 9-bar cast iron, 3-position slanted |
| Radiants (standard) | Removable cast iron (optional stainless steel) |
| Grease management | Full-width gutter & 3" removable grease can (front-mount) |
| Exterior construction | Stainless steel front, sides, landing ledge & open cabinet base |
| Overall dimensions | 48" W × 28.5" D × 42" H (1219 × 724 × 1067 mm) |
| Gas inlet | 3/4" NPT (rear); 5.0" W.C. Natural | 10.0" W.C. LP |
| Certifications | cETLus, NSF |
| Warranty | 1 year parts & labor |
Popular options & accessories
- Stainless-steel radiants (in lieu of cast iron)
- Alternative grates: Fin-style, ½" round-rod or reversible dual grate
- Stainless-steel front shelf for extra plating space
- Sizzle-n-Chill self-contained refrigerated base
- ¾" manual gas shut-off valve & quick-disconnect hose kits
- 6" heavy-duty locking casters (replace standard legs)
Specifications are subject to change without notice. Dimensions should be verified for site planning. Installation must conform to local codes. Pictures may show optional accessories.
